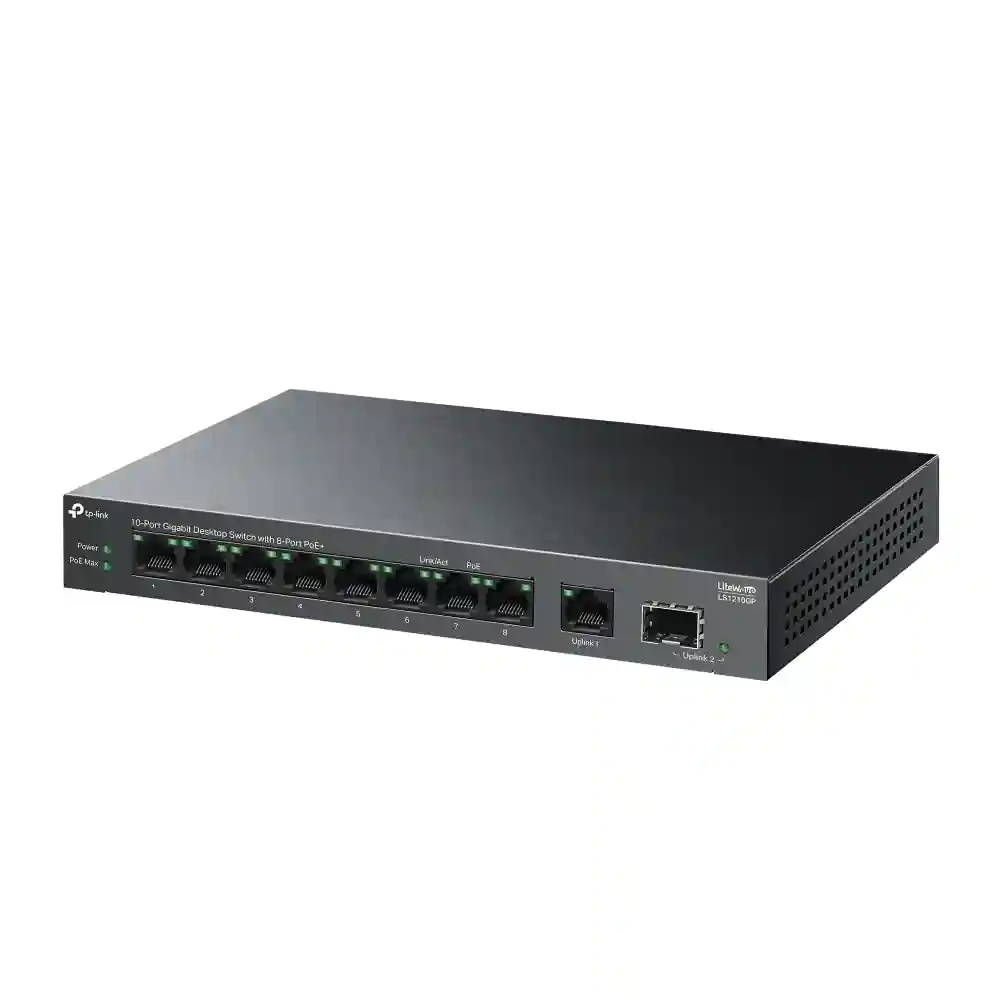

Omada 10-Port Gigabit Desktop Switch with 8-Port PoE+ LS1210GP
Member優惠價：$0
🚚 配送方式：
- • 香港本地訂單：購物滿HK$2,000, 免費送貨!
- • 澳門地區訂單：順豐到付 (運費由買家承擔)
🎧 如有技術或貨存查詢
WhatsApp 查詢Omada 10-Port Gigabit Desktop Switch with 8-Port PoE+ LS1210GP
LS1210GP 技術規格
| 連接介面 | • 9× 10/100/1000 Mbps RJ45 Ports (Ports 1–8 supports PoE+ output)• 1× Gigabit SFP Port |
|---|---|
| 網路連接線 | • 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m); EIA/TIA-568 100Ω STP (maximum 100m)• 100BASE-TX: UTP category 5, 5e cable (maximum 100m); EIA/TIA-568 100Ω STP (maximum 100m)• 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m); EIA/TIA-568 100Ω STP (maximum 100m) |
| 風扇數量 | Fanless |
| 安裝 | • Desktop• Wall Mounting |
| 物理安全鎖 | Yes |
| 電源供應 | External Power Adapter(Output: 53.5VDC / 1.31A) |
| PoE連接埠(RJ45) | • Standard: 802.3at/802.3af compliant• PoE Ports: Ports 1–8, up to 30 W PoE output per port• PoE Power Budget: 61W |
| 尺寸(長 x 寬 x 高) | 8.2×4.9×1.0 in (209×126×26 mm) |
| 最大功耗 | • 7.3 W (220/50Hz. no PD connected)• 76.96 W (220/50Hz. with 61 W PD connected) |
| 最大散熱量 | • 24.82 BTU/h (no PD connected)• 261.66 BTU/h (with 61 W PD connected) |
| 背板頻寬 | 20 Gbps |
| 封包轉發速率 | 14.88 Mpps |
| MAC位址表 | 4K |
| 巨型訊框 | 16 KB |
| 進階功能 | • Extend Mode Button (Ports 1–4, Up to 250 m PoE power supply and data transmission)• Isolation Mode Button (Ports 1–8)• PoE Auto Recovery Button (Ports 1–8)• Compatible With IEEE 802.3af/at Compliant PDs• IEEE802.3x Flow Control• 802.1p/DSCP QoS• IGMP Snooping• Green Technology |
| 傳輸模式 | Store-And-Forward |
| 認證 | CE, FCC, RoHS |
| 包裝內容 | • LS1210GP• Power Adapter• Installation Guide |
| 環境 | Operating Temperature: 0°C~40°C (32°F~104°F)Storage Temperature: -40°C~70°C (-40°F~158°F)Operating Humidity: 10% ~ 90% non-condensingStorage Humidity: 5%~90% non-condensing |
產品資源
| Brands | Omada |
|---|
