Omada 10-Port Gigabit Unmanaged Desktop Switch with 8-Port PoE+ DS110GMP
Member優惠價：$0
🚚 配送方式：
- • 香港本地訂單：購物滿HK$2,000, 免費送貨!
- • 澳門地區訂單：順豐到付 (運費由買家承擔)
🎧 如有技術或貨存查詢
WhatsApp 查詢Omada 10-Port Gigabit Unmanaged Desktop Switch with 8-Port PoE+ DS110GMP
DS110GMP 技術規格

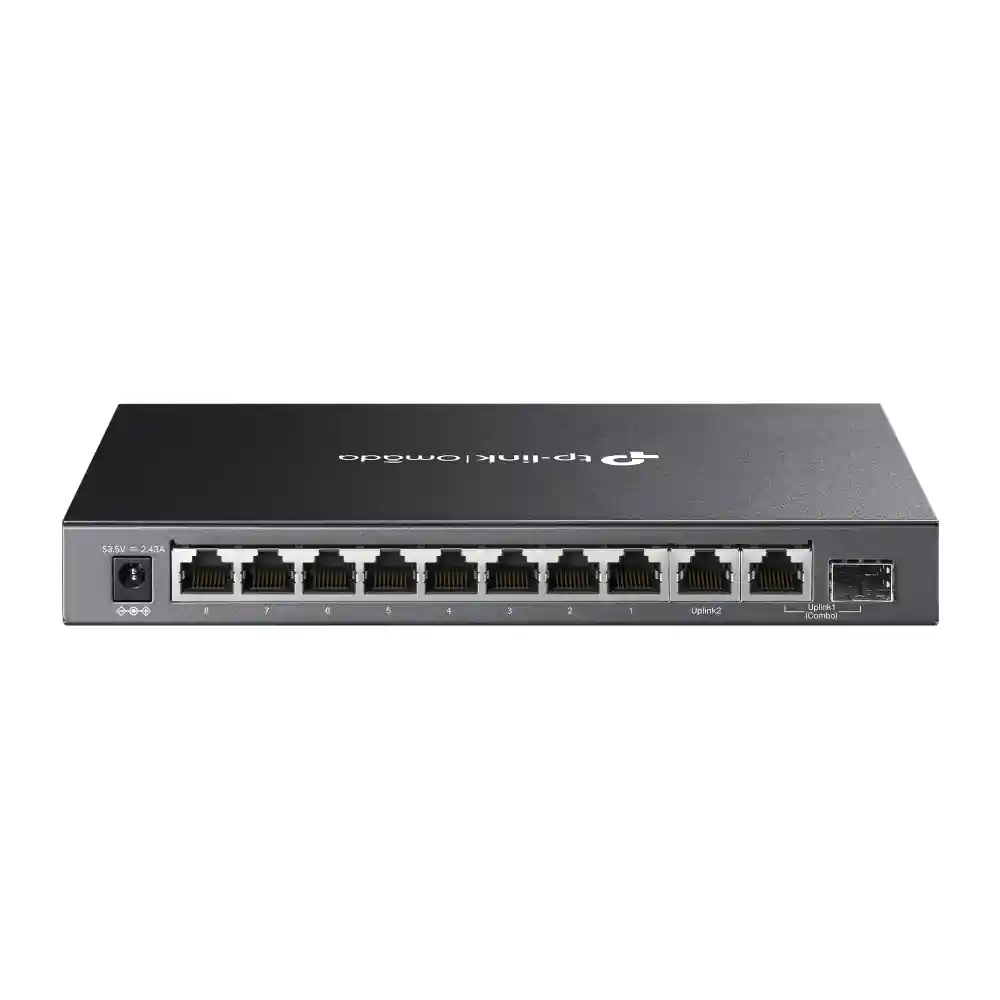

| 連接介面 | • 9× 10/100/1000 Mbps RJ45 Ports• 1× 1000 Mbps Combo SFP/RJ45 Port• AUTO Negotiation• AUTO MDI/MDIX |
|---|---|
| 網路連接線 | • 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)• EIA/TIA-568 100Ω STP (maximum 100m)• 100BASE-TX: UTP category 5, 5e cable (maximum 100m)• EIA/TIA-568 100Ω STP (maximum 100m)• 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)• EIA/TIA-568 100Ω STP (maximum 100m) |
| 風扇數量 | Fanless |
| 物理安全鎖 | Yes |
| 外接電源供應器 | External Power Adapter (Output: 53.5VDC / 2.43A) |
| 封包轉發速率 | 14.88 Mpps |
| PoE連接埠(RJ45) | • Standard: 802.3 af/at compliant• PoE Ports: Ports 1–8• Power Supply: 123 W |
| MAC位址表 | 4K |
| 巨型訊框 | 16 KB |
| 交換容量 | 20 Gbps |
| 尺寸(長 x 寬 x 高) | 8.2 × 4.9 × 1.0 in (209 × 126 × 26 mm) |
| 最大功耗 | • 7.93 W (220V / 50Hz with no PD connected)• 141.40 W (220V / 50Hz with 123 W PD connected) |
| 最大散熱量 | • 27.04 BTU/h (220V / 50Hz with no PD connected)• 482.17 BTU/h (220V / 50Hz with 123 W PD connected) |
| 進階功能 | • Compatible With IEEE 802.3af/at Compliant PDs• Extend Mode: Ports 1–4• Priority Mode: Ports 1–2• Isolation Mode: Ports 1–4/5-8• PoE Auto Recovery: Ports 1-8• Mac Address Auto-Learning and Auto-Aging• IEEE802.3x Flow Control for Full-Duplex Mode and Backpressure for Half-Duplex Mode |
| 傳輸模式 | Store-And-Forward |
| 認證 | FCC, CE, RoHS |
| 包裝內容 | • DS110GMP• Power Adapter• Installation Guide |
| 環境 | • Operating Temperature: 0–40 ℃ (32–104 ℉)• Storage Temperature: -40–70 ℃ (-40–158 ℉)• Operating Humidity: 10–90% RH non-condensing• Storage Humidity: 5–90% RH non-condensing |
產品資源
| Brands | Omada |
|---|
