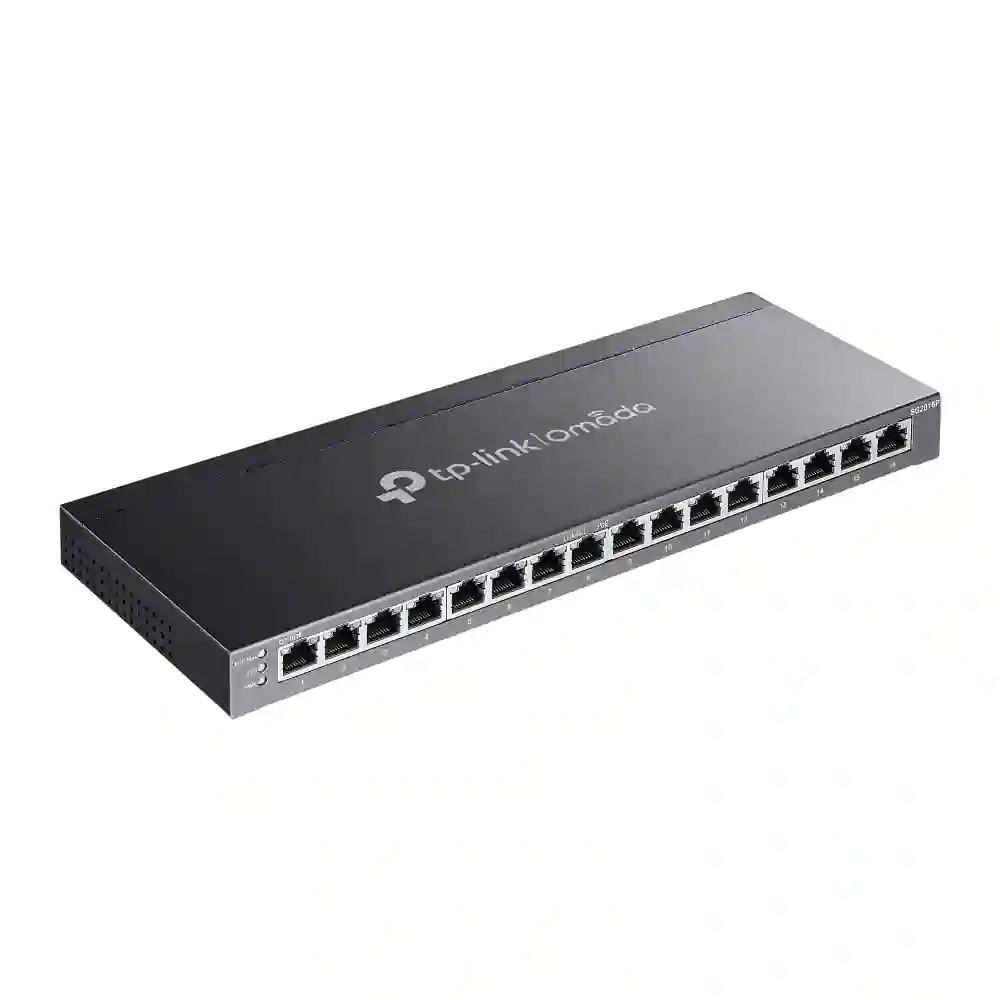

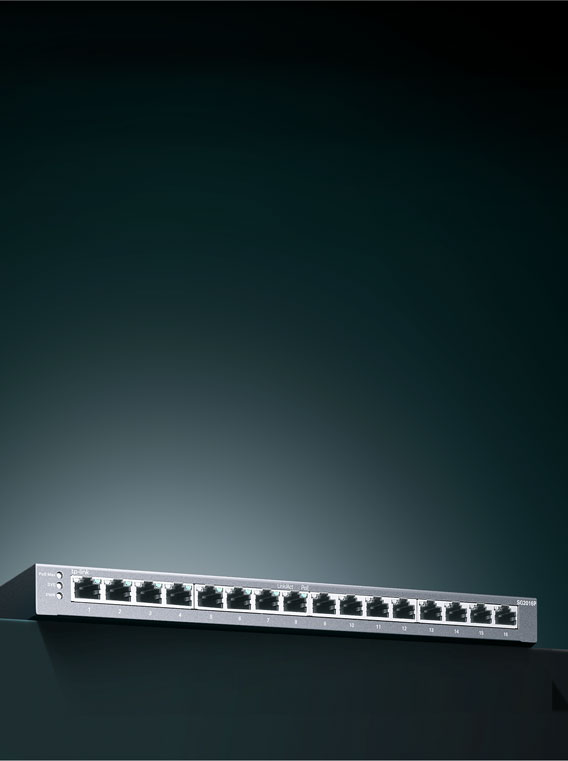

Omada 16-Port Gigabit Smart Switch with 8-Port PoE+ SG2016P
Member優惠價：$0
🚚 配送方式：
- • 香港本地訂單：購物滿HK$2,000, 免費送貨!
- • 澳門地區訂單：順豐到付 (運費由買家承擔)
🎧 如有技術或貨存查詢
WhatsApp 查詢Omada 16-Port Gigabit Smart Switch with 8-Port PoE+ SG2016P
多種應用場景
適用於網路攝影機 適用於 IP 電話 與AP配合使用 適用於非 PoE 設備，例如 PC 和印表機
SG2016P 技術規格
| 連接介面 | • 16× 10/100/1000 Mbps RJ45 Ports (Ports 1–8 Support 802.3at/af PoE+)• Auto-Negotiation/Auto MDI/MDIX |
|---|---|
| 風扇數量 | Fanless |
| 物理安全鎖 | √ |

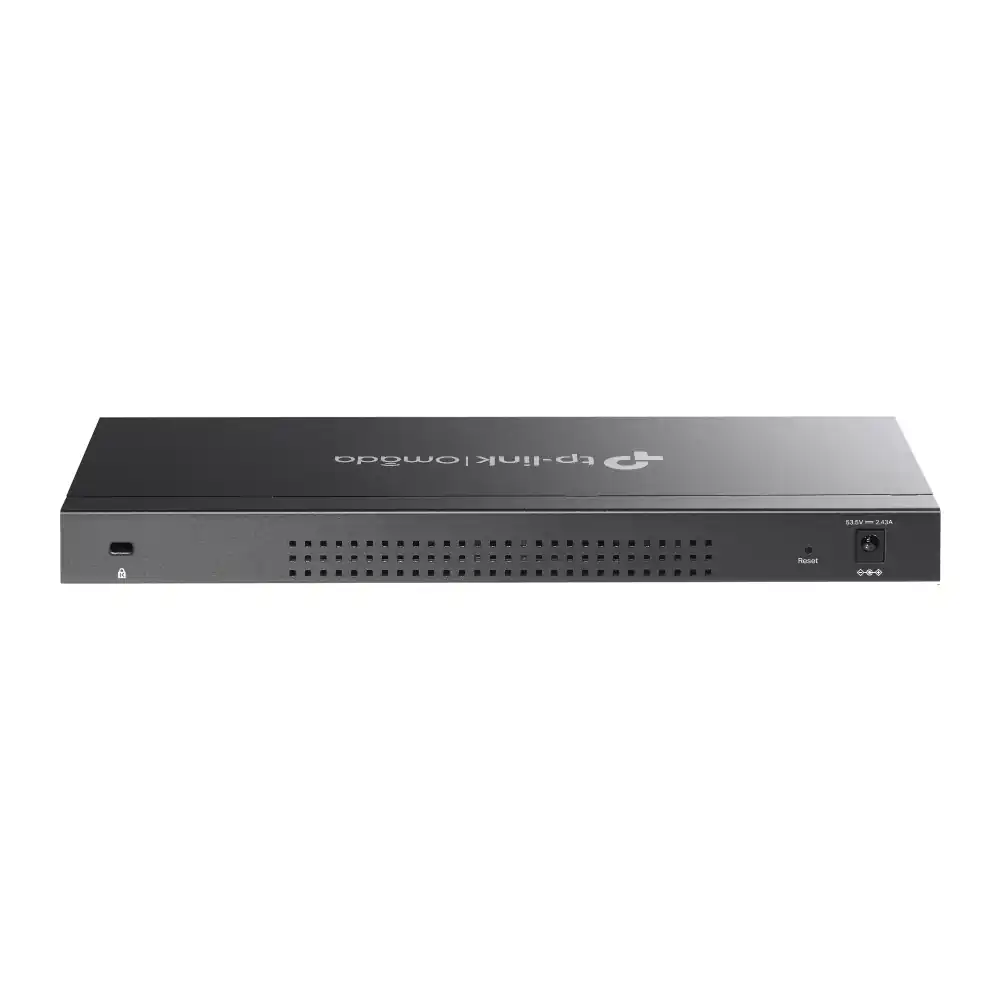

| 電源供應 | External Power Adapter (Output: 53.5 VDC/ 2.43 A) |
| PoE連接埠(RJ45) | • Standard: 802.3af/at compliant• PoE Ports: 8 Ports• Power Supply: 120 W* |
| 尺寸(長 x 寬 x 高) | 11.3×4.4×1.0 in (286×111.7×25.4 mm) |

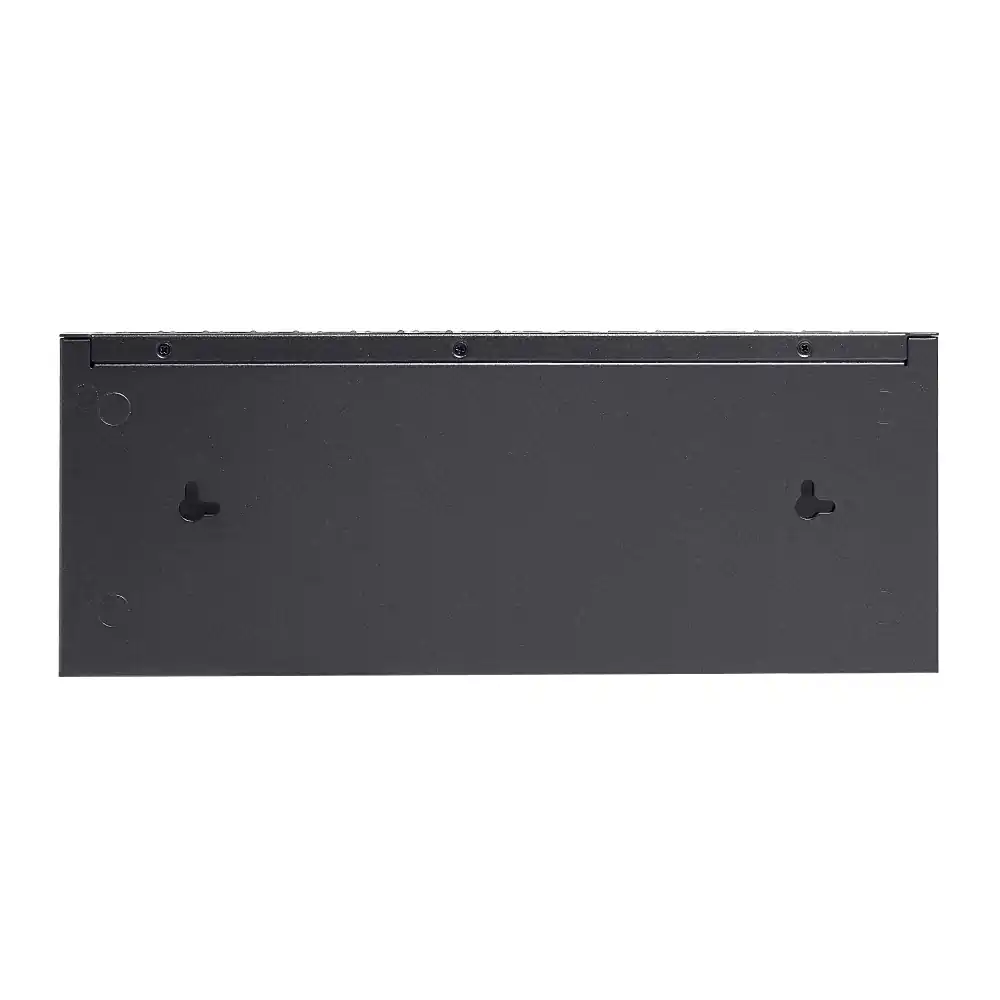

| 安裝 | Desktop/Wall-Mounting |
| 最大功耗 | 146.5 W (110 V/60 Hz) (with 120 W PD connected) |
| 最大散熱量 | 499.98 BTU/hr (110 V/60 Hz) (with 120 W PD connected) |
| 背板頻寬 | 32 Gbps |
| 封包轉發速率 | 23.81 Mpps |
| MAC位址表 | 8k |
| 封包緩衝記憶體 | 4.1 Mbit |
| 巨型訊框 | 9 KB |
| 流量管理(QoS) | • 802.1p CoS/DSCP priority• 8 priority queues• Priority Schedule Mode- SP (Strict Priority)- WRR (Weighted Round Robin)• Queue Weight Config• Bandwidth Control- Port/Flow-based Rating Limit• Smoother Performance• Storm Control- Multiple Control Modes(kbps/ratio)- Broadcast/Multicast/Unknown-Unicast Control |
| L2與L2+功能 | • 16 IP Interfaces: Support IPv4/IPv6 Interface• Static Routing: 32 IPv4/IPv6 Static Routes• DHCP Server• DHCP Relay- DHCP Interface Relay- DHCP VLAN Relay• DHCP L2 Relay• Static ARP• Proxy ARP• Gratuitous ARP• Link Aggregation• Spanning Tree Protocol• Loopback Detection• 802.3x Flow Control• Mirroring• Device Link Detect Protocol (DLDP)• 802.1ab LLDP/ LLDP-MED |
| L2 群播 | • 511 IPv4, IPv6 shared multicast groups• IGMP Snooping• Multicast VLAN Registration (MVR)• Multicast Filtering• Limited IP Multicast (256 profiles and 16 entries per profile) |
| 進階功能 | • Automatic Device Discovery†• Batch Configuration†• Batch Firmware Upgrading†• Intelligent Network Monitoring†• Abnormal Event Warnings†• Unified Configuration†• Reboot Schedule† |
| VLAN | • VLAN Group: Max. 4K VLAN Groups• 802.1Q tag VLAN• MAC VLAN: 12 Entries• Protocol VLAN• GVRP• Voice VLAN |
| 存取控制列表(ACL) | • Support up to 230 entries• Time-based ACL• MAC ACL• IP ACL• IPv6 ACL• Combined ACL• Rule Operation: Permit/Deny• Policy Action- Mirroring- Redirect- Rate Limit- QoS Remark• ACL Rules Binding- Port Binding- VLAN Binding |
| 安全性 | • IP-MAC-Port Binding• AAA• 802.1X- Port-based authentication- MAC (Host) based authentication- Authentication Method includes PAP/EAP-MD5- MAB- Guest VLAN- Support Radius authentication and accountability• IP/IPv6-MAC Binding- 512 Binding Entries- DHCP Snooping- DHCPv6 Snooping- ARP Inspection- ND Detection• IP Source Guard- 253 Entries- Source IP+Source MAC• IPv6 Source Guard- 183 Entries- Source IPv6 Address+Source MAC• DoS Defend• Static/Dynamic/Permanent Port Security- Up to 64 MAC addresses per port• Broadcast/Multicast/Unicast Storm Control- kbps/ratio control mode• Port Isolation• Secure web management through HTTPS with SSLv3/TLS 1.2• Secure Command Line Interface (CLI) management with SSHv1/SSHv2• IP/Port/MAC-based access control |
| IPv6 | • IPv6 Static Routing and ACL• IPv6 Dual IPv4/IPv6• IPv6 Interface• Multicast Listener Discovery (MLD) Snooping• IPv6 neighbor discovery (ND)• Path maximum transmission unit (MTU) discovery• Internet Control Message Protocol (ICMP) version 6• TCPv6/UDPv6• IPv6 applications- DHCPv6 Client- Ping6- Tracert6- Telnet(v6)- IPv6 SNMP- IPv6 SSH- IPv6 SSL- Http/Https- IPv6 TFTP |
| MIBs | • MIB II (RFC1213)• Bridge MIB (RFC1493)• P/Q-Bridge MIB (RFC2674)• Radius Accounting Client MIB (RFC2620)• Radius Authentication Client MIB (RFC2618)• Remote Ping, Traceroute MIB (RFC2925)• Support TP-Link private MIBs• RMON MIB(RFC1757, rmon 1,2,3,9) |
| Omada App | Yes. Requiring the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller. |
| 集中化管理 | • Omada Cloud-Based Controller• Omada Hardware Controller• Omada Software Controller |
| 雲端存取 | Yes. Requiring the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller. |
| 零接觸監管 | Yes. Requiring the use of Omada Cloud-Based Controller |
| 管理功能 | • Web-based GUI• Command Line Interface (CLI) through telnet• SNMPv1/v2c/v3• SNMP Trap/Inform• RMON (1,2,3,9 groups)• SDM Template• DHCP/BOOTP Client• Dual Image, Dual Configuration• CPU Monitoring• Cable Diagnostics• EEE• SNTP• System Log |
| 認證 | CE, FCC, RoHS |
| 包裝內容 | • SG2016P• Power Adapter• Installation Guide• Rubber Feet |
| 系統需求 | Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7/8/10/11, MAC® OS, NetWare®, UNIX® or Linux. |
| 環境 | • Operating Temperature: 0–40 ℃ (32–104 ℉);• Storage Temperature: -40–70 ℃ (-40–158 ℉)• Operating Humidity: 10–90% RH non-condensing• Storage Humidity: 5–90% RH non-condensing |
