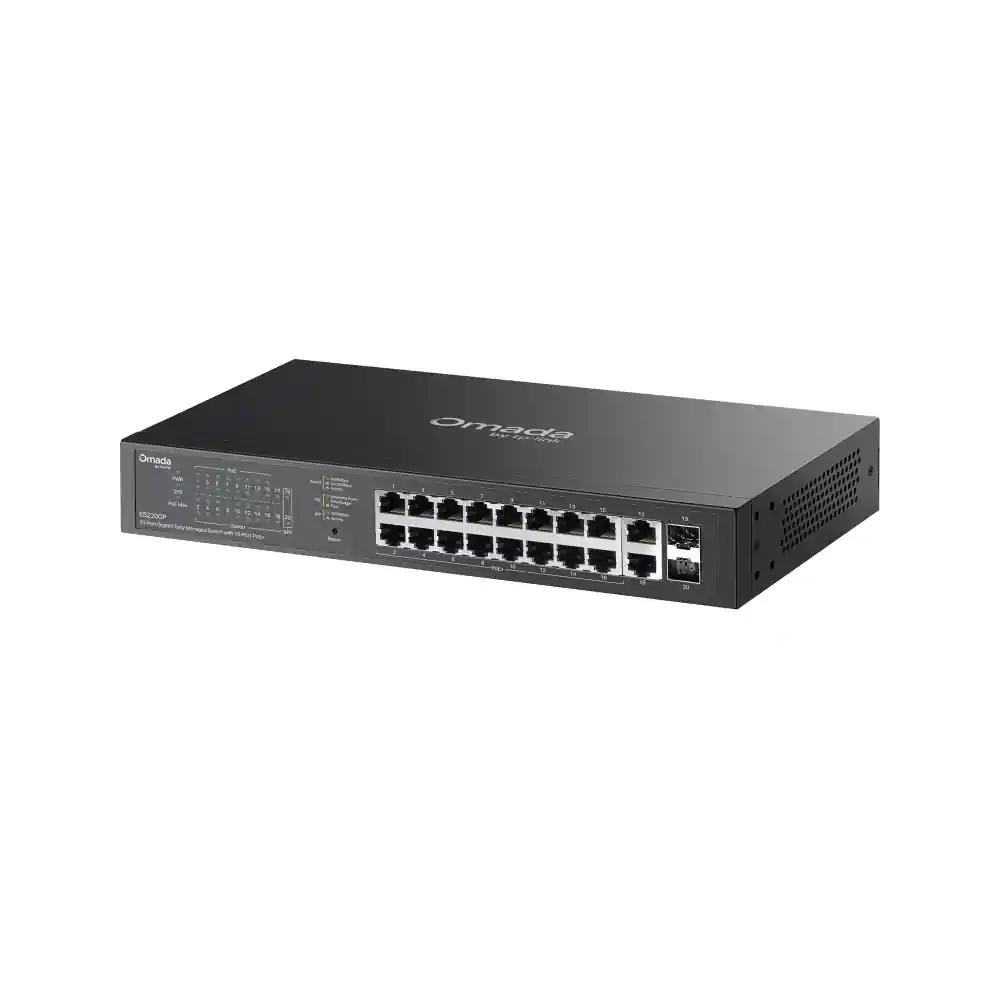

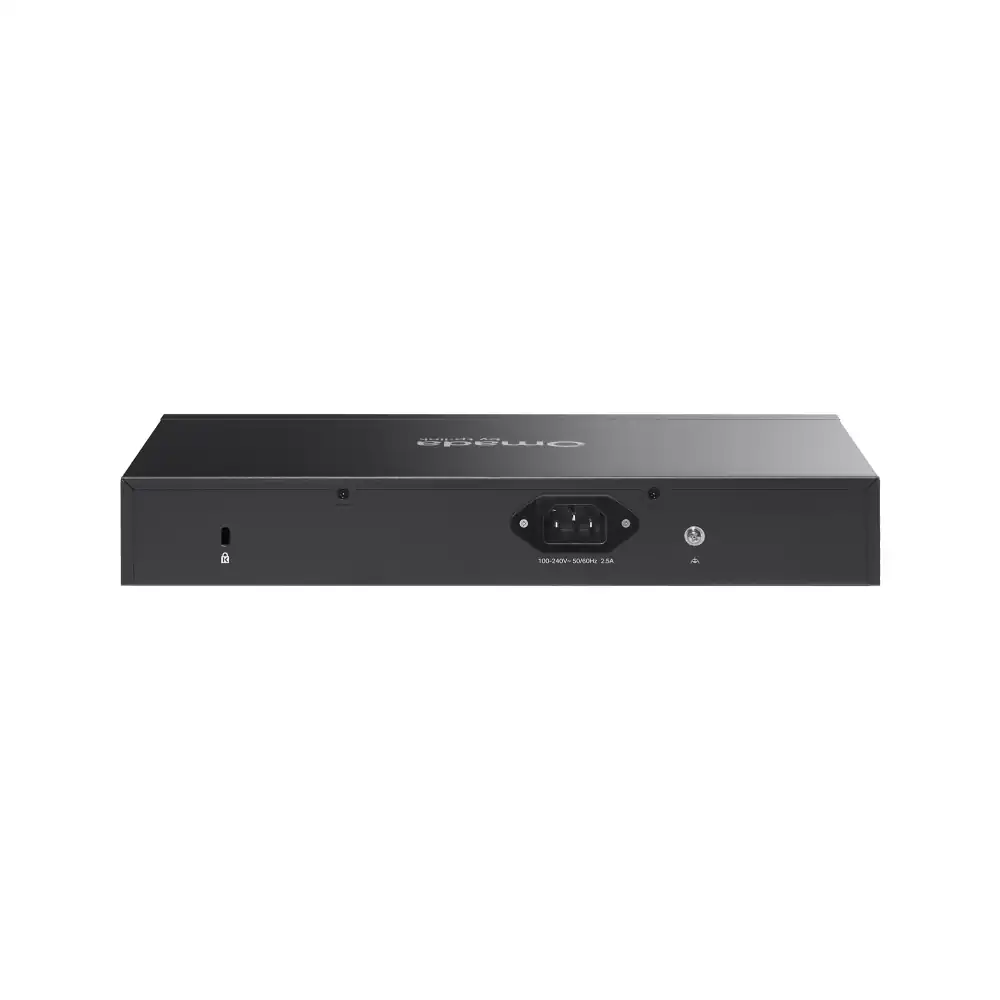

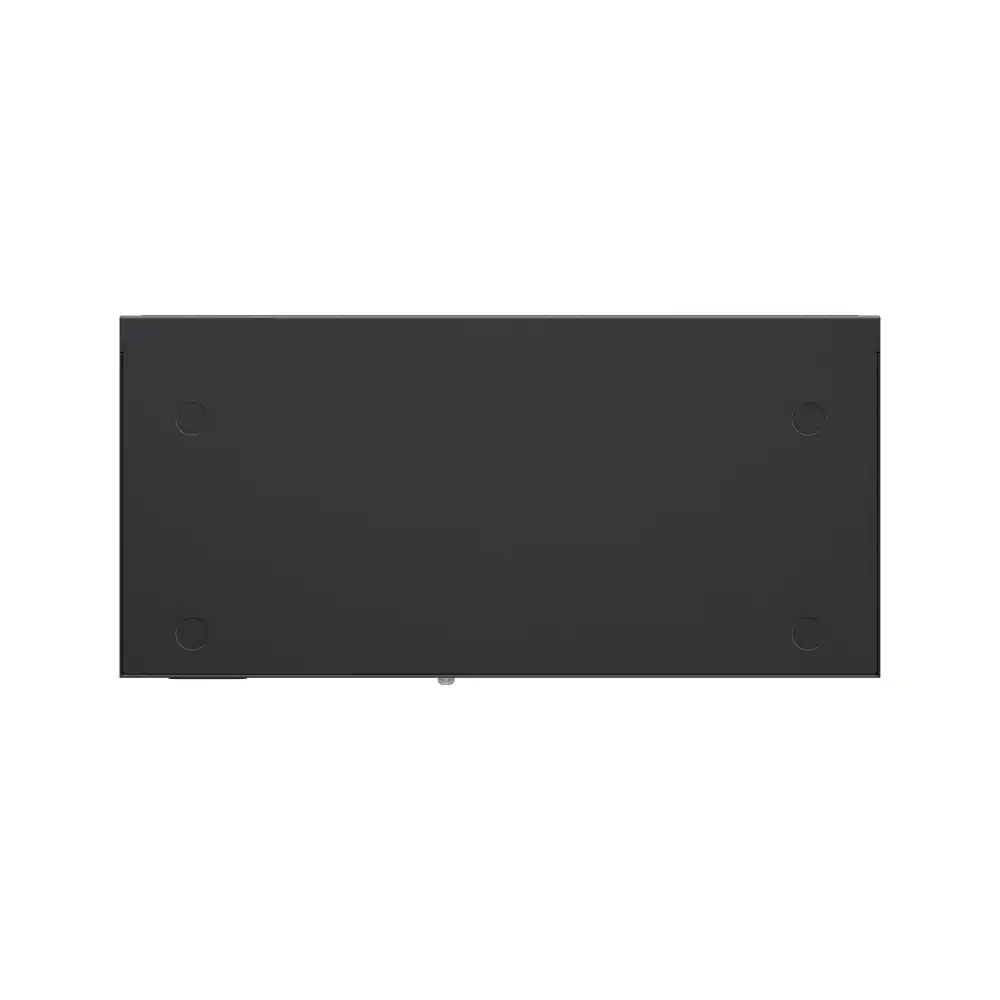

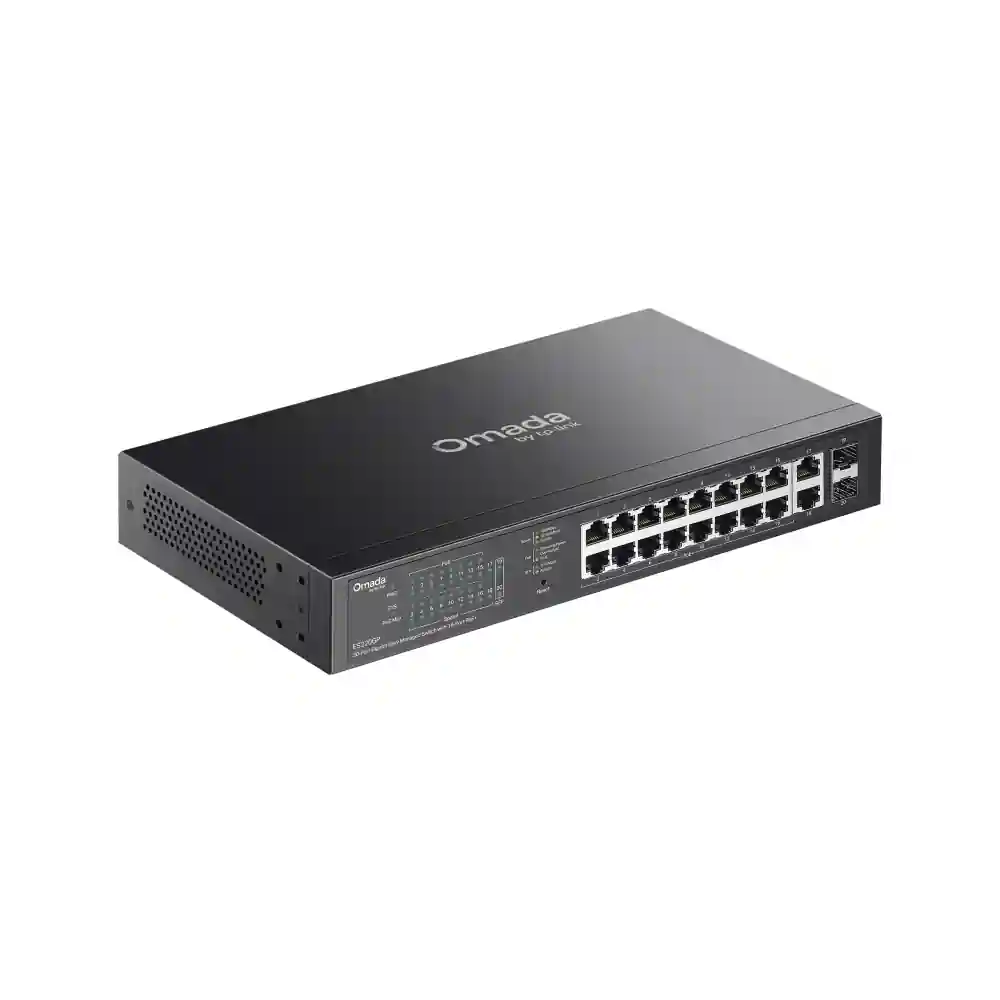

Omada 20-Port Gigabit Easy Managed Switch with 16-Port PoE+ ES220GP

Omada 20-Port Gigabit Easy Managed Switch with 16-Port PoE+ ES220GP

Omada 20-Port GigabitEasy ManagedSwitchSwitch with 16-Port PoE+

ES220GP

20× Gigabit Ports(16× PoE+, 2× RJ45,2× SFP) 150W Total PoEBudget* Up to 250m PoE Transmission** Easy Centralized Management† Automatic Loop Prevention PoE AutoRecovery‡ TrafficSeparation TrafficPrioritization

Omada Central Essentials — A Free and Easy Cloud-Based Network Management

Omada Central Essentials is a free, easy-to-use version of the Omada Central.It provides cloud-based centralized management and monitoring for the Omada networking system, covering access points, switches, and gateways, ideal for surveillance networks and small businesses. Lifetime FreeCloud WithoutAdditional Fees Manage andMonitor Anytimevia App or Web UnlimitedManagement Scalefor Multiple Sites ComprehensiveManagedPortfolio Super-Easy Setupwith AutomaticDevice Identificationand ZTP Easy-to-UseNetworking for Surveillance Including Remote CameraReboot Free VideoMonitoring IncludingThird-Party Camera Management△ Topology, Site Map,and Troubleshooting Tools for Efficient Maintenance

Abundant Functions for Reliable Surveillance Networking

Transmission Distance up to 820ft (250 m)** Priority Video
Quality Guaranteed Secure Traffic Separation via Port Isolation Remote CameraReboot†

Multiple Application Scenarios

Surveillance Works with IP Cameras Wi-Fi Coverage Works with Access Points Wired Connections Works with Non-PoE Devices such as PCs and Printers

ES220GP 技術規格

連接介面	• 18× 10/100/1000 Mbps RJ45 ports• 2× Gigabit SFP slots
風扇數量	Fanless
安裝	Desktop/Rackmount Installation
物理安全鎖	√
電源供應	100-240V~ 50/60Hz 2.5A
PoE連接埠(RJ45)	• Standard: IEEE 802.3: Ethernet Media Access Control (MAC) Protocol;IEEE 802.3i:10BASE-T Ethernet; IEEE 802.3u:100BASE-X Fast Ethernet; IEEE 802.3ab:1000BASE-T Gigabit Ethernet;IEEE 802.3z: 1000BASE-X Gigabit Ethernet (Optical ffber);IEEE 802.3x: Flow ControlIEEE 802.1p: Trafffc Class Expediting and Dynamic Multicast FilteringIEEE 802.1q: Virtual Bridged Local Area NetworksIEEE 802.1ab: Station and Media Access Control Connectivity Discovery (LLDP)• PoE Ports: 16 Ports• PoE Budget: 150W available for all PoE+ ports, 30W max per port
尺寸(長 x 寬 x 高)	11.6×7.1×1.7 in (294×180×44 mm)
突波保護	Ethernet port: ±6 kV in common modePower port: ±4 kV in differential mode; ±4 kV in common mode
背板頻寬	40 Gbps
封包轉發速率	29.76 Mpps
MAC位址表	8K
封包緩衝記憶體	4 Mbit
巨型訊框	15 KB
流量管理(QoS)	• Port-based/802.1p/DSCP QoS• 8 Priority Queues• Priority Schedule Mode- WRR (Weighted Round Robin)• Queue Weight Config• Bandwidth Control- Port-Based Rating Limit• Storm Control- Multiple Control Modes (kbps/pps)- Broadcast/Multicast/Unknown-Unicast Control△
L2功能	• Link Aggregation- Static Link Aggregation- Up to 4 aggregation groups and up to 8 ports per group• Loopback Detection• Flow Control- 802.3x Flow Control• Mirroring- Port Mirroring- One-to-One- Many-to-One- Ingress/Egress/Both• Port Statistics- Port Mirror Status- Trafffc Statistics• 802.1ab LLDP
L2 群播	• IGMP Snooping- IGMP v1/v2/v3 Snooping- Fast Leave
VLAN	• MTU VLAN• Port-Based VLAN• 802.1Q Tag VLAN- Max 32 VLAN Groups- 4K VID
傳輸模式	Store-And-Forward
Omada App	Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
集中化管理	• Omada Cloud-Based Controller• Omada Hardware Controller• Omada Software Controller
雲端存取	Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
零接觸監管	Yes. Requires the use of Omada Cloud-Based Controller
管理功能	• Web-based GUI• DHCP Client• Cable Diagnostics
認證	FCC, CE, RoHS
包裝內容	• ES220GP• Power Cord• Mounting Brackets• Rubber Feet• Screws• Installation Guide
環境	• Operating Temperature: -5 °C to 40 °C (23 °F to 104 °F)• Storage Temperature: -40℃~70℃ (-40℉~158℉)• Operating Humidity: 10%~90% non-condensing• Storage Humidity: 5%~90% non-condensing
