Omada 300Mbps Wireless N Outdoor Access Point EAP113-OUTDOOR
🚚 配送方式：
- • 香港本地訂單：購物滿HK$2,000, 免費送貨!
- • 澳門地區訂單：順豐到付 (運費由買家承擔)
🎧 如有技術或貨存查詢
WhatsApp 查詢Omada 300Mbps Wireless N Outdoor Access Point EAP113-OUTDOOR
Superior Wi-Fi Coverage for Outdoor Environments
EAP113-Outdoor Learn more about Outdoor WiFi >>

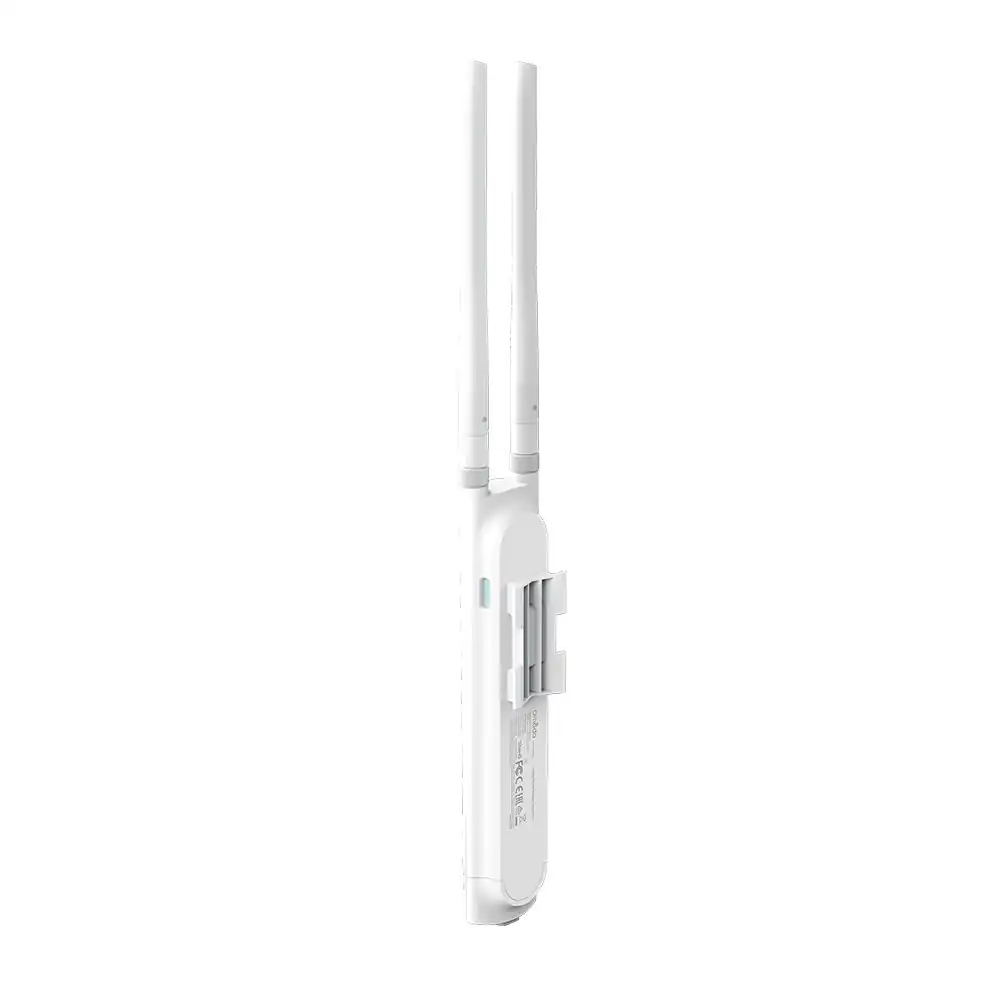

Excellent Hardware Designs

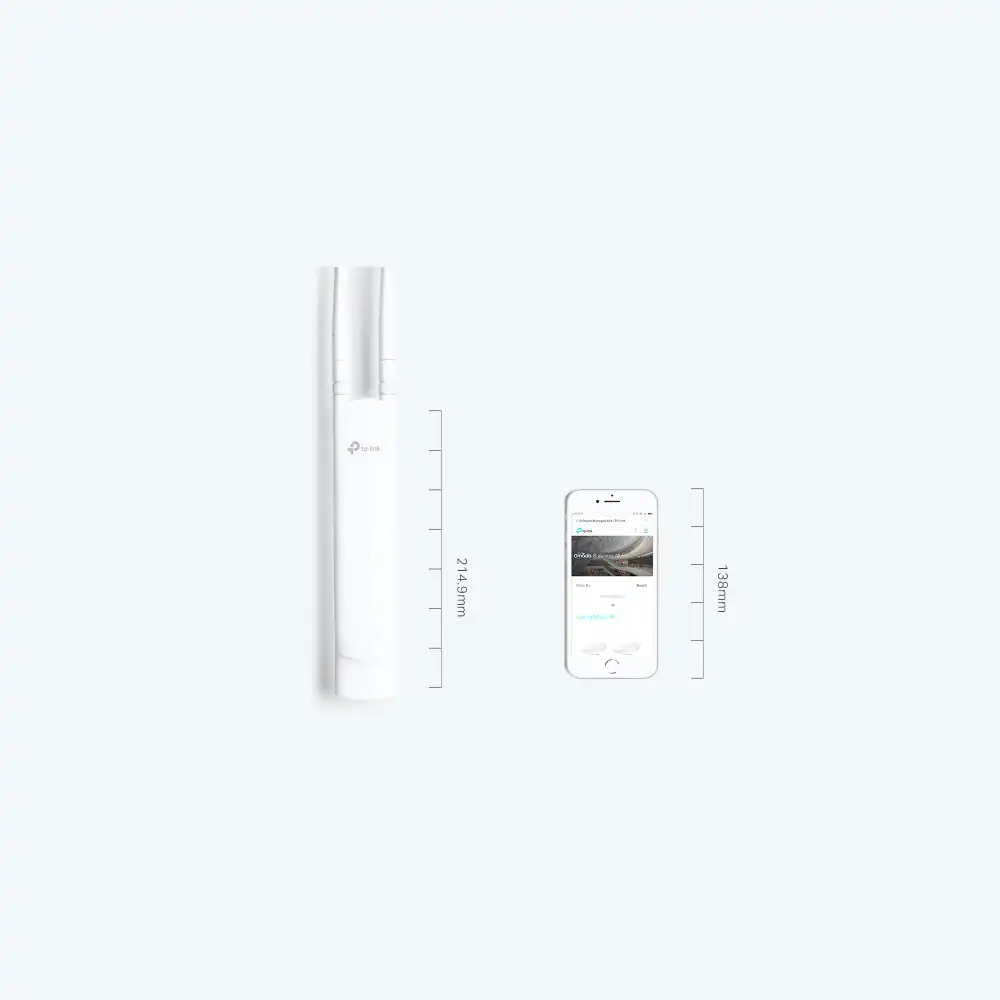

With the special design of its antenna, appearance, power options and installation methods, EAP113-Outdoor can perfectly fit for different scenarios both indoors and outdoors. EAP113-Outdoor is designed with 2Omni-directionaldetachable antennas, which means other antennas can also be attached for your specific demands. EAP113-Outdoor is just similar to a cellphone, with dimension: 8.5 × 1.8 × 1.5 in (214.9 × 46 × 37.7 mm) EAP113-Outdoor supports both 802.3af PoE and 48V Passive PoE power supply, can be either powered by a PoE switch or a PoE adapter. EAP113-Outdoor can be easily installed to a pole or on a wall with the mounting kits provided.
Wi-Fi That Goes the Distance
With high transmission power and two high-gain omnidirectional antennas,EAP113-Outdoor provides stable wireless coverage at a range of up to 200 meters* in outdoor settings. *Based on field tests. The Real transmission range may vary, according to the environment, receiving the device, etc.
Specially Designed Weatherproof Enclosure forOutdoor Environment
Rated as IP65 during Ingress Protection testing, a resilient weatherproof enclosure protects the access points against the harsh outdoor condition.§ Lightning Protection and ESD Protection No Ingress of Dust Waterproof Enclosure
Seamless Integrated into Omada SDN Platform
The Omada Software Defined Networking (SDN) platform integrates network devices including access points, switches, and routers to provide 100% centralized cloud management and create a highly scalable network—all controlled from a single interface. Learn more about Omada SDN >> Wi-Fi 6 AP for High-Density Environments Ceiling Mount AP Wall Plate AP Outdoor AP JetStream PoE Switch Omada Hardware Controller Or Omada Software Controller Web Browser Omada App Cloud Access Internet Omada VPN Router
Easy Management with the Omada App
Follow configuration instructions on the free Omada app to get set up in minutes. Omada lets you configure settings, monitor the network status and manage clients, all from the convenience of a smart phone or tablet. Click here to see Omada App compatible devices>
EAP113-OUTDOOR 技術規格

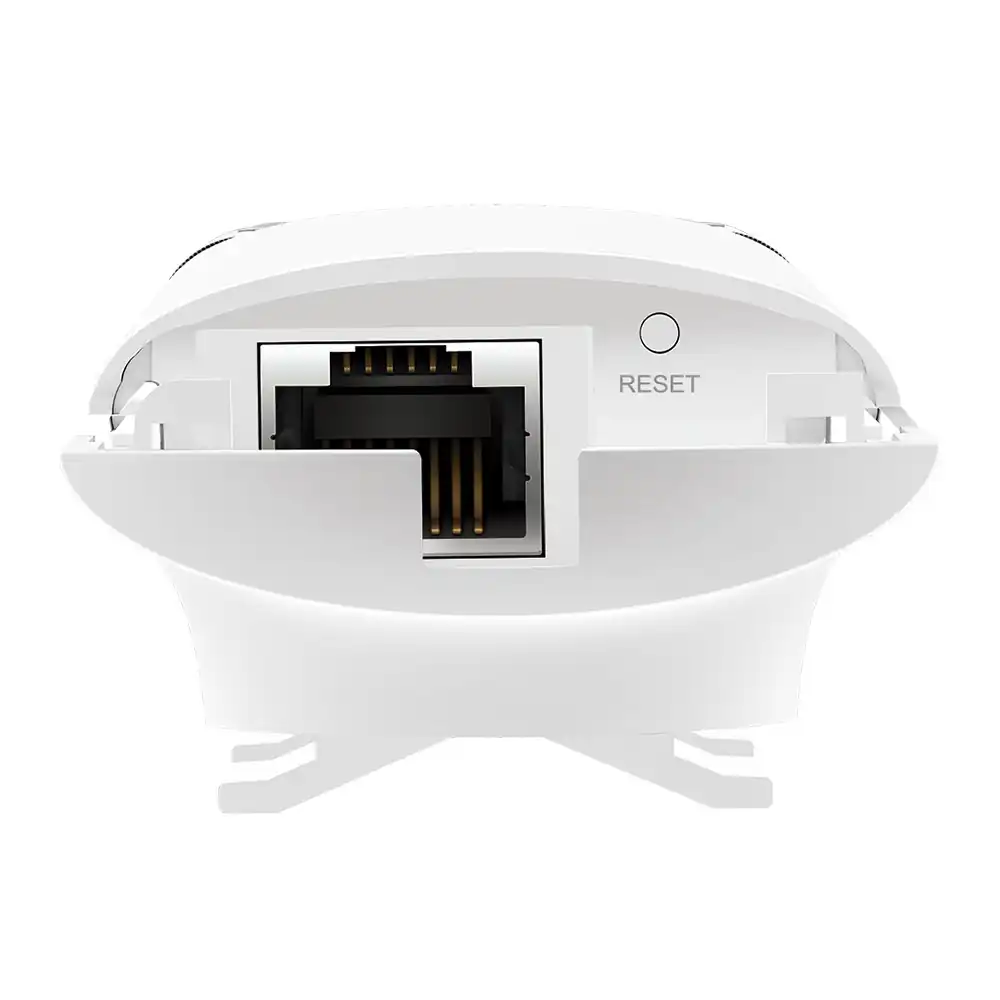

| 連接介面 | 1× Fast Ethernet (RJ-45) Port (Support 48V Passive PoE/802.3af PoE) |
|---|---|
| 按鈕 | Reset |
| 電源供應 | 48V Passive PoE (+4,5pins; -7,8pins);802.3af PoE |
| 功耗 | 4.11 W |
| 尺寸(長 x 寬 x 高) | 1.8 × 1.1 × 8.5 in (46 × 26.7 × 214.9 mm) |
| 天線 | 2× 3 dBi External Omni waterproof |
| 防風雨外殼 | IP65 |

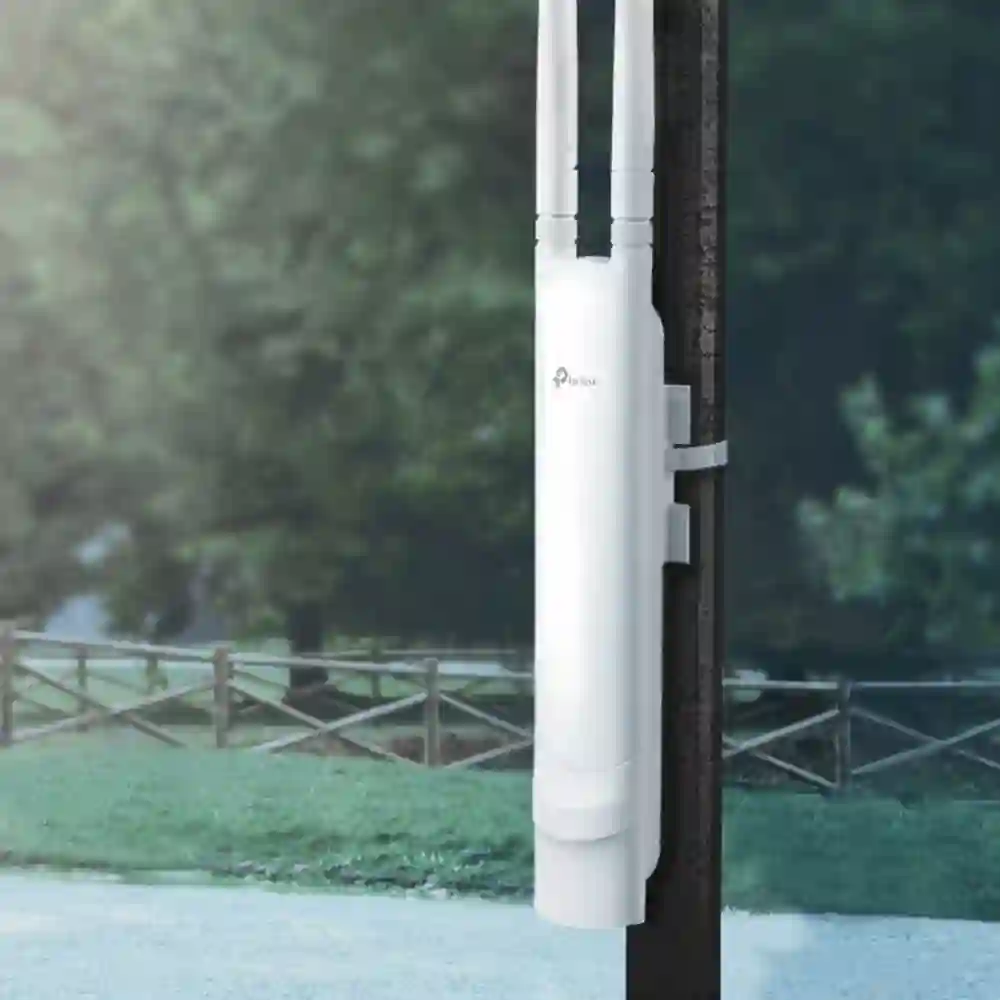

| 安裝 | Pole / Wall Mounting (Kits included) |
| 可同時連線用戶數 | 100+** |
| 無線網路標準 | IEEE 802.11n/g/b |
| 無線網路頻率 | 2.4 GHz |
| 訊號速率 | • 11n: Up to 300 Mbps (dynamic)• 11g: Up to 54 Mbps (dynamic)• 11b: Up to 11 Mbps (dynamic) |
| 無線網路功能 | • Multiple SSIDs（Up to 8 SSIDs）• Enable/Disable Wireless Radio• Automatic Channel Assignment• Transmit Power Control （Adjust Transmit Power on dBm）• Seamless Roaming(802.11r)• QoS(WMM)• Load Balance• Rate Limit• Reboot Schedule• Wireless Schedule• Wireless Statistics based on SSID/AP/Client |
| 無線網路安全性 | • Captive Portal Authentication• Access Control• Wireless Mac Address Filtering• Wireless Isolation Between Clients• SSID to VLAN Mapping• Rogue AP Detection• 802.1X Support• 64/128/152-bit WEP / WPA / WPA2-Enterprise, WPA-PSK / WPA2-PSK |
| 傳輸功率 | • CE: ≤20 dBm (EIRP)• FCC: ≤22 dBm |
| Omada App | Yes |
| 集中化管理 | • Omada Hardware Controller• Omada Software Controller |
| 雲端存取 | Yes. Require the use of an Omada controller. |
| E-mail警示 | Yes |
| LED 開/關 控制 | Yes |
| 管理MAC存取控制 | Yes |
| SNMP | v1, v2c |
| 系統登入本地/遠端系統日誌 | Local/Remote Syslog |
| SSH | Yes |
| Web管理介面 | HTTP/HTTPS |
| L3 管理 | Yes |
| 多站點管理 | Yes |
| 管理VLAN | Yes |
| 認證 | CE, FCC, RoHS |
| 包裝內容 | • 300Mbps Wireless N Outdoor Access Point, EAP113-Outdoor• Mounting Kits• Waterproof Rubber Insert• Waterproof Antennas• Installation Guide |
| 系統需求 | Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows 10, Windows 11, Linux |
| 環境 | • Operating Temperature: -30–65 ℃ (-22–149 ℉)• Storage Temperature: -40–70 ℃ (-40–158 ℉)• Operating Humidity: 10–90% RH non-condensing• Storage Humidity: 5–90% RH non-condensing |
