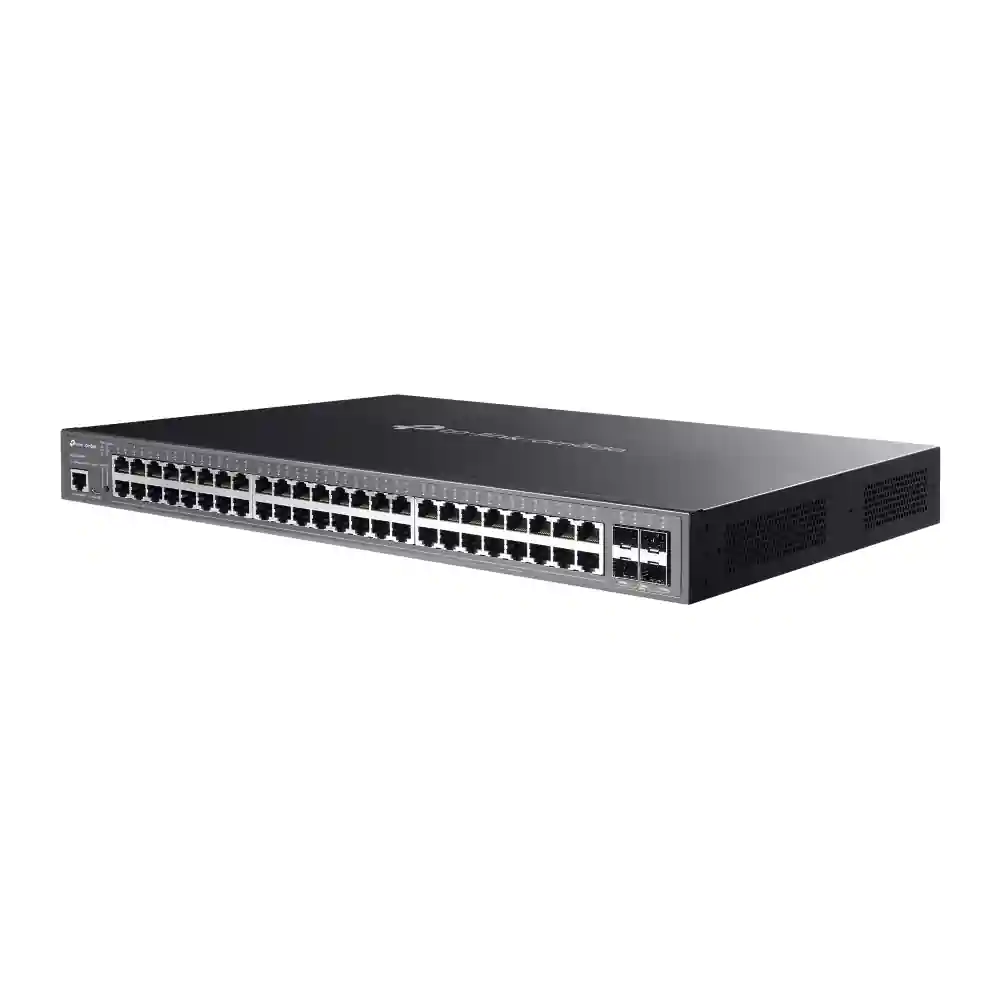

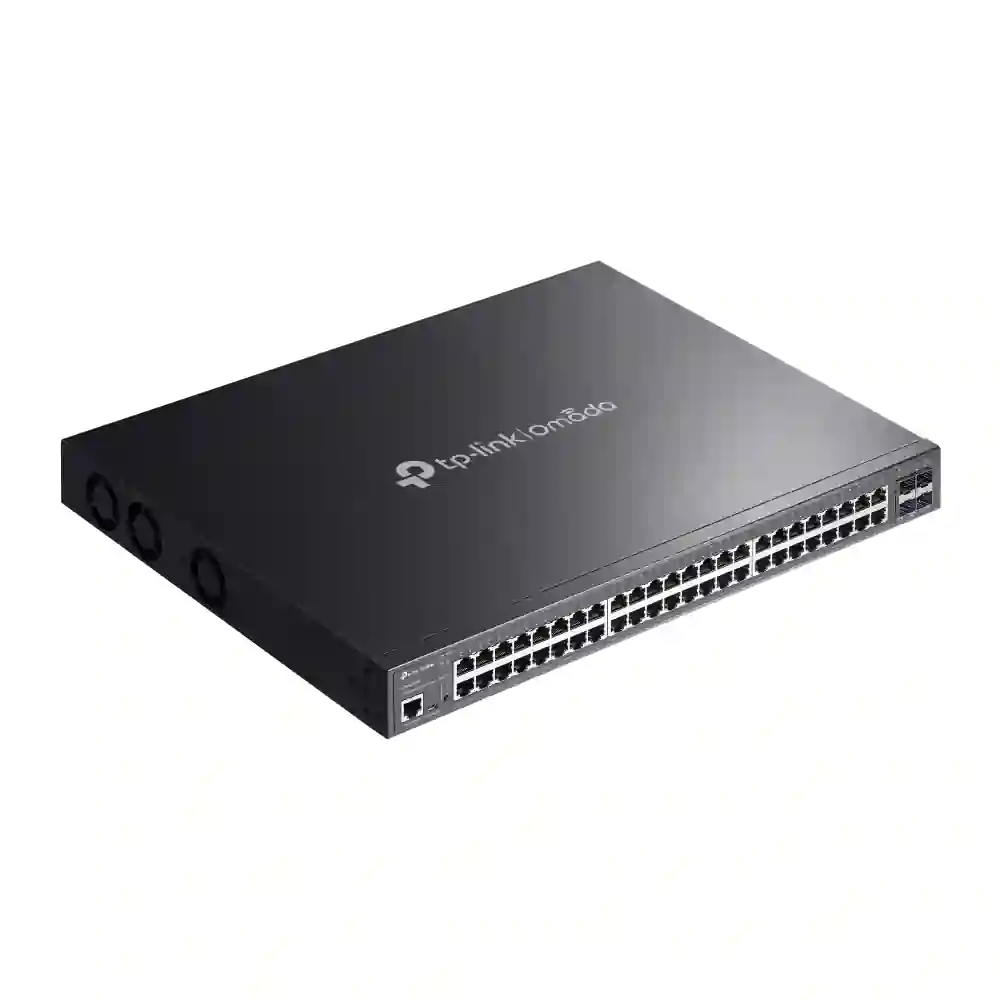

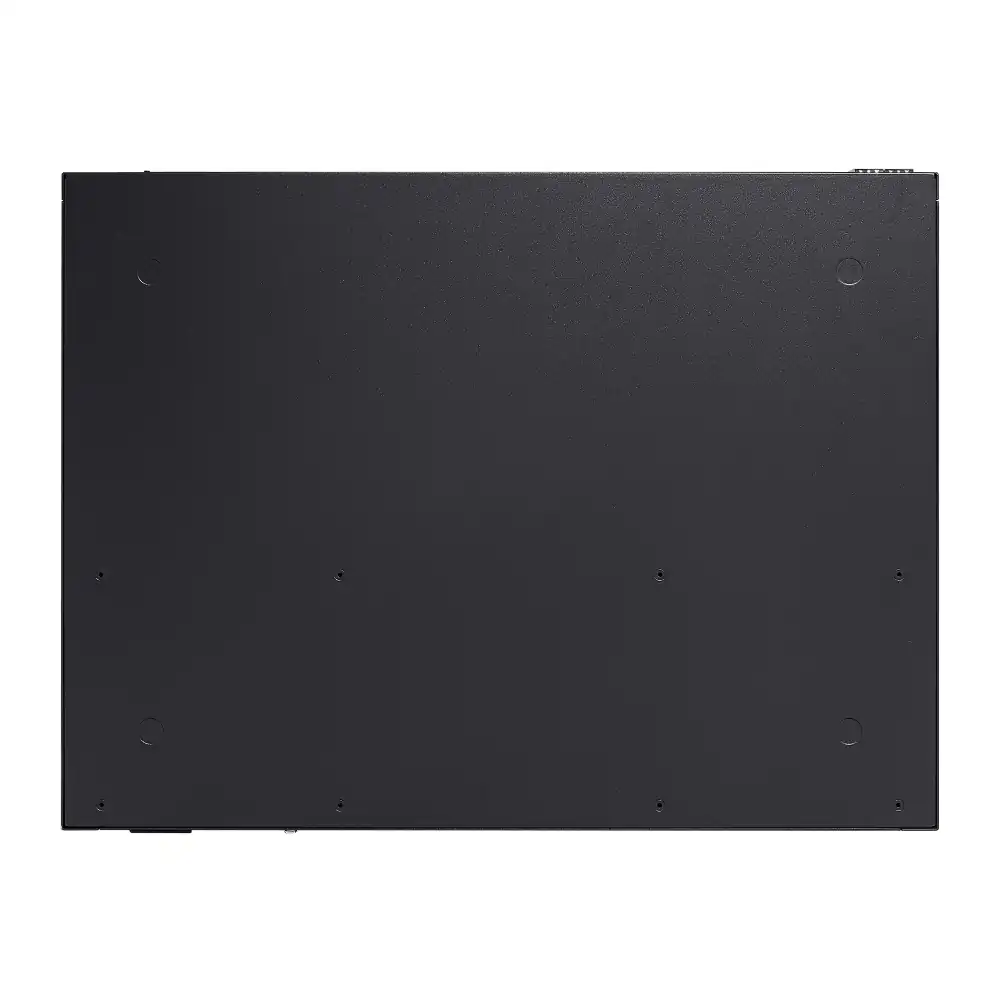

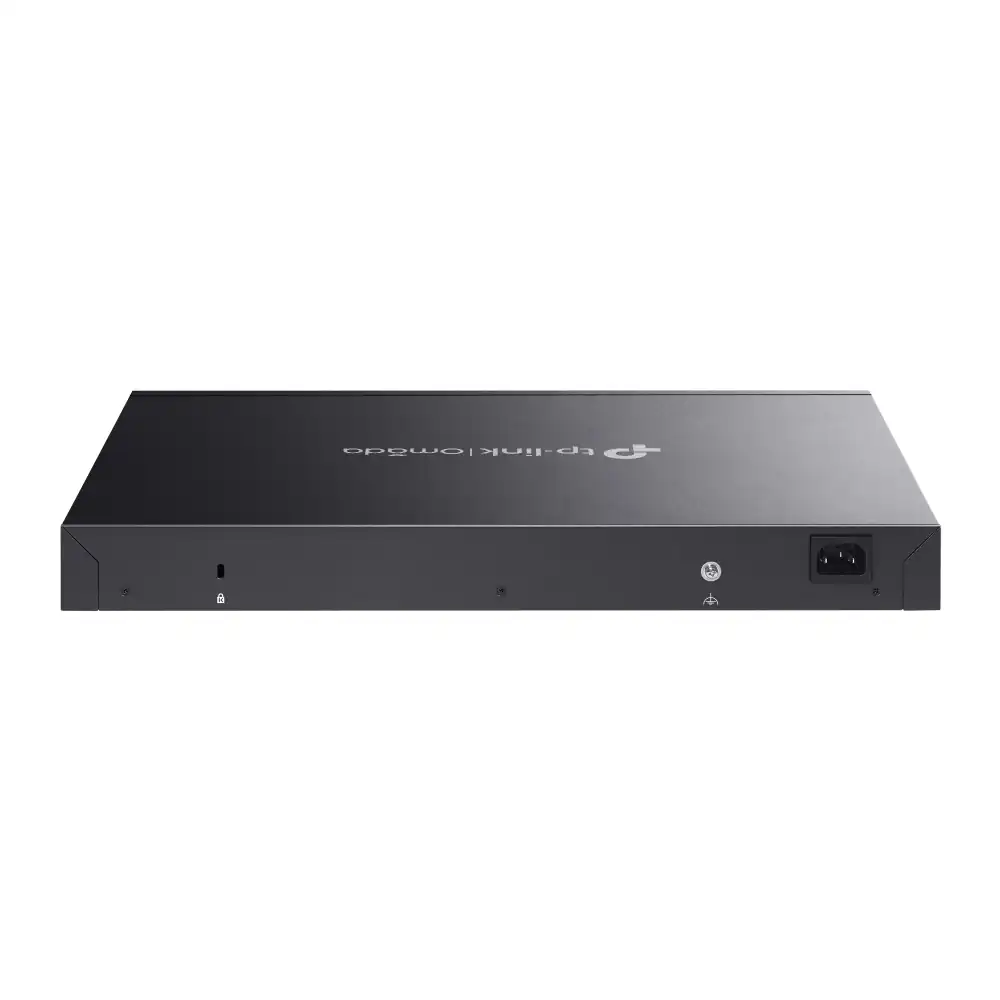

Omada 48-Port Gigabit and 4-Port 10GE SFP+ L2+ Managed Switch with 40-Port PoE+ & 8-Port PoE++ SG3452XMPP
Omada 48-Port Gigabit and 4-Port 10GE SFP+ L2+ Managed Switch with 40-Port PoE+ & 8-Port PoE++ SG3452XMPP
Omada 48-Port Gigabit and 4-Port 10GE SFP+ L2+ Managed Switch with 40-Port PoE+ & 8-Port PoE++ SG3452XMPP
Omada 48-Port Gigabit and 4-Port 10GE SFP+ L2+ Managed Switch with 40-Port PoE+ & 8-Port PoE++ SG3452XMPP
Omada 48-Port Gigabit and 4-Port 10GE SFP+ L2+ Managed Switch with 40-Port PoE+ & 8-Port PoE++ SG3452XMPP
Omada 48-Port Gigabit and 4-Port 10GE SFP+ L2+ Managed Switch with 40-Port PoE+ & 8-Port PoE++ SG3452XMPP

Omada 48-Port Gigabit and 4-Port 10GE SFP+ L2+ Managed Switch with 40-Port PoE+ & 8-Port PoE++ SG3452XMPP

Member優惠價：$0

💳 付款方式

  • 信用卡支付, 將收取 3.5% 額外行政費
  • 現金以 FPS 轉數快 / 銀行轉帳支付
安全付款
  • Stripe
  • Visa Card
  • MasterCard
  • PayPal
  • Apple Pay
  • Visa Card

🚚 配送方式：

  • • 香港本地訂單：購物滿HK$2,000, 免費送貨!
  • • 澳門地區訂單：順豐到付 (運費由買家承擔)

🎧 如有技術或貨存查詢

WhatsApp 查詢

Omada 48-Port Gigabit and 4-Port 10GE SFP+ L2+ Managed Switch with 40-Port PoE+ & 8-Port PoE++ SG3452XMPP

SG3452XMPP 技術規格

連接介面 • 48× 10/100/1000 Mbps RJ45 Ports (8× PoE++, 40× PoE+)• 4× 10G SFP+ Slots• 1× RJ45 Console Port• 1× Micro-USB Console Port
風扇數量 3
物理安全鎖 √
電源供應 100-240 V AC~50/60 Hz
PoE連接埠(RJ45) • Standard: 802.3at/af/bt compliant• PoE++ Ports: Ports 1~8 (up to 90 W PoE Output per Port)• PoE+ Ports: Ports 9~48 (up to 30 W PoE Output per Port)• Power Budget: 750 W*
尺寸(長 x 寬 x 高) 17.3×13.0×1.7 in (440×330×44 mm)
安裝 Rack Mountable
最大功耗 • 913.4 W (110V/60Hz) ( with 750 W PD connected)
最大散熱量 • 3114.69 BTU/hr (110 V/60 Hz) (with 750 W PD connected)
背板頻寬 176 Gbps
封包轉發速率 130.9 Mpps
MAC位址表 16 K
封包緩衝記憶體 12 Mbit
巨型訊框 9 KB
流量管理(QoS) • 8 priority queues• 802.1p CoS/DSCP priority• Queue scheduling: SP (Strict Priority), WRR (Weighted Round Robin), SP+WRR• Bandwidth Control: Port/Flow-based Rating Limiting• Smoother Performance• Action for Flows: QoS remark (802.1P Remark, DSCP Remark)
L2與L2+功能 • 128 IP Interfaces: Support IPv4/IPv6 Interface• Static Routing: 48 IPv4/IPv6 Static Routes• Static ARP: 128 static entries• 512 ARP Entries• Proxy ARP• Gratuitous ARP• DHCP Server• DHCP Relay: DHCP Interface Relay, DHCP VLAN Relay• DHCP L2 Relay• Link Aggregation• Spanning Tree Protocol• Loopback Detection• 802.3x Flow Control• Mirroring
L2 群播 • Supports 1000 (IPv4, IPv6) IGMP groups• IGMP Snooping• IGMP Authentication• Multicast VLAN Registration (MVR)• MLD Snooping• Multicast Filtering: 256 profiles and 16 entries per profile
進階功能 • Automatic Device Discovery†• Batch Configuration†• Batch Firmware Upgrading†• Intelligent Network Monitoring†• Abnormal Event Warnings†• Unified Configuration†• Reboot Schedule†ISP Features**:• L2PT (Layer 2 Protocol Tunneling)• Device Link Detect Protocol (DLDP)• PPPoE ID Insertion• ERPS• 802.3ah Ethernet Link OAM• DDM• sFlow
VLAN • VLAN Group: Max 4K VLAN Groups• 802.1q Tagged VLAN• MAC VLAN: 30 Entries• Protocol VLAN: Protocol Template 16, Protocol VLAN 16• Private VLAN• GVRP• VLAN VPN: VLAN Mapping, VLAN Replace• Voice VLAN
存取控制列表(ACL) • Time-based ACL• MAC ACL: Source MAC, Destination MAC, VLAN ID, User Priority, Ether Type• IP ACL: Source IP, Destination IP, Fragment, IP Protocol, TCP Flag, TCP/UDP Port, DSCP/IP TOS• Combined ACL• Packet Content ACL• IPv6 ACL• Policy: Mirroring, Redirect, Rate Limit, QoS Remark• ACL applies to Port/VLAN
安全性 • IP-MAC-Port Binding- 512 Entries- DHCP Snooping- ARP Inspection- IPv4 Source Guard: 100 Entries• IPv6-MAC-Port Binding- 512 Entries- DHCPv6 Snooping- ND Detection- ND Snooping- IPv6 Source Guard: 100 Entries• DoS Defend• DHCP Filter• Static/Dynamic Port Security: Up to 64 MAC addresses per port• Broadcast/Multicast/Unicast Storm Control: kbps/ratio/pps control mode• 802.1X- Port-based authentication- Mac-base authentication- VLAN Assignment- MAB- Guest VLAN- Radius authentication and accountability support• AAA (including TACACS+)• Port Isolation• Secure web management through HTTPS with SSLv3/TLS 1.2• Secure Command Line Interface (CLI) management with SSHv1/SSHv2• IP/Port/MAC-based access control
IPv6 • IPv6 Dual IPv4/IPv6• Multicast Listener Discovery (MLD) Snooping• IPv6 ACL• IPv6 Interface• Static IPv6 Routing• IPv6 neighbor discovery (ND)• Path maximum transmission unit (MTU) discovery• Internet Control Message Protocol (ICMP) version 6• TCPv6/UDPv6• IPv6 applications: DHCPv6 Client, Ping6, Tracert6, Telnet (v6), IPv6 SNMP, IPv6 SSH, IPv6 SSL, Http/Https, IPv6 TFTP
MIBs • MIB II (RFC1213)• Interface MIB (RFC2233)• Ethernet Interface MIB (RFC1643)• Bridge MIB (RFC1493)• P/Q-Bridge MIB (RFC2674)• RMON MIB (RFC2819)• RMON2 MIB (RFC2021)• Radius Accounting Client MIB (RFC2620)• Radius Authentication Client MIB (RFC2618)• Remote Ping, Traceroute MIB (RFC2925)• Support TP-Link private MIB
Omada App Yes. Requiring the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
集中化管理 • Omada Cloud-Based Controller• Omada Hardware Controller• Omada Software Controller
雲端存取 Yes. Requiring the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
零接觸監管 Yes. Requiring the use of Omada Cloud-Based Controller.
管理功能 • Web-based GUI• Command Line Interface (CLI) through console port, telnet• SNMPv1/v2c/v3- Trap/Inform- RMON (1, 2, 3, 9 groups)• SDM Template• DHCP/BOOTP Client• 802.1ab LLDP/LLDP-MED• DHCP AutoInstall• Dual Image, Dual Configuration• CPU Monitoring• Cable Diagnostics• EEE• Password Recovery• SNTP• System Log
認證 CE, FCC, RoHS
包裝內容 • SG3452XMPP Switch• Power Cord• Quick Installation Guide• Rackmount Kit• Rubber Feet
系統需求 Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7/8/10/11, MAC® OS, NetWare®, UNIX® or Linux.
環境 • Operating Temperature: 0–40 ℃ (32–104 ℉);• Storage Temperature: -40–70 ℃ (-40–158 ℉)• Operating Humidity: 10–90% RH non-condensing• Storage Humidity: 5–90% RH non-condensing
