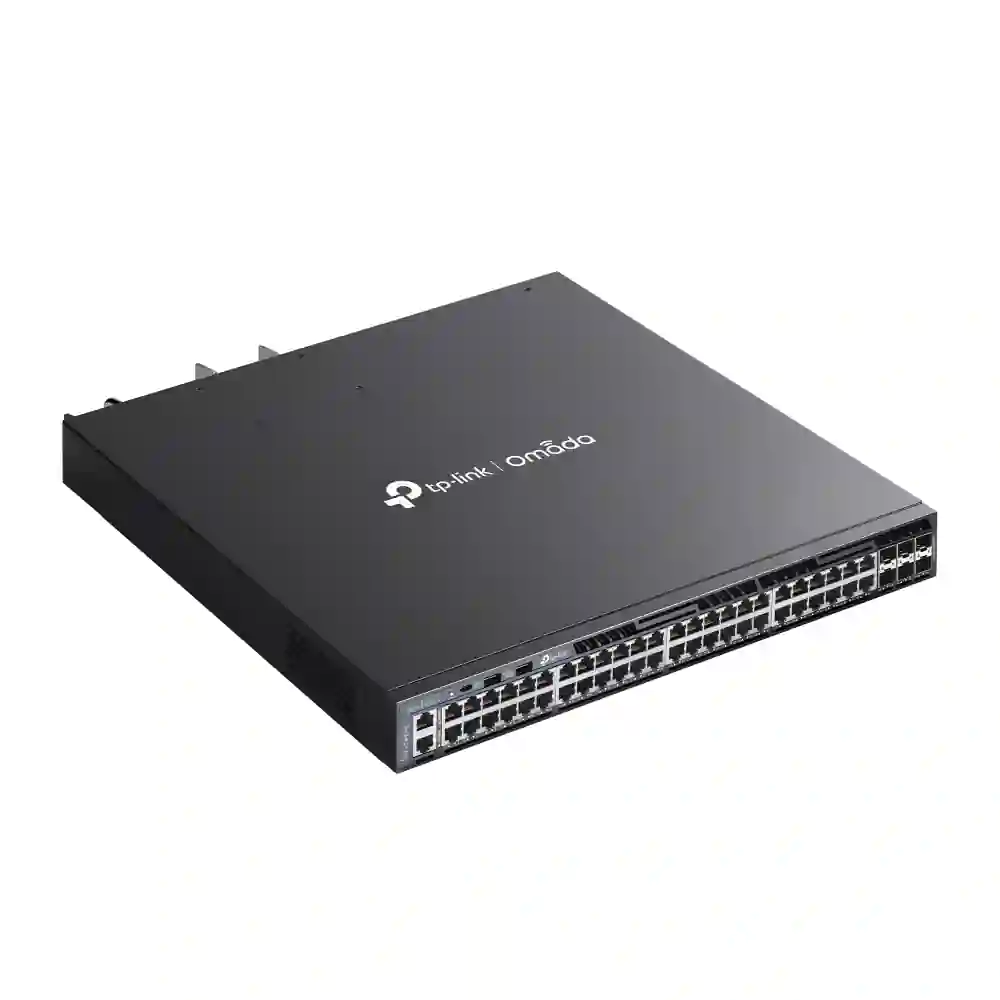

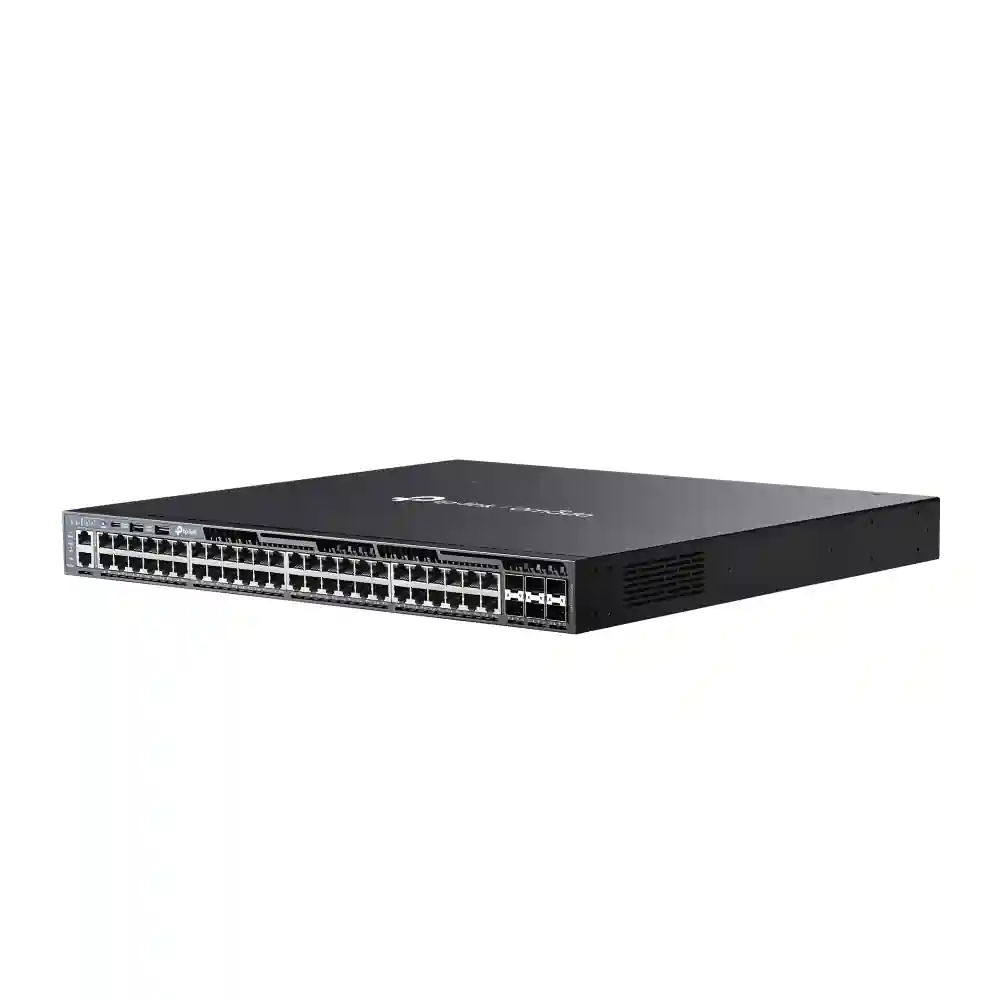

Omada 48-Port Gigabit Stackable L3 Managed PoE+ Switch with 6 10G Slots SG6654XHP
Member優惠價：$0
🚚 配送方式：
- • 香港本地訂單：購物滿HK$2,000, 免費送貨!
- • 澳門地區訂單：順豐到付 (運費由買家承擔)
🎧 如有技術或貨存查詢
WhatsApp 查詢Omada 48-Port Gigabit Stackable L3 Managed PoE+ Switch with 6 10G Slots SG6654XHP
SG6654XHP 技術規格
| 連接介面 | • 48× 10/100/1000 Mbps PoE+ RJ45 Ports• 6× 10G SFP+ Slots• 2× USB 2.0 Ports• 1× RJ45 Console Port• 1× USB Type-C Console Port• 1× RJ45 Management Port |
|---|---|

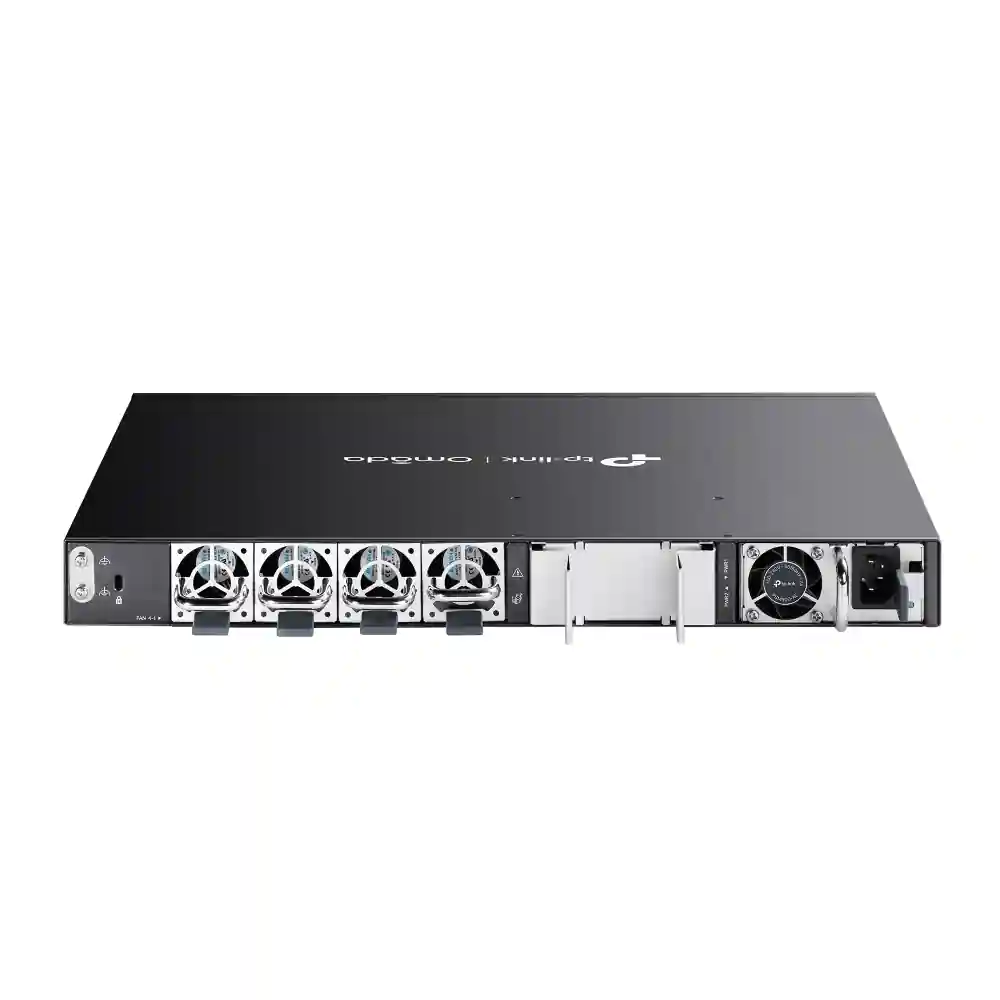

| 風扇數量 | Four Field-replaceable and Hot-swappable Fans |
| 電源供應 | Two Field-replaceable and Hot-swappable Power Supply Modules** (100–240 VAC, 50/60 Hz)**Shipping with one PSM900-AC module by default, and another field-replaceable redundant power supply requires purchasing separately. |
| PoE連接埠(RJ45) | • Standard: 802.3at/af compliant• PoE+ Ports: 48 Ports, up to 30 W per port• PoE Power Budget: up to 1440 W**The total PoE budget varies with the power supply modules. |
| 尺寸(長 x 寬 x 高) | 17.3 × 16.5 × 1.7 in (440 × 420 × 44 mm) |
| 安裝 | Rackmountable |
| 最大功耗 | • 67.24 W (110 V/60 Hz) (With no PD connected)• 1767.7 W (110 V/60 Hz) (With 1440W PD connected and powered by 2× PSM900-AC) |
| 最大散熱量 | • 229.29 BTU/hr (110 V/60 Hz) (With no PD connected)• 6,027.86 BTU/hr (110 V/60 Hz) (With 1440W PD connected and powered by 2× PSM900-AC) |
| 背板頻寬 | 216 Gbps per Unit |
| 堆疊 | • Stacking Number: 8• Stacking Port: 10G SFP+ Slot (all uplink ports can be used as stacking ports)• Stack Bandwidth: Up to 120 Gbps (6 stack ports) |
| 封包轉發速率 | 160.7 Mpps |
| MAC位址表 | 32 K |
| 封包緩衝記憶體 | 3 MB |
| 巨型訊框 | 9 KB |
| 流量管理(QoS) | • Class of Service- 8 Queues of Priority- Port Priority- IEEE 802.1p Priority- DSCP Priority- Queue Min-Bandwidth- Schedule Mode (SP, WRR, SP+WRR)• Bandwidth Control- Rate Limit- Storm Control• Voice VLAN• User-Defined OUI• Smoother Performance• Action for Flows- QoS remark (802.1P Remark, DSCP Remark) |
| L3功能 | • IP Interfaces:- IPv4: Max 256, IPv6: Max 256• Static Routing- Max 1,024, IPv6: Max 512• Host Route Table: Max 6,100 entries• RIP: Version v1/v2, Max 8,190• OSPF: Version v2/v3; v2: Max 8,190, v3: Max 4,097• VRRP: Version v2/v3, Max 64 groups• ECMP: 256 entries, max 32 ECMP Nexthops per Destination• Static ARP: 512 static entries• Dynamic ARP: 7,680 dynamic entries• Proxy ARP• DHCP Server:- Max 8K IP Pools- Max 1,000 Manual Binding Entries• DHCP Relay:- Relayed Interface- Relayed VLAN |
| L2與L2+功能 | • Link Aggregation• Spanning Tree Protocol• Port-based and VLAN-based Loopback Detection• 802.3x Flow Control• Supports 2,048 IGMP groups• ERPS• Mirroring• RSPAN• MAC Address Table• PIM-DM (IPv4)• Multicast- IGMP Snooping- MLD Snooping- L2 Multicast Table- Fast Leave- Multicast VLAN Registration (MVR)- Static Multicast IP- Multicast Filtering |
| 進階功能 | • Automatic Device Discovery†• Batch Configuration†• Batch Firmware Upgrading†• Intelligent Network Monitoring†• Abnormal Event Warnings†• Unified Configuration†• Reboot Schedule†ISP Features:• 802.3ah Ethernet Link OAM• L2PT (Layer 2 Protocol Tunneling)• Device Link Detect Protocol (DLDP)• DDM• sFlow |
| VLAN | • Max 4K VLAN Group (802.1q VLAN)• 802.1Q Tagged VLAN• MAC VLAN Entries: 200• Multicast VLAN• Management VLAN• VLAN VPN (QinQ): Max 256 entries• GVRP• Protocol VLAN: Protocol Template 16, Protocol VLAN 12 entries• VLAN VPN• Voice VLAN• Private VLAN |
| 安全性 | • Port Isolation• CPU-Defend• ARP Inspection (Dynamic ARP Inspection)• DoS Defend• IP-MAC-Port Binding-1,024 Entries- DHCP Snooping- ARP Inspection- IPv4 Source Guard• IPv6-MAC-Port Binding-1,024 Entries- DHCPv6 Snooping- ND Detection- ND Snooping- IPv6 Source Guard• DHCP Filter• Static/Dynamic Port Security- Up to 64 MAC addresses per port• Broadcast/Multicast/Unknown-unicast Storm Control- kbps/ratio control mode• 802.1X- Port base authentication- Mac base authentication- VLAN Assignment- MAB- Guest VLAN- RADIUS authentication and accountability support• AAA (including TACACS+)• Secure web management through HTTPS with SSLv3/TLS 1.2• Secure Command Line Interface (CLI) management with SSHv2• IP/Port/MAC-based access control |
| Omada App | Yes. Requiring the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller. |
| 集中化管理 | • Omada Cloud-Based Controller• Omada Hardware Controller• Omada Software Controller |
| 雲端存取 | Yes. Requiring the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller. |
| 零接觸監管 | Yes. Requiring the use of Omada Cloud-Based Controller. |
| 管理功能 | • Web-based GUI• Command Line Interface (CLI) through console port, telnet• SNMPv1/v2c/v3- Trap/Inform- RMON (1, 2, 3, 9 groups)• SDM Template• DHCP/BOOTP Client• 802.1ab LLDP/LLDP-MED• DHCP Auto Install• Dual Image, Dual Configuration• CPU Monitoring• Cable Diagnostics• Password Recovery• SNTP• System Log• EEE |
| 包裝內容 | • SG6654XHP Switch• Power Cord• RJ45 Console Cable• Quick Installation Guide• Rackmount Kit• Rubber Feet |
| 系統需求 | Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7/8/10/11, MAC® OS, NetWare®, UNIX® or Linux. |
| 環境 | • Operating Temperature:-5 °C to 45 °C (23 °F to 113 °F) @ 2,000 meters-5 °C to 40 °C (23 °F to 104 °F) @ 3,000 meters• Storage Temperature: -40 °C to 70 ℃ (-40 °F to 158 ℉)• Operating Humidity: 10–90% RH non-condensing• Storage Humidity: 5–90% RH non-condensing |
