Omada 5-Port Gigabit Desktop Switch with 4-Port PoE+ LS105GP
Member優惠價：$0
🚚 配送方式：
- • 香港本地訂單：購物滿HK$2,000, 免費送貨!
- • 澳門地區訂單：順豐到付 (運費由買家承擔)
🎧 如有技術或貨存查詢
WhatsApp 查詢Omada 5-Port Gigabit Desktop Switch with 4-Port PoE+ LS105GP
LS105GP 技術規格

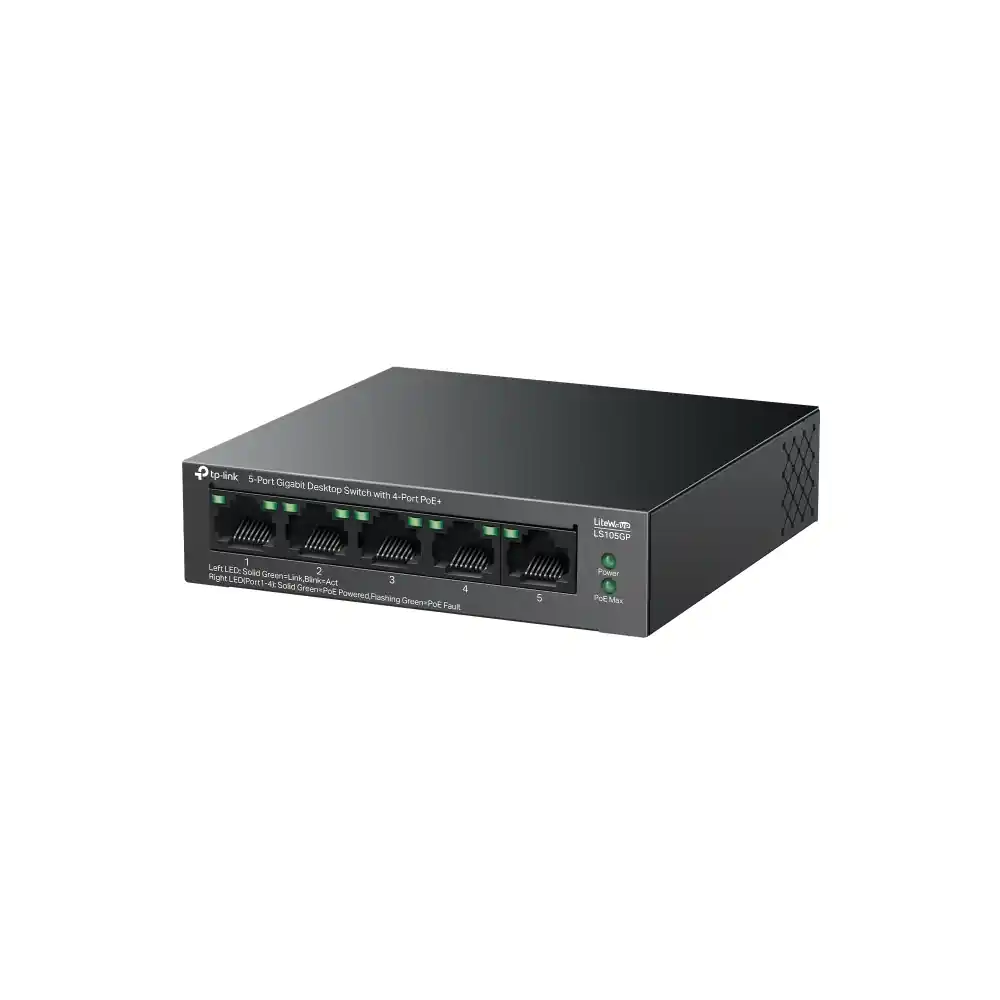

| 連接介面 | • 5× 10/100/1000Mbps RJ45 Ports (Ports 1–4 supports 802.3af/at PoE+)• AUTO Negotiation• AUTO MDI/MDIX |
|---|---|
| 網路連接線 | • 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m); EIA/TIA-568 100Ω STP (maximum 100m)• 100BASE-TX: UTP category 5, 5e cable (maximum 100m); EIA/TIA-568 100Ω STP (maximum 100m)• 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m); EIA/TIA-568 100Ω STP (maximum 100m) |
| 風扇數量 | Fanless |
| 安裝 | • Desktop• Wall Mounting |
| 電源供應 | External Power Adapter (Output: 53.5 VDC / 1.31 A) |
| PoE連接埠(RJ45) | • Standard: 802.3 af/at compliant• PoE Ports: Ports 1–4, up to 30 W PoE output per port• Power Supply: 65 W |
| 尺寸(長 x 寬 x 高) | 3.9×3.9×1.0 in (99.8×98×25 mm) |
| 最大功耗 | • 4 W (220/50 Hz. no PD connected)• 74.46 W (220/50 Hz. with 65 W PD connected) |
| 最大散熱量 | • 13.6 BTU/h (no PD connected)• 253.16 BTU/h (with 65 W PD connected) |
| 背板頻寬 | 10 Gbps |
| 封包轉發速率 | 7.44 Mpps |
| MAC位址表 | 2K |
| 巨型訊框 | 16 KB |

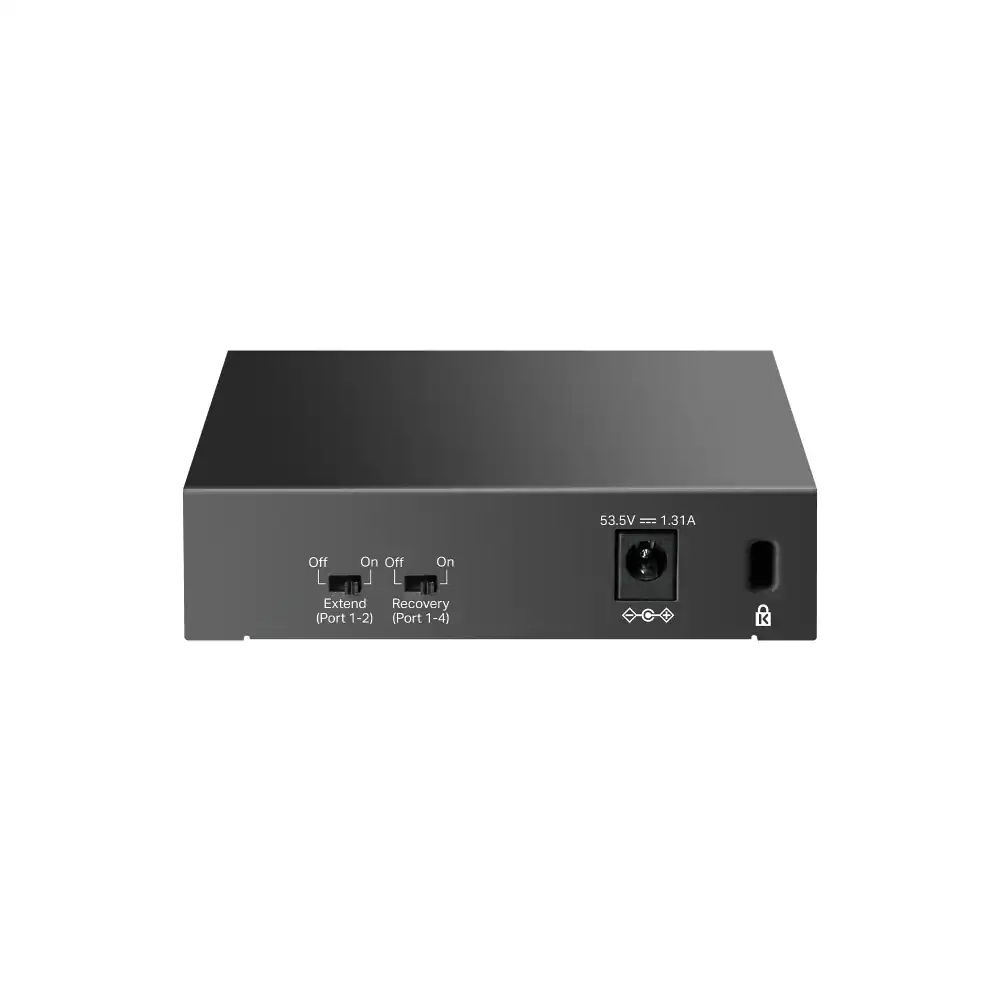

| 進階功能 | • Extend Mode Button (Ports 1–2, Up to 250 m PoE power supply and data transmission)• PoE Auto Recovery Button (Ports 1-4)• Compatible With IEEE 802.3af/at Compliant PDs• Mac Address Auto-Learning and Auto-Aging• IEEE 802.3x Flow Control• 802.1p/DSCP QoS• IGMP Snooping• Green Technology |
| 傳輸模式 | Store-And-Forward |
| 認證 | FCC, CE, RoHS |
| 包裝內容 | • LS105GP• Power Adapter• Installation Guide |
| 環境 | • Operating Temperature: 0–40 ℃ (32–104 ℉);• Storage Temperature: -40–70 ℃ (-40–158 ℉)• Operating Humidity: 10–90% RH non-condensing• Storage Humidity: 5–90% RH non-condensing |
產品資源
| Brands | Omada |
|---|
