Omada 5-Port Gigabit Smart Switch with 1-Port PoE++ In and 4-Port PoE+ Out SG2005P-PD
Member優惠價：$0
🚚 配送方式：
- • 香港本地訂單：購物滿HK$2,000, 免費送貨!
- • 澳門地區訂單：順豐到付 (運費由買家承擔)
🎧 如有技術或貨存查詢
WhatsApp 查詢Omada 5-Port Gigabit Smart Switch with 1-Port PoE++ In and 4-Port PoE+ Out SG2005P-PD
SG2005P-PD 技術規格
| 標準與協定 | IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3x, IEEE 802.1d, IEEE 802.1s, IEEE 802.1w, IEEE 802.1q, IEEE 802.1p, IEEE 802.1x |
|---|---|

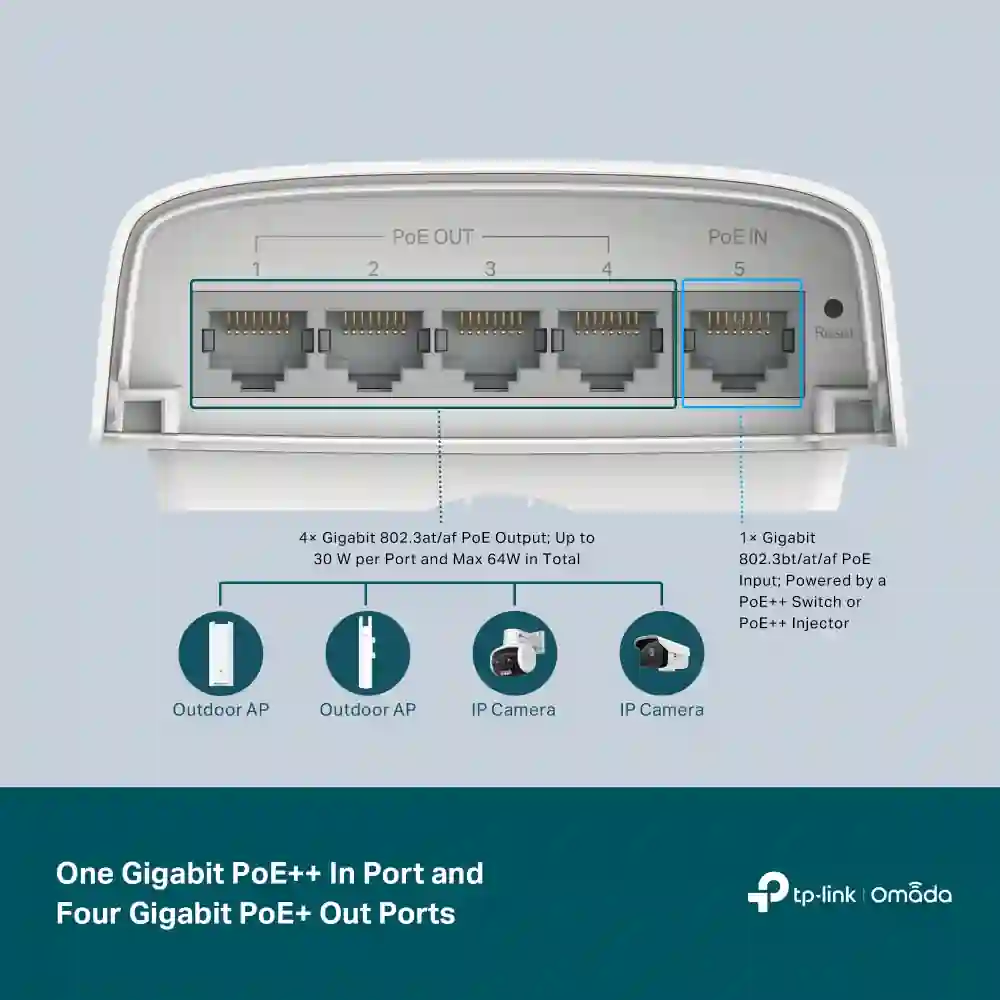

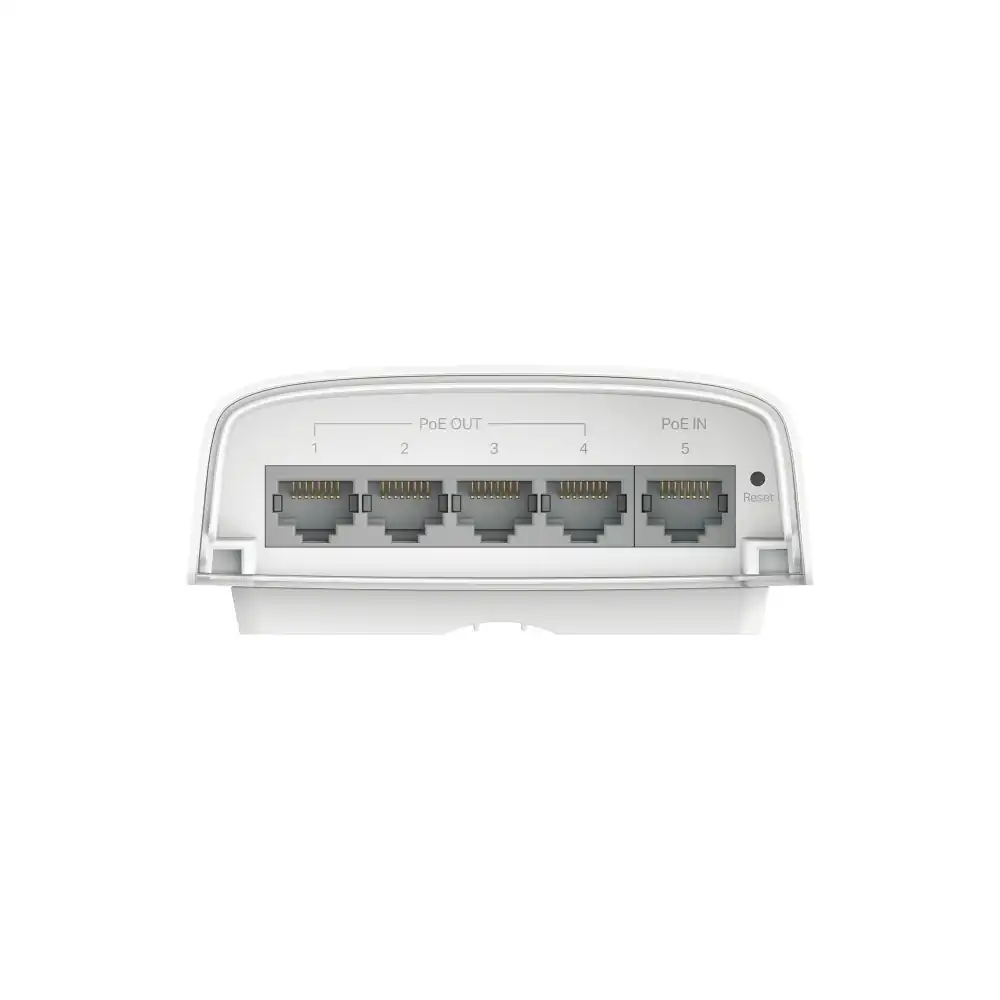

| 連接介面 | • 1× 10/100/1000 Mbps RJ45 PoE In Ports (compliance with 802.3af/at/bt)• 4× 10/100/1000 Mbps RJ45 PoE Out Ports (compliance with 802.3af/at PoE) |
| 網路連接線 | • 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)• 100BASE-TX/1000Base-T: UTP category 5, 5e or above cable (maximum 100m) |
| 風扇數量 | Fanless |
| 電源供應 | Obtain Power from 802.3af/at/bt PoE Source |
| PoE連接埠(RJ45) | • PoE In Port: Port 5, Compliance with 802.3af/at/bt• PoE Out Ports: Ports 1-4, compliance with 802.3af/at PoE• PoE Power Budget:-64 W when powered by 802.3bt Type 4 (90 W)-44 W when powered by 802.3bt Type 3 (60 W)-19 W when powered by 802.3at-6 W when powered by 802.3af |
| 尺寸(長 x 寬 x 高) | 3.9 × 1.5 × 6.7 in (100 × 38.5 × 170 mm) |
| 最大功耗 | 71.5 W (when powered by 802.3bt Type 4 (90 W)) |
| 最大散熱量 | 243.99 BTU/hr (when powered by 802.3bt Type 4 (90 W)) |
| 背板頻寬 | 10 Gbps |
| 封包轉發速率 | 7.44 Mpps |
| MAC位址表 | 8k |
| 封包緩衝記憶體 | 4.1 Mbit |
| 巨型訊框 | 9 KB |
| 流量管理(QoS) | • 802.1p CoS/DSCP priority• 8 priority queues• Priority Schedule Mode- SP (Strict Priority)- WRR (Weighted Round Robin)• Queue Weight Config• Bandwidth Control- Port/Flow-based Rating Limit• Smoother Performance• Storm Control- Multiple Control Modes(kbps/ratio)- Broadcast/Multicast/Unknown-Unicast Control |
| L2與L2+功能 | • 32 IP Interfaces- Support IPv4/IPv6 Interface• Static Routing- 32 IPv4/IPv6 Static Routes• DHCP Server• DHCP Relay- DHCP Interface Relay- DHCP VLAN Relay• DHCP L2 Relay• Static ARP• Proxy ARP• Gratuitous ARP• Link Aggregation- Static link aggregation- 802.3ad LACP- Up to 8 aggregation groups and up to 8 portsper group• Spanning Tree Protocol- 802.1D STP- 802.1w RSTP- 802.1s MSTP- STP Security: TC Protect, BPDU Filter/Protect,Root Protect• Loopback Detection• Flow Control- 802.3x Flow Control• Mirroring- Port Mirroring- CPU Mirroring- One-to-One- Many-to-One- Flow-Based- Ingress/Egress/Both• Device Link Detect Protocol (DLDP)• 802.1ab LLDP/ LLDP-MED |
| L2 群播 | • 511 IPv4, IPv6 shared multicast groups• IGMP Snooping- IGMP v1/v2/v3 Snooping- Fast Leave- IGMP Snooping Querier- Static Group Config• Multicast VLAN Registration (MVR)• Multicast Filtering• MLD Snooping- MLD v1/v2 Snooping- Fast Leave- MLD Snooping Querier- Static Group Config• Limited IP Multicast (256 profiles and 16 entries per profile) |
| 進階功能 | • Automatic Device Discovery• Batch Configuration• Batch Firmware Upgrading• Intelligent Network Monitoring• Abnormal Event Warnings• Unified Configuration• Reboot Schedule |
| VLAN | • VLAN Group- Max. 4K VLAN Groups• 802.1Q tag VLAN• MAC VLAN: 12 Entries• Protocol VLAN• GVRP• Voice VLAN |
| 存取控制列表(ACL) | • Support up to 230 entries• Time-Range- Time Slice- Week Time-Range- Absolute Time-Range- Holiday• Time-based ACL• MAC ACL- Source MAC- Destination MAC- VLAN ID- User Priority- Ether Type• IP ACL- Source IP- Destination IP- IP Protocol- TCP Flag- TCP/UDP Source Port- TCP/UDP Destination Port- DSCP/IP TOS• IPv6 ACL• Combined ACL• Rule Operation- Permit/Deny• Policy Action- Mirror- Rate Limit- Redirect- QoS Remark• ACL Rules Binding- Port Binding- VLAN Binding• Actions for flows- Mirror (to supported interface)- Redirect (to supported interface)- Rate Limit- QoS Remark |
| 安全性 | • AAA• 802.1X- Port-based authentication- MAC (Host) based authentication- Authentication Method includes PAP/EAP-MD5- MAB- Guest VLAN- Support Radius authentication and accountability• IP/IPv6-MAC Binding- 512 Binding Entries- DHCP Snooping- DHCPv6 Snooping- ARP Inspection- ND Detection• IP Source Guard- 253 Entries- Source IP+Source MAC• IPv6 Source Guard- 183 Entries- Source IPv6 Address+Source MAC• DoS Defend• Static/Dynamic/Permanent Port Security- Up to 64 MAC addresses per port• Broadcast/Multicast/Unicast Storm Control- kbps/ratio control mode• Port Isolation• Secure web management through HTTPS with SSLv3/TLS 1.2• Secure Command Line Interface (CLI) management with SSHv1/SSHv2• IP/Port/MAC-based access control |
| IPv6 | • IPv6 Dual IPv4/IPv6• Multicast Listener Discovery (MLD) Snooping• IPv6 neighbor discovery (ND)• Path maximum transmission unit (MTU) discovery• Internet Control Message Protocol (ICMP) version 6• TCPv6/UDPv6• IPv6 applications- DHCPv6 Client- Ping6- Tracert6- Telnet (v6)- IPv6 SNMP- IPv6 SSH- IPv6 SSL- Http/Https- IPv6 TFTP |
| MIBs | • MIB II (RFC1213)• Bridge MIB (RFC1493)• P/Q-Bridge MIB (RFC2674)• Radius Accounting Client MIB (RFC2620)• Radius Authentication Client MIB (RFC2618)• Remote Ping, Traceroute MIB (RFC2925)• Support TP-Link private MIBs• RMON MIB(RFC1757, rmon 1,2,3,9) |
| Omada App | Yes, through• Omada Cloud-Based Controller• Omada Hardware Controller• Omada Software Controller |
| 集中化管理 | • Omada Cloud-Based Controller• Omada Hardware Controller• Omada Software Controller |
| 雲端存取 | Yes, through• Omada Cloud-Based Controller• Omada Hardware Controller• Omada Software Controller |
| 零接觸監管 | Yes. Requiring the use of Omada Cloud-Based Controller. |
| 管理功能 | • Web-based GUI• Command Line Interface (CLI) through telnet• SNMPv1/v2c/v3• SNMP Trap/Inform• RMON (1,2,3,9 groups)• SDM Template• DHCP/BOOTP Client• Dual Image, Dual Configuration• CPU Monitoring• Cable Diagnostics• EEE• SNTP• System Log |
| 認證 | CE, FCC, RoHS |
| 包裝內容 | • SG2005P-PD• Mounting Kits• Installation Guide |
| 系統需求 | Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7/8/10/11, MAC® OS, NetWare®, UNIX® or Linux. |
| 環境 | • Operating Temperature: -40 to 60 °C (-40 to 140 °F)• Storage Temperature: -40 °C to 70 °C (-40 °F to 158 °F)• Operating Humidity: 10–90% RH non-condensing• Storage Humidity: 5–90% RH non-condensing |
產品資源
| Brands | Omada |
|---|
