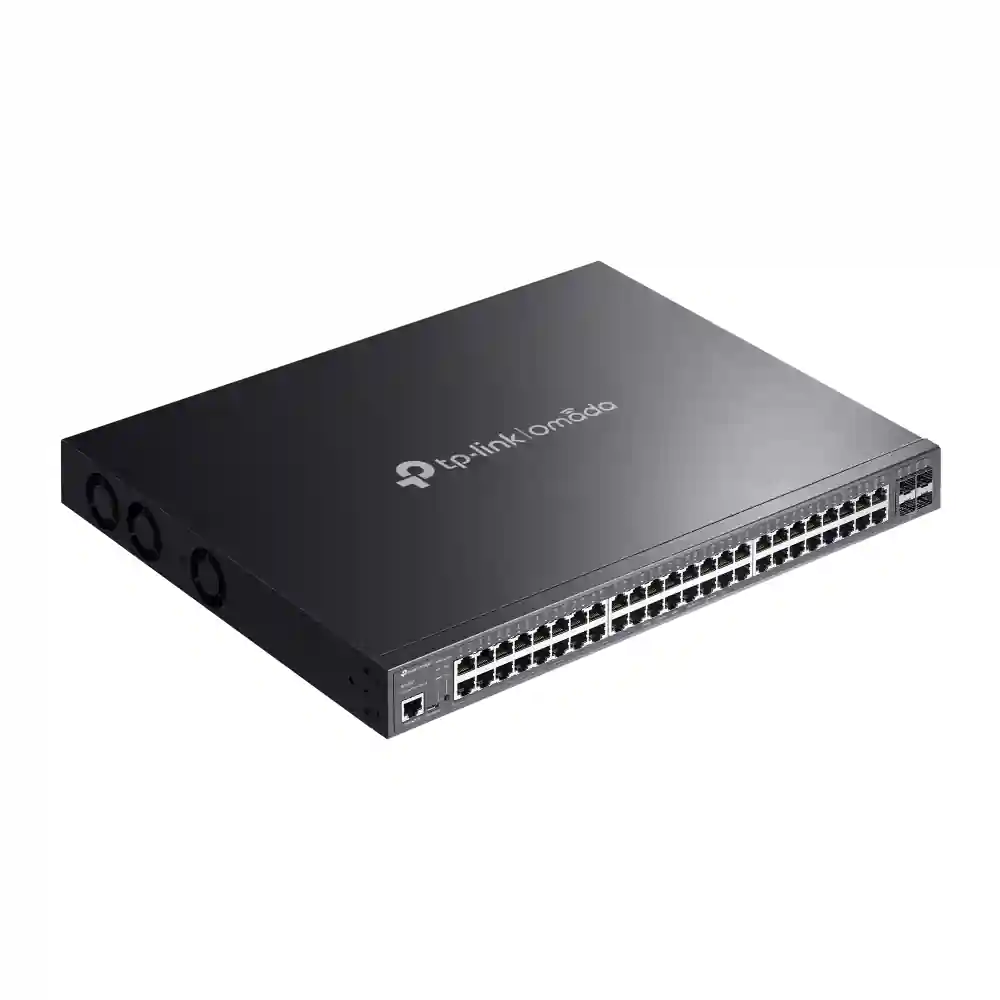

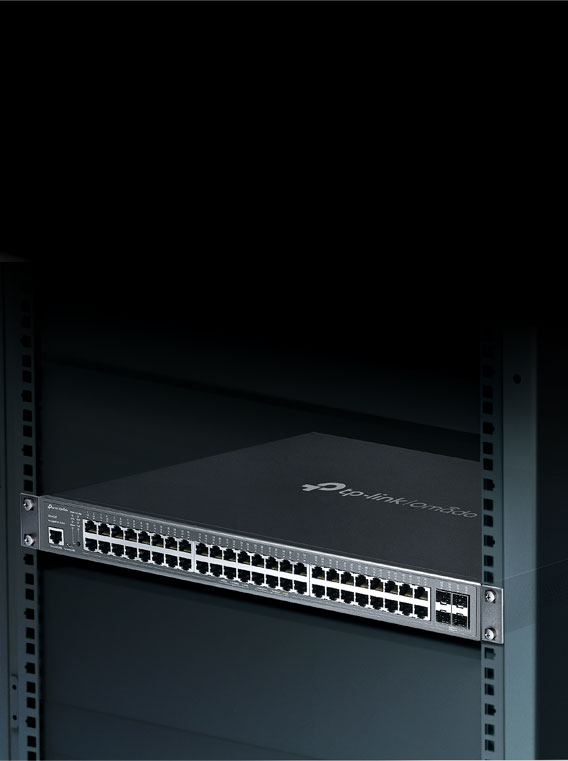

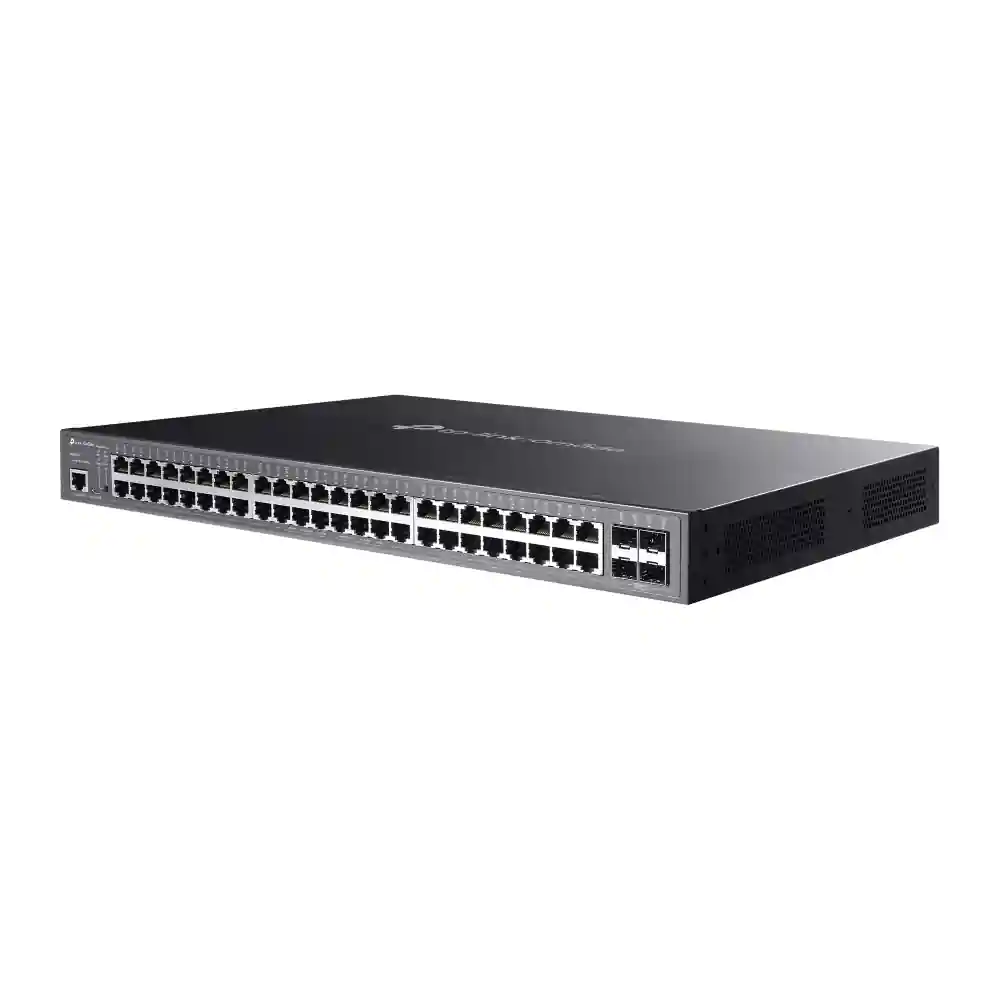

Omada 52-Port Gigabit L2+ Managed Switch with 48-Port PoE+ SG3452P
Member優惠價：$0
🚚 配送方式：
- • 香港本地訂單：購物滿HK$2,000, 免費送貨!
- • 澳門地區訂單：順豐到付 (運費由買家承擔)
🎧 如有技術或貨存查詢
WhatsApp 查詢Omada 52-Port Gigabit L2+ Managed Switch with 48-Port PoE+ SG3452P
多種應用場景
適用於網路攝影機 適用於 IP 電話 與AP配合使用 適用於非 PoE 設備，例如 PC 和印表機
SG3452P 技術規格
| 連接介面 | • 48× 10/100/1000 Mbps PoE+ RJ45 Ports• 4× Gigabit SFP Slots• 1× RJ45 Console Port• 1× Micro-USB Console Port |
|---|---|
| 風扇數量 | 3 |
| 物理安全鎖 | √ |
| 電源供應 | 100-240 V AC~50/60 Hz |
| PoE連接埠(RJ45) | • Standard: 802.3at/af compliant• PoE+ Ports: 48 Ports (up to 30 W PoE Output per Port)• PoE Power Budget: 384 W* |
| 尺寸(長 x 寬 x 高) | 17.3×13.0×1.7 in (440×330×44 mm) |
| 安裝 | Rack Mountable |
| 最大功耗 | 464.2 W (110 V/60 Hz) (with 384 W PD connected) |
| 最大散熱量 | 1584.08 BTU/hr (110 V/60 Hz) (with 384 W PD connected) |
| 封包緩衝記憶體 | 12 Mbit |
| 巨型訊框 | 9 KB |
| 背板頻寬 | 104 Gbps |
| 封包轉發速率 | 77.38 Mpps |
| MAC位址表 | 16 K |
| 流量管理(QoS) | • 8 priority queues• 802.1p CoS/DSCP priority• Queue scheduling: SP (Strict Priority), WRR (Weighted Round Robin), SP+WRR• Bandwidth Control: Port/Flow based Rating Limiting• Smoother Performance• Action for Flows: QoS remark (802.1P Remark, DSCP Remark) |
| L2與L2+功能 | • 32 IP Interfaces: Support IPv4/IPv6 Interface• Static Routing: 48 IPv4/IPv6 Static Routes• Static ARP: 128 static entries• 316 ARP Entries• Proxy ARP• Gratuitous ARP• DHCP Server• DHCP Relay: DHCP Interface Relay, DHCP VLAN Relay• DHCP L2 Relay• Link Aggregation• Spanning Tree Protocol• Loopback Detection• 802.3x Flow Control• Mirroring• Device Link Detect Protocol (DLDP) |
| L2 群播 | • Supports 511 (IPv4, IPv6) IGMP groups• IGMP Snooping• IGMP Authentication• Multicast VLAN Registration (MVR)• MLD Snooping• Multicast Filtering: 256 profiles and 16 entries per profile |
| 進階功能 | • Automatic Device Discovery†• Batch Configuration†• Batch Firmware Upgrading†• Intelligent Network Monitoring†• Abnormal Event Warnings†• Unified Configuration†• Reboot Schedule†ISP Features**:• L2PT (Layer 2 Protocol Tunneling)• Device Link Detect Protocol (DLDP)• PPPoE ID Insertion• ERPS• 802.3ah Ethernet Link OAM |
| VLAN | • VLAN Group: Max 4K VLAN Groups• 802.1q Tagged VLAN• MAC VLAN: 48 Entries• Protocol VLAN: Protocol Template 16, Protocol VLAN 16• GVRP• VLAN VPN (QinQ): Port-Based QinQ; Selective QinQ• Voice VLAN |
| 存取控制列表(ACL) | • Time-based ACL• MAC ACL: Source MAC, Destination MAC, VLAN ID, User Priority, Ether Type• IP ACL: Source IP, Destination IP, Fragment, IP Protocol, TCP Flag, TCP/UDP Port, DSCP/IP TOS, User Priority• Combined ACL• Packet Content ACL• IPv6 ACL• Policy: Mirroring, Redirect, Rate Limit, QoS Remark• ACL apply to Port/VLAN |
| 安全性 | • IP-MAC-Port Binding- 512 Entries- DHCP Snooping- ARP Inspection- IPv4 Source Guard: 100 Entries• IPv6-MAC-Port Binding- 512 Entries- DHCPv6 Snooping- ND Detection- ND Snooping- IPv6 Source Guard: 100 Entries• DoS Defend• DHCP Filter• Static/Dynamic Port Security: Up to 64 MAC addresses per port• Broadcast/Multicast/Unicast Storm Control: kbps/ratio/pps control mode• 802.1X- Port-based authentication- Mac-base authentication- VLAN Assignment- MAB- Guest VLAN- Radius authentication and accountability support• AAA (including TACACS+)• Port Isolation• Secure web management through HTTPS with SSLv3/TLS 1.2• Secure Command Line Interface (CLI) management with SSHv1/SSHv2• IP/Port/MAC-based access control |
| IPv6 | • IPv6 Dual IPv4/IPv6• Multicast Listener Discovery (MLD) Snooping• IPv6 ACL• IPv6 Interface• Static IPv6 Routing• IPv6 neighbor discovery (ND)• Path maximum transmission unit (MTU) discovery• Internet Control Message Protocol (ICMP) version 6• TCPv6/UDPv6• IPv6 applications: DHCPv6 Client, Ping6, Tracert6, Telnet (v6), IPv6 SNMP, IPv6 SSH, IPv6 SSL, Http/Https, IPv6 TFTP |
| MIBs | • MIB II (RFC1213)• Bridge MIB (RFC1493)• P/Q-Bridge MIB (RFC2674)• Radius Accounting Client MIB (RFC2620)• Radius Authentication Client MIB (RFC2618)• Remote Ping, Traceroute MIB (RFC2925)• Support TP-Link private MIBs• RMON MIB(RFC1757, rmon 1,2,3,9) |
| Omada App | Yes. Requiring the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller. |
| 集中化管理 | • Omada Cloud-Based Controller• Omada Hardware Controller• Omada Software Controller |
| 雲端存取 | Yes. Requiring the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller. |
| 零接觸監管 | Yes. Requiring the use of Omada Cloud-Based Controller. |
| 管理功能 | • Web-based GUI• Command Line Interface (CLI) through console port, telnet• SNMPv1/v2c/v3- Trap/Inform- RMON (1, 2, 3, 9 groups)• SDM Template• DHCP/BOOTP Client• 802.1ab LLDP/LLDP-MED• DHCP AutoInstall• Dual Image, Dual Configuration• CPU Monitoring• Cable Diagnostics• EEE• Password Recovery• SNTP• System Log |
| 認證 | CE, FCC, RoHS |
| 包裝內容 | • SG3452P Switch• Power Cord• Quick Installation Guide• Rackmount Kit• Rubber Feet |
| 系統需求 | Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7/8/10/11, MAC® OS, NetWare®, UNIX® or Linux. |
| 環境 | • Operating Temperature: 0–40 ℃ (32–104 ℉);• Storage Temperature: -40–70 ℃ (-40–158 ℉)• Operating Humidity: 10–90% RH non-condensing• Storage Humidity: 5–90% RH non-condensing |
產品資源
| Brands | Omada |
|---|
