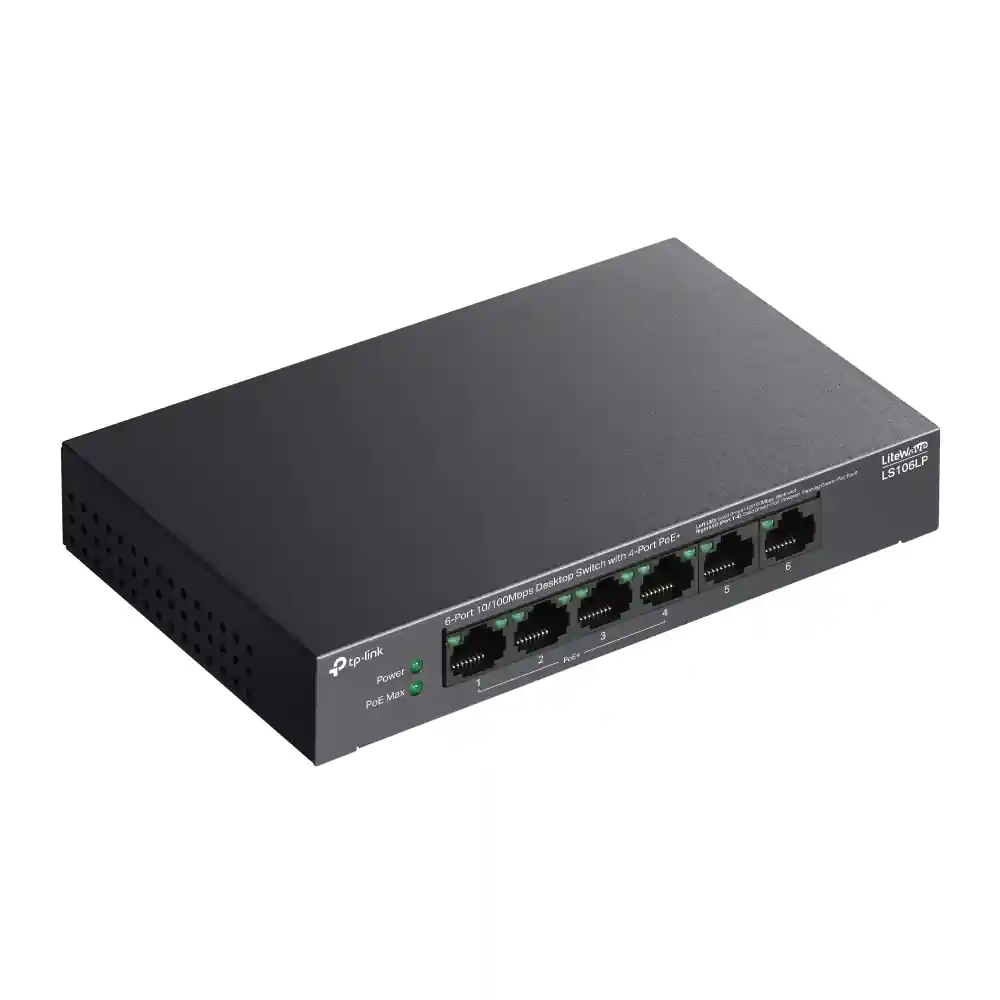

Omada 6-Port 10/100Mbps Desktop Switch with 4-Port PoE+ LS106LP
Member優惠價：$0
🚚 配送方式：
- • 香港本地訂單：購物滿HK$2,000, 免費送貨!
- • 澳門地區訂單：順豐到付 (運費由買家承擔)
🎧 如有技術或貨存查詢
WhatsApp 查詢Omada 6-Port 10/100Mbps Desktop Switch with 4-Port PoE+ LS106LP
LS106LP 技術規格
| 連接介面 | • 6× 10/100 Mbps RJ45 Ports (4× 10/100 Mbps 802.3af/at PoE+ Ports)• AUTO Negotiation• AUTO MDI/MDIX |
|---|---|
| 網路連接線 | • 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m); EIA/TIA-568 100Ω STP (maximum 100m)• 100BASE-TX: UTP category 5, 5e cable (maximum 100m); EIA/TIA-568 100Ω STP (maximum 100m) |
| 風扇數量 | Fanless |

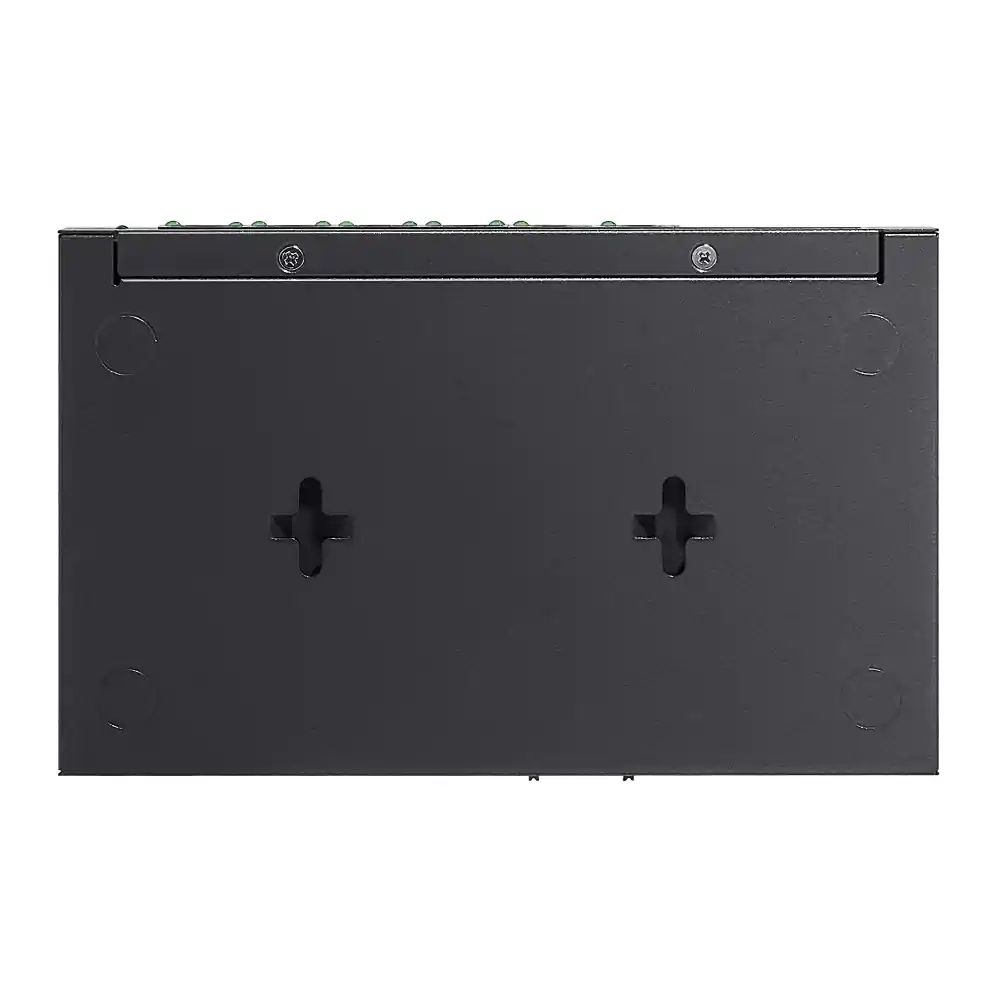

| 安裝 | • Desktop• Wall Mounting |
| 電源供應 | External Power Adapter (Output: 53.5VDC / 0.81A) |
| LED燈 | • Power• Link/Act• PoE Status• PoE MAX |
| PoE連接埠(RJ45) | • Standard: 802.3 af/at compliant• PoE Ports: Ports 1–4, up to 30 W PoE output per port• Power Supply: 41 W |
| 尺寸(長 x 寬 x 高) | 6.2×4.0×1.0 in (158×101×25 mm) |
| 最大功耗 | • 2.53 W (220 V/50 Hz no PD connected)• 47.76 W (220 V/50 Hz with 41 W PD connected) |
| 最大散熱量 | • 8.61 BTU/h (220 V/50 Hz no PD connected)• 162.38 BTU/h (220 V/50 Hz with 41 W PD connected) |
| 背板頻寬 | 1.2 Gbps |
| 封包轉發速率 | 0.8928 Mpps |
| MAC位址表 | 2K |
| 巨型訊框 | 2 KB |
| 進階功能 | • Extend Mode: Ports 1–4• PoE Auto Recovery: Ports 1-4• Compatible With IEEE 802.3af/at Compliant PDs• Mac Address Auto-Learning and Auto-Aging• IEEE 802.3x Flow Control• Green Technology |
| 傳輸模式 | Store and Forward |
| 認證 | CE, FCC, RoHS |
| 包裝內容 | • LS106LP• Power Adapter• Installation Guide |
| 環境 | • Operating Temperature: 0–40 ℃ (32–104 ℉)• Storage Temperature: -40–70 ℃ (-40–158 ℉)• Operating Humidity: 10–90% RH non-condensing• Storage Humidity: 5–90% RH non-condensing |
產品資源
| Brands | Omada |
|---|
