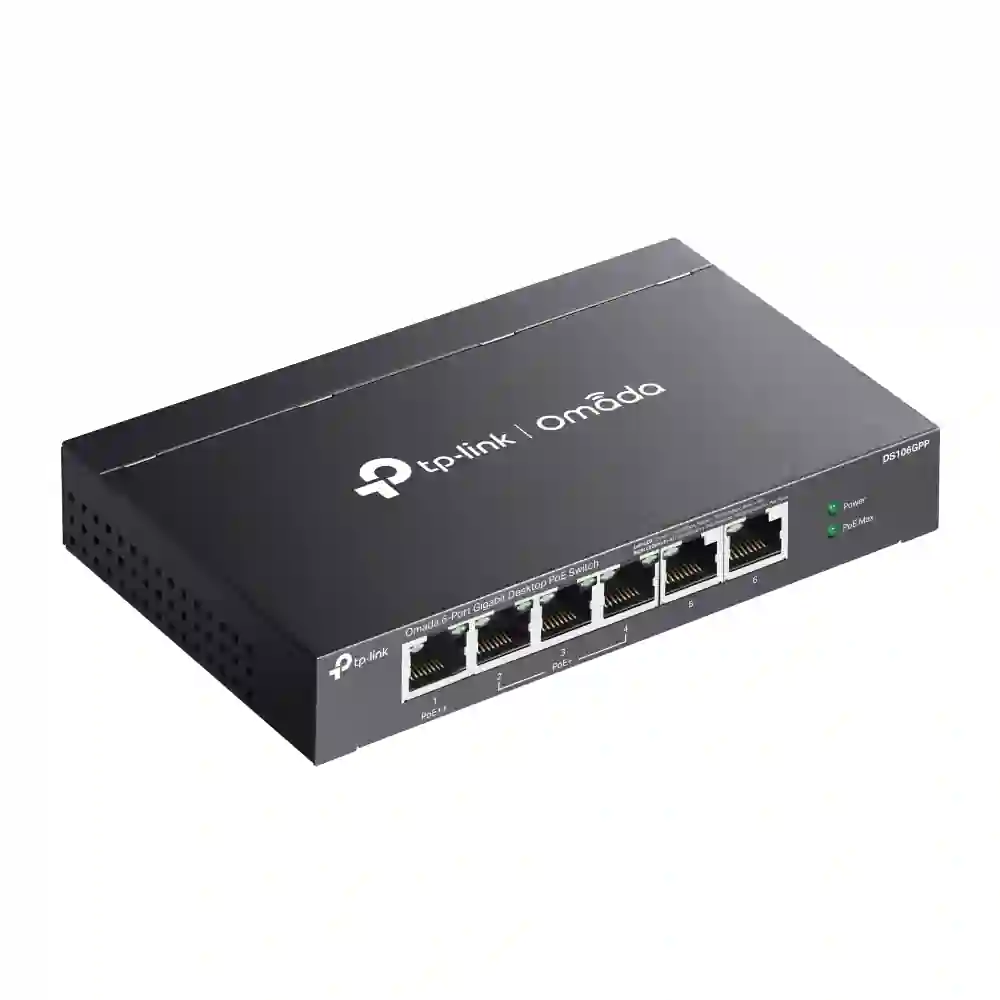

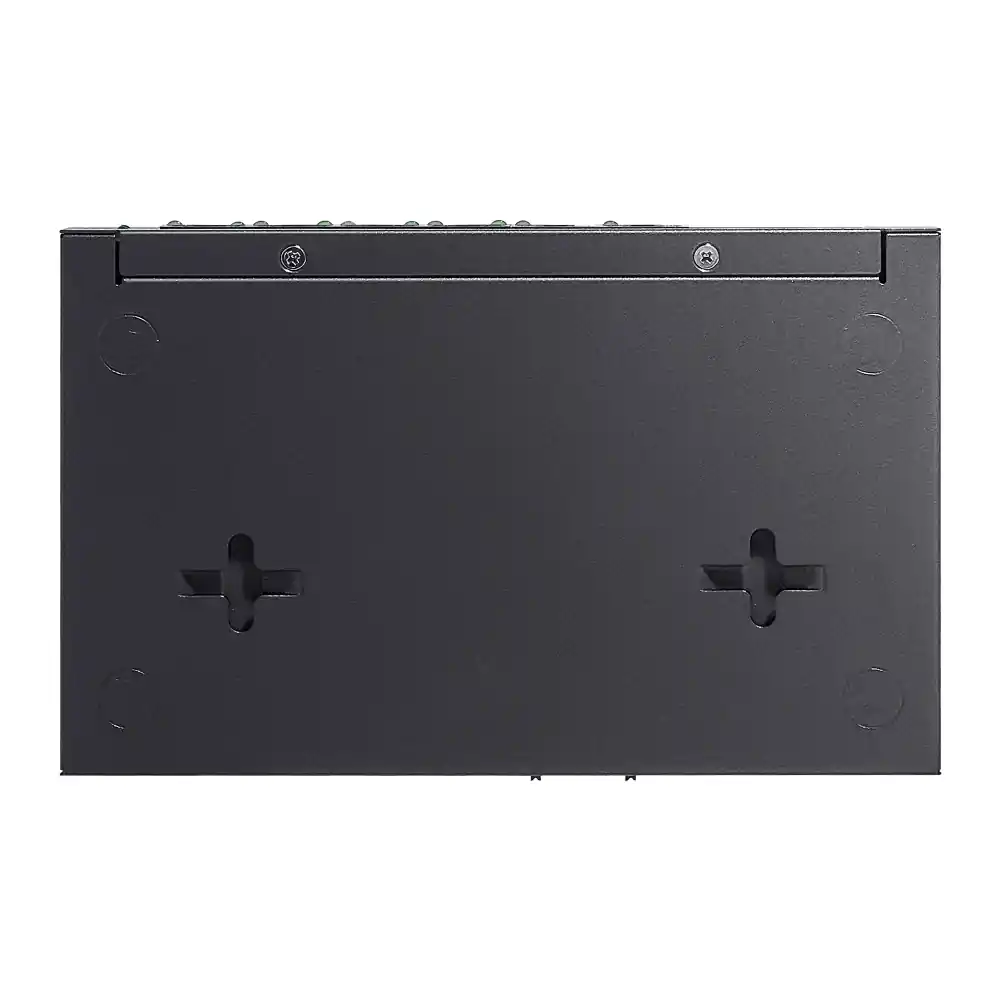

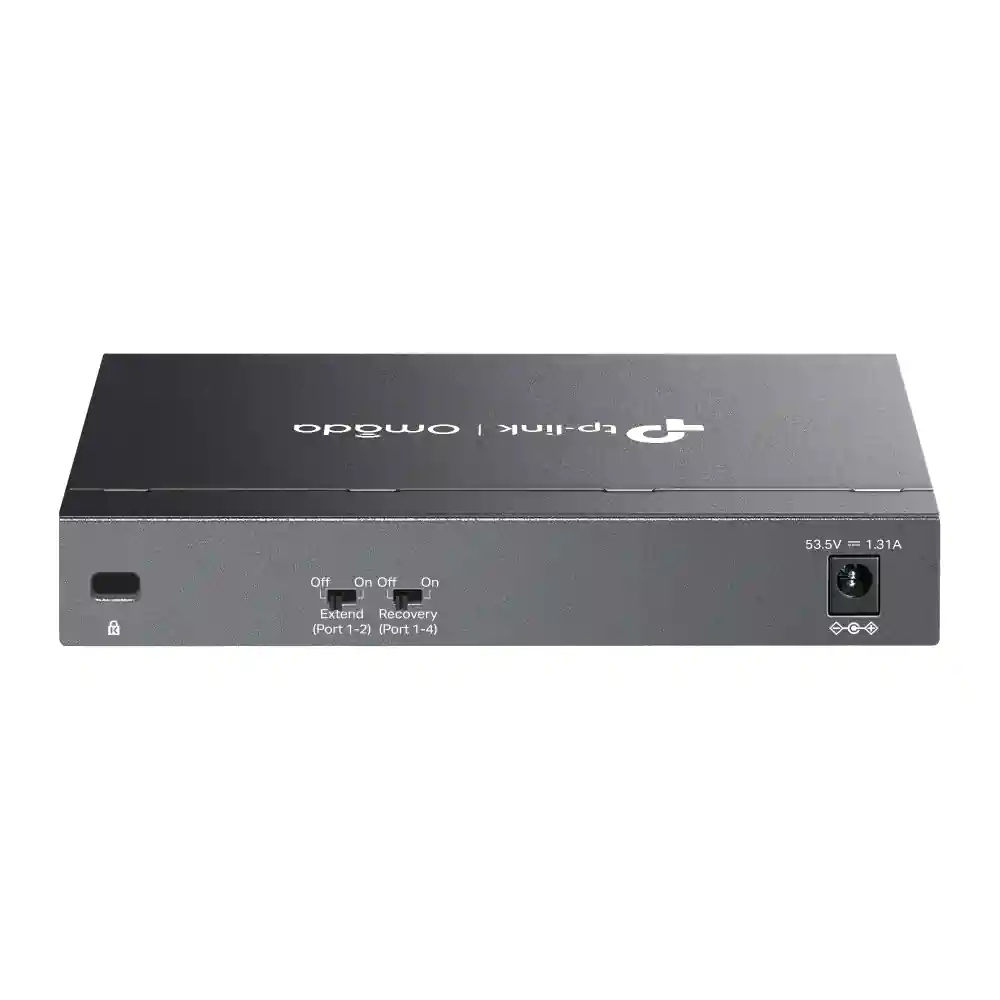

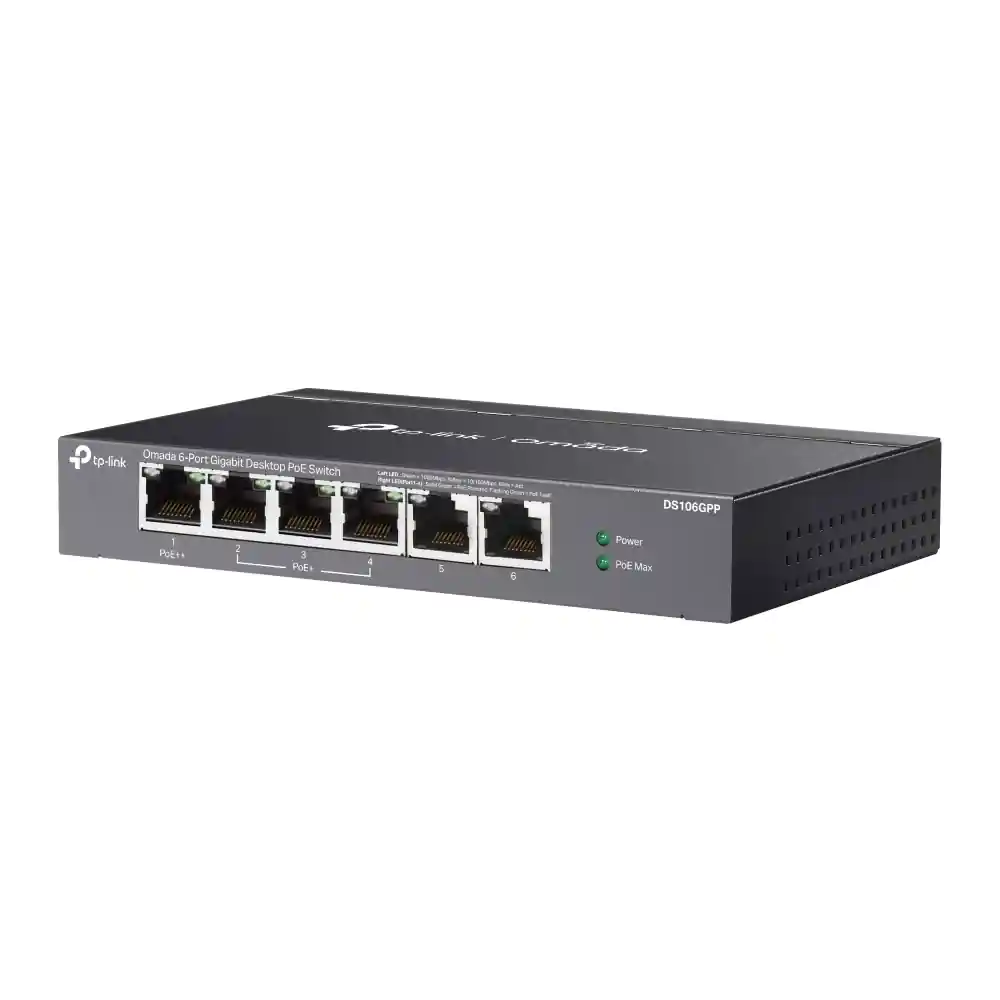

Omada 6-Port Gigabit Unmanaged Desktop Switch with 3-Port PoE+ and 1-Port PoE++ DS106GPP
Member優惠價：$0
🚚 配送方式：
- • 香港本地訂單：購物滿HK$2,000, 免費送貨!
- • 澳門地區訂單：順豐到付 (運費由買家承擔)
🎧 如有技術或貨存查詢
WhatsApp 查詢Omada 6-Port Gigabit Unmanaged Desktop Switch with 3-Port PoE+ and 1-Port PoE++ DS106GPP
DS106GPP 技術規格
| 連接介面 | • 6× 10/100/1000Mbps RJ45 Ports• AUTO Negotiation• AUTO MDI/MDIX |
|---|---|
| 網路連接線 | • 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)• EIA/TIA-568 100Ω STP (maximum 100m)• 100BASE-TX: UTP category 5, 5e cable (maximum 100m)• EIA/TIA-568 100Ω STP (maximum 100m)• 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)• EIA/TIA-568 100Ω STP (maximum 100m) |
| 風扇數量 | Fanless |
| 外接電源供應器 | External Power Adapter (Output: 53.5 VDC / 1.31 A) |
| 封包轉發速率 | 8.928 Mpps |
| PoE連接埠(RJ45) | • Port 1 compliances with 802.3af/at/bt; Ports 2-4 compliance with 802.3af/at• Power Supply: 64 W |
| MAC位址表 | 4K |
| 交換容量 | 12 Gbps |
| 尺寸(長 x 寬 x 高) | 6.2×4.0x1.0 in (158x101x25 mm) |
| 最大功耗 | • 4.75 W (220/50 Hz. no PD connected)• 71.46 W (220/50 Hz. with 64 W PD connected) |
| 最大散熱量 | • 16.20 BTU/h (220/50 Hz. no PD connected)• 243.68 BTU/h (220/50 Hz. with 64 W PD connected) |
| 進階功能 | • Compatible With IEEE 802.3af/at/bt Compliant PDs• Mac Address Auto-Learning And Auto-Aging• IEEE 802.3x Flow Control• 802.1p/DSCP QoS• IGMP Snooping• Extend Mode Button (Ports 1–2, Up to 250 m PoE power supply and data transmission)• PoE Auto Recovery (Ports 1-4) |
| 傳輸模式 | Store-And-Forward |
| 認證 | FCC, CE, RoHS |
| 包裝內容 | • DS106GPP• Power Adapter• Installation Guide |
| 環境 | • Operating Temperature: 0–40 ℃ (32–104 ℉);• Storage Temperature: -40–70 ℃ (-40–158 ℉)• Operating Humidity: 10–90% RH non-condensing• Storage Humidity: 5–90% RH non-condensing |
產品資源
| Brands | Omada |
|---|
