Omada 8-Port Gigabit Smart Switch with 4-Port PoE+ SG2008P

Omada 8-Port Gigabit Smart Switch with 4-Port PoE+ SG2008P

Omada 8-Port Gigabit智慧交換機

SG2008P

b1

b2

b3

b4

b5

b6

b7

b8

具有雲端存取功能的軟體定義網路 (SDN)

透過單一介面遠端管理多個站點的存取點、交換器和網關。

多種應用場景

適用於網路攝影機 適用於 IP 電話 與AP配合使用 適用於非 PoE 設備，例如 PC 和印表機

SG2008P 技術規格

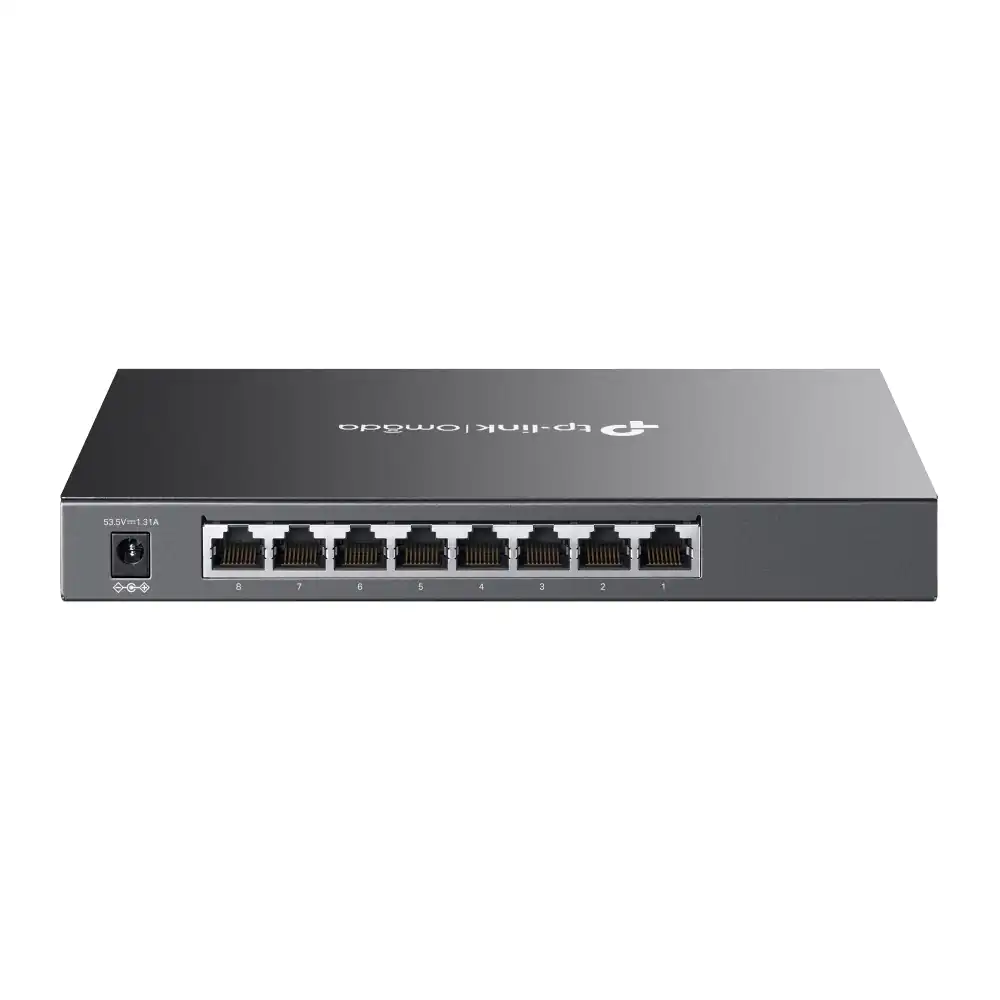

連接介面 • 8× 10/100/1000 Mbps RJ45 Ports (Ports 1–4 Support 802.3at/af PoE+)• Auto-Negotiation/Auto MDI/MDIX
風扇數量 Fanless
物理安全鎖 √
電源供應 External Power Adapter (Output: 53.5 VDC/ 1.31 A)
PoE連接埠(RJ45) • Standard: 802.3af/at compliant• PoE Ports: 4 Ports• Power Supply: 62 W*
尺寸(長 x 寬 x 高) 8.2×4.9×1.0 in (209×126×26 mm)

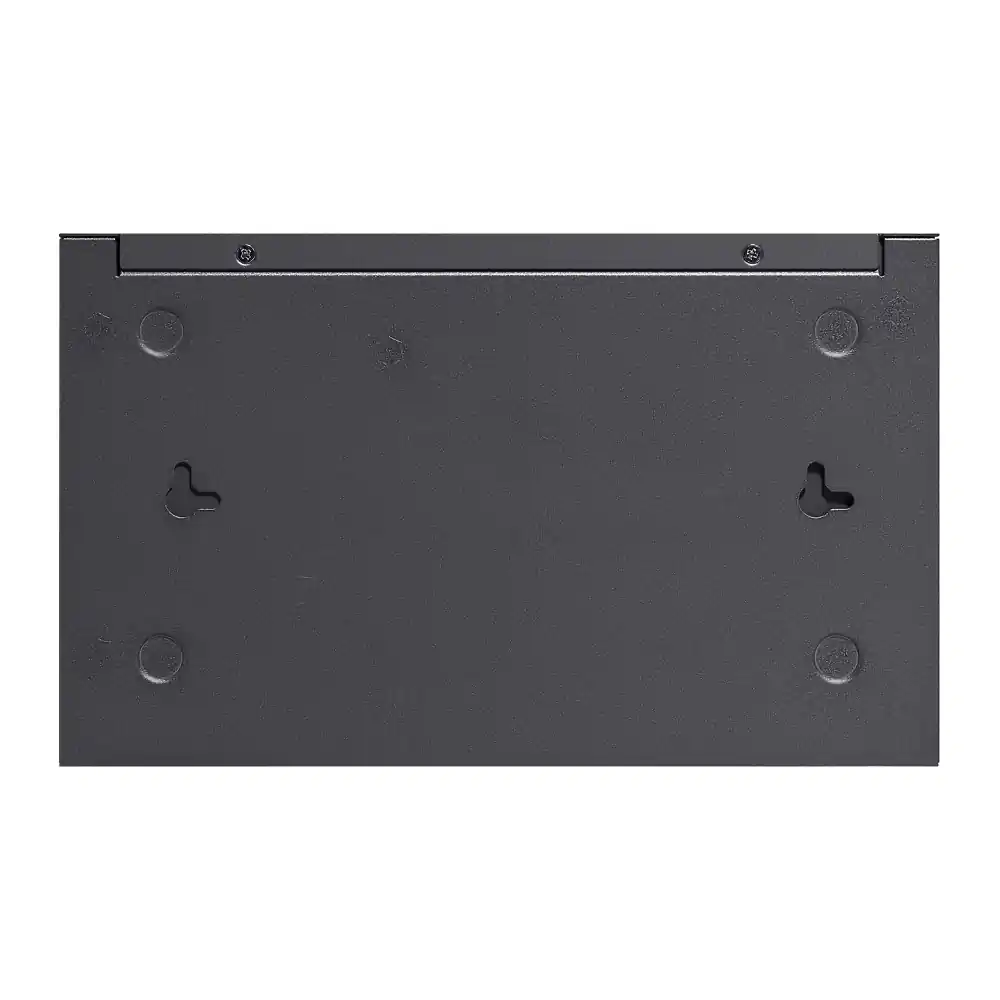

安裝 Desktop / Wall-Mounting
最大功耗 77.3 W (110 V/60 Hz) (with 62 W PD connected)
最大散熱量 263.6 BTU/hr (110 V/60 Hz) (with 62 W PD connected)
頻寬/背板 16 Gbps
封包轉發速率 11.90 Mpps
MAC位址表 8k
封包緩衝記憶體 4.1 Mbit
巨型訊框 9 KB
流量管理(QoS) • 802.1p CoS/DSCP priority• 8 priority queues• Priority Schedule Mode: SP (Strict Priority), WRR (Weighted Round Robin)• Queue Weight Config• Bandwidth Control: Port/Flow-based Rating Limit• Smoother Performance• Storm Control: Multiple Control Modes(kbps/ratio), Broadcast/Multicast/Unknown-Unicast Control
L2與L2+功能 • 16 IP Interfaces: Support IPv4/IPv6 Interface• Static Routing: 32 IPv4/IPv6 Static Routes• DHCP Server• DHCP Relay: DHCP Interface Relay, DHCP VLAN Relay• DHCP L2 Relay• Static ARP• Proxy ARP• Gratuitous ARP• Link Aggregation• Spanning Tree Protocol• Loopback Detection• 802.3x Flow Control• Mirroring• Device Link Detect Protocol (DLDP)• 802.1ab LLDP/ LLDP-MED
L2 群播 • 511 IPv4, IPv6 shared multicast groups• IGMP Snooping• Multicast VLAN Registration (MVR)• Multicast Filtering• Limited IP Multicast (256 profiles and 16 entries per profile)
進階功能 • Automatic Device Discovery†• Batch Configuration†• Batch Firmware Upgrading†• Intelligent Network Monitoring†• Abnormal Event Warnings†• Unified Configuration†• Reboot Schedule†
VLAN • VLAN Group: Max 4K VLAN Groups• 802.1Q tag VLAN• MAC VLAN: 12 Entries• Protocol VLAN• GVRP• Voice VLAN
存取控制列表(ACL) • Support up to 230 entries• Time-based ACL• MAC ACL• IP ACL• IPv6 ACL• Combined ACL• Rule Operation: Permit/Deny• Policy Action: Mirroring, Redirect, Rate Limit, QoS Remark• ACL Rules Binding: Port Binding, VLAN Binding
安全性 • IP-MAC-Port Binding• AAA• 802.1X- Port-based authentication- MAC (Host) based authentication- Authentication Method includes PAP/EAP-MD5- MAB- Guest VLAN- Support Radius authentication and accountability• IP/IPv6-MAC Binding- 512 Binding Entries- DHCP Snooping- DHCPv6 Snooping- ARP Inspection- ND Detection• IP Source Guard- 253 Entries- Source IP+Source MAC• IPv6 Source Guard- 183 Entries- Source IPv6 Address+Source MAC• DoS Defend• Static/Dynamic/Permanent Port Security- Up to 64 MAC addresses per port• Broadcast/Multicast/Unicast Storm Control- kbps/ratio control mode• Port Isolation• Secure web management through HTTPS with SSLv3/TLS 1.2• Secure Command Line Interface (CLI) management with SSHv1/SSHv2• IP/Port/MAC-based access control
IPv6 • IPv6 Static Routing and ACL• IPv6 Dual IPv4/IPv6• IPv6 Interface• Multicast Listener Discovery (MLD) Snooping• IPv6 neighbor discovery (ND)• Path maximum transmission unit (MTU) discovery• Internet Control Message Protocol (ICMP) version 6• TCPv6/UDPv6• IPv6 applications: DHCPv6 Client, Ping6, Tracert6, Telnet(v6), IPv6 SNMP, IPv6 SSH, IPv6 SSL, Http/Https, IPv6 TFTP
MIBs • MIB II (RFC1213)• Bridge MIB (RFC1493)• P/Q-Bridge MIB (RFC2674)• Radius Accounting Client MIB (RFC2620)• Radius Authentication Client MIB (RFC2618)• Remote Ping, Traceroute MIB (RFC2925)• Support TP-Link private MIBs• RMON MIB(RFC1757, rmon 1,2,3,9)
Omada App Yes. Requiring the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
集中化管理 • Omada Cloud-Based Controller• Omada Hardware Controller• Omada Software Controller
雲端存取 Yes. Requiring the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
零接觸監管 Yes. Requiring the use of Omada Cloud-Based Controller
管理功能 • Web-based GUI• Command Line Interface (CLI) through telnet• SNMPv1/v2c/v3• SNMP Trap/Inform• RMON (1,2,3,9 groups)• SDM Template• DHCP/BOOTP Client• Dual Image, Dual Configuration• CPU Monitoring• Cable Diagnostics• EEE• SNTP• System Log
認證 CE, FCC, RoHS
包裝內容 • SG2008P• Power Adapter• Installation Guide• Rubber Feet
系統需求 Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7/8/10/11, MAC® OS, NetWare®, UNIX® or Linux.
環境 • Operating Temperature: 0–40 ℃ (32–104 ℉);• Storage Temperature: -40–70 ℃ (-40–158 ℉)• Operating Humidity: 10–90% RH non-condensing• Storage Humidity: 5–90% RH non-condensing
