Omada 9-Port 10/100Mbps Desktop Switch with 8-Port PoE+ LS109P
Member優惠價：$0
🚚 配送方式：
- • 香港本地訂單：購物滿HK$2,000, 免費送貨!
- • 澳門地區訂單：順豐到付 (運費由買家承擔)
🎧 如有技術或貨存查詢
WhatsApp 查詢Omada 9-Port 10/100Mbps Desktop Switch with 8-Port PoE+ LS109P
LS109P 技術規格
| 連接介面 | • 9× 10/100 Mbps RJ45 Ports (8× 10/100 Mbps 802.3af/at PoE+ Ports)• AUTO Negotiation• AUTO MDI/MDIX |
|---|---|
| 網路連接線 | • 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m); EIA/TIA-568 100Ω STP (maximum 100m)• 100BASE-TX: UTP category 5, 5e cable (maximum 100m); EIA/TIA-568 100Ω STP (maximum 100m) |
| 風扇數量 | Fanless |
| 安裝 | • Desktop• Wall Mounting |
| 電源供應 | External Power Adapter (Output: 53.5VDC / 1.31A) |
| LED燈 | • Power• Link/Act• PoE Status• PoE MAX |
| PoE連接埠(RJ45) | • Standard: 802.3 af/at compliant• PoE Ports: Ports 1–8, up to 30 W PoE output per port• Power Supply: 63 W |
| 尺寸(長 x 寬 x 高) | 6.7×3.9×1.1 in (171×98×27 mm) |
| 最大功耗 | • 3.67 W (220 V/50 Hz no PD connected)• 73.24 W (220 V/50 Hz with 63 W PD connected) |
| 最大散熱量 | • 12.48 BTU/h (220 V/50 Hz no PD connected)• 249 BTU/h (220 V/50 Hz with 63 W PD connected) |
| 背板頻寬 | 1.8 Gbps |
| 封包轉發速率 | 1.3392 Mpps |
| MAC位址表 | 2K |
| 巨型訊框 | 1.5 KB |

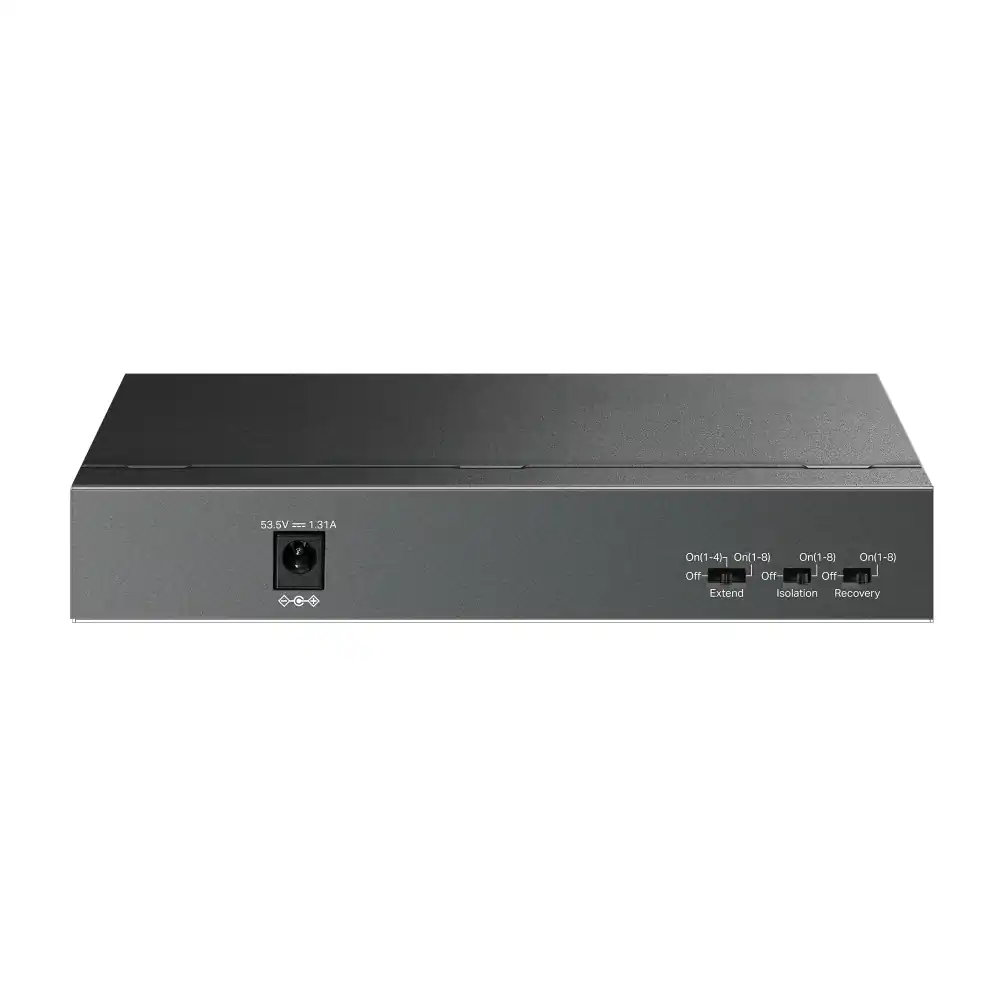

| 進階功能 | • Extend Mode Button (Ports 1–4/1–8, Up to 250 m PoE power supply and data transmission)• Isolation Mode Button (Ports 1–8)• PoE Auto Recovery Button (Ports 1–8)• Compatible With IEEE 802.3af/at Compliant PDs• Mac Address Auto-Learning and Auto-Aging• IEEE 802.3x Flow Control• Green Technology |
| 傳輸模式 | Store and Forward |
| 認證 | CE, FCC, RoHS |
| 包裝內容 | • LS109P• Power Adapter• Installation Guide• Rubber Feet |
| 環境 | • Operating Temperature: 0–40 ℃ (32–104 ℉)• Storage Temperature: -40–70 ℃ (-40–158 ℉)• Operating Humidity: 10–90% RH non-condensing• Storage Humidity: 5–90% RH non-condensing |
