Omada AC1200 Wireless MU-MIMO Gigabit Wall Plate Access Point EAP235-WALL
🚚 配送方式：
- • 香港本地訂單：購物滿HK$2,000, 免費送貨!
- • 澳門地區訂單：順豐到付 (運費由買家承擔)
🎧 如有技術或貨存查詢
WhatsApp 查詢Omada AC1200 Wireless MU-MIMO Gigabit Wall Plate Access Point EAP235-WALL
11ac Wi-Fi for the BestRoom-by-RoomConnection
EAP235-Wall
Dedicated Complete, Private Wi-Fi Network in Each Room
An EAP in each room allows guests to enjoy their own private Wi-Fi network that’s fast, delivering a strong signal, and providing corner to corner coverage.
MU-MIMO + Dual-Band: Connect Faster and More
802.11ac wave 2 MU-MIMO technology enables multiple users to access the Internet simultaneously, which largely boosts up your network speed of up to 1,200 Mbps. Capable of transmitting in both 2.4 GHz and 5 GHz wireless band, it provides greater compatibility to connect varieties of devices.† With MU-MIMO Without MU-MIMO

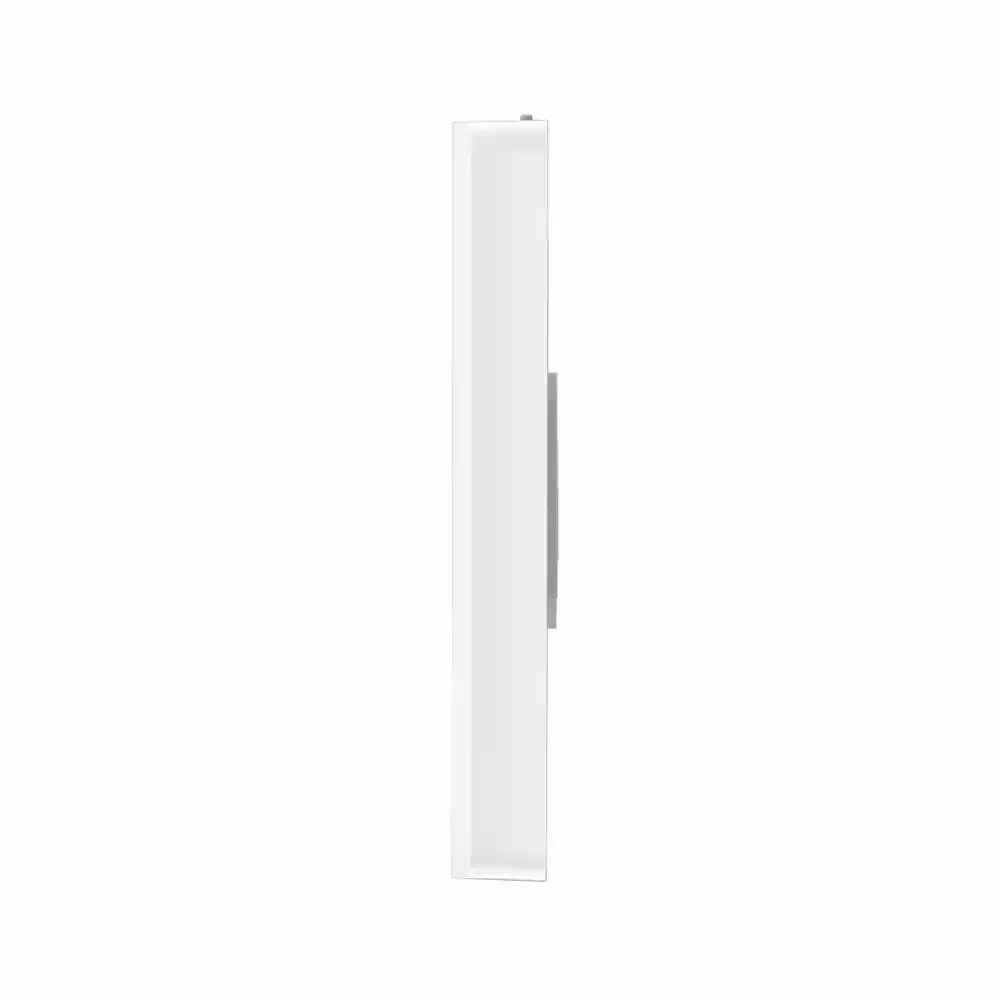

Absolute Thinnest, Inconspicuous Design
The thinnest wall plate AP available—only 15 mm—featuring a sleek, minimalist appearance. Designed to blend in with the décor of hotel rooms, hospitals, offices and school dormitories, to deliver powerful Wi-Fi without clashing with the room. EAP235-Wall Traditional
Effortless Deployment with PoE Powered
With 802.3af/802.3at Power over Ethernet supported there’s no need to install additional wiring in the building. Simply plug in existing Ethernet cables and you’re ready to go.
Quick, Simplified Installation
EAP235-Wall is easy to install, so extra cost, time, or professional knowledge are completely unnecessary. *Fits three kinds of wall junctions 86 mm wall junction box Standard EU wall junction box Standard US wall junction box
Full Gigabit Ports to Bridge Network
Equipped with four Gigabit data ports (1*uplink + 3*downlink), one downlink port offering PoE pass-through, to connect multiple devices to your gigabit network. Wired devices like VoIP phones can be powered with no need for extra electrical cables.
Omada SDN—Smarter Cloud Solution for Business Networking
Omada Software Defined Networking (SDN) platform integrates network devices including access points, switches and gateways, guaranteeing powerful business network with higher efficiency, higher security, and higher reliability. Learn more about Omada SDN >> Hassle-Free Centralized Cloud Management:100% centralized cloud management of whole network from different sites—all controlled from a single interface anywhere, anytime.
Easy Management with the Omada App
Follow configuration instructions on the Omada app to get set up in minutes. Omada lets you configure settings, monitor the network status and manage clients, all from the convenience of a smart phone or tablet. Click here to see Omada App compatible devices>
EAP235-WALL 技術規格
| 連接介面 | • Uplink: 1× 10/100/1000 Mbps Ethernet Port• Downlink: 3× 10/100/1000 Mbps Ethernet Ports (One port supports PoE OUT. The PoE OUT feature requires 802.3at PoE+ input and the maximum output is 13 W.) |
|---|---|
| 物理安全鎖 | Yes |
| 按鈕 | Reset |
| 電源供應 | 802.3af/802.3at PoE |
| PoE Out | · PoE Passthrough (Pins 1,2+; 3,6-)· PoE Out (requires 802.3at PoE input and the maximum output is 13 W)△ |
| 功耗 | 9.8 watts /24.4 watts (PoE Out Included) |
| 尺寸(長 x 寬 x 高) | 143 × 86 × 20 mm (5.6 × 3.4 × 0.8 in) |
| 天線 | 2 Dual-Band Antennas• 2.4 GHz: 2× 4 dBi• 5 GHz: 2× 4 dBi |
| 安裝 | Wall Plate Mounting |
| 覆蓋範圍 | 25㎡(300 ft²)*** |
| 可同時連線用戶數 | 200+** |
| 無線網路標準 | IEEE 802.11a/b/g/n/ac |
| 無線網路頻率 | 2.4 GHz and 5 GHz |
| 訊號速率 | • 5 GHz: Up to 867 Mbps• 2.4 GHz: Up to 300 Mbps |
| 無線網路功能 | • 16 SSIDs (Up to 8 SSIDs on each band)• Enable/Disable Wireless Radio• Automatic Channel Assignment• Transmit Power Control (Adjust Transmit Power on dBm)• QoS(WMM)• MU-MIMO• Band Steering• Beamforming• Load Balance• Rate Limit• Reboot Schedule• Wireless Schedule• Wireless Statistics based on SSID/AP/Client |
| 無線網路安全性 | • Captive Portal Authentication• Access Control• Wireless Mac Address Filtering• Wireless Isolation Between Clients• SSID to VLAN Mapping• Local LAN port based VLAN• Rogue AP Detection• 802.1X Support• 64/128/152-bit WEP, WPA/WPA2-PSK, WPA/WPA2-Enterprise |
| 傳輸功率 | • CE:≤20 dBm (2.4 GHz, EIRP)≤23 dBm (5 GHz, EIRP)• FCC:≤21 dBm (2.4 GHz)≤21 dBm (5 GHz) |
| Omada App | Yes |
| 集中化管理 | • Omada Cloud-Based Controller• Omada Hardware Controller (OC300)• Omada Hardware Controller (OC200)• Omada Software Controller |
| 雲端存取 | Yes (Through OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller) |
| E-mail警示 | Yes |
| LED 開/關 控制 | Yes |
| 管理MAC存取控制 | Yes |
| SNMP | v1,v2c |
| 系統登入本地/遠端系統日誌 | Local/Remote Syslog |
| SSH | Yes |
| Web管理介面 | HTTP/HTTPS |
| L3 管理 | Yes |
| 多站點管理 | Yes |
| 管理VLAN | Yes |
| 零接觸監管 | Yes. Requiring the use of Omada Cloud-Based Controller. |
| 認證 | CE, FCC, RoHS |
| 包裝內容 | • Omada AC1200 Wireless MU-MIMO Gigabit Wall Plate Access Point EAP235-Wall• Installation Guide• Mounting Screw |
| 系統需求 | Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10 |
| 環境 | • Operating Temperature: 0–40 ℃ (32–104 ℉)• Storage Temperature: -40–70 ℃ (-40–158 ℉)• Operating Humidity: 10–90% RH non-condensing• Storage Humidity: 5–90% RH non-condensing |
