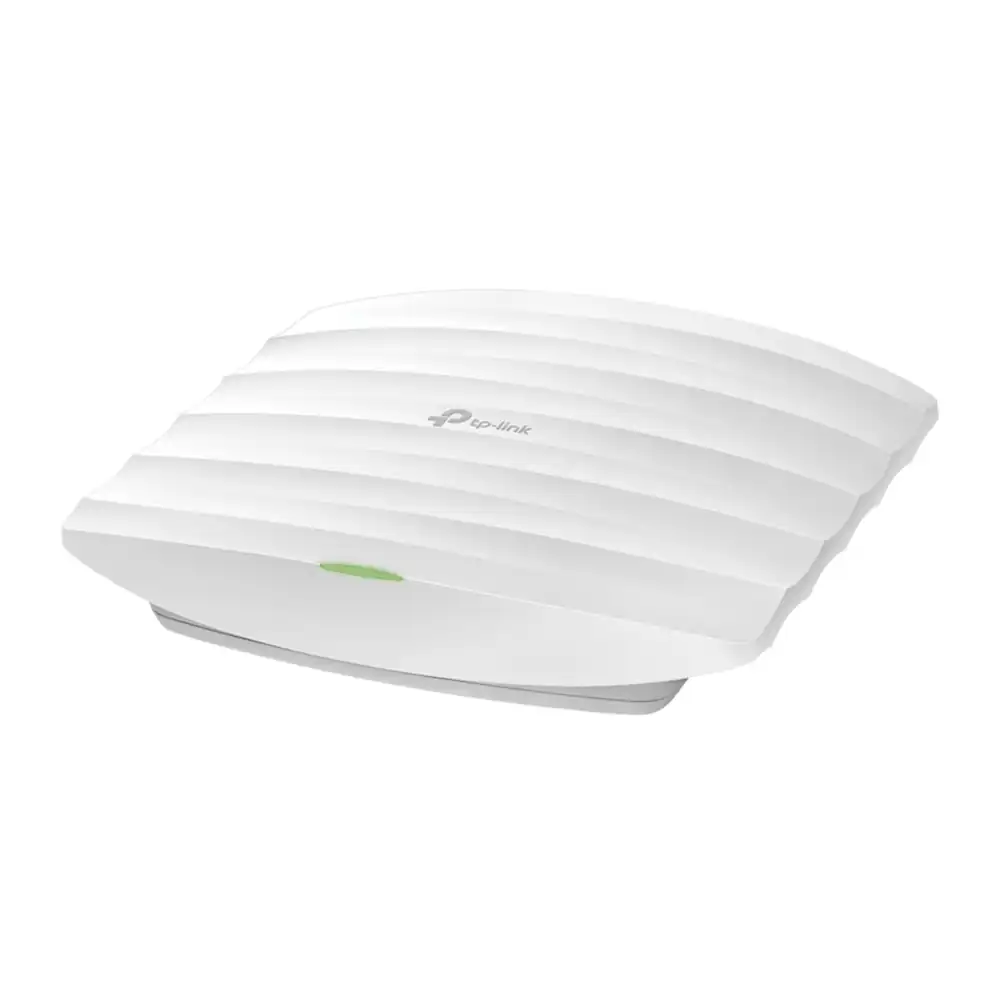

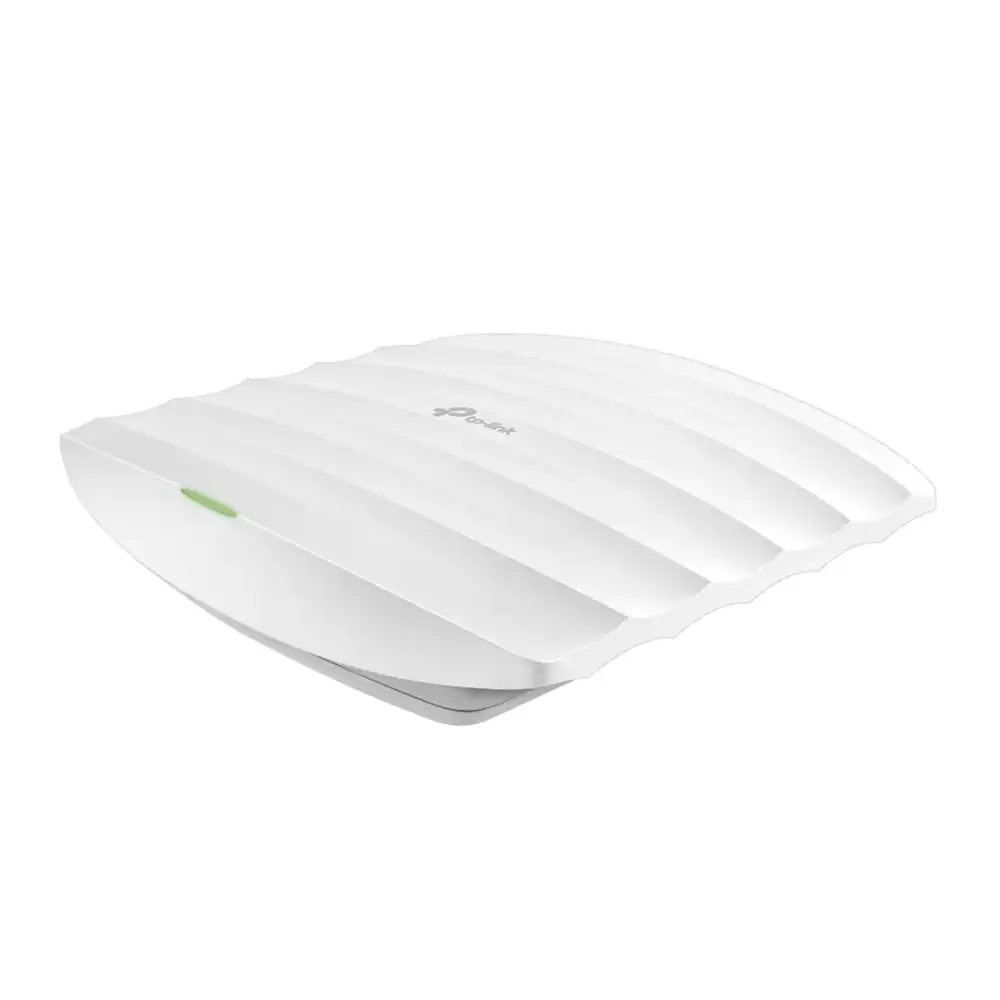

Omada AC1350 Wireless MU-MIMO Gigabit Ceiling Mount Access Point EAP223

Omada AC1350 Wireless MU-MIMO Gigabit Ceiling Mount Access Point EAP223

An Affordable Business-Class802.11ac MU-MIMO Wi-Fi Solution

Superior Wi-Fi Speeds with MU-MIMO Technology

Outfitted with the latest 802.11ac Wave 2 MU-MIMO technology, the EAP223 easily delivers dual-band Wi-Fi speeds of up to 1350 Mbps to multiple devices at the same time.†

Omada SDN—Smarter Cloud Solution for Business Networking

Omada Software Defined Networking (SDN) platform integrates network devices including access points, switches and gateways, guaranteeing powerful business network with higher efficiency, higher security, and higher reliability. Learn more about Omada SDN >> Hassle-Free Centralized Cloud Management:100% centralized cloud management of whole network from different sites—all controlled from a single interface anywhere, anytime.

Secure Guest Network with SMS Authentication

The captive portal helps maintain only authorized guests to use the network, presenting devices with a convenient, user-friendly authentication method to grant Wi-Fi access. The addition of SMS authentication simplifies the captive portal even further to simplify connectivity and boost your business.*

Multiple PoE Options for Easy Installation

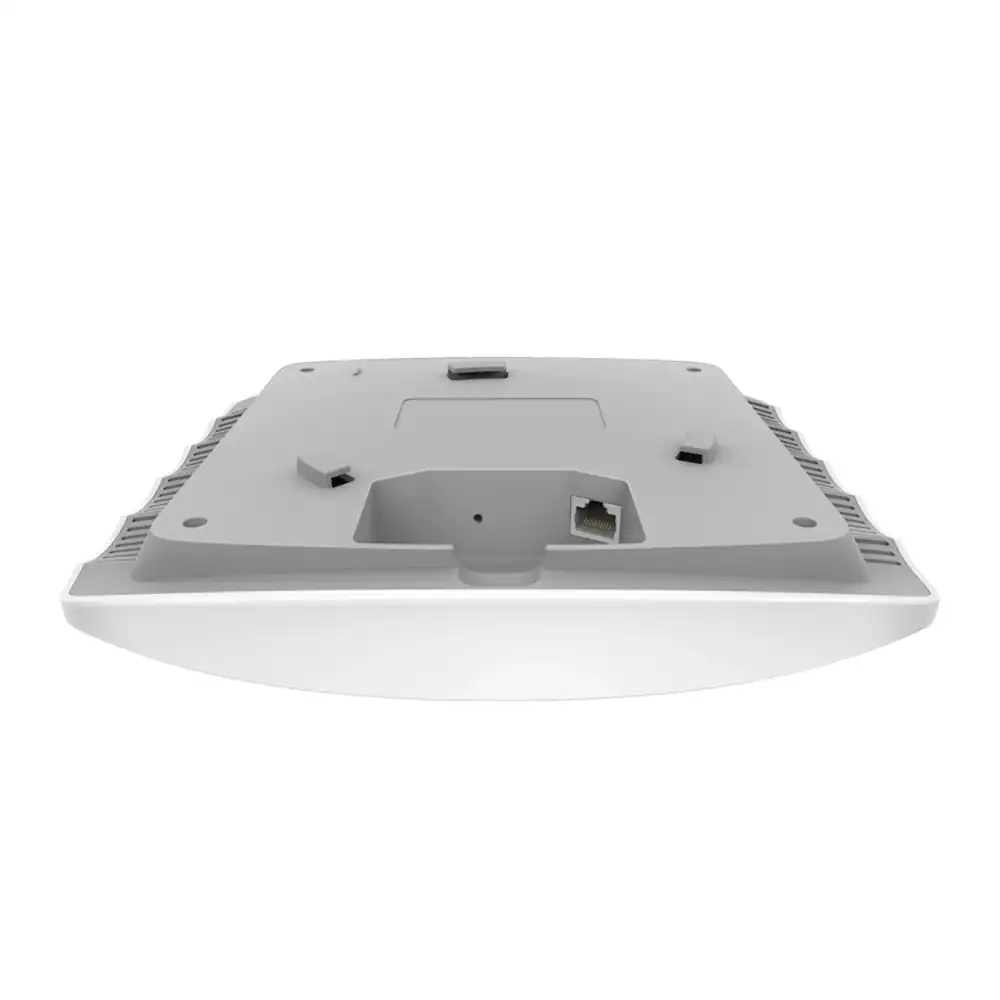

EAP223 supports both 802.3af PoE and Passive PoE power supply, which can be either powered by a PoE switch or the PoE adapter, making deployment effortless and flexible. Gigabit EthernetPort 802.3af PoE/24V Passive PoE

Easy Management with the Omada App

Follow configuration instructions on the free Omada app to get set up in minutes. Omada lets you configure settings, monitor the network status and manage clients, all from the convenience of a smartphone or tablet. Click here to see Omada App compatible devices>

EAP223 技術規格

連接介面	Gigabit Ethernet (RJ-45) Port×1 (Support IEEE802.3af PoE and Passive PoE)
物理安全鎖	Yes
按鈕	Reset
電源供應	• 802.3af PoE• 24V Passive PoE (+4,5pins; -7,8pins. PoE Adapter IS NOT Included)
功耗	12.6 W
尺寸(長 x 寬 x 高)	8.1 × 7.1 × 1.5 in (205.5 × 181.5 × 37.1 mm)
天線	3 Internal Omni• 2.4 GHz: 4 dBi• 5 GHz: 5 dBi
安裝	Ceiling /Wall Mounting (Kits included)
覆蓋範圍	115㎡(1250 ft²)§
可同時連線用戶數	220+**
無線網路標準	IEEE 802.11ac/n/g/b/a
無線網路頻率	2.4 GHz and 5 GHz
訊號速率	• 5 GHz:Up to 867 Mbps• 2.4 GHz:Up to 450 Mbps
無線網路功能	• Multiple SSIDs (Up to 16 SSIDs, 8 for each band)• Enable/Disable Wireless Radio• Automatic Channel Assignment• Transmit Power Control (Adjust Transmit Power on dBm)• QoS(WMM)• Seamless Roaming(802.11k/v/r)*• Omada Mesh*• Band Steering• Load Balance• MU-MIMO• Airtime Fairness• Beamforming• Rate Limit• Reboot Schedule• Wireless Schedule• Wireless Statistics based on SSID/AP/Client
無線網路安全性	• Captive Portal Authentication*• Access Control• Wireless Mac Address Filtering• Wireless Isolation Between Clients• SSID to VLAN Mapping• Rogue AP Detection• 802.1X Support
傳輸功率	• CE:≤20 dBm(2.4 GHz, EIRP)≤23 dBm(5 GHz, EIRP)• FCC:≤24 dBm(2.4 GHz)≤22 dBm(5 GHz)
Omada App	Yes
集中化管理	• Omada Cloud-Based Controller• Omada Hardware Controller• Omada Software Controller
雲端存取	Yes. Require the use of an Omada controller.
E-mail警示	Yes
LED 開/關 控制	Yes
管理MAC存取控制	Yes
SNMP	v1,v2c
系統登入本地/遠端系統日誌	Local/Remote Syslog
SSH	Yes
Web管理介面	HTTP/HTTPS
L3 管理	Yes
多站點管理	Yes
管理VLAN	Yes
零接觸監管	Yes. Requiring the use of Omada Cloud-Based Controller
認證	CE, FCC, RoHS
包裝內容	• AC1350 Wireless MU-MIMO Gigabit Ceiling Mount Access Point EAP223• Mounting Kits• Installation Guide
系統需求	Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows11, Linux
環境	• Operating Temperature: 0–40 ℃ (32–104 ℉)• Storage Temperature: -40–70 ℃ (-40–158 ℉)• Operating Humidity: 10–90% RH non-condensing• Storage Humidity: 5–90% RH non-condensing
Traditional SU-MIMO(Single-User MIMO) AP	sends data to one device at a time that causes more latency
MU-MIMO(Multi-User MIMO) EAP	simultaneously sends data to multiple devices for faster speed
