Omada AC1750 Wireless MU-MIMO Gigabit Ceiling Mount Access Point EAP245
🚚 配送方式：
- • 香港本地訂單：購物滿HK$2,000, 免費送貨!
- • 澳門地區訂單：順豐到付 (運費由買家承擔)
🎧 如有技術或貨存查詢
WhatsApp 查詢Omada AC1750 Wireless MU-MIMO Gigabit Ceiling Mount Access Point EAP245
An Elite Business-ClassAC1750 MU-MIMOWi-FiSolution
應用場景
Seamless Roaming
802.11k/802.11v seamless roaming switches clients automatically to the access point with the optimal signal with a seamless transition when moving.* This allows sensitive applications like VoIP and video conferences to go uninterrupted.
Omada SDN—Smarter Cloud Solution for Business Networking
Omada Software Defined Networking (SDN) platform integrates network devices including access points, switches and gateways, guaranteeing a powerful business network with higher efficiency, higher security, and higher reliability. Learn more about Omada SDN >> Hassle-Free Centralized Cloud Management:100% centralized cloud management of whole network from different sites—all controlled from a single interface anywhere, anytime.
Secure Guest Network with SMS Login
Guest Network provides secure access to guests sharing your Wi-Fi network, with captive portal helping maintain only authorized guests to use the network. The addition of SMS authentication simplifies the captive portal even further to simplify connectivity and boost your business.*
Multiple PoE Options for Easy Installation
EAP245 supports both 802.3at PoE and Passive PoE power supply, which can be either powered by a PoE switch or the provided PoE adapter. The addition of elegant appearance and simple mounting design for easy attachment to a wall or ceiling further makes deployment effortless and flexible.
Easy Management with the Omada App
Follow configuration instructions on the free Omada app to get set up in minutes. Omada lets you configure settings, monitor the network status and manage clients, all from the convenience of a smartphone or tablet. Click here to see Omada App compatible devices>
EAP245 技術規格
| 連接介面 | Gigabit 乙太網路孔 (RJ-45) *2 (一個網路孔支援 IEEE802.3af PoE 和被動 PoE) |
|---|---|
| 物理安全鎖 | 有 |
| 按鈕 | 重設 |
| 電源供應 | 802.3af/at PoE48V 被動 PoE (+4,5pins; -7,8pins.內含 PoE 供應器) |
| 功耗 | 12.3 W |
| 尺寸(長 x 寬 x 高) | 205.5 × 181.5 × 37.1 毫米(mm) |
| 天線 | 內建全向2.4GHz: 3* 3.5dBi5GHz: 3*4dBi |
| 安裝 | 吸頂/壁掛 (內含安裝套件) |
| 覆蓋範圍 | 140㎡(1500 ft²)§ |
| 可同時連線用戶數 | 220+*** |
| 無線網路標準 | IEEE 802.11ac/n/g/b/a |
| 無線網路頻率 | 2.4GHz 和 5GHz |
| 訊號速率 | 5GHz:高達 1300Mbps2.4GHz:高達 450Mbps |
| 無線網路功能 | 多組 SSIDs（最多16個SSIDs，每頻段8個）啟用/停用無線廣播自動頻道分配傳輸功率控制（在dBm上調整傳輸功率）QoS(WMM)頻段導航MU-MIMO無縫漫遊頻段導航負載平衡通訊公平波束成型速率限制重啟排程無線排程基於SSID/AP/客戶端的無線統計 |
| 無線網路安全性 | 門戶管理驗證存取控制無線 Mac 位址過濾客戶端之間無線隔離SSID 映射至 VLAN流氓 AP 偵測支援 802.1X64/128/152-bit WEP / WPA / WPA2-企業,WPA-PSK / WPA2-PSK |
| 傳輸功率 | CE：≤20dBm(2.4GHz)≤23dBm(5GHz)FCC:≤24dBm(2.4GHz)≤24dBm(5GHz) |
| Omada App | 支援 |
| 集中化管理 | • Omada 雲端控制器• Omada 硬體控制器 (OC300)• Omada 硬體控制器 (OC200)• Omada 軟體控制器 |
| 雲端存取 | 支援 (透過 Omada OC200, OC300, Omada 雲端控制器或軟體控制器) |
| E-mail警示 | 支援 |
| LED 開/關 控制 | 支援 |
| 管理MAC存取控制 | 支援 |
| SNMP | v1, v2c |
| 系統登入本地/遠端系統日誌 | 本地/遠端日誌 |
| SSH | 支援 |
| Web管理介面 | HTTP/HTTPS |
| L3 管理 | 支援 |
| 多站點管理 | 支援 |
| 管理VLAN | 支援 |
| 零接觸監管 | Yes. Requiring the use of Omada Cloud-Based Controller. |
| 認證 | CE, FCC, RoHS, NCC, BSMI |

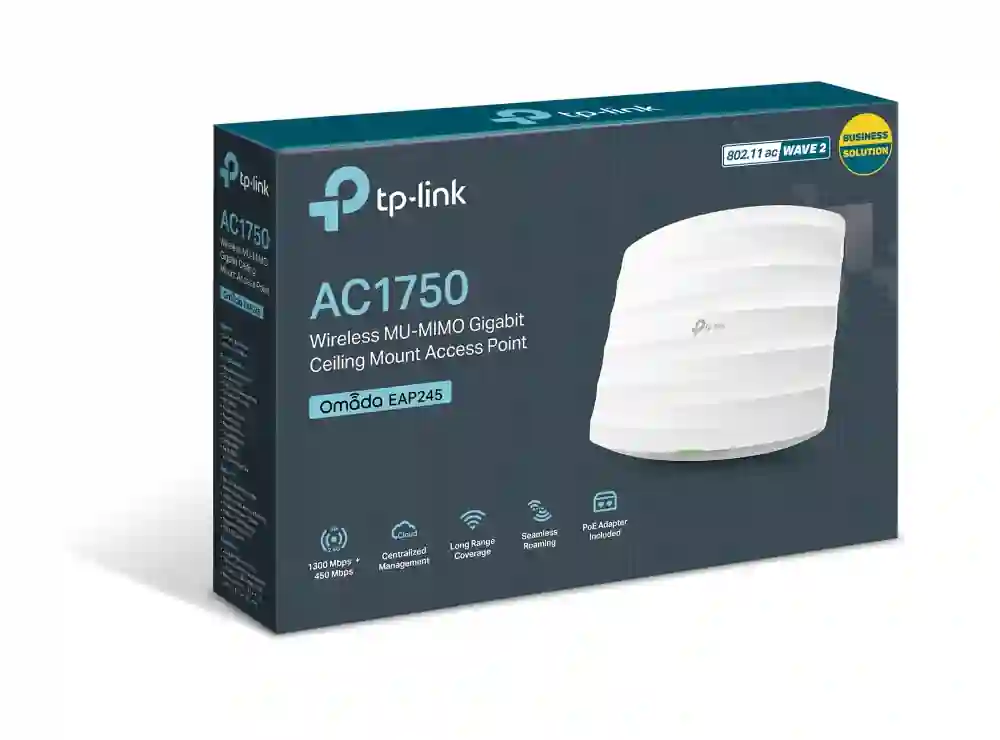

| 包裝內容 | AC1750 無線雙頻 Gigabit 基地台 EAP245Gigabit被動PoE供應器電源線壁掛套件安裝手冊 |
| 系統需求 | Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Linux |
| 環境 | 運作溫度：0℃~40℃ (32℉~104℉)存放溫度：-40℃~70℃ (-40℉~158℉)運作濕度：10%~90% 無凝結存放濕度：5%~90% 無凝結 |
