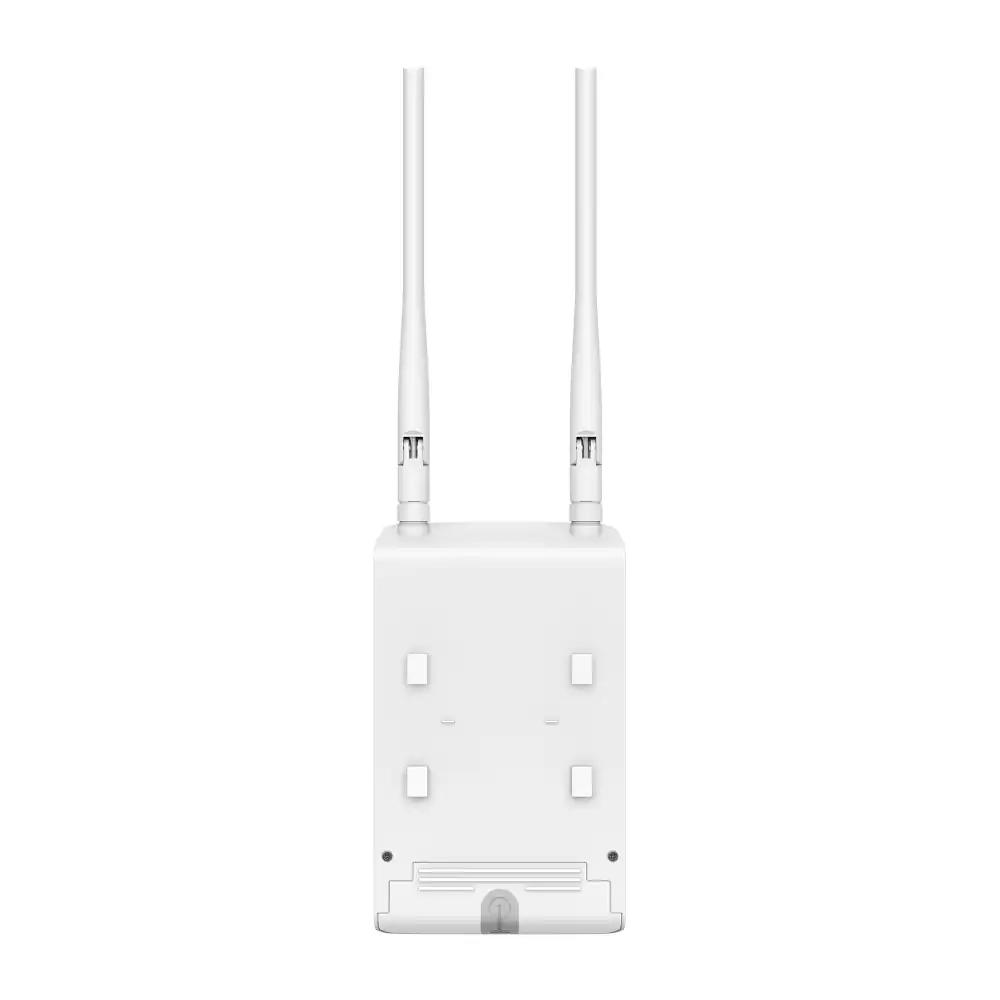

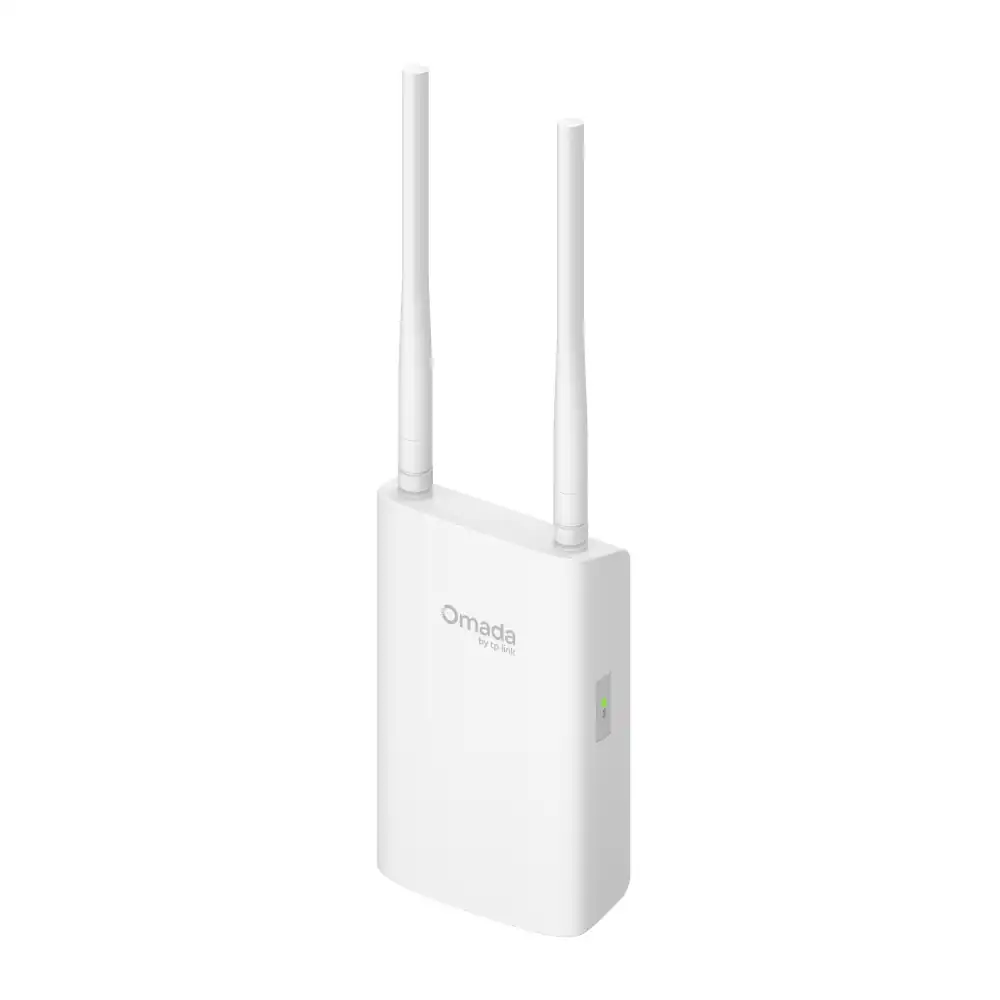

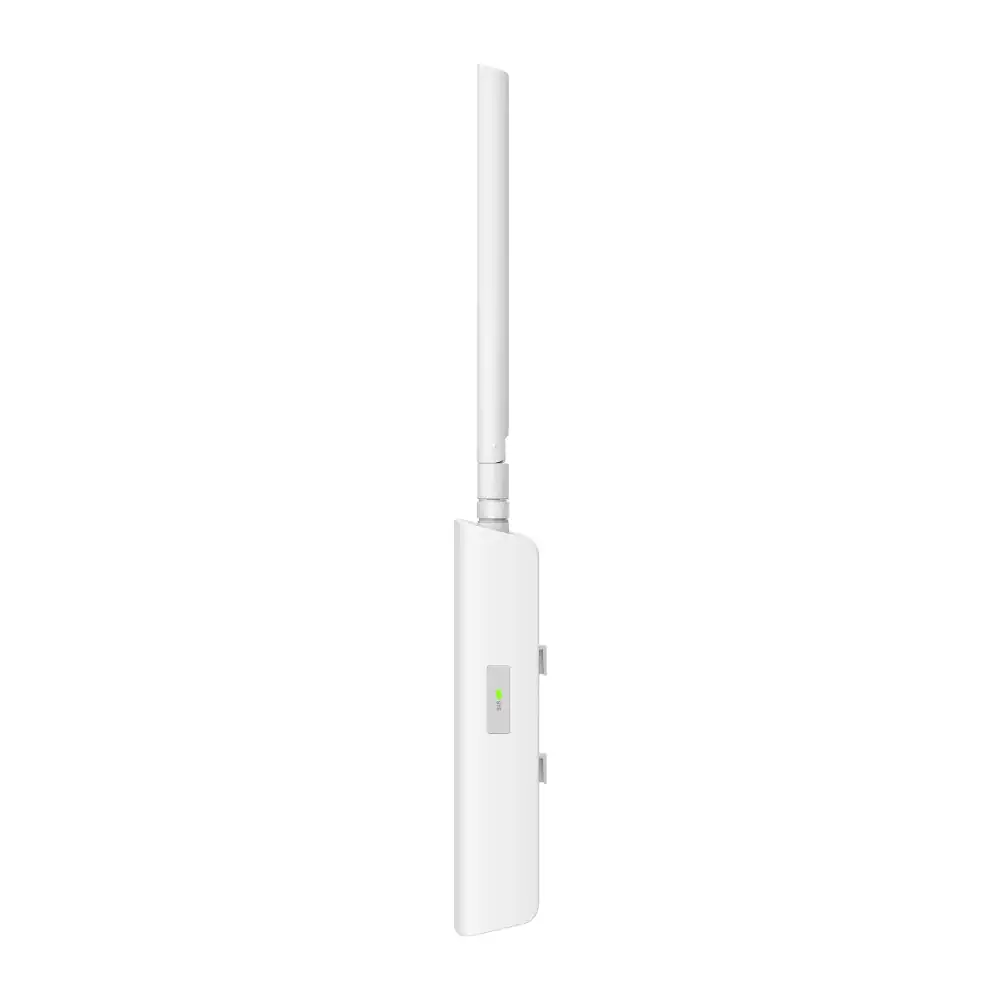

Omada AX1800 Indoor/Outdoor Wi-Fi 6 Access Point EAP603-OUTDOOR

Omada AX1800 Indoor/Outdoor Wi-Fi 6 Access Point EAP603-OUTDOOR

OmadaOmni-DirectionalAX1800Wi-Fi 6Indoor/Outdoor Access Point

EAP603-Outdoor Up to 1.8 Gbps Wi-Fi 6 Speeds† Long Coverage with 2× External Antennas 802.3at PoE &Passive PoE (Adapter Included) 1× Gigabit PoE+Port Omada Mesh & Seamless Roaming Centralized Cloud Management IP65 Weatherproof Easy Setup 1775Mbps (5 GHz + 2.4 GHz) 5 GHz 1201 Mbps 2.4 GHz 574 Mbps HE 80 1024 QAM MU-MIMO OFDMA Yard Shed/Barn Farm Swimming Pool Outdoor Café Park 2× external antennas equipped with high-power amplifiers utilize Wi-Fi 6 technology to provide strong and expansive wireless coverage to various outdoor environments.* 2.4 GHz up to2150 ft/200 m 5 GHz up to3200 ft/300 m Powered with PoE+ Switch Using the Provided Passive PoE Adapter Ensures customers enjoy uninterrupted streaming when moving around by switching clients automatically to the access points with the optimal signal. PoE+ Omada PoE+ Switch The fully sealed EAP603-0utdoor offers complete dustproof protection and the ability to withstand prolonged submersion in water. It withstands the harsh outdoor environments. IP65 Weatherproof 6kV Lightning Protection -30 °C-70 °C Working Range Wind Resistance Pole Mounting Wall Mounting Omada SDN allows users to quickly set up the EAP603-Outdoor through automatic device identification and one-click adoption. Omada’s Software-Defined Networking (SDN) solution seamlessly integrates access points (APs), managed switches, and gateways, enabling 100% centralized cloud management for a highly scalable network.

EAP603-OUTDOOR 技術規格

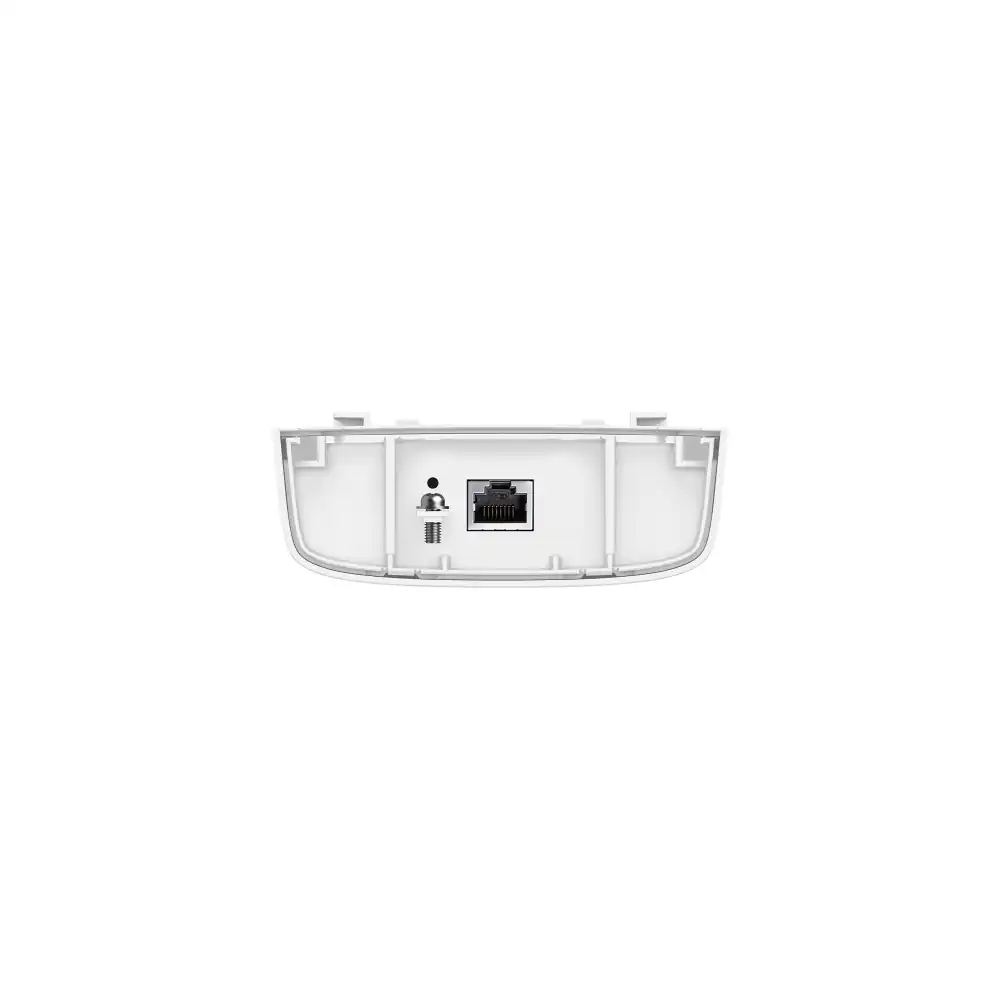

連接介面	• 1× 10M/100M/1000Mbps Gigabit Ethernet Port (RJ45); PoE in• 1× Grounding Termina
按鈕	1× Reset button: Press the button for longer than 5 seconds to make the device restore to factory settings.
電源供應	Input: 802.3at PoE+: 42.5 – 57 V, 0.36A
功耗	• 802.3at (PoE+): 15.8w, 2.4GHz radio 2×2, 5GHz radio 2×2, wired link rate can be upto 1 Gbps, etc.• Idle mode: 4.8W(PoE)
尺寸(長 x 寬 x 高)	• Main Unit: 230 × 207.5 × 69.7 mm (9.06 × 8.17 × 2.74 in.)• Shipping Unit: 324 × 104 × 245 mm (12.76 × 4.09 × 9.65 in.)
天線	Wi-Fi• 2.4 GHz: 2 × 4 dBi (peak gain), external omnidirectional antennas• 5 GHz: 2 × 5 dBi (peak gain), external omnidirectional antennas*Note: The gains above are the single-antenna peak gains.IoT• Bluetooth: 1 × 4 dBi (peak gain), internal omnidirectionalantennas
藍牙	Yes
防風雨外殼	IP66 for Wall MountIP65 for Pole Mount
安裝	• Pole Mount (Kits included)• Wall Mount (Kits included)
覆蓋範圍	• 2.4 GHz: up to 2,150 ft (200 m)• 5 GHz: up to 3,200 ft (300 m)
無線網路標準	5 GHz: IEEE 802.11a/n/ac/ax2.4 GHz: IEEE 802.11b/g/n/ax
無線網路頻率	• 5 GHz• 2.4 GHz
訊號速率	• 2.4 GHz: up to 573 Mbps• 5 GHz: up to 1201 Mbps*Note: Country-Specific Restriction Apply
無線網路功能	• Maximum number of BSSIDs: 16 (8 on each band)• Maximum number of associated STAs: 250+• Guest Network• ACS (Automatic Channel Selection)• Airtime Fairness• Band Steering• 802.11 Rate Control• Rogue AP Detection• URL Filtering• WLAN Optimization• Lock to AP• SSID/Client Rate Limit• Load Balance• Seamless Roaming (802.11k/v/r, Non-Stick Roaming, Ping-Pong Roaming Suppression, AI Roaming)§• Multicast/Broadcast Management (Multicast-to-Unicast Conversion, ARP-to-Unicast Conversation, Multicast Filtering, Multicast/Broadcast Rate Limit)• QoS (Quality of Service)
無線網路安全性	• ACL• MAC Filter• 802.1X Authentication• MAC-Based Authentication• WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise, Enhanced Open, and None• Radius Accounting• PPSK without Radius, PPSK with Radius (Generic Radius with bound MAC/EKMS/Generic Radius with unbound MAC)• Captive Portal: No Authentication, Simple Password, Hotspot (Voucher / Local User / SMS / RADIUS / Form Auth), RADIUS Server, External LDAP Server, External Portal Server, Pre-Authentication Access, and Authentication-Free Client• EAP Types: EAP-TLS, EAP-TTLS, EAP-PEAP, EAP-CHAP, EAP-SIM, EAP-AKA, EAP-GTC, EAP-FAST, EAP-PEAP, EAP-MD5, EAP-MSCHAPv2, PEAPv0, PEAPv1
傳輸功率	Maximum transmit power:CE (ERIP)• 2.4 GHz: 20 dBm• 5 GHz: 23 dBm in U-NII-1, 23 dBm in U-NII-2A, 29 dBm in U-NII-2C,FCC (Conducted Power)• 2.4 GHz: 25 dBm• 5 GHz: 27 dBm in U-NII-1, 24 dBm in U-NII-2A, 24 dBm in U-NII-2C, 27 dBm in U-NII-3Minimum transmit powerCE (ERIP)• 2.4 GHz: 7 dBm• 5 GHz: 6 dBm in U-NII-1, 6 dBm in U-NII-2A, 6 dBm in U-NII-2C, 6dBm in U-NII-3FCC (Conducted Power)• 2.4 GHz: 4 dBm• 5 GHz: 4 dBm in U-NII-1, 4 dBm in U-NII-2A, 4 dBm in U-NII-2C,4dBm in U-NII-3Adjustable power increment: 1 dBm*Note: MIMO combined power, excluding antenna gains. The actualtransmit power depends on local laws and regulations
Omada App	Yes
Restore & Backup	Yes
透過網頁更新韌體	Yes
NTP	Yes
集中化管理	• Omada Hardware Controller• Omada Software Controller• Omada Central (Cloud-Based)• Omada App
雲端存取	Yes. Require the use of an Omada controller.
E-mail警示	Yes
LED 開/關 控制	Yes
管理MAC存取控制	Yes
SNMP	v1, v2c, v3
SSH	Yes
Web管理介面	Yes
認證	CE, FCC, RoHS
包裝內容	• EAP603-Outdoor• Passive PoE Adapter• Power Cord• Installation Guide• Mounting Kit• Waterproof Kit
環境	• Operating Temperature: -30 °C–70 °C (-22 °F–158 °F);• Storage Temperature: -40 °C–70 °C (-40 °F–158 °F);• Operating Humidity: 10%–90% non-condensing;• Storage Humidity: 5%–90% non-condensing
