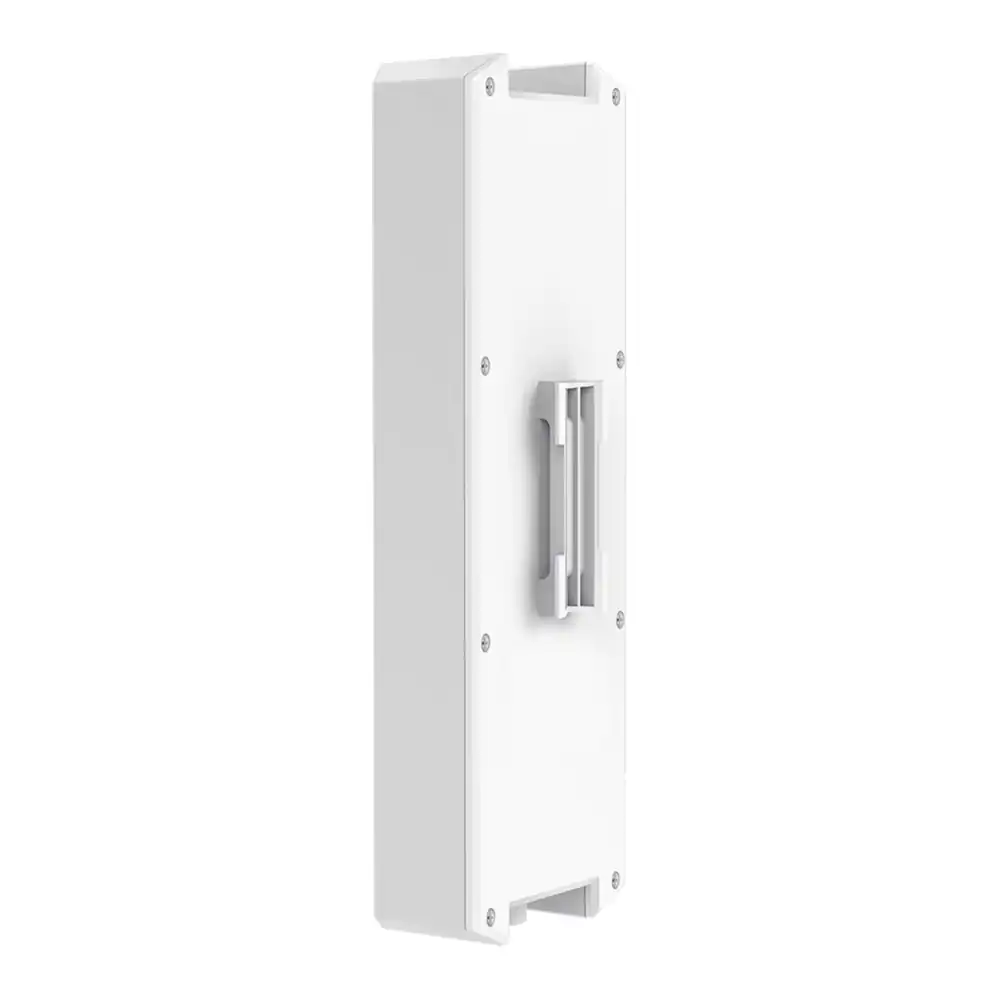

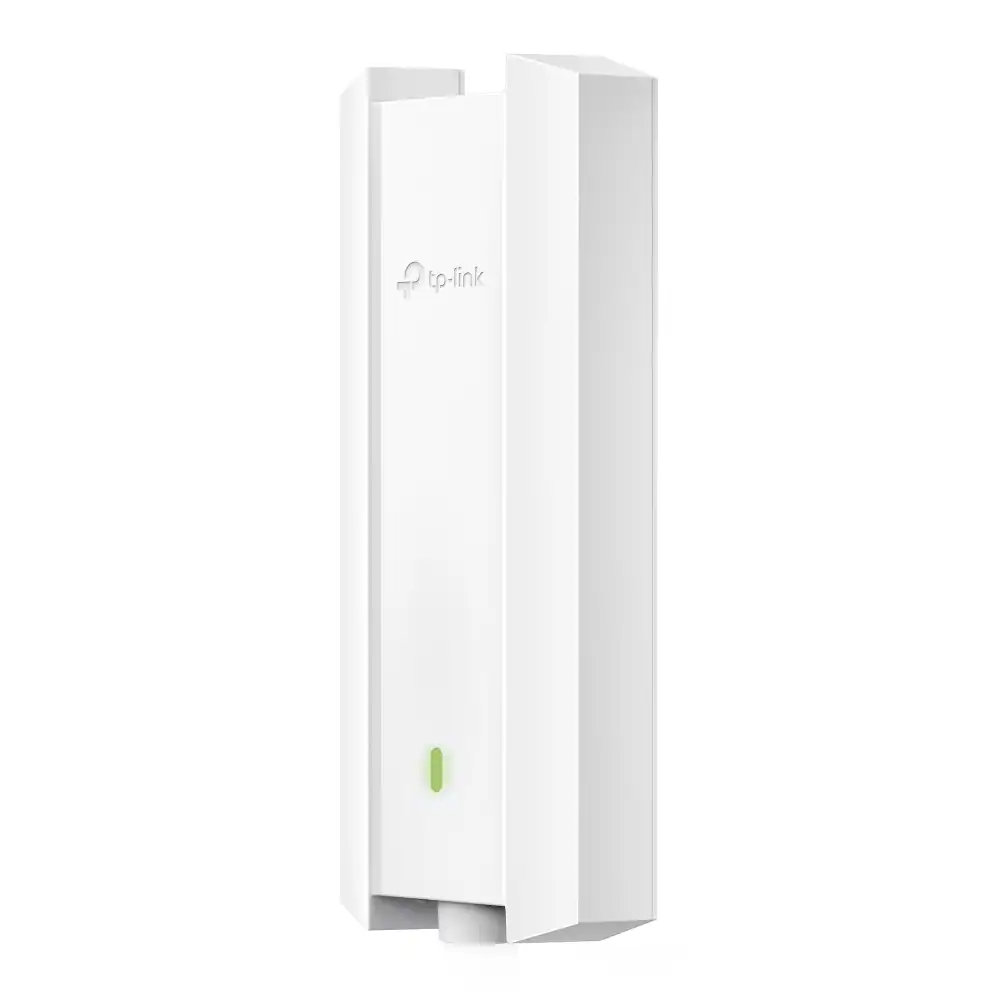

Omada AX1800 Indoor/Outdoor Wi-Fi 6 Access Point EAP623-OUTDOOR-HD
🚚 配送方式：
- • 香港本地訂單：購物滿HK$2,000, 免費送貨!
- • 澳門地區訂單：順豐到付 (運費由買家承擔)
🎧 如有技術或貨存查詢
WhatsApp 查詢Omada AX1800 Indoor/Outdoor Wi-Fi 6 Access Point EAP623-OUTDOOR-HD
AX1800 Indoor/OutdoorWiFi 6 Access Point
EAP623-OutdoorHD AX1800 Dual-BandWiFi 6 Speed* High-EfficiencyWiFi 6 Technologies Centralized CloudManagement Long-RangeCoverage 1× GigabitEthernet Port PoESupport OmadaMesh△ IP68 Waterproof& Dustproof Professional antennas with high-power amplifiers utilize WiFi 6 technology to deliver robust and extensive wireless coverage.Powered by the latest WiFi 6 technology, the AP delivers speeds of up to 1.8 Gbps.* 5 GHz 1201 Mbps 2.4 GHz 574 Mbps 1024QAM Long OFDMSymbol MU-MIMO 2.4GHz: 200m+§ 5GHz: 300m+§ Equipped with horizontally polarized and vertically polarized antennas, EAP623-Outdoor HD’s intelligent algorithms automatically select the optimal antennas, bringing lower interference, longer coverage, and higher performance. HorizontallyPolarized Antennas VerticallyPolarized Antennas OFDMA and MU-MIMO provide simultaneous connections for dozens of clients in large open areas.†Equipped with an IP68 weatherproof enclosure, our EAP623-Outdoor HD withstands the most extreme environments. IP68 WeatherproofEnclosure 6KV LightningProtection Swimming Pool Outdoor Café Amphitheatre Park Yard / Garden Shed / Barns Mesh Mesh Less Wiring with Omada Mesh Powered with PoE+ Switch Grounded PoE Adapter Router Up to 100m Powered with Passive PoE Cloud Access Ceiling Mount AP Wall Plate AP Wi-Fi6 Outdoor APfor High-Density ScenesEAP623-Outdoor HD Omada PoESwitch Omada VPNRouter Mesh Mesh WebBrowser OmadaApp Omada HardwareController Or Or Omada SoftwareController Omada Cloud-Based Controller(Subscription Required)
EAP623-OUTDOOR-HD 技術規格

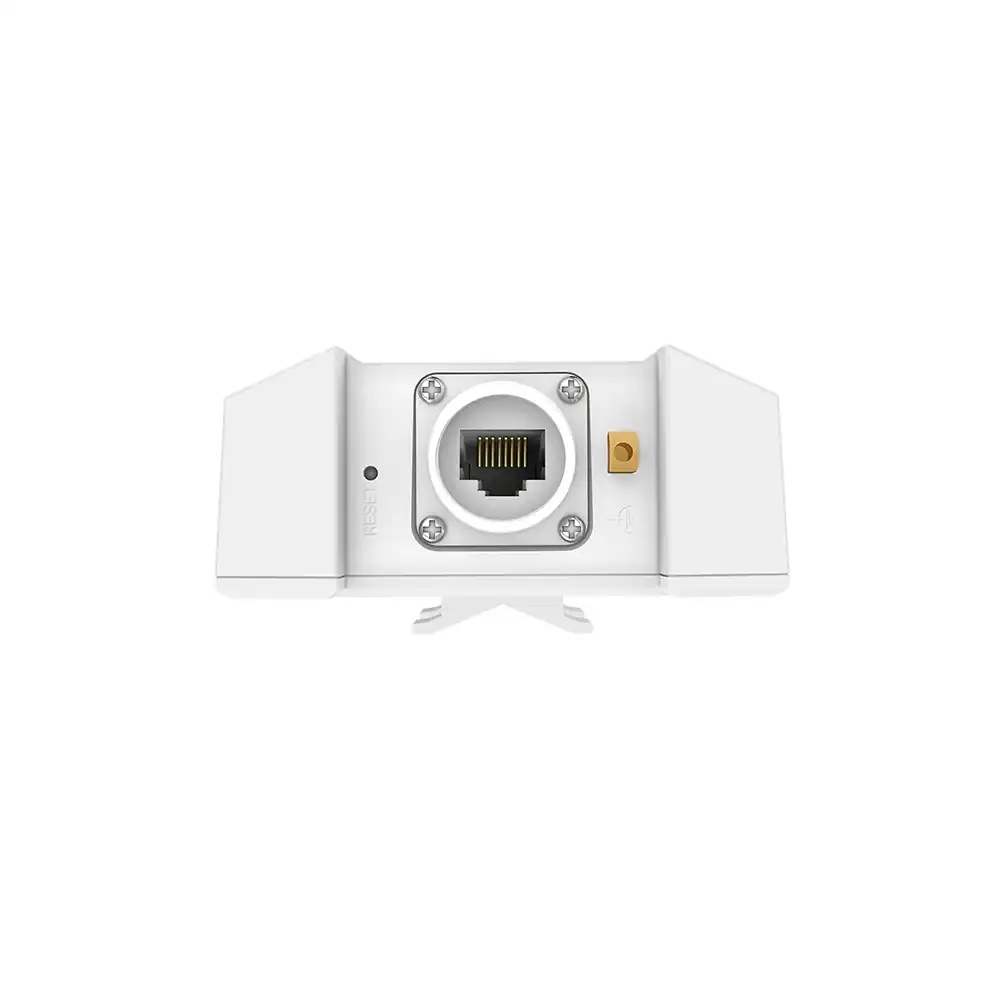

| 連接介面 | 1x Gigabit Ethernet Port |
|---|---|
| 按鈕 | Reset |
| 電源供應 | • 802.3at PoE• 48V Passive PoENote: PoE adapter is not included. |
| 尺寸(長 x 寬 x 高) | 4.2 × 2.2 × 11.1 in (106.5 × 57 × 281 mm) |
| 天線 | 2× Internal Dual-Band Omni Antennas• 2.4 GHz: 4.0 dBi;• 5 GHz: 5.0 dBi |
| 防風雨外殼 | IP68 |
| 安裝 | Pole/Wall Mounting (Kits included) |
| 可同時連線用戶數 | 1,020+** |
| 無線網路標準 | IEEE 802.11 a/b/g/n/ac/ax |
| 無線網路頻率 | 5 GHz, and 2.4 GHz |
| 訊號速率 | • 5 GHz: Up to 1201 Mbps• 2.4 GHz: Up to 574 Mbps |
| 無線網路功能 | • Mesh△• Seamless Roaming(802.11k/v/r)△• Automatic Channel Assignment• Load Balance• Band Steering• Beamforming• Airtime Fairness• Multiple SSIDs:16 (8 for each band)• Wireless Statistics• Wireless Schedule• Reboot Schedule• RADIUS Accounting• MAC Authentication• Static IP/Dynamic IP |
| 無線網路安全性 | • VLAN• Access Control• Rogue AP Detection• Captive Portal Authentication△• Maximum number of MAC Filter: 4,000• Wireless Isolation between Clients• WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise• 802.1X Support |
| 傳輸功率 | • CE: < 20 dBm (2.4 GHz, EIRP), < 30 dBm (5 GHz, EIRP);• FCC: < 25 dBm (2.4 GHz), < 25 dBm (5 GHz) |
| Omada App | Yes |
| Restore & Backup | Yes |
| 透過網頁更新韌體 | Yes |
| NTP | Yes |
| 集中化管理 | • Omada Cloud-Based Controller• Omada Hardware Controller• Omada Software Controller |
| 雲端存取 | Yes. Require the use of an Omada controller. |
| E-mail警示 | Yes |
| LED 開/關 控制 | Yes |
| 管理MAC存取控制 | Yes |
| SNMP | v1, v2c, v3 |
| SSH | Yes |
| Web管理介面 | Yes |
| 認證 | CE, FCC, RoHS |
| 包裝內容 | • EAP623-Outdoor HD• Installation Guide• Mounting Kit• Waterproof Kit |
| 環境 | • Operating Temperature: -30 °C–70 °C (-22 °F–158 °F);• Storage Temperature: -40 °C–70 °C (-40 °F–158 °F);• Operating Humidity: 10%–90% non-condensing;• Storage Humidity: 5%–90% non-condensing |
產品資源
| Brands | Omada |
|---|
