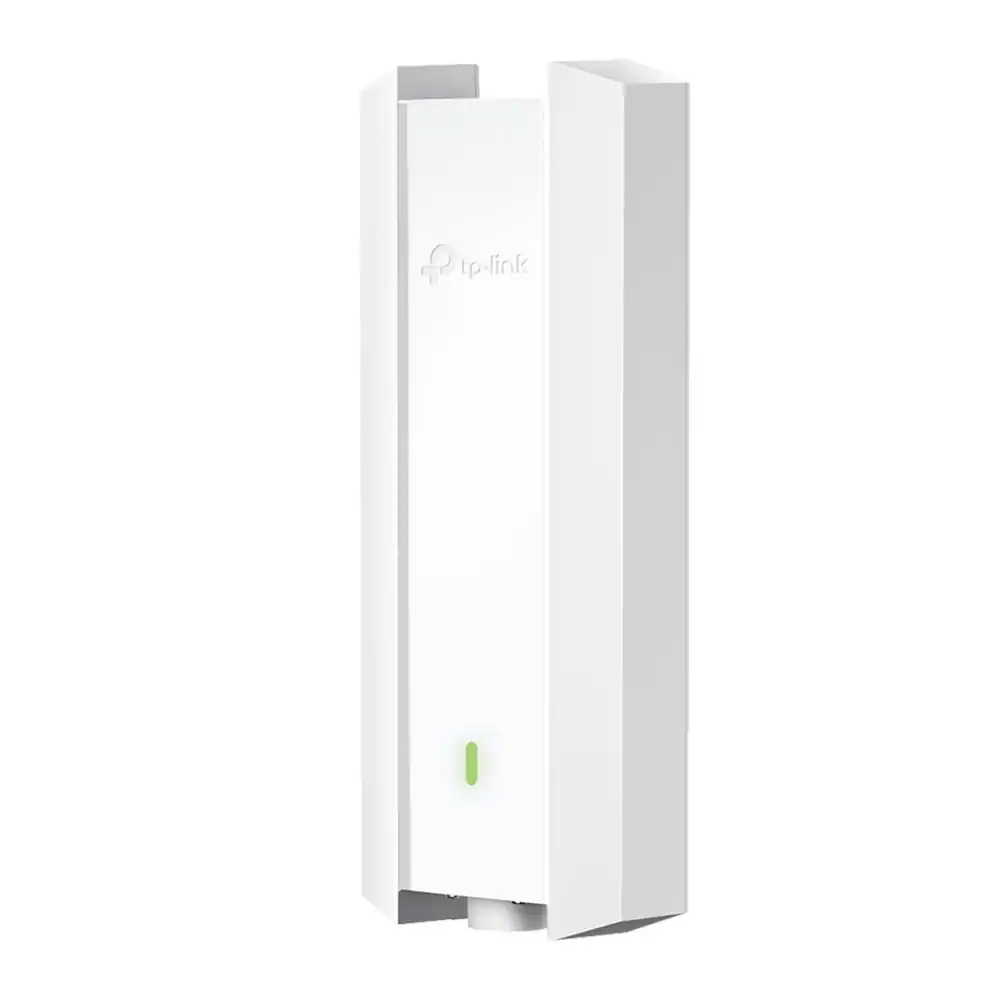

Omada AX1800 Indoor/Outdoor WiFi 6 Access Point EAP610-OUTDOOR
🚚 配送方式：
- • 香港本地訂單：購物滿HK$2,000, 免費送貨!
- • 澳門地區訂單：順豐到付 (運費由買家承擔)
🎧 如有技術或貨存查詢
WhatsApp 查詢Omada AX1800 Indoor/Outdoor WiFi 6 Access Point EAP610-OUTDOOR

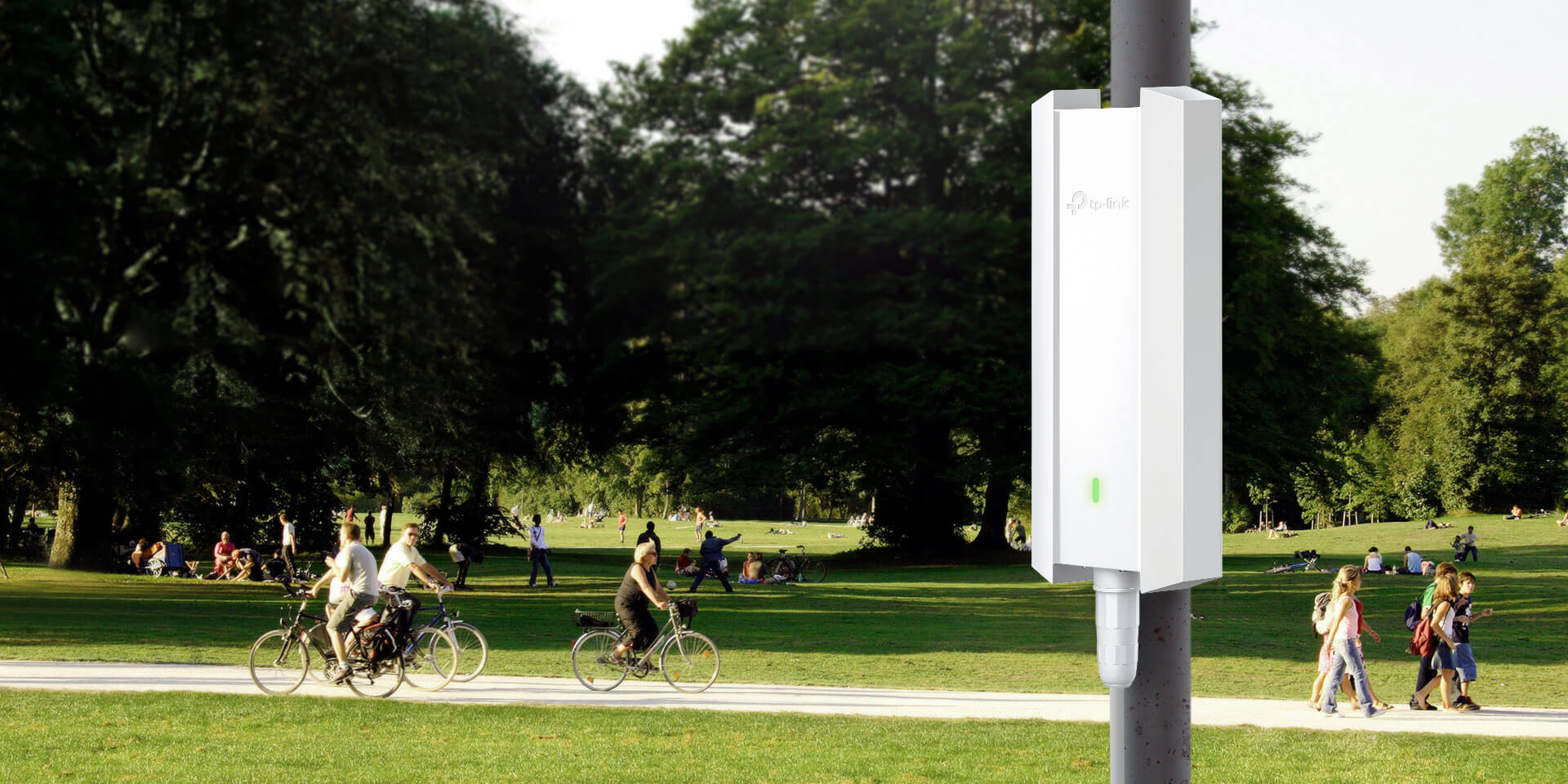

Yard Swimming Pool Outdoor Café Amphitheatre Park

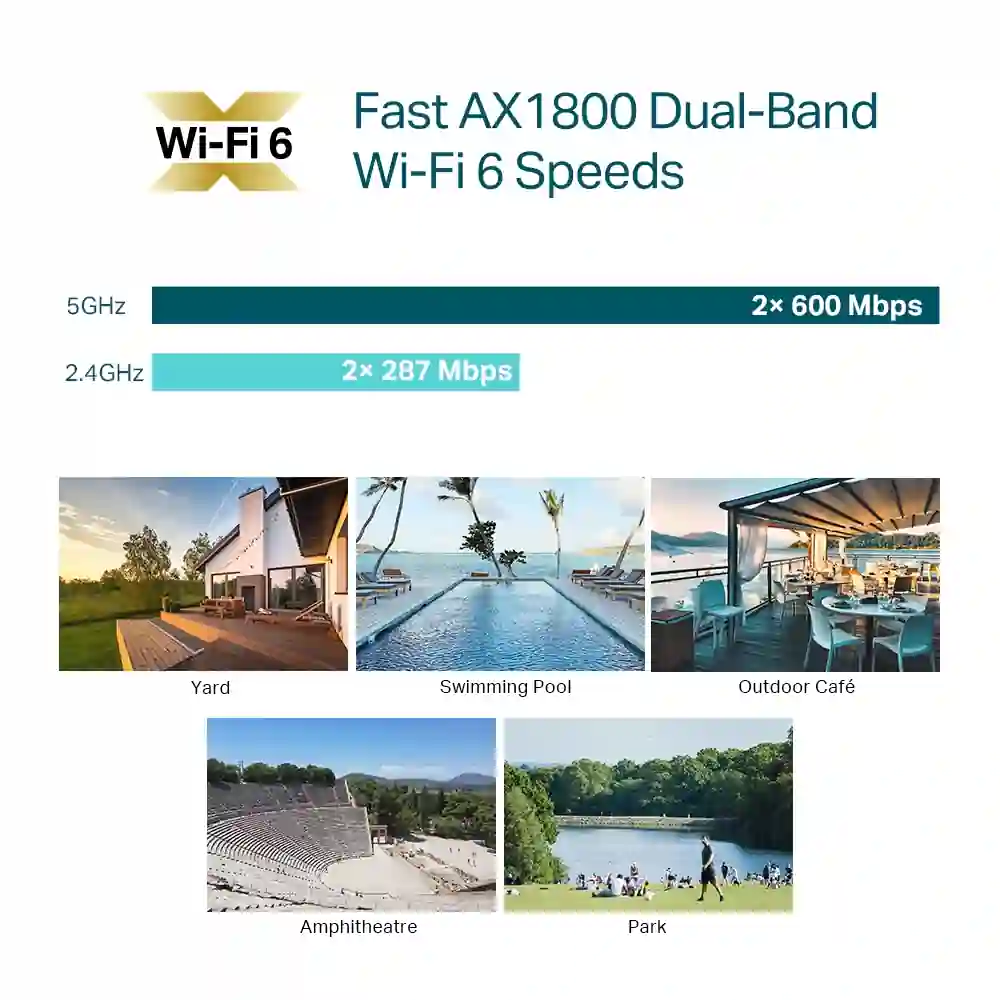

Dual-Band WiFi 6 Connectivity
Powered by the latest WiFi 6 technology, the AP delivers speeds of up to 1.8 Gbps, providing higher data rates on both 5 GHz and 2.4 GHz bands for demanding multi-user scenarios, such as outdoor swimming pools, cafés, and amusement parks.† Learn more about Wi-Fi 6 >> Omada WiFi 6 AP (2× 2) 52% Speed Increase Omada WiFi 5 AP (2× 2)
Long-Range Coverage
Connect Numerous Devices
OFDMA and MU-MIMO greatly improve multi-user efficiency to provide simultaneous connections for dozens of clients in large open areas. Wireless Camera Laptop Tablet Phone Wireless Speaker …

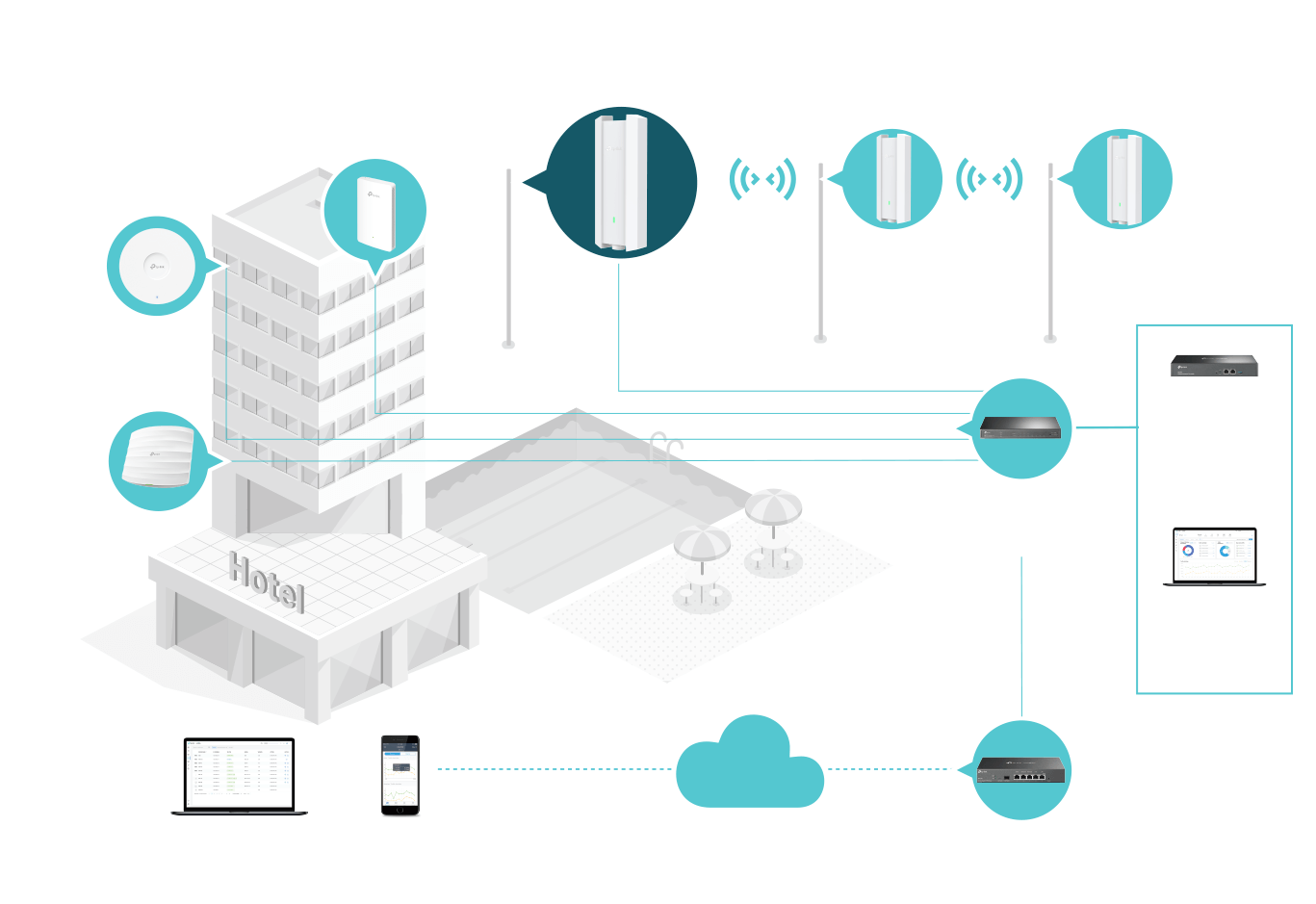

Seamless Integration into Omada SDN Platform
Hassle-Free Hardware or Software Controllers
Centralized Cloud Management
Intelligent Monitoring
Easy Deployment & Higher Performance by Omada Mesh**
With Mesh technology, Omada EAPs save you from extra wires by wirelessly extending your WiFi signal further and more flexibly to hard-to-wire areas. Traditional Wired Networking Mesh Wireless Networking Intelligent self-organization optimizes the best path between EAPs while self-healing ensures you stay online even when one AP is disrupted. Intelligent Self-Organization Self-Healing
Always Stay Smooth with Fast Roaming
Ensures customers enjoy uninterrupted streaming when moving around by switching clients automatically to the access points with the optimal signal.**
IP67 Weatherproof Enclosure for Outdoor Environments
EAP610-Outdoor is totally resistant to dust ingress, shock, vibration, and moisture, withstanding the most extreme environments. 6: Completely dust-tight. No ingress of dust. 7: Protection against full immersion in water up to 1 meter deep for half an hour 6kV Lightning Protection and 15kV ESD Protection No Ingress of Dust Waterproof Enclosure

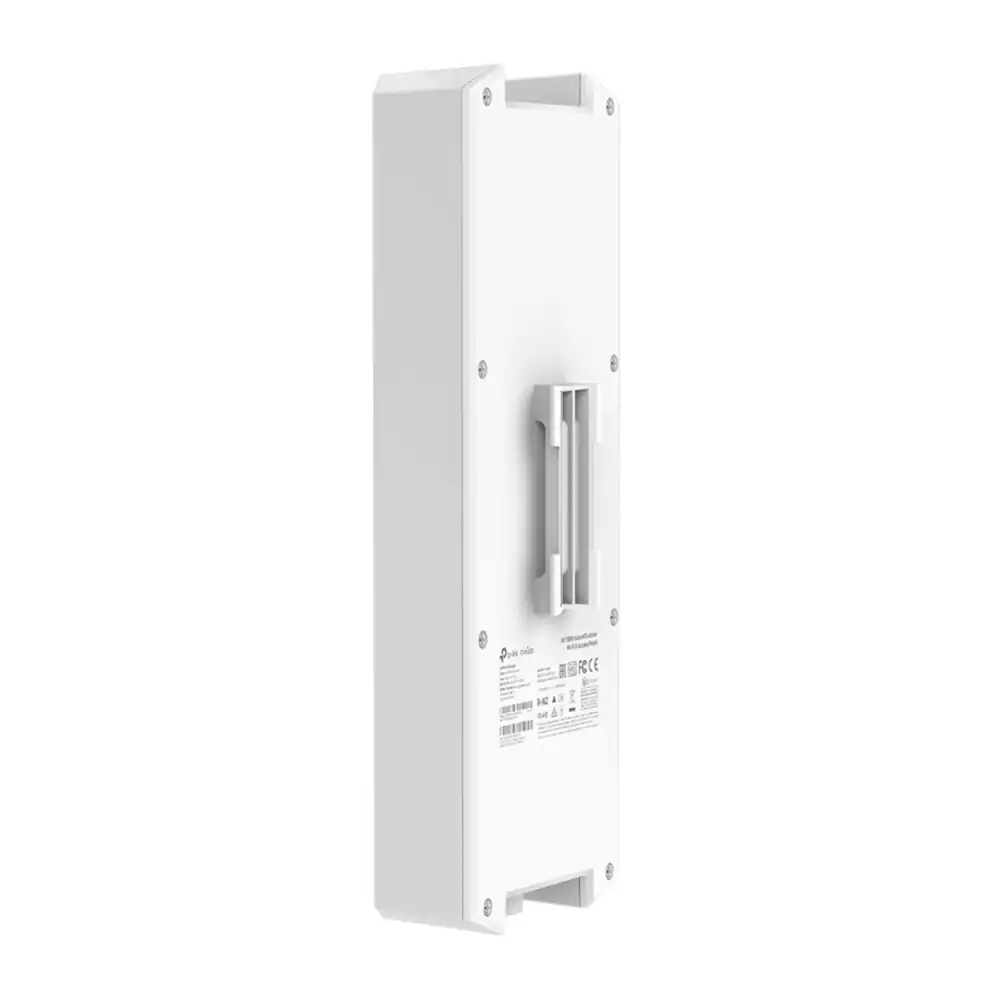

Versatile Mounting Solutions
Our mounting kits provide flexible installation, whether inside or outside. · Pole Mounting · Wall Mounting
Multiple PoE Options for Easy Installation

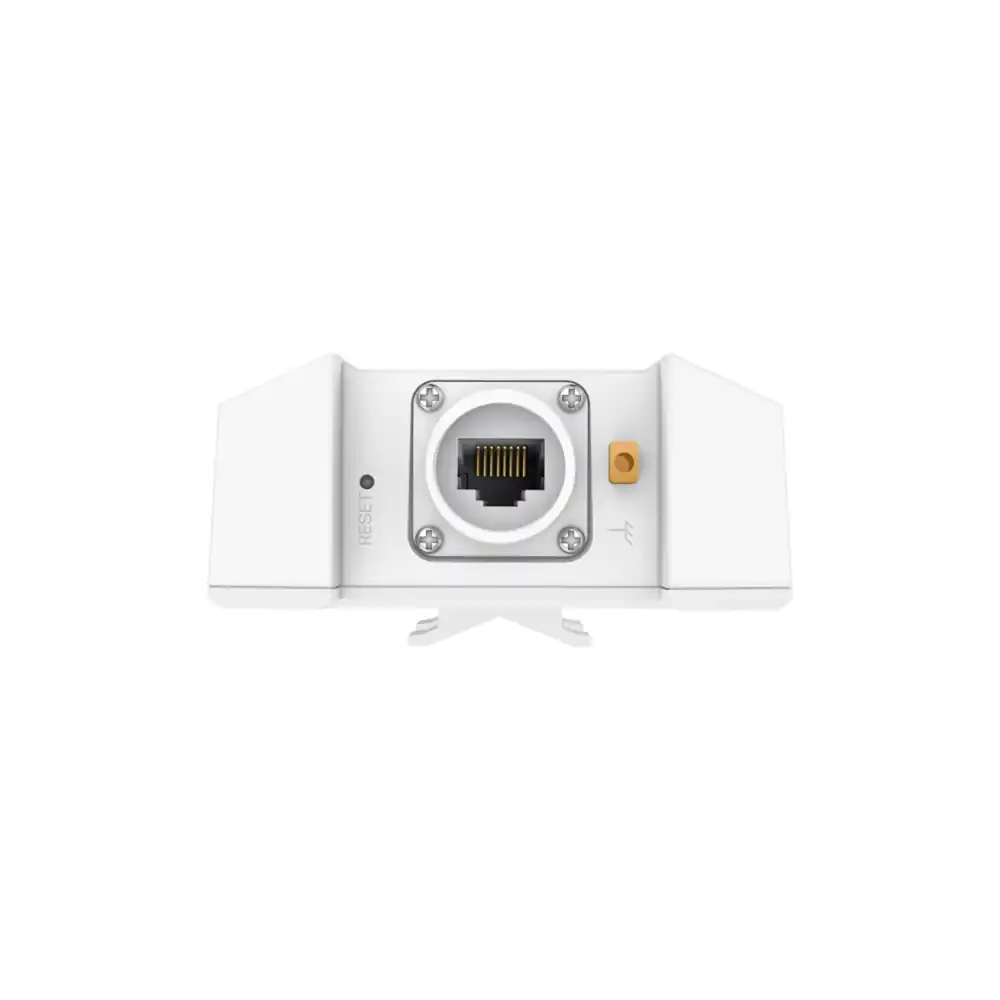

The AP supports both 802.3at PoE+ and Passive PoE power supply. It can be either powered by a PoE switch or the provided PoE adapter for convenient deployment. Reset Button Gigabit Ethernet Port with PoE+/Passive PoE Supported
Easy Management with the Omada App
Follow the configuration instructions on the free Omada app to get set up in minutes. Omada lets you configure settings, monitor the network status and manage clients, all from the convenience of a smart phone or tablet. Click here to see Omada App compatible devices >
EAP610-OUTDOOR 技術規格
| 連接介面 | 1× Gigabit 乙太網路孔 (支援 802.3at PoE 和被動 PoE) |
|---|---|
| 按鈕 | 重置 |
| 電源供應 | • 802.3at PoE• 48V/0.5A 被動 PoE (包裝內含 PoE 電源供應器) |
| 功耗 | • EU: 13.2W (802.3at PoE 或被動 PoE)• US: 14.7W (802.3at PoE 或被動 PoE) |
| 尺寸(長 x 寬 x 高) | 280.4× 106.5× 56.9 mm (不含天線和壁掛配件) |
| 天線 | • 2.4 GHz: 2× 4 dBi• 5 GHz: 2× 5 dBi |
| 防風雨外殼 | IP68 |
| 安裝 | 柱/壁掛 (包裝內含安裝配件) |
| 可同時連線用戶數 | 250+△ |
| 無線網路標準 | IEEE 802.11ax/ac/n/g/b/a |
| 無線網路頻率 | 2.4 GHz, 5 GHz |
| 訊號速率 | • 802.11ax: 8 Mbps to 1201 Mbps (MCS0-MCS11, NSS = 1 to 2 HE20/40/80)• 802.11ac: 6.5 Mbps to 867 Mbps (MCS0-MCS9, NSS = 1 to 2 VHT20/40/80)• 802.11n: 6.5 Mbps to 300 Mbps (MCS0-MCS15, VHT 20/40)• 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps• 802.11b: 1, 2, 5.5, 11 Mbps• 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps |
| 無線網路功能 | • 1024-QAM• 4× 長的 OFDM 標記• OFDMA• 多個 SSIDs (最多 16 個 SSID, 每個頻段各 8 個)• 啟用/停用無線廣播• 自動頻道分配• 傳輸功率控制 (在 dBm 上調整傳輸功率)• QoS(WMM)• MU-MIMO• 無縫漫遊**• Omada Mesh**• 頻段導航• 負載平衡• 傳輸時間公平性• 波束成型• 速率限制• 重啟排程• 無線排程• 根據 SSID/AP/客戶端無線統計 |
| 無線網路安全性 | • 強制門戶認證**• 存取控制• 無線 Mac 位址過濾• 在客戶端之間無線隔離• SSID 至 VLAN 映射• 非法 AP 偵測• 支援 802.1X• WEP, WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise |
| 傳輸功率 | • CE: <20 dBm (2.4 GHz, EIRP), <30 dBm(5 GHz, EIRP)• FCC: <25 dBm (2.4 GHz), <25 dBm(5 GHz) |
| Omada App | 支援 |
| 集中化管理 | • Omada 硬體控制器 (OC300)• Omada 硬體控制器 (OC200)• Omada 軟體控制器• Omada 雲端控制器 |
| 雲端存取 | 支援，需搭配• OC300• OC200• Omada 軟體控制器 |
| E-mail警示 | 支援 |
| 管理MAC存取控制 | 支援 |
| SNMP | v1, v2c |
| 系統登入本地/遠端系統日誌 | 支援 |
| SSH | 支援 |
| Web管理介面 | 支援 |
| L3 管理 | 支援 |
| 多站點管理 | 支援 |
| 管理VLAN | 支援 |
| 零接觸監管 | 支援。需要使用 Omada雲端控制器 |
| 認證 | CE, FCC, RoHS, NCC, BMSI |
| 包裝內容 | • 基地台 EAP610-Outdoor• 被動 PoE 電源供應器• 電源線• 安裝配件• 安裝手冊 |
| 系統需求 | Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows11, Linux |
| 環境 | • 運作溫度: -30–70 ℃ (-22–158 ℉)• 存放溫度: -40–70 ℃ (-40–158 ℉)• 運作濕度: 10–90% RH 無凝結• 存放濕度: 5–90% RH 無凝結 |
產品資源
| Brands | Omada |
|---|
