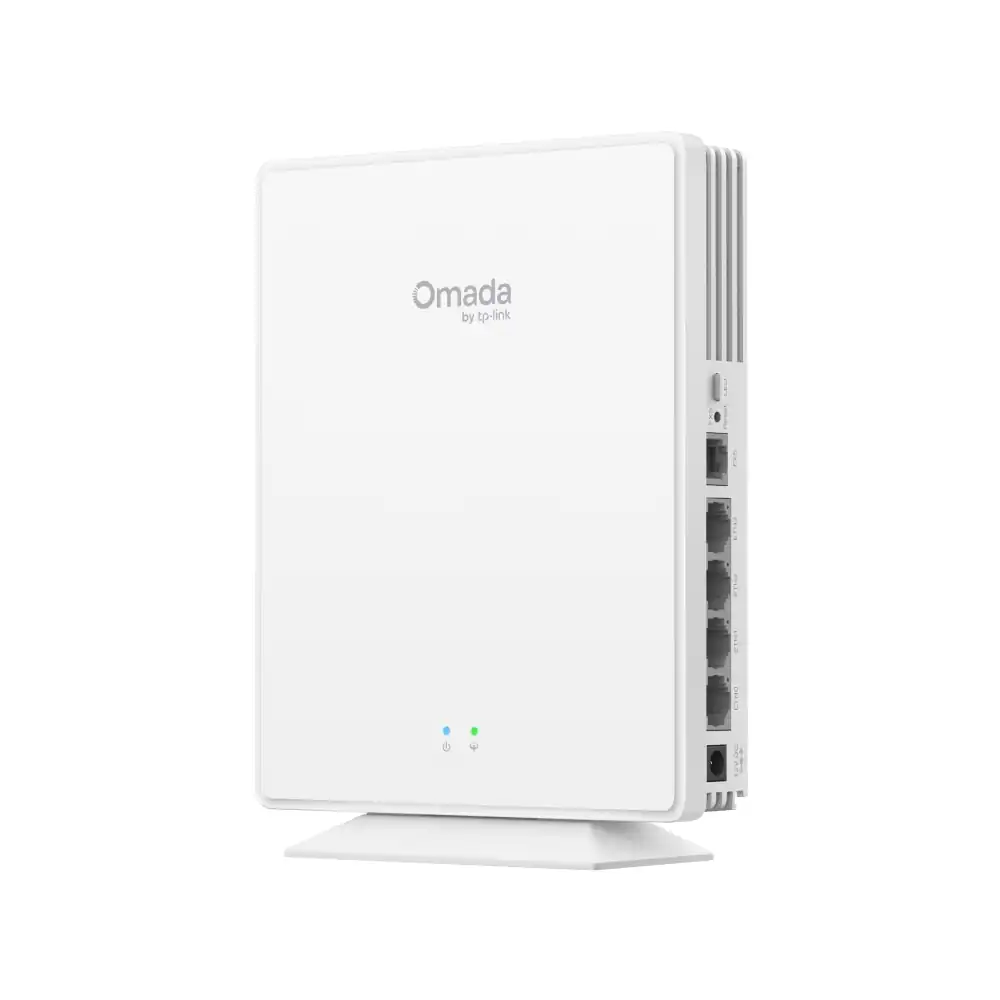

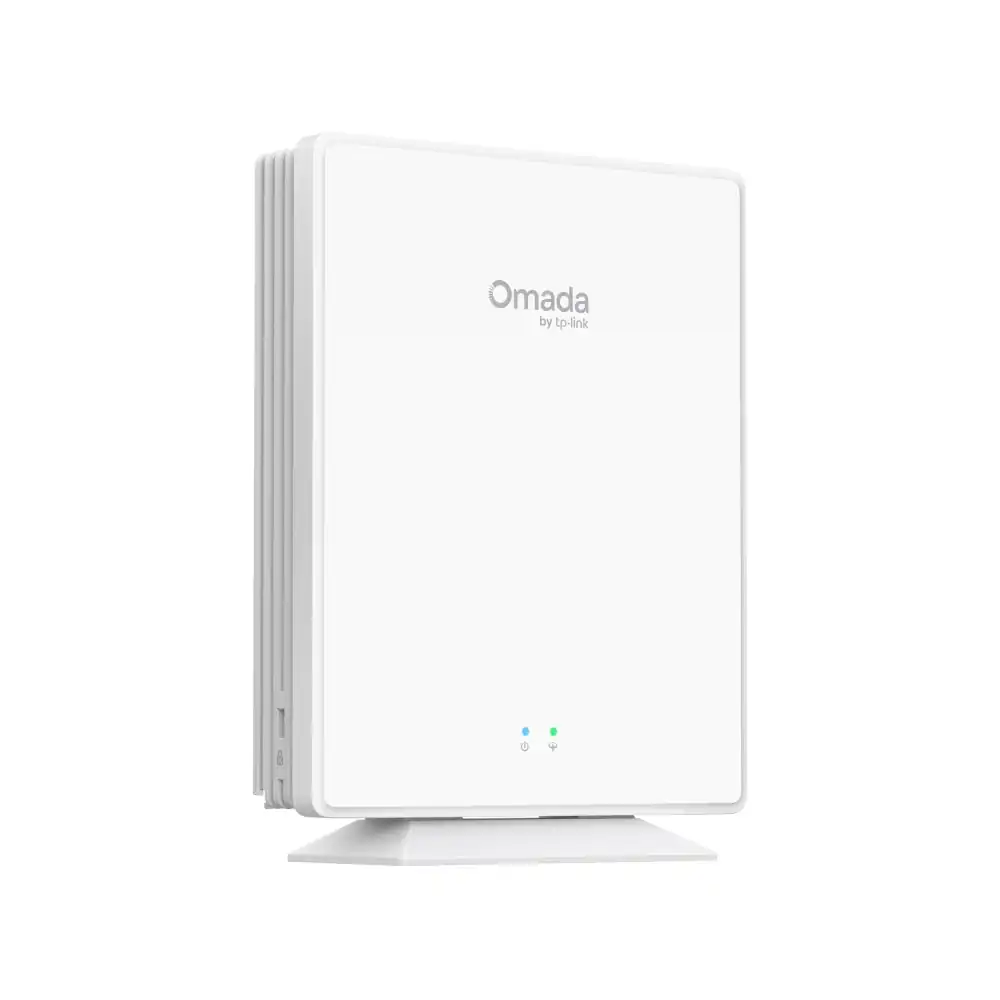

Omada AX1800 Wi-Fi 6 Desktop GPON Access Point EAP603GP-DESKTOP
🚚 配送方式：
- • 香港本地訂單：購物滿HK$2,000, 免費送貨!
- • 澳門地區訂單：順豐到付 (運費由買家承擔)
🎧 如有技術或貨存查詢
WhatsApp 查詢Omada AX1800 Wi-Fi 6 Desktop GPON Access Point EAP603GP-DESKTOP
Omada AX1800Wi-Fi 6Desktop/Wall MountingGPONAccess Point
EAP603GP-Desktop
Integrates into Omada Optical Networking Unified Management for Omada Devices and OLT^ One Fiber, Multiple Services Wi-Fi 6Gigabit ONU 1× GPON Port & 1× FXS Port & 4x GbE Ports Seamless Roaming& Omada Mesh PPSK &Captive Portal Quick,Easy Setup
Complete Omada Optical Networking Solution
The Omada Optical Networking Solution delivers enterprise-grade gigabit passive optical networking. It seamlessly integrates essential components such as Omada switches, gateways, OLTs (Optical Line Terminals), and ONUs (Optical Network Units)—perfect for P2MP (point-to-multipoint) environments like hotels and MDUs. Internet Web Browser Omada App Omada Gateway Omada Switch OLT ODN(Splitter) SIP Server OmadaCloud-Based Controller Omada Software Controller Omada Hardware Controller Or Or GPON Access Point EAP603GP-Desktop GPON Access Point EAP603GP-Desktop GPON Access Point EAP603GP-Desktop VoIP Phone TV Camera Door Access Fiber Optics Copper or RJ11 Cable Complete Product Types Unified Management for Omada Devices and OLT^ Easy Adoption and Setup Zero-Touch Provisioning
One Fiber, Multiple Services
Connect a fiber optic cable to the EAP603GP-Desktop to connect cameras, PCs, TVs, and an IP-Phone to carry data, voice, wired and wireless internet, HD video, and VoIP services. ODN(Splitter) 1× GPON Port 1× FXS Port 4× Gigabit RJ45 Ports Phone TV Camera PC Tablet Laptop Fiber Optics Copper Cable RJ11 Cable
Seamless Wi-Fi 6 Mesh Networking
Leverage GPON Wi-Fi 6 technology for a robust and seamless network experience, delivering speeds up to 1.8 Gbps.*Omada Mesh and 802.11k/v/r roaming ensure a consistently smooth and reliable connection. EAP603GP-Desktop Roaming EAP603GP-Desktop TP-Link OLT
No Complex Installation，No Complicated Cabling
No Additional Installation Needed Flexible and Space-Saving
EAP603GP-DESKTOP 技術規格

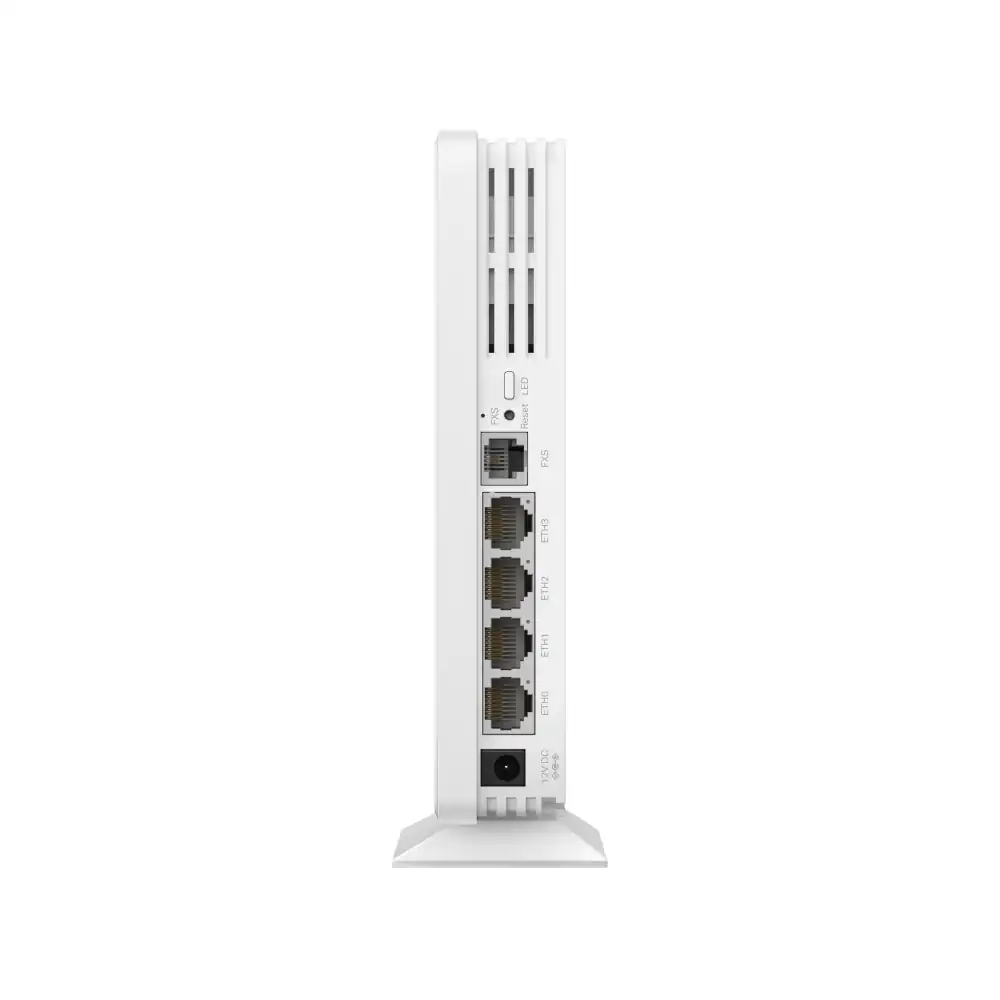

| 連接介面 | • 1x GPON Port• 1x FXS Port• 4x Gigabit Ethernet Ports |
|---|---|
| GPON 介面 | • Port Type: SC-APC• Standards and Protocols: ITU-984.x, G.988, Class B+• Data Rate: 2.488 Gbps (Downstream); 1.244 Gbps (Upstream)• Fiber Type: 9/125 um Single mode• Max. Cable Length: 20 km |
| 按鈕 | • Reset• LED |
| 電源供應 | 12V/1.5A DC |
| 功耗 | 15.5 W |
| 重量 | 437g |
| 尺寸(長 x 寬 x 高) | 6.9 × 5.5 × 1.3 in (175 × 140 × 33 mm) |
| 天線 | Internal Omni• 2.4 GHz: 2× 5 dBi• 5 GHz: 2× 4.5 dBi |

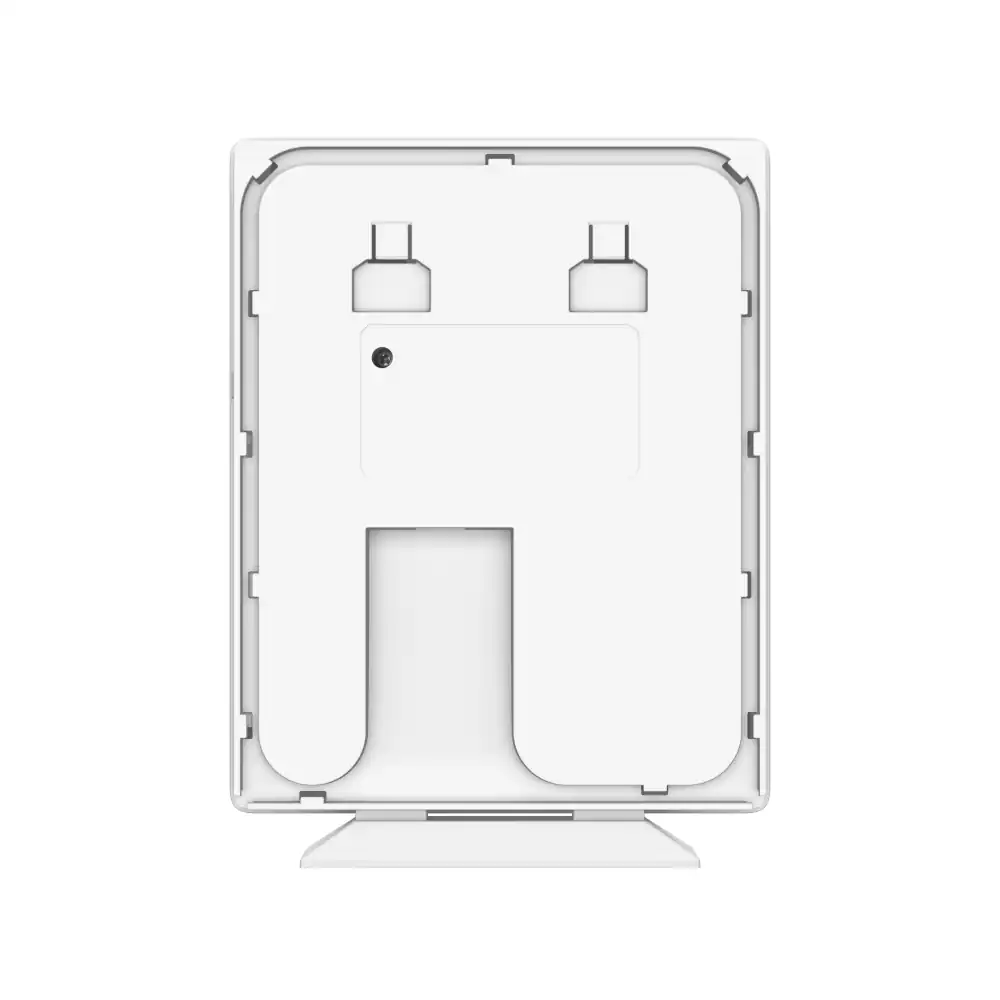

| 安裝 | Desktop / Wall mouting (Kits included) |
| 覆蓋範圍 | 140㎡(1500ft²)** |
| 可同時連線用戶數 | 120+* |
| 無線網路標準 | IEEE 802.11 a/b/g/n/ac/ax |
| 無線網路頻率 | 2.4 GHz and 5 GHz |
| 訊號速率 | • 5 GHz: 1201 Mbps†• 2.4 GHz: 574 Mbps |
| 無線網路功能 | • 2×2 (2.4G & 5G) MU-MIMO‡• HE80 (80 MHz Bandwidth)‡• OFDMA‡• Seamless Roaming§• Mesh§• Enable/Disable SSID Broadcast• Enable/Disable Wireless Radio• Guest Network• Automatic Channel Assignment• Beamforming• Rate Limit• Band Steering• Load Balance• Airtime Fairness• Transmit Power Control (Adjust Transmit Power on dBm)• QoS (WMM)• RADIUS Accounting• MAC Authentication• Reboot Schedule• Wireless Schedule and Statistics• Static IP/Dynamic IP |
| 無線網路安全性 | • Captive Portal Authentication§• Access Control• Wireless Mac Address Filtering• Wireless Isolation Between Clients• VLAN• Rogue AP Detection• 802.1X Support• WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise |
| 傳輸功率 | • CE:<20 dBm(2.4 GHz, EIRP)<23 dBm(5 GHz, band1 & band2, EIRP)<27 dBm(5 GHz, band3, EIRP)• FCC:<25 dBm (2.4 GHz)<25 dBm (5 GHz) |
| Omada App | Yes |
| 集中化管理 | • Omada Cloud-Based Controller• Omada Hardware Controller• Omada Software Controller |
| 雲端存取 | Yes. Require the use of an Omada controller. |
| E-mail警示 | Yes |
| LED 開/關 控制 | Yes |
| 管理MAC存取控制 | Yes |
| SNMP | v1, v2c, v3 |
| 系統登入本地/遠端系統日誌 | System Log |
| SSH | Yes |
| Web管理介面 | Yes |
| 零接觸監管 | Yes. Require the use of Omada Cloud-Based Controller. |
| 認證 | CE, FCC, RoHS |
| 包裝內容 | • EAP603GP-Desktop• Desktop/Wall Mounting Kit• Power Adapter• Installation Guide |
| 系統需求 | Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows11, Linux |
| 環境 | • Operating Temperature: 0–40 ℃ (32–104 ℉)• Storage Temperature: -40–70 ℃ (-40–158 ℉)• Operating Humidity: 10–90% RH non-condensing• Storage Humidity: 5–90% RH non-condensing |
