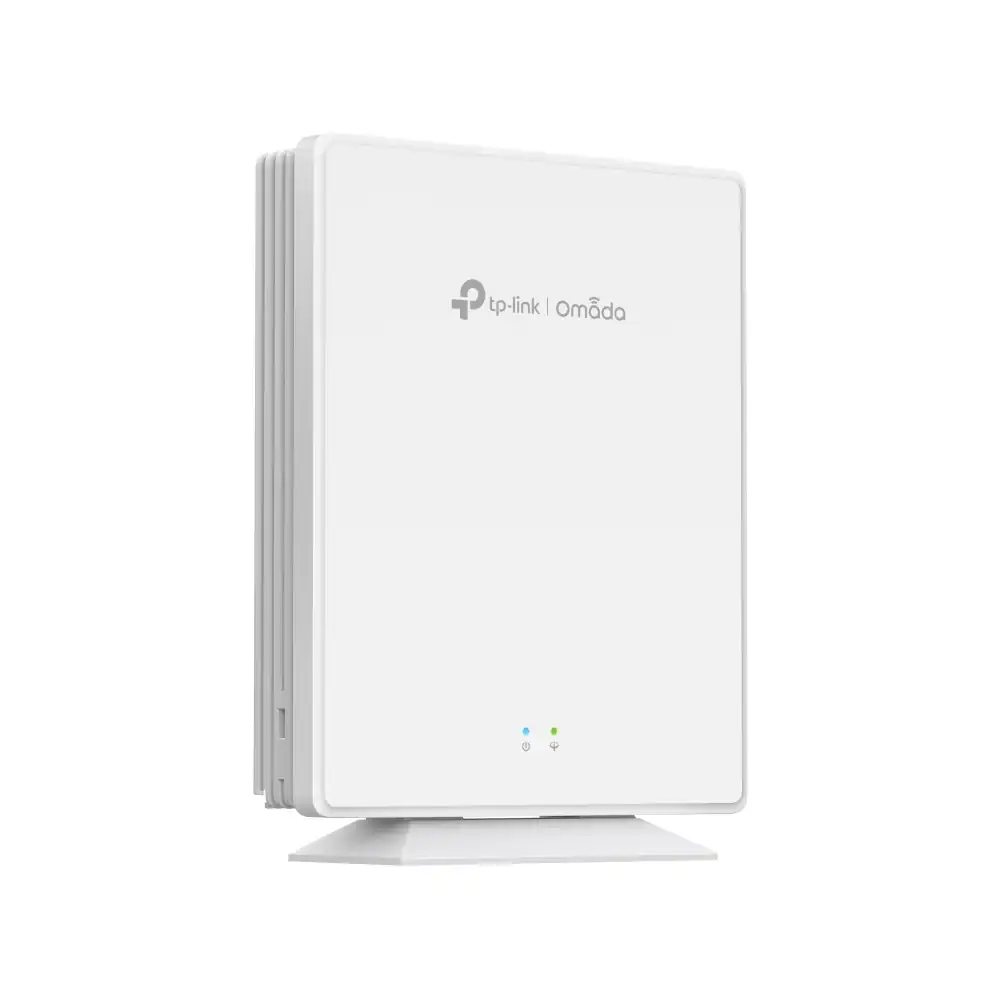

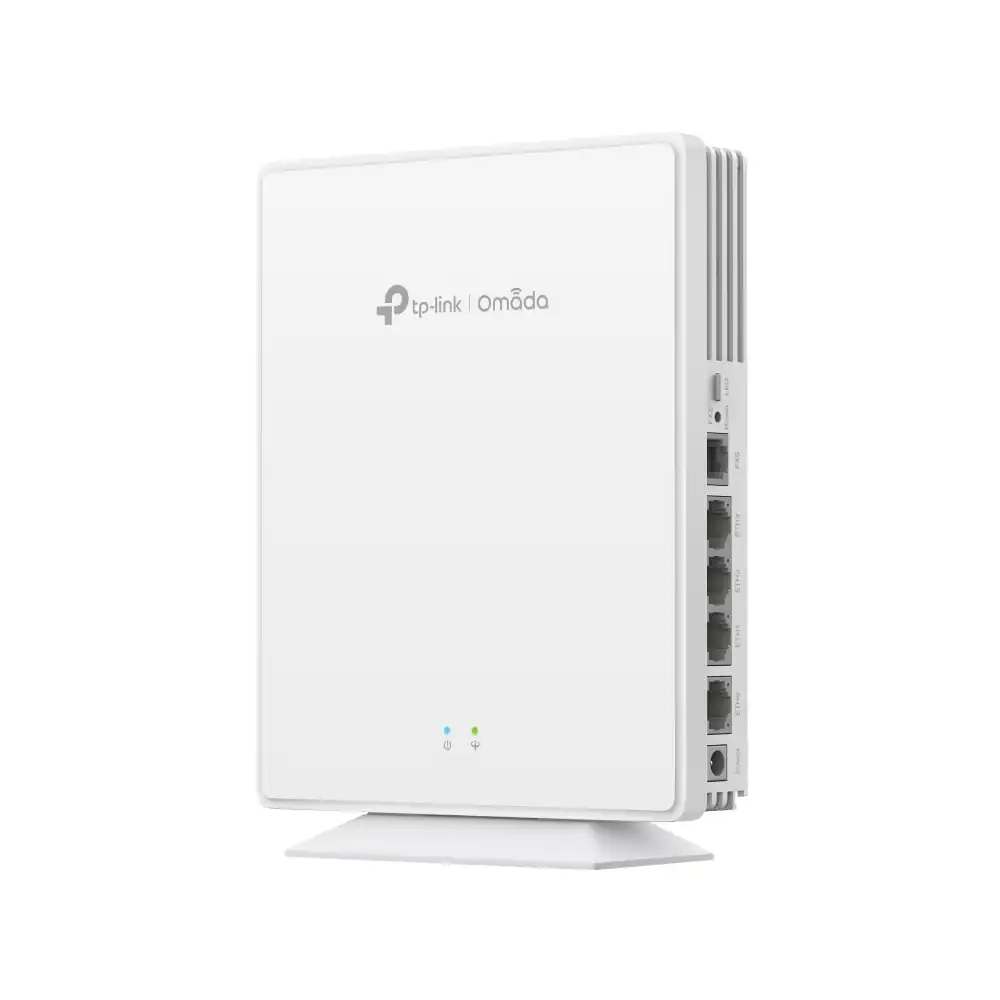

AX1800 Wi-Fi 6 Desktop/Wall Mounting GPON Access Point

EAP610GP-Desktop

Complete Omada Optical Networking Solution

The Omada Optical Networking Solution delivers enterprise-grade gigabit passive optical networking. It seamlessly integrates essential components such as Omada switches, gateways, OLTs (Optical Line Terminals), and ONUs (Optical Network Units)—perfect for P2MP (point-to-multipoint) environments like hotels and MDUs. Internet Web Browser Omada App Omada Gateway Omada Switch OLT ODN(Splitter) SIP Server Omada Cloud-Based Controller Omada Software Controller Omada Hardware Controller Or Or GPON Access Point EAP610GP-Desktop GPON Access Point EAP610GP-Desktop GPON Access Point EAP610GP-Desktop VoIP TV Camera Door Access Fiber Optics Copper Cable Unified Management for OLT^and Omada Devices Quick, EasyAdoption EasySetup CompleteProduct Types Zero-TouchProvisioning EasyMonitoring

One Fiber, Multiple Services

Connect a fiber optic cable to the EAP610GP-Desktop to connect cameras, PCs, TVs, and an IP-Phone to carry data, voice, wired and wireless internet, HD video, and VoIP services. ODN(Splitter) 1× GPON Port Fiber Optics Copper Cable RJ11 Cable 1× FXS RJ11 Port 3× Gbps RJ45 Ports 1× Gbps PoE Out Port (802.3af) Phone TV Camera PC VoIP

Seamless WiFi 6 Mesh Networking

Leverage GPON WiFi 6 technology for a robust and seamless network experience, delivering speeds up to 1.8 Gbps.* Omada Mesh#and 802.11k/v roaming ensure a consistently smooth and reliable connection. EAP610GP-Desktop Roaming EAP610GP-Desktop TP-Link OLT^

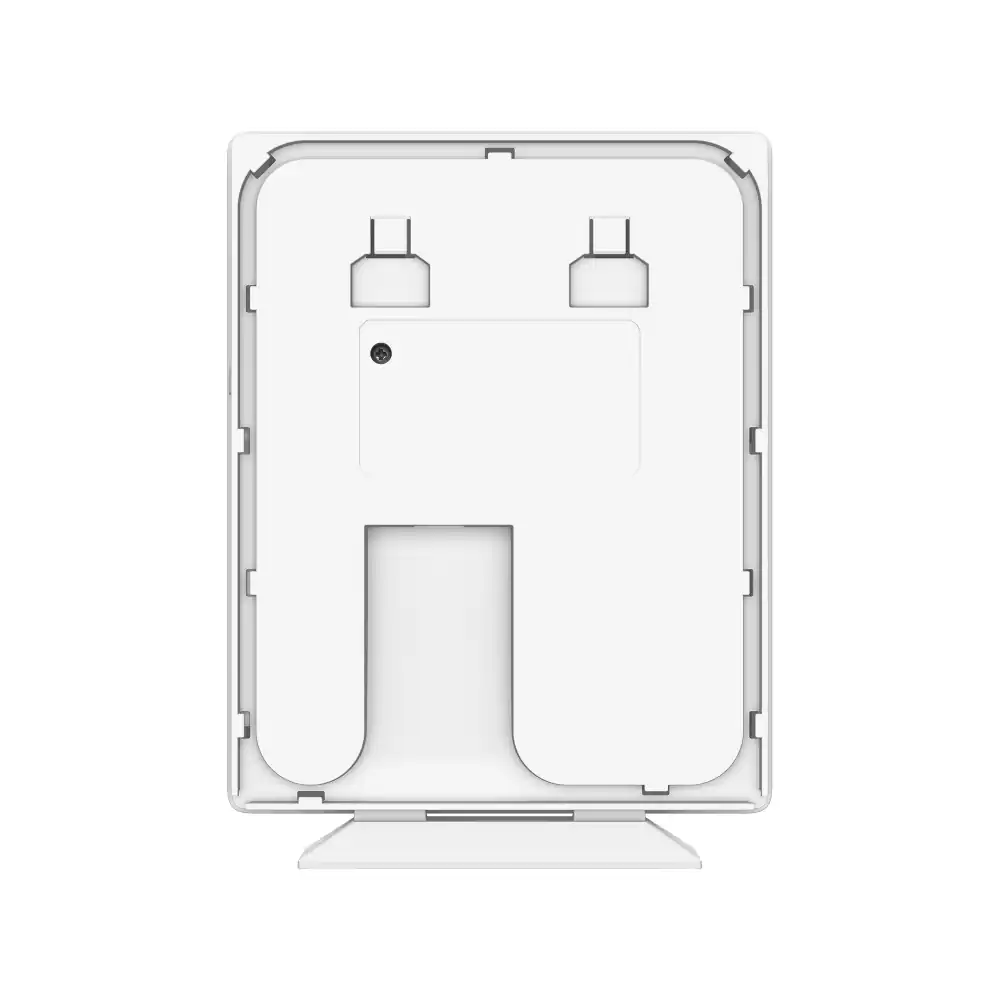

Flexible Desktop/Wall Installation

Choose a suitable installation method according to your needs. Desktop Wall Mounting

EAP610GP-DESKTOP 技術規格

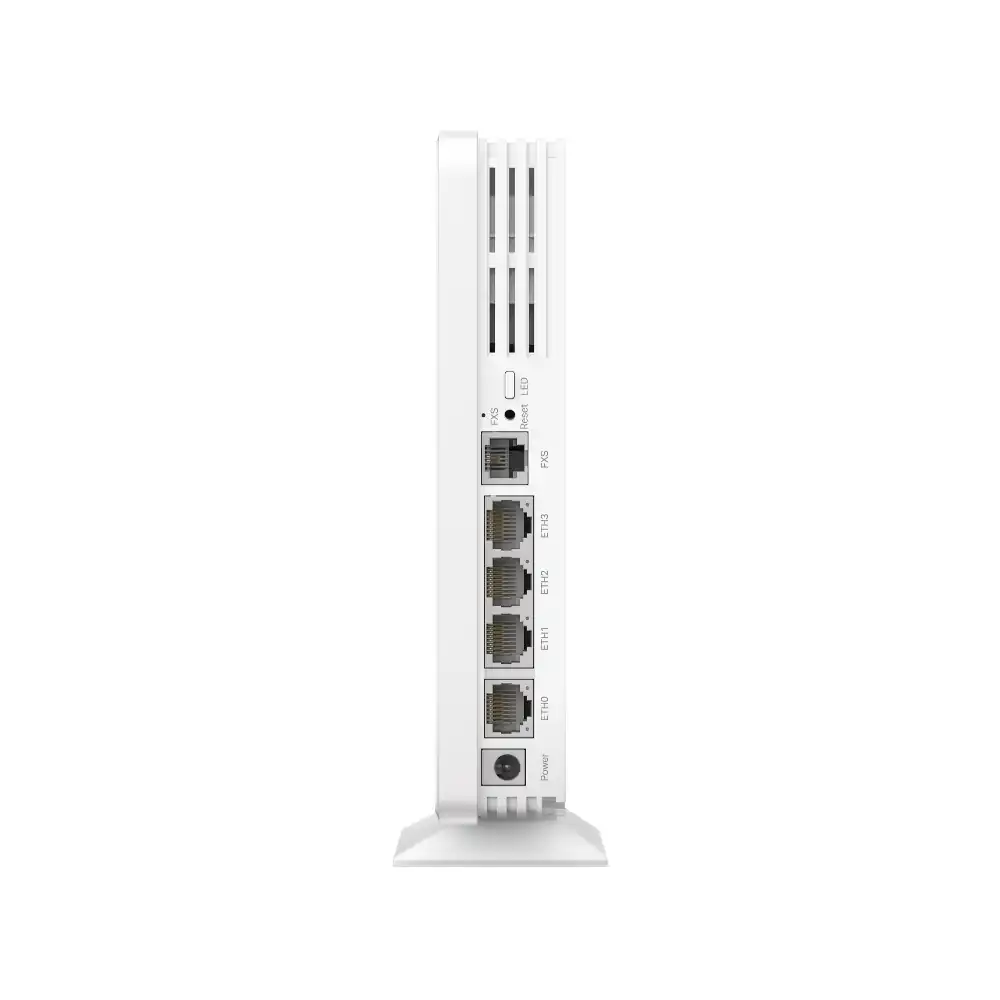

連接介面	• 1x GPON Port• 1x FXS Port• 4x Gigabit RJ45 Ports (One Supporting 802.3af PoE Out)
GPON 介面	• Port Type: SC-APC• Standards and Protocols: ITU-984.x, G.988, Class B+• Data Rate: 2.488 Gbps (Downstream); 1.244 Gbps (Upstream)• Fiber Type: 9/125 um Single mode• Max. Cable Length: 20 km
按鈕	• Reset• LED
電源供應	53.5V/0.81A DC
功耗	17.3W (PoE Out Off)
重量	492g
尺寸(長 x 寬 x 高)	6.9 × 5.5 × 1.3 in (175 × 140 × 33 mm)
天線	Internal Omni• 2.4 GHz: 2× 5 dBi• 5 GHz: 2× 4.5 dBi
安裝	Desktop / Wall mouting (Kits included)
覆蓋範圍	140㎡(1500ft²)**
可同時連線用戶數	120+*
無線網路標準	IEEE 802.11 a/b/g/n/ac/ax
無線網路頻率	2.4 GHz and 5 GHz
訊號速率	• 5 GHz: 1201 Mbps†• 2.4 GHz: 574 Mbps
無線網路功能	• 2×2 (2.4G & 5G) MU-MIMO‡• HE80 (80 MHz Bandwidth)‡• OFDMA‡• Mesh#• Seamless Roaming§• Multiple SSIDs (16 SSIDs, 8 on each band)• Enable/Disable SSID Broadcast• Enable/Disable Wireless Radio• Guest Network• Automatic Channel Assignment• Beamforming• Rate Limit• Band Steering• Load Balance• Airtime Fairness• Transmit Power Control (Adjust Transmit Power on dBm)• QoS (WMM)• RADIUS Accounting• MAC Authentication• Reboot Schedule• Wireless Schedule and Statistics• Static IP/Dynamic IP
無線網路安全性	• Captive Portal Authentication§• Access Control• Wireless Mac Address Filtering• Wireless Isolation Between Clients• VLAN• Rogue AP Detection• 802.1X Support• WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise
傳輸功率	• CE:<20 dBm(2.4 GHz, EIRP)<23 dBm(5 GHz, band1 & band2, EIRP)<27 dBm(5 GHz, band3, EIRP)• FCC:<25 dBm (2.4 GHz)<25 dBm (5 GHz)
Omada App	Yes
集中化管理	• Omada Cloud-Based Controller• Omada Hardware Controller• Omada Software Controller
雲端存取	Yes. Require the use of an Omada controller.
E-mail警示	Yes
LED 開/關 控制	Yes
管理MAC存取控制	Yes
SNMP	v1, v2c, v3
系統登入本地/遠端系統日誌	System Log
SSH	Yes
Web管理介面	Yes
零接觸監管	Yes. Require the use of Omada Cloud-Based Controller.
認證	CE, FCC, RoHS, IC
包裝內容	• EAP610GP-Desktop• Desktop/Wall Mounting Kit• Power Adapter• Installation Guide
系統需求	Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows11, Linux
環境	• Operating Temperature: 0–40 ℃ (32–104 ℉)• Storage Temperature: -40–70 ℃ (-40–158 ℉)• Operating Humidity: 10–90% RH non-condensing• Storage Humidity: 5–90% RH non-condensing
