Omada AX3000 Ceiling Mount WiFi 6 Access Point EAP650

Omada AX3000 Ceiling Mount WiFi 6 Access Point EAP650

Designed for Business Environments

Hospitality High-quality and full coverage Guest WiFi Education High-security WiFi to connect more devices Shopping Mall Seamless marketing WiFi coverage to boost business Office Stable, seamless, and high-security WiFi coverage Meeting Room Faster streaming, downloading, video conferencing, and more

Power up Your Business with New-Era Business WiFi 6

WiFi 6 brings faster speeds, lower lag, less interference, and higher capacity. Learn more about WiFi 6 >> Superior WiFi 6 Speeds Higher Efficiency for More Devices New-era business WiFi 6 with speeds up to 2976 Mbps brings more than twice the speed of WiFi 5.†Every application feels more fluid with drastically improved WiFi speeds.‡ 1024 QAM 25% more data encoded at one time Long OFDM Symbol 11% faster speed HE160 Double the data at peak transmission times on a single stream‡ 5GHz 2.4GHz 2 Stream WiFi 5 Ordinary 2 Stream WiFi 6 with HE80 EAP650: 2 Stream WiFi 6 with HE160 2 Stream WiFi 5 EAP650:2 Stream WiFi 6 867 Mbps 1201 Mbps 2402 Mbps 300 Mbps 574 Mbps 177% Faster 90% Faster WiFi 6 features such as OFDMA and MU-MIMO handle multiple clients across congested environments like typical office spaces, lodging, and hospitals. Enjoy faster speeds on more devices with less lag.‡

Seamless Integration into Omada SDN

Auto Channel Selection and Power Adjustmentto Optimize Overall Performance*

Provides powerful wireless performance while significantly reducing WiFi interference by automatically adjusting the channel settings and transmission power levels of neighboring APs in the same network. Before Optimization ●Channel 1 ●Channel 1 ●Channel 4 After Optimization ●Channel 1 ●Channel 11 ●Channel 6

Easy Deployment & Higher Performance by Omada Mesh§

With Mesh technology, Omada EAPs save you from extra wires by wirelessly extending your WiFi signal further and more flexibly to hard-to-wire areas. Traditional Wired Networking Mesh Wireless Networking Intelligent self-organization optimizes the best path between EAPs while self-healing ensures you stay online even when one AP is disrupted. Intelligent Self-Organization Self-Healing

Always Stay Smooth with Fast Roaming§

Ensures customers to enjoy uninterrupted streaming when moving around by switching clients automatically to the access points with the optimal signal.

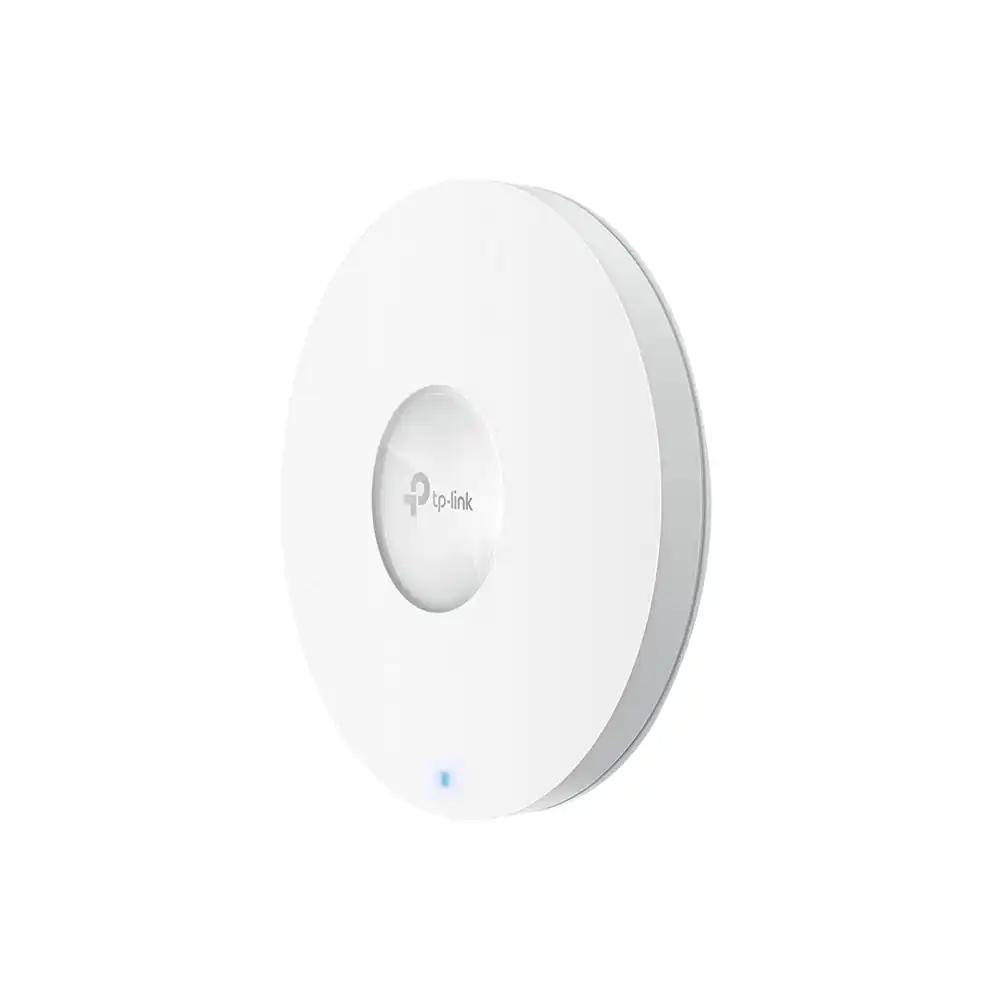

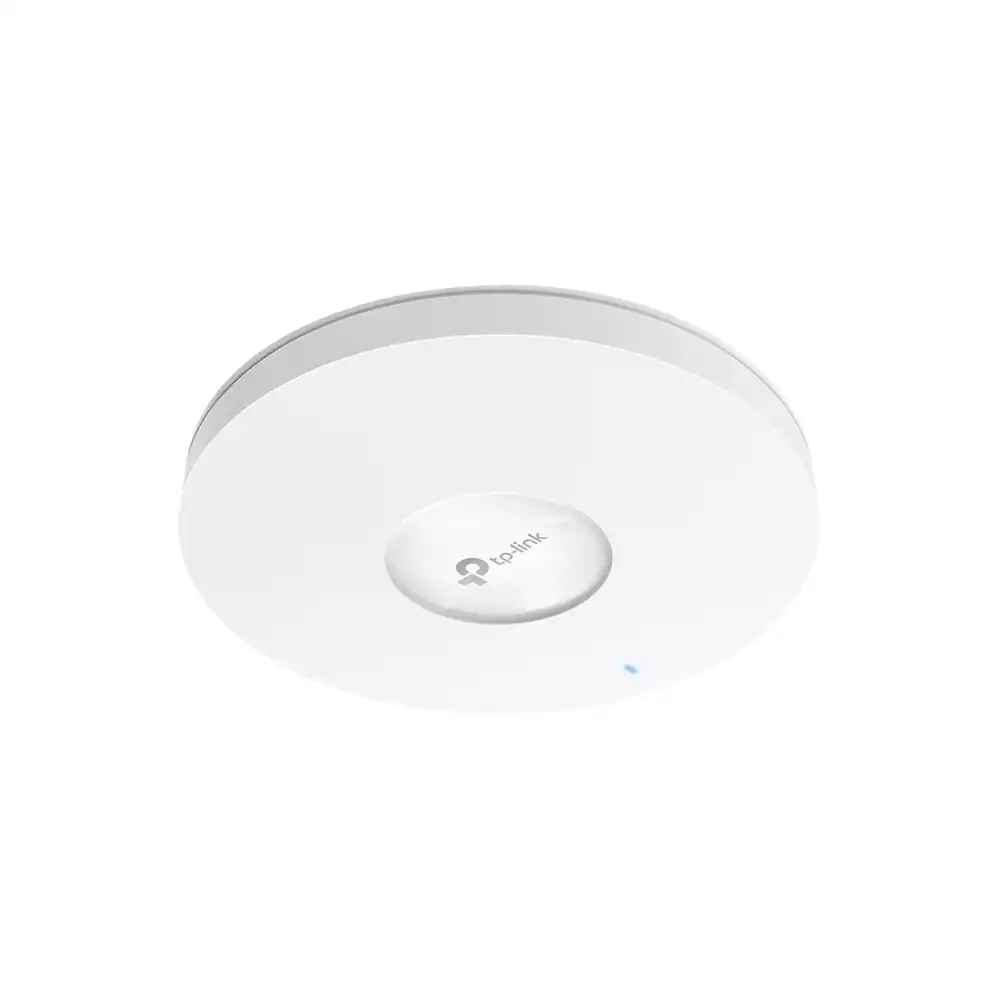

Ultra-Slim Design Brings More Agility

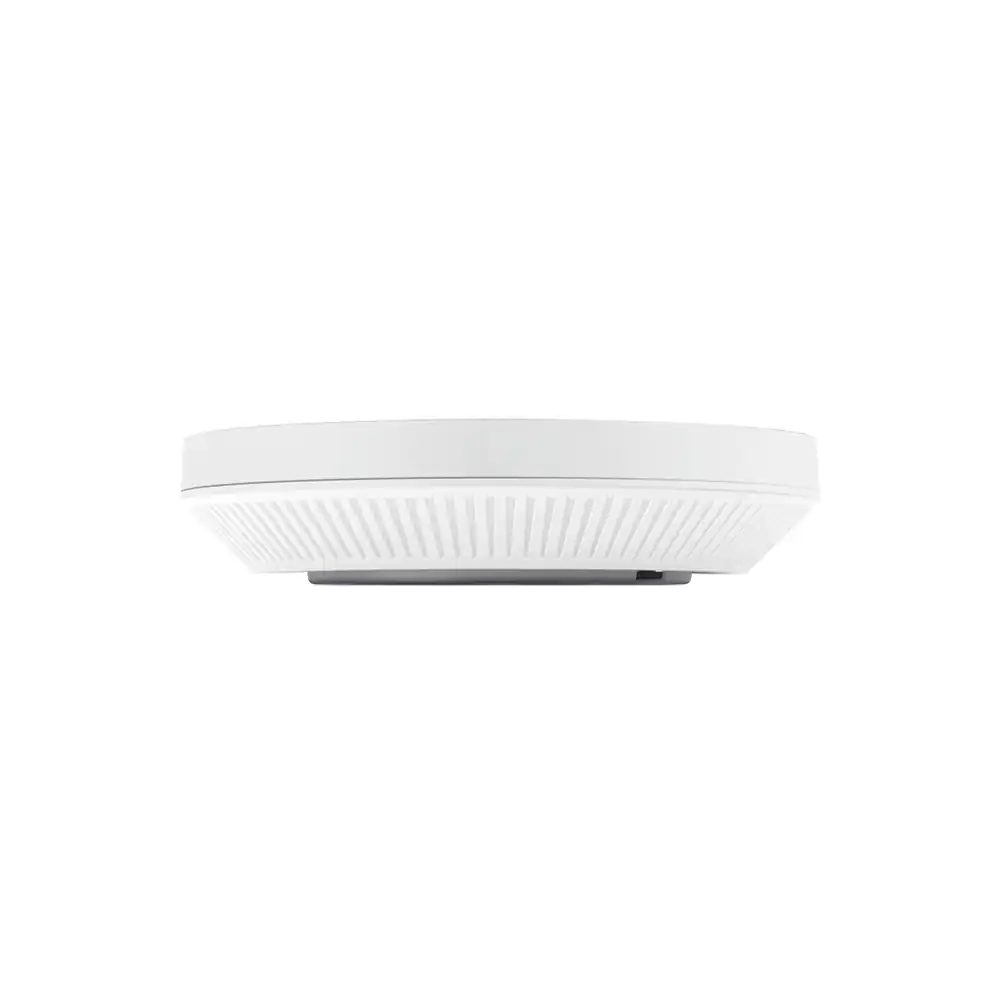

Exceptional performance with compact design ensures simple WiFi installation while saving space. The elegant appearance makes EAP650 perfectly blend into any modern office, hotel, classroom, or café. 33.6mm 160mm 54mm 86mm

Boosted Network Security and Efficiency

Secure Guest Network with Up to 16 SSIDs Guest network access provides enhanced security to guests. Different SSIDs also enable flexible access management. Boost Business with SMS Login Captive portal (including SMS and Voucher) and 802.1x authentication help maintain authorized guests to use the network. Boost your business with a customized marketing page.§ Learn More about WiFi Marketing >> WPA3 for Worry-Free Open Public Networks With advanced enterprise security, WPA3 provides more data security for previously unsecured and open WiFi hotspots. Learn more about WPA3 >> Band Steering Automatically moves dual band devices onto the wider 5GHz band for faster connections. Load Balance Ensures large numbers of users have smooth network experiences in high-density business networks Airtime Fairness Increases average network throughput in heavily congested environments

EAP650 技術規格

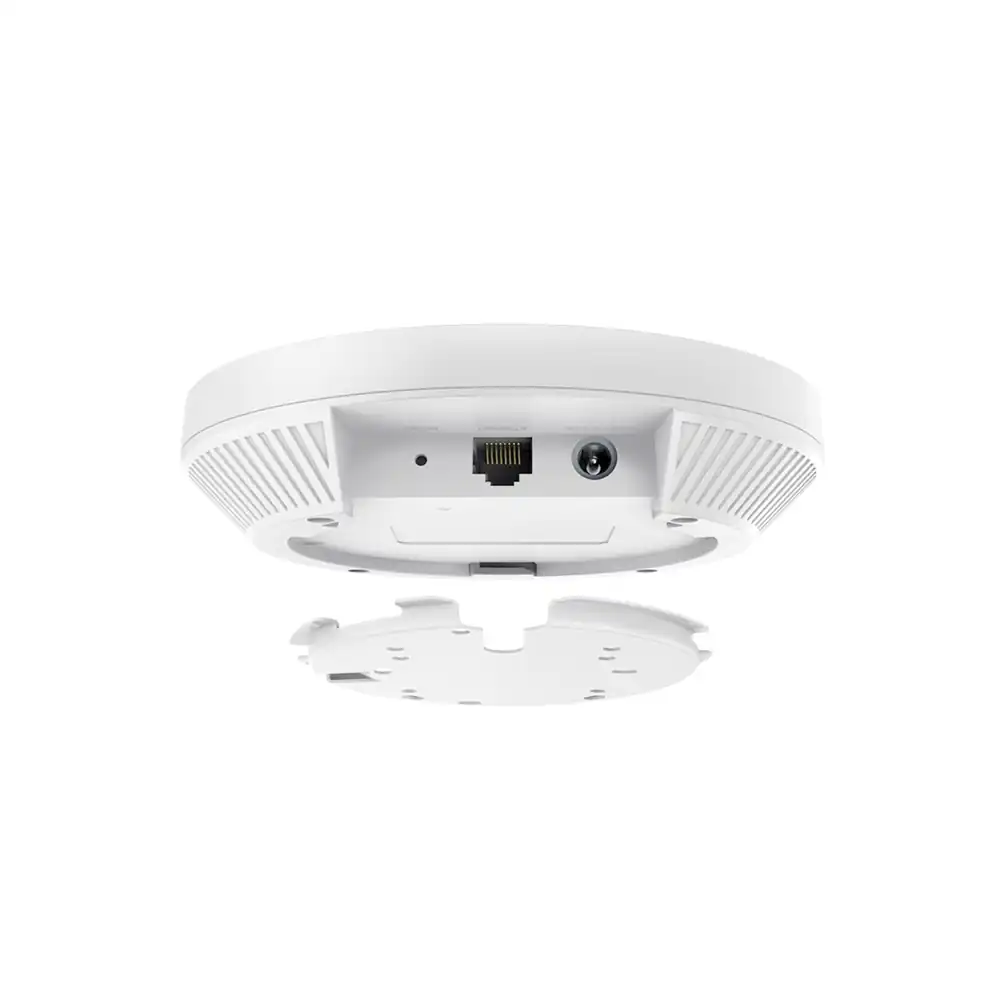

連接介面	1× Gigabit 乙太網路孔 (支援 IEEE802.3at PoE)
按鈕	重置
電源供應	• 802.3at PoE• 12V DC (包裝內含電源供應器)(EU 版本: 12 V / 1.0 A DC. US 版本: 12 V / 1.5 A DC)• 48V 被動 PoE
功耗	• EU: 13.5 W• US: 14.7 W
尺寸(長 x 寬 x 高)	160 × 160 × 33.6 毫米(mm)
天線	內建全向性天線• 2.4 GHz: 2× 4 dBi• 5 GHz: 2× 5 dBi
藍牙	V5.2
安裝	• 吸頂 /牆上壁掛 (內含套件)• 配線盒壁掛
覆蓋範圍	140㎡(1500 ft²)***
可同時連線用戶數	250+**
無線網路標準	IEEE 802.11ax/ac/n/g/b/a
無線網路頻率	2.4GHz 和 5GHz
訊號速率	5GHz：高達 2402 Mbps2.4GHz：高達 574 Mbps
無線網路功能	• 1024-QAM• 4× 長OFDM 標記• OFDMA• 多個 SSID (最多 16 個 SSID, 每個頻段各 8 個)• 啟用/停用無線廣播• 自動頻道分配• 傳輸功率控制 (在 dBm 上調整傳輸功率)• QoS(WMM)• MU-MIMO• HE160 (160 MHz 頻寬)‡• 無縫漫遊§• Omada Mesh§• 頻段引導• 負載平衡• 傳輸時間公平性• 波束成型• 速率限制• 重啟排程• 無線排程• 根據 SSID/AP/客戶端無線統計
無線網路安全性	• 門戶認證§• 存取控制• 無線 MAC 位址過濾• 無線用戶端隔離• VLAN標記SSID• 非法 AP偵測• 支援802.1X• WPA-個人/企業, WPA2-個人/企業, WPA3-個人/企業
傳輸功率	• CE:<20 dBm(2.4 GHz, EIRP)<23 dBm(5 GHz, Band1 & Band2, EIRP)<30 dBm(5 GHz, Band3, EIRP)• FCC:<25 dBm (2.4 GHz)<25 dBm (5 GHz)
Omada App	支援
集中化管理	• Omada 硬體控制器 (OC300)• Omada 硬體控制器 (OC200)• Omada 軟體控制器• Omada 雲端控制器
雲端存取	支援。透過 OC300、OC200、Omada 雲端控制器或 Omada 軟體控制器
E-mail警示	支援
LED 開/關 控制	支援
管理MAC存取控制	支援
SNMP	v1, v2c, v3
系統登入本地/遠端系統日誌	本地/遠端日誌
SSH	支援
Web管理介面	HTTP/HTTPS
L3 管理	支援
多站點管理	支援
管理VLAN	支援
零接觸監管	支援。透過Omada 雲端控制器
認證	CE、FCC、RoHS、BSMI、NCC
包裝內容	• EAP650• 電源變壓器• 吸頂/壁掛安裝配件• 安裝手冊
系統需求	Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows 11, Linux
環境	• 運作溫度: 0–40 ℃ (32–104 ℉)• 存放溫度: -40–70 ℃ (-40–158 ℉)• 運作濕度: 10–90% RH 無凝結• 存放濕度: 5–90% RH 無凝結
