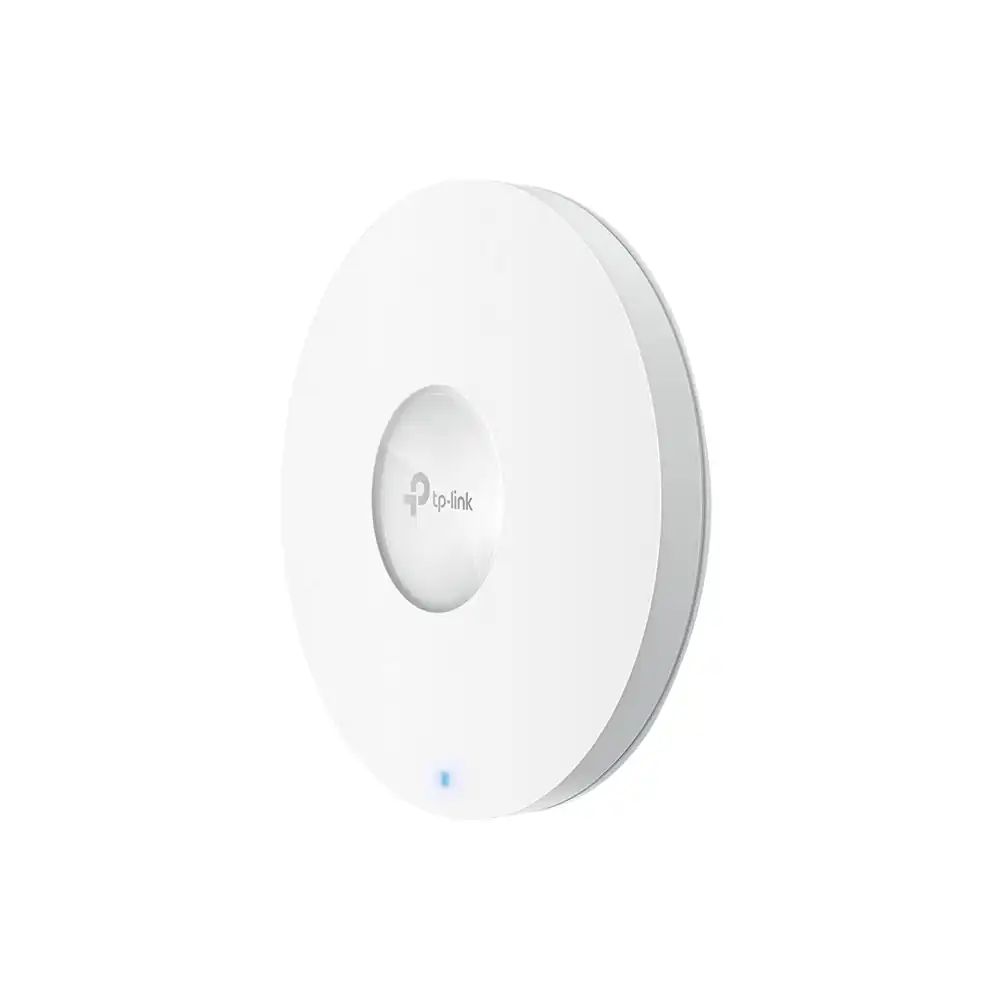

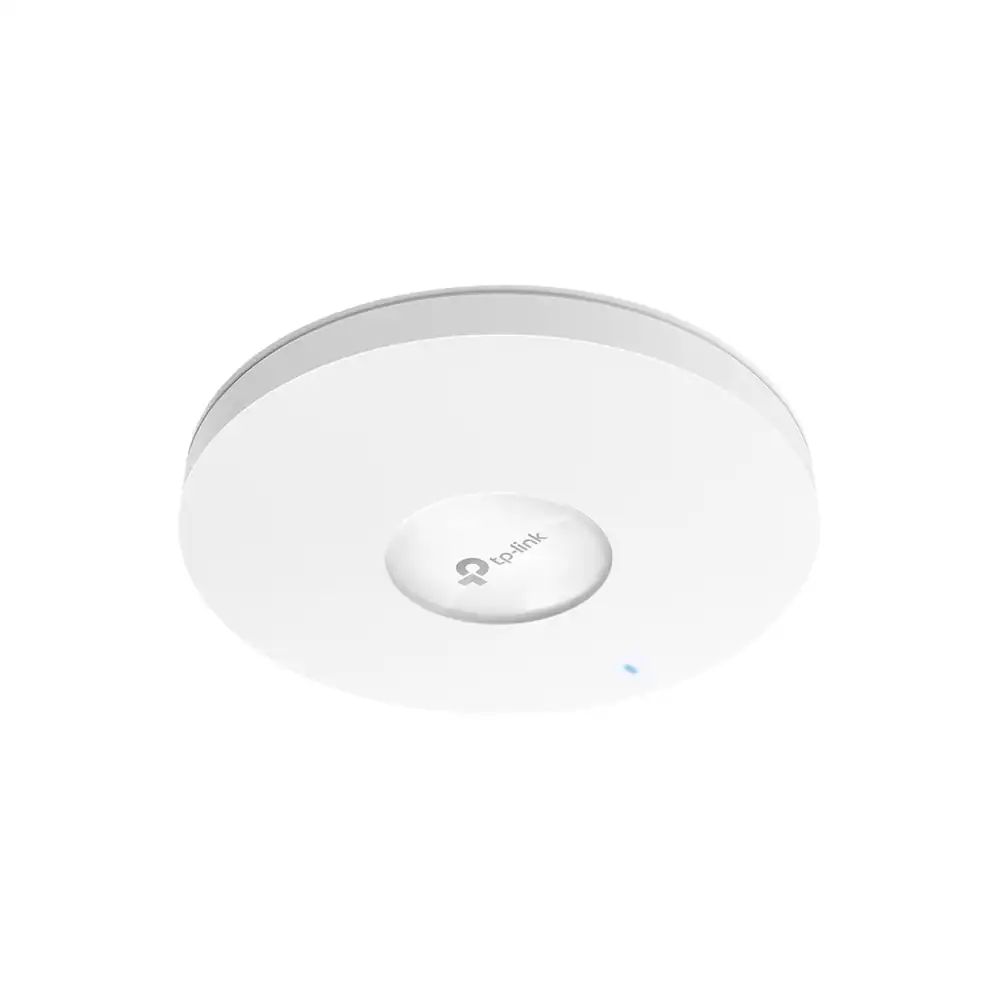

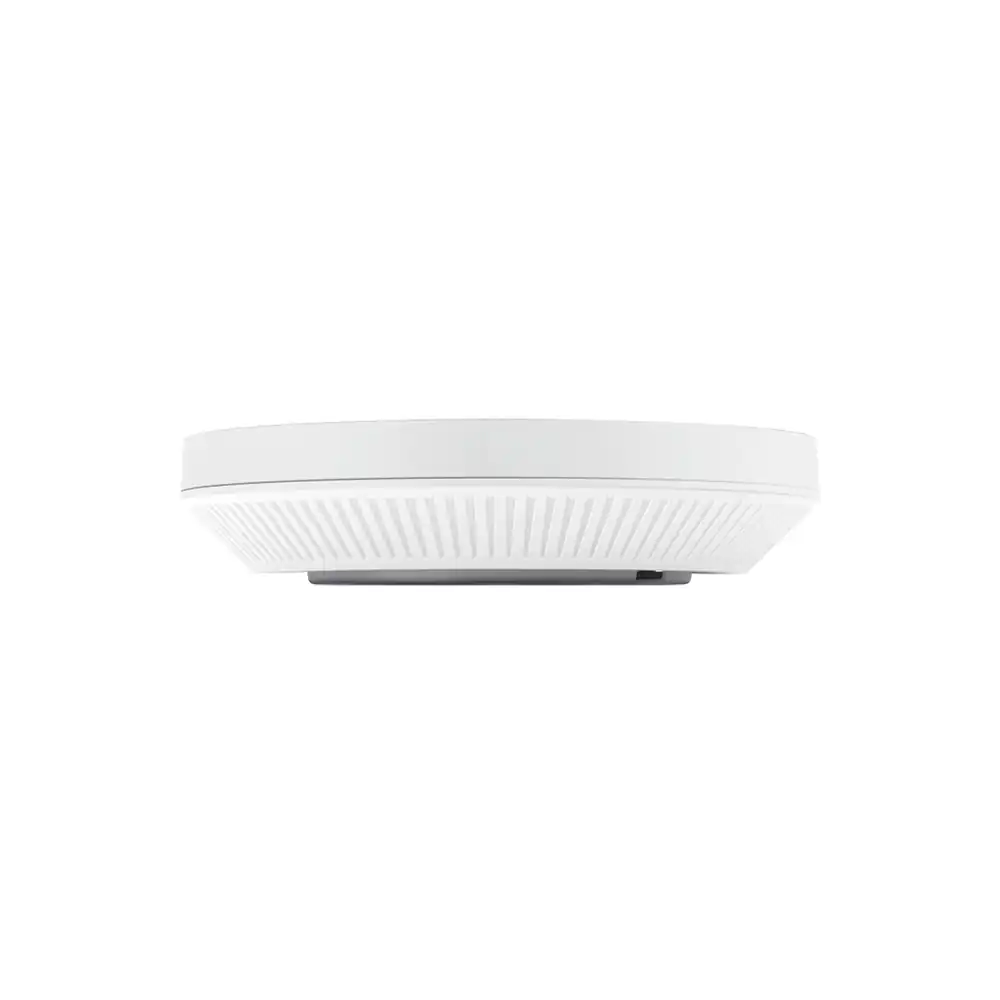

Omada AX3000 Ceiling Mount WiFi 6 Access Point EAP653-UR
Member優惠價：$0
🚚 配送方式：
- • 香港本地訂單：購物滿HK$2,000, 免費送貨!
- • 澳門地區訂單：順豐到付 (運費由買家承擔)
🎧 如有技術或貨存查詢
WhatsApp 查詢Omada AX3000 Ceiling Mount WiFi 6 Access Point EAP653-UR
EAP653-UR 技術規格
| 連接介面 | 1× Gigabit PoE+ Port |
|---|---|
| 按鈕 | Reset |
| 電源供應 | • 802.3at PoE• 12V DC / 1.5 A (Power Adapter IS NOT included)• 48V Passive PoE |
| 功耗 | • EU: 14.2 W• US: 15.5 W |
| 尺寸(長 x 寬 x 高) | 6.3 × 6.3 × 1.3 in (160 × 160 × 33.6 mm) |
| 天線 | Internal Omni• 2.4 GHz: 2× 5 dBi• 5 GHz: 3× 5 dBi |

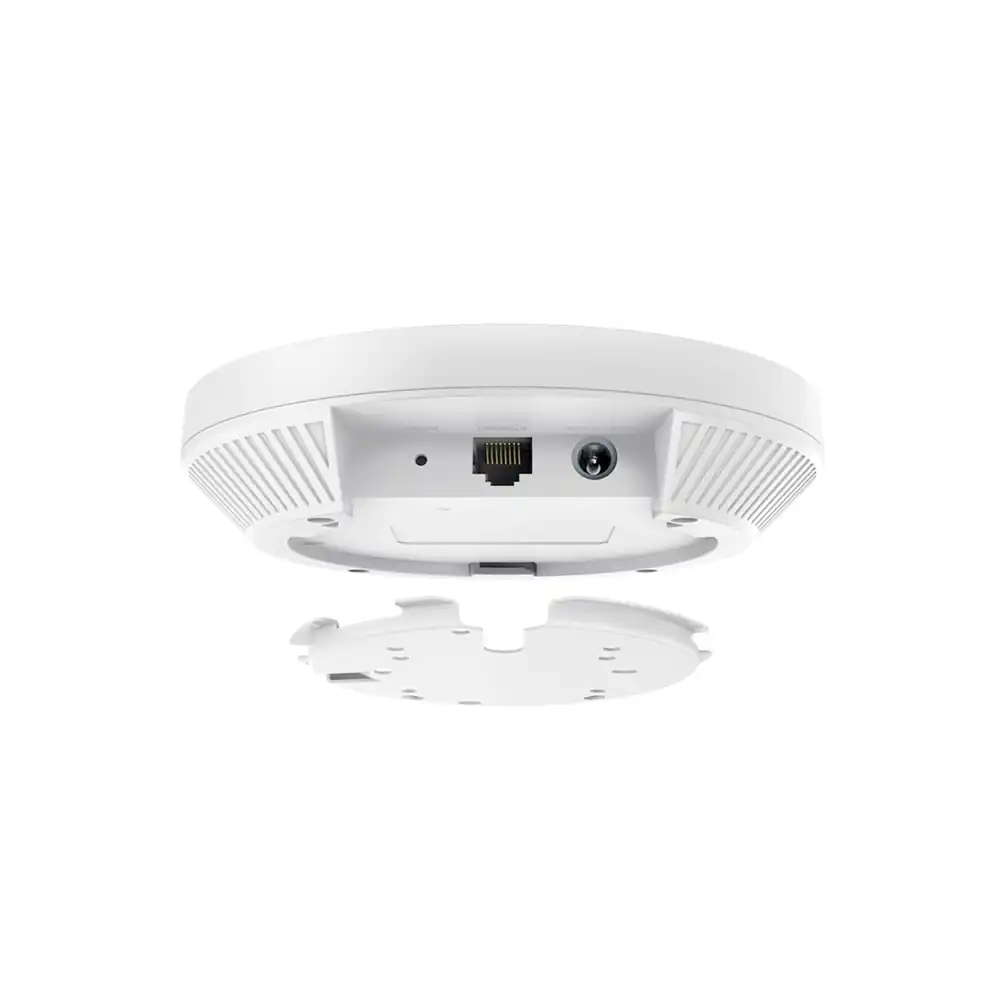

| 安裝 | • Ceiling /Wall Mounting (Kits included)• Junction Box Mounting |
| 覆蓋範圍 | 185 ㎡ (2000 ft²)*** |
| 可同時連線用戶數 | 250+** |
| 無線網路標準 | IEEE 802.11ax/ac/n/g/b/a |
| 無線網路頻率 | 2.4 GHz and 5 GHz |
| 訊號速率 | • 5 GHz: Up to 2402 Mbps†• 2.4 GHz: Up to 574 Mbps† |
| 無線網路功能 | • 1024-QAM• 4× Longer OFDM Symbol• OFDMA• Multiple SSIDs (Up to 16 SSIDs, 8 for each band)• Enable/Disable Wireless Radio• Automatic Channel Assignment• Transmit Power Control (Adjust Transmit Power on dBm)• QoS(WMM)• MU-MIMO(2G: 2*2 MU-MIMO DL/UL; 5G:2*2 MU-MIMO DL/UL)• HE160 (160 MHz Bandwidth)‡• Seamless Roaming(802.11k/v/r)§• Omada Mesh§• Band Steering• Load Balance• Airtime Fairness• Beamforming• Rate Limit• Reboot Schedule• Wireless Schedule• Wireless Statistics based on SSID/AP/Client |
| 無線網路安全性 | • Captive Portal Authentication§• Access Control• Wireless Mac Address Filtering• Wireless Isolation Between Clients• SSID to VLAN Mapping• Rogue AP Detection• 802.1X Support• WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise |
| 傳輸功率 | • CE:<20 dBm(2.4 GHz, EIRP)<23 dBm(5 GHz, Band1 & Band2, EIRP)<29 dBm(5 GHz, Band3, EIRP)• FCC:<26 dBm (2.4 GHz)<27 dBm (5 GHz) |
| Omada App | Yes |
| 集中化管理 | • Omada Hardware Controller (OC300)• Omada Hardware Controller (OC200)• Omada Software Controller• Omada Cloud-Based Controller |
| 雲端存取 | Yes. Requiring the use of OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller. |
| E-mail警示 | Yes |
| LED 開/關 控制 | Yes |
| 管理MAC存取控制 | Yes |
| SNMP | v1, v2c, v3 |
| 系統登入本地/遠端系統日誌 | Local/Remote Syslog |
| SSH | Yes |
| Web管理介面 | HTTP/HTTPS |
| L3 管理 | Yes |
| 多站點管理 | Yes |
| 管理VLAN | Yes |
| 零接觸監管 | Yes. Requiring the use of Omada Cloud-Based Controller. |
| 認證 | CE, FCC, RoHS |
| 包裝內容 | • EAP653 UR• Ceiling/Wall Mounting Kit• Installation GuideNote: DC adapter is not included in the package, and is sold separately. |
| 系統需求 | Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows 11, Linux |
| 環境 | • Operating Temperature: 0–40 ℃ (32–104 ℉)• Storage Temperature: -40–70 ℃ (-40–158 ℉)• Operating Humidity: 10–90% RH non-condensing• Storage Humidity: 5–90% RH non-condensing |
產品資源
| Brands | Omada |
|---|
