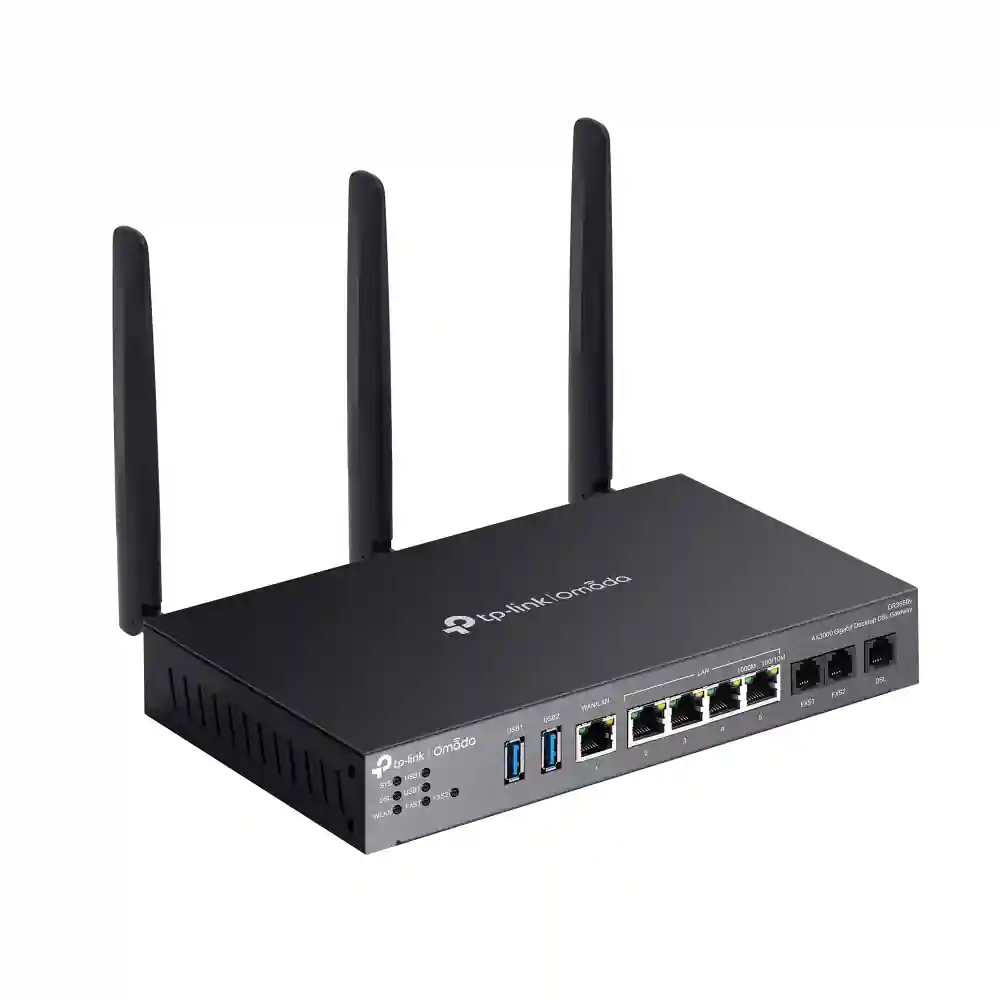

Omada AX3000 Wi-Fi 6 Gigabit Desktop DSL Gateway DR3650V
Member優惠價：$0
🚚 配送方式：
- • 香港本地訂單：購物滿HK$2,000, 免費送貨!
- • 澳門地區訂單：順豐到付 (運費由買家承擔)
🎧 如有技術或貨存查詢
WhatsApp 查詢Omada AX3000 Wi-Fi 6 Gigabit Desktop DSL Gateway DR3650V
Omada AX3000 Wi-Fi 6 Gigabit Desktop DSL Gateway
DR3650v VDSL2 35b(Up to 350 Mbps)*2 VDSL2/ADSL2+/ADSL2/ADSL Compatibility 2402 Mbps +574 Mbps*1 5 × RJ45Gigabit Ports IPSec/PPTP/L2TP/OpenVPN/WireGuard/GRE/SSL VPN VoIP Support CentralizedManagement Load Balancing Between DSL and Ethernet WAN The integrated DSL port supports VDSL2/ADSL2+/ADSL2/ADSL connections. Compatibility with the leading ISPs provides ideal IP-based connections for any small business. DR3650v is compatible with Super VDSL (VDSL2 Profile 35b), Ethernet access, and 4G/3G USB modems. Its Gigabit LAN/WAN port accepts connections from cable or fiber modems, and the USB 3.0 port supports 4G/3G dongles for a solid main or backup internet connection. Centralized cloud management for Omada gateways, switches, and access points across multiple sites, with the Omada cloud-based controller offering the Essentials version of cloud services for free, reducing maintaince costs.*7 IPSec/PPTP/L2TP/GRE/WireGuard/ Open VPN/ SSL VPN easily builds secure VPN tunnels for secure Internet browsing, communication between different branches, or enabling remote work or study from home.
DR3650V 技術規格
| 存取控制 | Source/Destination IP Based Access Control |
|---|---|
| 過濾 | • Web Group Filtering*5• URL Filtering• Web Security*5 |
| ARP檢測 | • Sending GARP Packets• ARP Scanning*5• IP-MAC Binding |
| 攻擊防禦 | • TCP/UDP/ICMP Flood Defense• Block TCP Scan (Stealth FIN/Xmas/Null)• Block Ping from WAN |
| 連接介面 | • 3 × RJ11 Ports (2 × FXS, 1 × DSL)• 5 × RJ45 Gigabit Ports (1 × WAN/LAN Port, 4 × LAN Ports)• 2 × USB 3.0 Ports |
| 按鈕 | Reset Button |
| 電源供應 | 12VDC / 3.3A Power Adapter |
| Wi-Fi 頻率 & 訊號速率 | • 2.4 GHz: 574 Mbps• 5 GHz: 2402 Mbps (HE160) |
| 快閃記憶體 | 256 MB NAND |
| DRAM | 512 MB DDR4 |
| 尺寸(長 x 寬 x 高) | 8.9 × 5.2 × 1.4 in (226 × 131 × 35 mm) (Antenna dimensions are notincluded) |
| 天線 | • 2.4 GHz: 2x 3 dBi dual-band detachable antennas• 5 GHz: 3x 4.5 dBi dual-band detachable antennas |
| 安裝 | Desktop/Wall-mounting/Rackmount (with Kit-D226, sold separately) |
| 最大功耗 | 30.6W(with 2 USB 3.0 connect), 20.6W(without 2 USB 3.0 connect) |
| GRE | • Unencrypted: 624.2Mbps• Encrypted: 301.5Mbps |
| WireGuard VPN | 20 Tunnels |
| 同步連線數 | 150,000 |
| 每秒新增連線數 | 5,100 |
| NAT (靜態 IP) | 937.2 Mbps / 936.1Mbps |
| NAT(DHCP) | 945.8 Mbps / 940.6Mbps |
| NAT(PPPoE) | 942.9 Mbps / 942.9Mbps |
| NAT (L2TP) | 837.4 Mbps / 881.5Mbps |
| NAT (PPTP) | 803.0 Mbps / 910.5 Mbps |
| IPsec VPN 吞吐量 | • ESP-SHA1-AES256: 646.9Mbps• ESP-SHA256-AES256: 642.8Mbps• ESP-SHA384-AES256: 648.9Mbps• ESP-SHA512-AES256: 658.4 Mbps |
| OpenVPN | • OpenVPN Server• OpenVPN Client (5)*6• 55 OpenVPN Tunnels• “Certificate + Account” Mode• Full Mode |
| L2TP VPN 吞吐量 | • Unencrypted: 1034.0 Mbps• Encrypted: 570.0 Mbps |
| PPTP VPN 吞吐量 | • Unencrypted: 1165.0 Mbps• Encrypted: 209.0 Mbps |
| SSL VPN 吞吐量 | 126.7Mbps |
| 66 Byte 封包轉發率 | 1,453,489 pps / 1,453,488 pps |
| 1,518 Byte 封包轉發率 | 81,274 pps / 91,275 pps |
| 進階功能 | • Seamless Roaming• Mesh (with EAP that supports Mesh)• OFDMA• Beamforming• MU-MIMO• Wireless Encryption: WPA/WPA2/WPA3 Personal, WPA/WPA2/WPA3 Enterprise |
| 訪客網路 | Support |
| WAN連線類型 | • Static IP• Dynamic IP• PPPoE (supports MRU Configuration)• PPTP• L2TP |
| 複製MAC位址 | Modify WAN Address |
| DHCP | • DHCP Server• DHCPv6 PD Server (only in Standalone Mode)• DHCP Options Customization• DHCP Address Reservation• Multi-IP Interfaces• Multi-Net DHCP |
| IPv6 | StaticIP / SLAAC / DHCPv6 / PPPoE / 6to4Tunnel / PassThrough / Non-Address mode |
| VLAN | 802.1Q VLAN |
| IPTV | IGMP v2/v3 Proxy, Custom Mode, Bridge Mode |
| 進階路由 | • Static Routing• Policy Routing• RIP*5• OSPF*5 |
| 頻寬管理 | IP-Based Bandwidth Control |
| 負載平衡 | • Intelligent Load Balance• Application Optimized Routing• Link Backup(Timing, Failover)• Online Detection |
| NAT | • One-to-One NAT• Multi-Net NAT• Virtual Server• Port Triggering*5• NAT-DMZ• FTP/H.323/SIP/IPSec/PPTP ALG• UPnP |
| 連線數限制(Session Limit) | IP-Based Session Limit |
| SSL VPN | 50 Tunnels |
| IPsec VPN | • 100 IPSec VPN Tunnels• LAN-to-LAN, Client-to-LAN• Main, Aggressive Negotiation Mode• DES, 3DES, AES128, AES192, AES256 Encryption Algorithm• IPsec Failover• IKE v1/v2• MD5, SHA1, SHA2-384 and SHA2-512 Authentication Algorithm• NAT Traversal (NAT-T)• Dead Peer Detection (DPD)• Perfect Forward Secrecy (PFS) |
| PPTP VPN | • PPTP VPN Server• PPTP VPN Client (10)*6• 50 Tunnels• PPTP with MPPE Encryption |
| L2TP VPN | • L2TP VPN Server• L2TP VPN Client (10)*6• 50 Tunnels• L2TP over IPSec |
| 網頁驗證 | • No Authentication• Simple Password*6• Hotspot (Local User / Voucher*6/ SMS*6/ Radius*6)• External Radius Sever• External Portal Sever*6• LDAP |
| Omada App | Yes |
| 集中化管理 | • Omada Cloud-Based Controller• Omada Hardware Controller• Omada Software Controller |
| 雲端存取 | Yes. Require the use of Omada Cloud-Based Controller. |
| 服務 | Dynamic DNS (Dyndns, No-IP, Peanuthull, Comexe, DDNS Customization) |
| 維護 | • Web Management Interface• Remote Management• Export & Import Configuration• SNMP v1/v2c/v3• Diagnostics (Ping & Traceroute)*5• NTP Synchronize*5• Port Mirroring• CLI (only in Standalone Mode)• Syslog Support• TR-069 (data models of TR-098 and TR181 are supported) |
| 零接觸監管 | Yes. Require the use of Omada Cloud-Based Controller. |
| 管理功能 | • Automatic Device Discovery• Intelligent Network Monitoring• Abnormal Event Warnings• Unified Configuration• Reboot Schedule• Captive Portal Configuration |
| 預設啟用的網路服務 | Web ServerManage and configure device through web (HTTP/HTTPS)• Port: 80/443 Protocol: TCP_____________________________________________________TDP ServerDevice discovery• Port: 20003 Protocol: UDP_____________________________________________________VOIP ServerMonitor SIP messages• Port: 5060 Protocol: UDP_____________________________________________________DHCP ServerHandle DHCP packets• Port: 67 Protocol: UDP_____________________________________________________DNSHandle DNS packets• Port: 53 Protocol: TCP/UDP |
| 認證 | CE, RoHS |
| 包裝內容 | • DR3650v• Power Adapter• Ethernet Cable• Phone Cable• Quick Installation Guide |
| 系統需求 | • Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7/8/8.1/10/11• MAC OS, NetWare, UNIX or Linux |
| 環境 | • Operating Temperature: 0 °C to 40 °C (32 °F to 104 °F)• Storage Temperature: -40 °C to 70 °C (-40 °F to 158 °F)• Operating Humidity: 10% to 90% non-condensing• Storage Humidity: 5% to 90% non-condensing |
