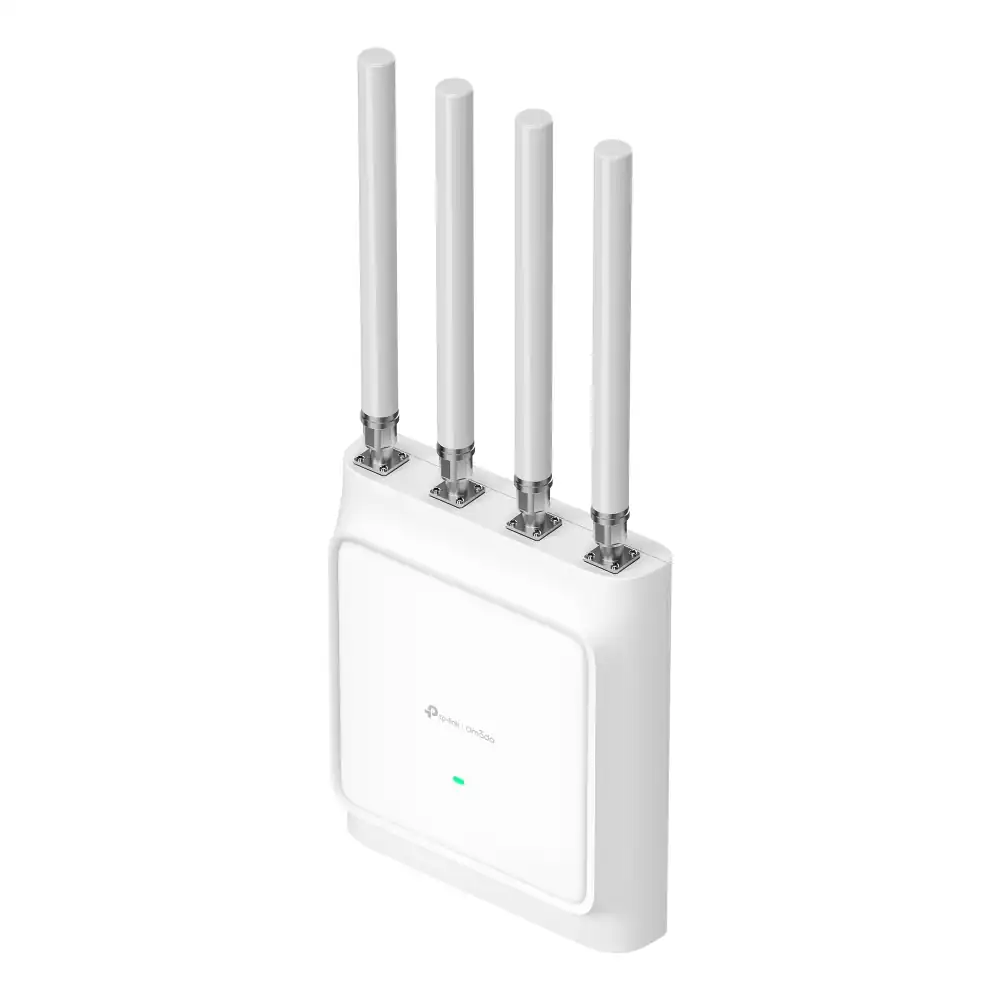

Omada AX3600 Indoor/Outdoor WiFi 6 Access Point EAP668-OUTDOOR-HD
🚚 配送方式：
- • 香港本地訂單：購物滿HK$2,000, 免費送貨!
- • 澳門地區訂單：順豐到付 (運費由買家承擔)
🎧 如有技術或貨存查詢
WhatsApp 查詢Omada AX3600 Indoor/Outdoor WiFi 6 Access Point EAP668-OUTDOOR-HD
OmadaHigh-DensityWi-Fi 6 AX3600 Indoor/Outdoor Access Point
EAP668-Outdoor HD
1,000+ Connected Devices Industry-leadingIP68-Rating Up to 3,550 Mbps Wi-Fi 6 Speeds† 10G SFP Slot + 2× PoE Ports (2.5G and 1G) PoE+/PoE++ In &PoE+ Out 4× N-Type External Antenna Ports(Antennas Included) Seamless Roaming and Omada Mesh Centralized Management via App or Web
High-Capacity, WideCoverage:for High-Density Outdoor Deployments*
Connected Devices 1,000+ Recommended Coverage 4,305 ft2 *Actual capacity and coverage will vary as a result of the
performance of the equipped antennas, client limitations, and
environmental factors.
Industry-Leading IP68 Weatherproof Design
The fully sealed EAP668-Outdoor HD surpasses IP67 standards,
offering complete dustproof protection and the ability to
withstand prolonged submersion in water. It withstands most
harsh outdoor environments. IP68 Weatherproof Enclosure 6kV Lightning Protection -40 °C-70 °C Working Range
PoE & SFP: Scalable Outdoor Connectivity
‡The PoE-out feature requires 802.3bt PoE
input.
Perfect for High-Density Outdoor Scenarios
Parks Schools Stadiums Squares Outdoor Events Airports
Seamless Connectivity with Mesh and Roaming
Ensures customers enjoy uninterrupted streaming when moving around by switching clients automatically to the access points with the optimal signal. PoE+ Omada PoE+ Switch
Flexible Installation through Wall and Pole Mount**
Pole Mounting Wall Mounting **EAP668-Outdoor HD is compatible with optional bracket accessories APM-110 and APM-100, which are sold separately. Omada SDN allows users to quickly set up the EAP772-Outdoor
through automatic device identification andone-clickadoption.
Empowering Businesseswith Reliable Omada SDN Solutions
Omada’s Software-Defined Networking (SDN) solution seamlessly integrates access points (APs), managed switches, and gateways, enabling 100% centralized cloud management for a highly scalable network.
EAP668-OUTDOOR-HD 技術規格

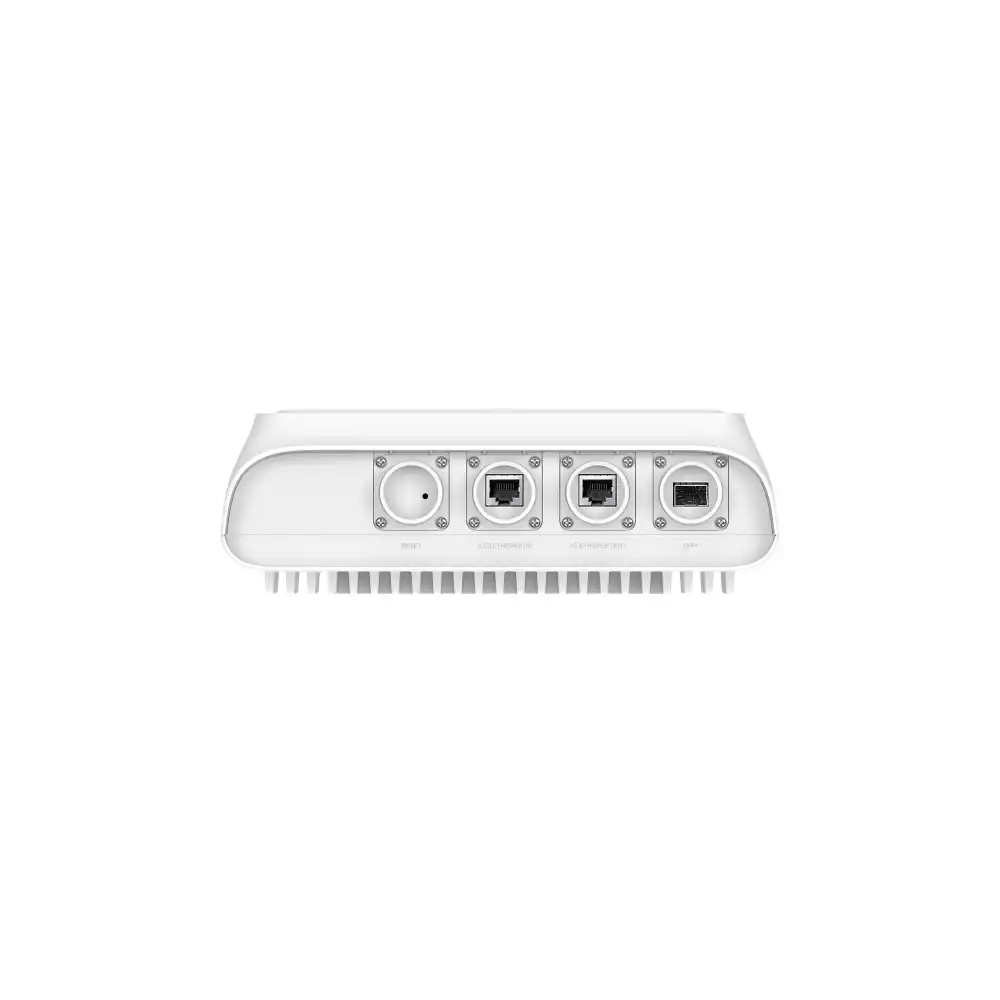

| 連接介面 | 1× 2.5G Ethernet Port + 1× Gigabit Ethernet Port + 1× 10G SFP+ |
|---|---|
| 按鈕 | Reset |
| 電源供應 | 802.3at/bt PoE |
| 功耗 | 802.3bt:• EU: 20.2W (bt type3: af PSE out; bt type4: at PSE out)• US: 25.4W (bt type3: af PSE out; bt type4: at PSE out);802.3at:• EU: 20.2W (PSE disabled)• US: 25.4W (PSE disabled)Note: PoE out power not included. The PoE-out feature requires 802.3bt PoE input. |
| 尺寸(長 x 寬 x 高) | 9.5 × 3.2 × 12.3 in (240 × 80 × 312 mm) (excluding antennas, waterproofing kit, and mounting kit) |
| 天線 | 4× External Dual-Band Omni Antennas• 2.4 GHz: 6.0 dBi• 5 GHz: 6.0 dBi |
| 藍牙 | Yes |
| 防風雨外殼 | IP68 |
| 安裝 | Wall/pole mouting (kits included)，supporting horizontal ±45° adjustment• Optional bracket accessory APM-110: Supports vertical ±90°, horizontal ±45° adjustment• Optional bracket accessory APM-100: Supports vertical ±45° , horizontal ±45° adjustment(Note: Optional bracket accessories need to be purchased separately) |
| 可同時連線用戶數 | 1,000+* |
| 無線網路標準 | IEEE 802.11 a/b/g/n/ac/ax |
| 無線網路頻率 | 5 GHz, and 2.4 GHz |
| 訊號速率 | • 5 GHz: Up to 2402 Mbps• 2.4 GHz: Up to 1148 Mbps |
| 無線網路功能 | • 1024-QAM• Mesh§• Seamless Roaming(802.11k/v/r)§• Enable/Disable Wireless Radio• Enable/Disable SSID Broadcast• Guest Network• Automatic Channel Assignment (Adjust transmit Power on dBm)• Transmit Power Control• Load Balance• Band Steering• Beamforming• Airtime Fairness• Multiple SSIDs:16 (8 for each band)• MU-MIMO (4 × 4 MU-MIMO DL/UL)• UL/DL OFDMA• Wireless Statistics• Wireless Schedule• Reboot Schedule• RADIUS Accounting• MAC Authentication• Static IP/Dynamic IP |
| 無線網路安全性 | • VLAN• Access Control• Rogue AP Detection• Captive Portal Authentication• Maximum number of MAC Filter: 4,000• Wireless Isolation between Clients• Rogue AP Detection• WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise |
| 傳輸功率 | • CE: < 20 dBm (2.4 GHz, EIRP); < 23dBm (5 GHz, band1&band 2, EIRP);< 30 dBm (5 GHz,band 3, EIRP);• FCC: < 29 dBm (2.4 GHz); < 28 dBm (5 GHz, Band1 & Band4 ) ; < 23 dBm (5 GHz, Band2 & Band3) |
| Omada App | Yes |
| Restore & Backup | Yes |
| 透過網頁更新韌體 | Yes |
| NTP | Yes |
| 集中化管理 | • Omada Cloud-Based Controller• Omada Hardware Controller• Omada Software Controller |
| 雲端存取 | Yes. Require the use of an Omada controller. |
| E-mail警示 | Yes |
| LED 開/關 控制 | Yes |
| 管理MAC存取控制 | Yes |
| SNMP | v1, v2c, v3 |
| SSH | Yes |
| Web管理介面 | Yes |
| 認證 | CE, FCC, RoHS |
| 包裝內容 | • EAP668-Outdoor HD• 4× External Dual-Band Omni Antennas• Installation Guide• Mounting Kit• Waterproof Kit |
| 環境 | • Operating Temperature: -40 °C–70 °C (-40 °F–158 °F);• Storage Temperature: -40 °C–70 °C (-40 °F–158 °F);• Operating Humidity: 10%–90% non-condensing;• Storage Humidity: 5%–90% non-condensing |
