Omada BE3600 Indoor/Outdoor WiFi 7 Access Point with Directional/Omnidirectional Antennas EAP725-OUTDOOR
🚚 配送方式：
- • 香港本地訂單：購物滿HK$2,000, 免費送貨!
- • 澳門地區訂單：順豐到付 (運費由買家承擔)
🎧 如有技術或貨存查詢
WhatsApp 查詢Omada BE3600 Indoor/Outdoor WiFi 7 Access Point with Directional/Omnidirectional Antennas EAP725-OUTDOOR
Omada BE3600Wi-Fi 7Access Point with Directional/Omni Antennas

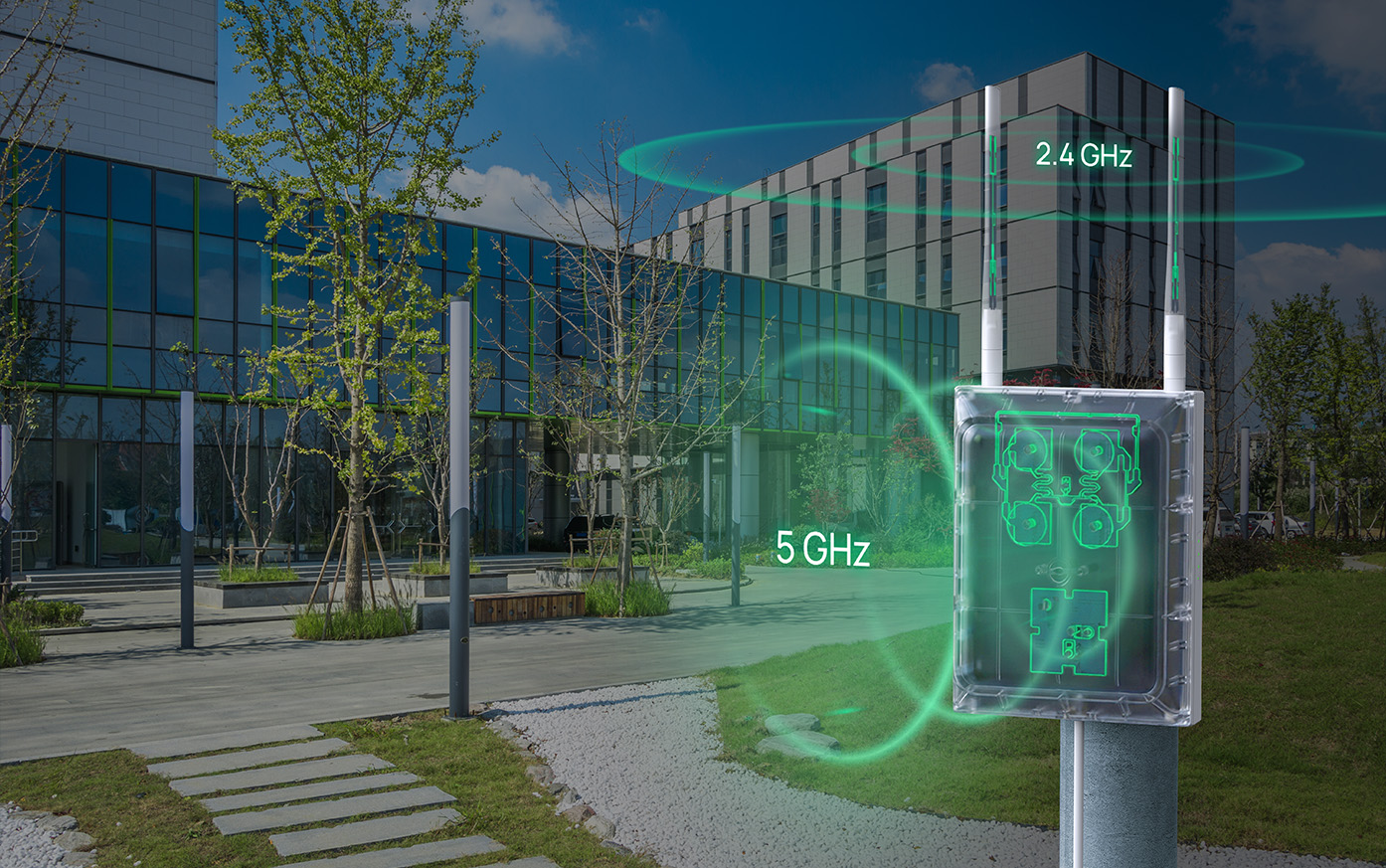

EAP725-Outdoor Up to 3.6 Gbps Wi-Fi 7 Speeds† Built-in Directional & Detachable OmniAntennas Plug & PlayAuto‑Sensing ExternalOmni Antennas 1× 2.5GbpsRJ45 Port IP66Weatherproof 802.3atPoE Omada Mesh &Seamless RoamingΔ Centralized Cloud Management Adapt to any environment effortlessly by selecting the antenna type that suits your needs. Whether you require long-distance connectivity or need to cover multiple endpoints, easily switch between external omni, internal directional, or custom antenna configurations with just a few clicks in the software.* Automatically detects the attachment and removal of antennas (included) in auto mode and seamlessly switches between the internal and external antennas with zero configuration. Center Mount for Omni Coverage Deploy the AP centrally to provide360° outdoorWi-Fi 7coverage. Edge Mount for Directional Coverage Deploy the AP along theedgeof the space to deliverfocused directionalWi-Fi 7coverage. Customized Scenario (Omni + Directional) Customize coverage by zone withomni and directional coverageas needed. The EAP725-Outdoor features an IP66 weatherproof rating, ensuring reliable protection against heavy rain, dust, and harsh weather conditions. IP66 Weatherproof Enclosure 6kV Lightning Protection -30 °C to 70 °C Working Range Pole Mounting Wall Mounting 2.5GPoE Port OmadaPoE Switch PoE Support Ensures customers enjoy uninterrupted streaming when moving around by switching clients automatically to the access points with the optimal signal. PoE+ Omada PoE+ Switch Omada SDN allows users to quickly set up the EAP725-Outdoor through automatic device identification and one‑click adoption. Omada’s Software-Defined Networking (SDN) solution seamlessly integrates access points (APs), managed switches, and gateways, enabling 100% centralized cloud management for a highly scalable network.
EAP725-OUTDOOR 技術規格
| 連接介面 | 1 x 10M/100M/1000M/2.5Gbps Ethernet Port (RJ45) |
|---|---|
| 按鈕 | Reset |
| 電源供應 | 802.3at PoE |
| 功耗 | 18.4W (for PoE+) |
| 尺寸(長 x 寬 x 高) | 8.19 x 6.3 x 2.17 in (208 × 160 × 55 mm) |
| 天線 | • 2.4 GHz:2 × 4.5 dBi, external omnidirectional antennas2 × 8.3 dBi, internal directional antennas (antenna beamwidth 90°)• 5 GHz:2 × 5.3 dBi, external omnidirectional antennas2 × 13.2 dBi, internal directional antennas (antenna beamwidth 45°)Note: The gains above are the single-antenna peak gains. |
| 藍牙 | BLE 5.2 |
| 防風雨外殼 | IP66 |
| 安裝 | Pole/Wall Mounting (Kits included) |
| 無線網路標準 | IEEE 802.11a/g/b/n/ac/ax/be |
| 無線網路頻率 | 2.4 GHz, 5 GHz |
| 訊號速率 | 688 Mbps (2.4 GHz) + 4324 Mbps (5 GHz) |
| 無線網路功能 | • 4k-QAM• OFDMA• Multiple SSIDs: 16 (8 for each band)• Enable/Disable Wireless Radio• Automatic Channel Assignment• Transmit Power Control (Adjust Transmit Power on dBm)• QoS (WMM)• MLO• Omada Mesh§• Seamless Roaming(802.11k/v/r)§• Band Steering• Load Balance• Airtime Fairness• Beamforming• Rate Limit• Reboot Schedule• Wireless Schedule• Wireless Statistics based on SSID/AP/Client• Static IP/Dynamic lP |
| 無線網路安全性 | • Captive Portal Authentication§• Access Control• Wireless Mac Address Filtering• Wireless Isolation Between Clients• SSID to VLAN Mapping• Rogue AP Detection• 802.1X Support• WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise, OWE |
| 傳輸功率 | • CE: (EIRP)2.4 GHz: 20 dBm5 GHz: 23 dBm in U-NII-1, 23 dBm in U-NII-2A, 30 dBm in U-NII-2C• FCC: (Conducted Power)2.4 GHz: 25 dBm5 GHz: 26 dBm in U-NII-1, 24 dBm in U-NII-2A, 24 dBm in U-NII-2C, 26 dBm in U-NII-3 |
| Omada App | Yes |
| 集中化管理 | • Omada Cloud-Based Controller• Omada Hardware Controller• Omada Software Controller |
| 雲端存取 | Yes. Require the use of an Omada controller. |
| E-mail警示 | Yes |
| 管理MAC存取控制 | Yes |
| SNMP | v1, v2c, v3 |
| 系統登入本地/遠端系統日誌 | Yes |
| SSH | Yes |
| Web管理介面 | Yes |
| L3 管理 | Yes |
| 多站點管理 | Yes |
| 管理VLAN | Yes |
| 零接觸監管 | Yes. Requiring the use of Omada Cloud-Based Controller |
| 認證 | CE, FCC, RoHS, IC, NCC, VCCI, JRF, BSMI |
| 包裝內容 | • Access Point EAP725-Outdoor• Waterproof Kit• Mounting Kit• Installation Guide |
| 系統需求 | Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows11, Linux |
| 環境 | • Operating Temperature: -30 to 70 ℃ (-22 to 158 ℉)• Storage Temperature: -40 to 70 ℃ (-40 to 158 ℉)• Operating Humidity: 10 to 90% RH non-condensing• Storage Humidity: 5 to 90% RH non-condensing |
| 重量 | Main Unit: 1.33 kg |
產品資源
| Brands | Omada |
|---|
