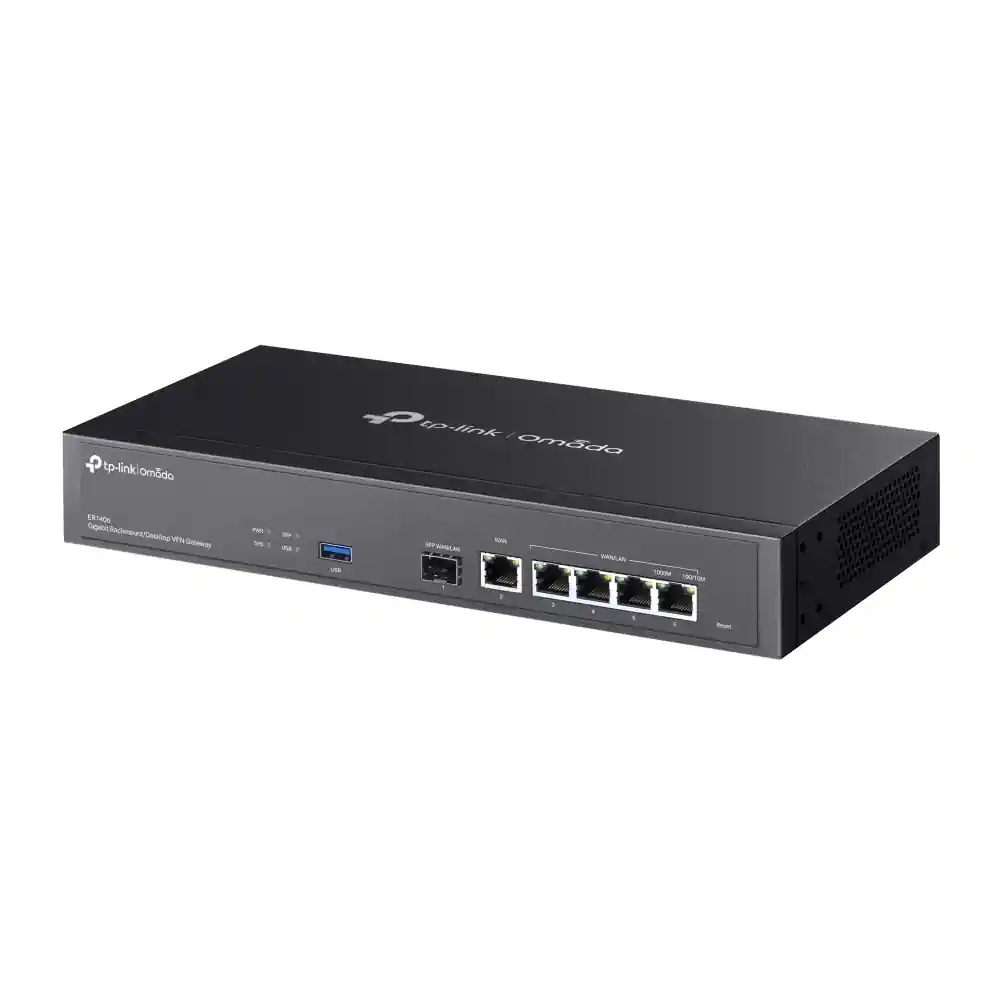

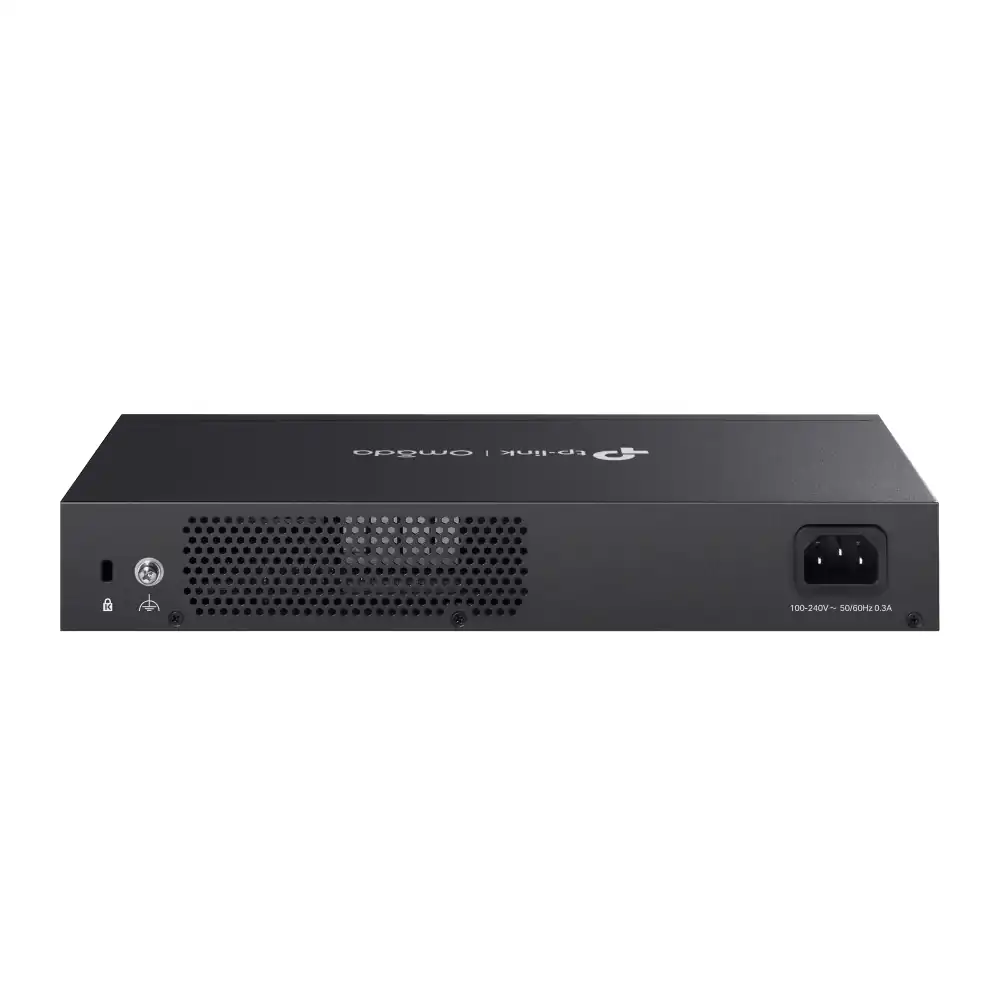

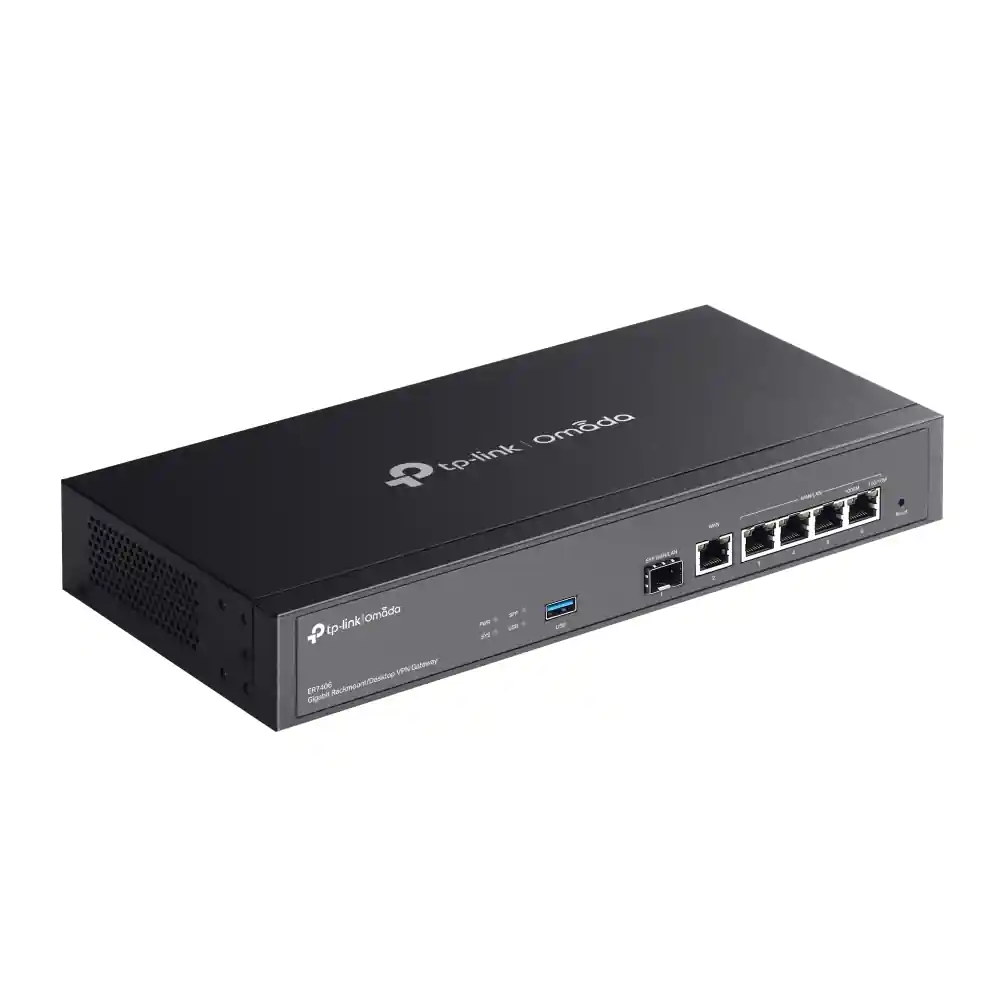

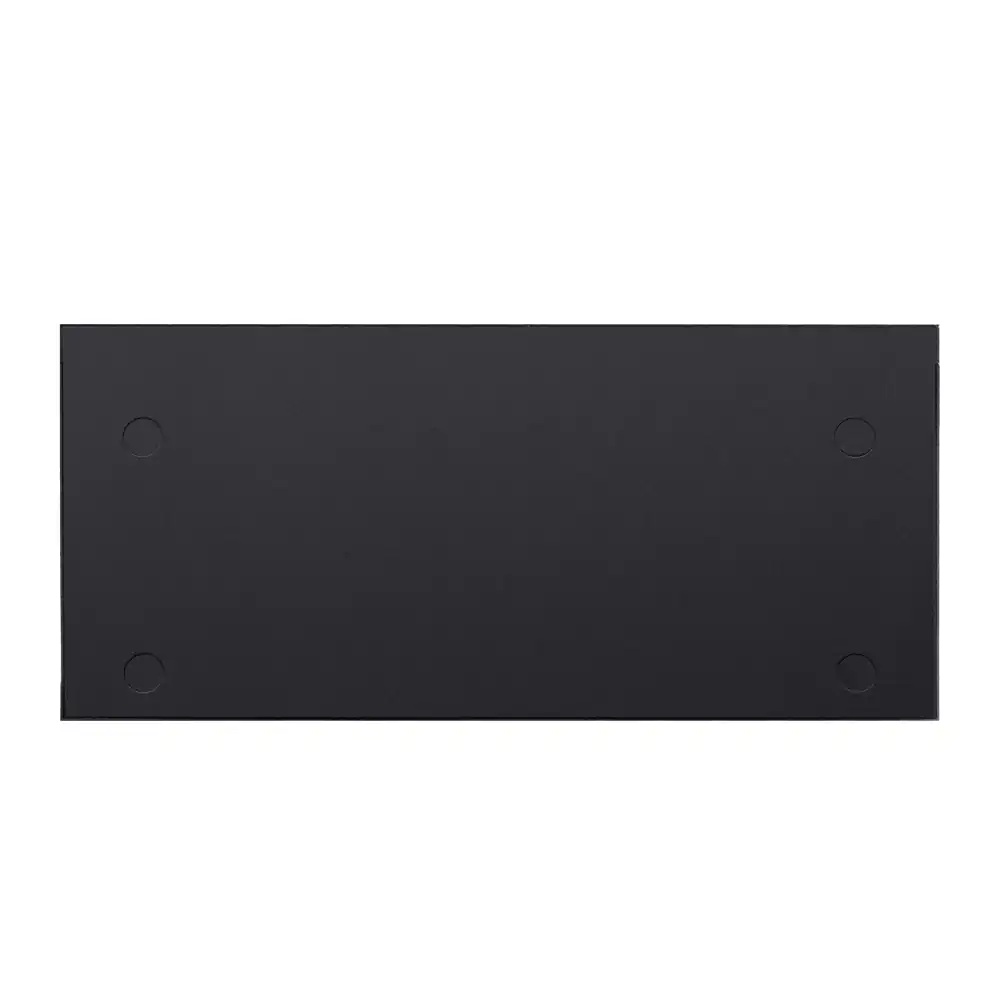

Omada Gigabit Rackmount/Desktop VPN Gateway ER7406
Member優惠價：$0
🚚 配送方式：
- • 香港本地訂單：購物滿HK$2,000, 免費送貨!
- • 澳門地區訂單：順豐到付 (運費由買家承擔)
🎧 如有技術或貨存查詢
WhatsApp 查詢Omada Gigabit Rackmount/Desktop VPN Gateway ER7406
ER7406 技術規格
| 存取控制 | Source/Destination IP Based Access Control |
|---|---|
| 過濾 | • WEB Group Filtering§• URL Filtering• Web Security§ |
| ARP檢測 | • Sending GARP Packets• ARP Scanning§• IP-MAC Binding |
| 攻擊防禦 | • TCP/UDP/ICMP Flood Defense• Block TCP Scan (Stealth FIN/Xmas/Null)• Block Ping from WAN |
| 標準與協定 | • IEEE 802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3z, IEEE 802.3x, IEEE 802.1q• TCP/IP, DHCP, ICMP, NAT, PPPoE, NTP, HTTP, HTTPS, DNS, IPSec, PPTP, L2TP, OpenVPN, WireGuard VPN, GRE VPN, SNMP |
| 連接介面 | • 1 Gigabit SFP WAN/LAN Port• 1 Gigabit WAN Port• 4 Gigabit LAN/WAN Ports• 1 USB 3.0 Port (supports USB LTE dongle and USB storage) |
| 網路連接線 | • 10BASE-T: UTP category 3, 4, 5 cable (Max 100 m) EIA/TIA-568 100Ω STP (Max 100 m)• 100BASE-TX: UTP category 5, 5e cable (Max 100 m) EIA/TIA-568 100Ω STP (Max 100 m)• 1000BASE-T: UTP category 5, 5e, 6 cable (Max 100 m) |
| 風扇數量 | Fanless |
| 按鈕 | Reset Button |
| 電源供應 | 100-240VAC, 50/60Hz |
| 快閃記憶體 | 128 MB NAND |
| DRAM | 512 MB DDR4 |
| LED燈 | PWR, SYS, SFP, USB, WAN(1000M Link/Act, 100/10M Link/Act), WAN/LAN (1000M Link/Act, 100/10M Link/Act) |
| 尺寸(長 x 寬 x 高) | 11.6 × 5.5 × 1.7 in (294 × 140 × 44 mm) |
| 保護 | 4 kV surge protection |
| 外殼 | Steel |
| 安裝 | • Desktop• Rackmountable |
| 最大功耗 | • 7.5 W (with USB 3.0 connected)• 4.5 W (without USB 3.0 connected) |
| IPS 吞吐量 | TCP: 229 Mbps;UDP: 188 Mbps |
| DPI 吞吐量 | TCP: 933 Mbps;UDP: 927 Mbps |
| GRE | √ (Only in Standalone Mode) |
| WireGuard VPN | • 20x 通道 |
| 同步連線數 | 150,000 |
| 每秒新增連線數 | 5,300 |
| NAT (靜態 IP) | 945.3 Mbps / 940.5 Mbps |
| NAT(DHCP) | 939.6 Mbps / 940.9 Mbps |
| NAT(PPPoE) | 943.6 Mbps / 940.9 Mbps |
| NAT (L2TP) | 880.1 Mbps / 859.0 Mbps |
| NAT (PPTP) | 855.0 Mbps / 907.2 Mbps |
| IPsec VPN 吞吐量 | • ESP-SHA1-AES256: 617.1 Mbps• ESP-SHA256-AES256: 592.8 Mbps• ESP-SHA384-AES256: 592.4 Mbps• ESP-SHA512-AES256: 604.5 Mbps |
| OpenVPN | • OpenVPN Server• OpenVPN Client (5)**• 55 OpenVPN Tunnels• “Certificate + Account” Mode• Full Mode |
| L2TP VPN 吞吐量 | • Unencrypted: 977.4 Mbps• Encrypted: 334.6 Mbps |
| PPTP VPN 吞吐量 | • Unencrypted: 1064.1 Mbps• Encrypted: 206.8 Mbps |
| SSL VPN 吞吐量 | 131.6 Mbps |
| 66 Byte 封包轉發率 | 1,453,489 pps / 1,453,488 pps |
| 1,518 Byte 封包轉發率 | 81,279 pps / 81,275 pps |
| WAN連線類型 | • Static IP• Dynamic IP• PPPoE(supports MRU Configuration)• PPTP• L2TP |
| 複製MAC位址 | Modify WAN/LAN MAC Address (LAN MAC Address can be modified only in Standalone Mode) |
| DHCP | • DHCP Server• DHCPv6 PD Server (only in Standalone Mode)• DHCP Options Customization• DHCP Address Reservation• Multi-IP Interfaces• Multi-Net DHCP |
| IPv6 | StaticIP/SLAAC/DHCPv6/PPPoE/6to4Tunnel/PassThrough/Non-Address mode |
| VLAN | 802.1Q VLAN |
| IPTV | IGMP v2/v3 Proxy, Custom Mode, Bridge Mode |
| 進階路由 | • Static Routing• Policy Routing• RIP (available in Standalone Mode)• OSPF (available in Standalone Mode) |
| 頻寬管理 | IP-based Bandwidth Control |
| 負載平衡 | • Intelligent Load Balance• Application Optimized Routing• Link Backup (Timing, Failover)• Online Detection |
| NAT | • One-to-One NAT• Multi-Net NAT• Port Forwarding• Port Triggering§• NAT-DMZ• FTP/H.323/SIP/IPSec/PPTP ALG• UPnP |
| 連線數限制(Session Limit) | IP-based Session Limit |
| SD-WAN | √ (Only in Controller Mode) |
| SSL VPN | 50 Tunnels |
| IPsec VPN | • 100 IPSec VPN Tunnels• LAN-to-LAN, Client-to-LAN• Main, Aggressive Negotiation Mode• DES, 3DES, AES128, AES192, AES256 Encryption Algorithm• IPsec Failover• IKE v1/v2• MD5, SHA1, SHA2-384 and SHA2-512 Authentication Algorithm• NAT Traversal (NAT-T)• Dead Peer Detection (DPD)• Perfect Forward Secrecy (PFS) |
| PPTP VPN | • PPTP VPN Server• PPTP VPN Client (10)**• 50 Tunnels• PPTP with MPPE Encryption |
| L2TP VPN | • L2TP VPN Server• L2TP VPN Client (10)**• 50 Tunnels• L2TP over IPSec |
| 網頁驗證 | • No Authentication• Simple Password*• Hotspot (Local User /Voucher*/ SMS/Radius*)• External Radius Server• External Portal Sever<*• LDAP§ |
| Omada App | Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller. |
| 集中化管理 | • Omada Cloud-Based Controller• Omada Hardware Controller• Omada Software Controller |
| 雲端存取 | Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller. |
| 服務 | Dynamic DNS (Dyndns, No-IP, Peanuthull, Comexe, DDNS Customization) |
| 維護 | • Web Management Interface• Remote Management• Export & Import Configuration• SNMP v1/v2c/v3• Diagnostics (Ping & Traceroute) (only in Standalone Mode)• NTP Synchronize (only in Standalone Mode)• Port Mirroring• CLI (only in Standalone Mode)• Syslog Support |
| 零接觸監管 | Yes. Requires the use of Omada Cloud-Based Controller. |
| 管理功能 | • Automatic Device Discovery*• Batch Configuration*• Batch Firmware Upgrading*• Intelligent Network Monitoring*• Abnormal Event Warnings*• Unified Configuration*• Reboot Schedule* |
| 認證 | CE, FCC, RoHS |
| 包裝內容 | • ER7406• Power Cord• Quick Installation Guide• Rackmount Kit |
| 系統需求 | • Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7/8/8.1/10• MAC OS, NetWare, UNIX or Linux |
| 環境 | • Operating Temperature: 0 °C to 50 °C (32 °F to 122°F)• Storage Temperature: -40 °C to 70 °C (-40 °F to 158 °F)• Operating Humidity: 10% to 90% non-condensing• Storage Humidity: 5% to 90% non-condensing |
產品資源
| Brands | Omada |
|---|
