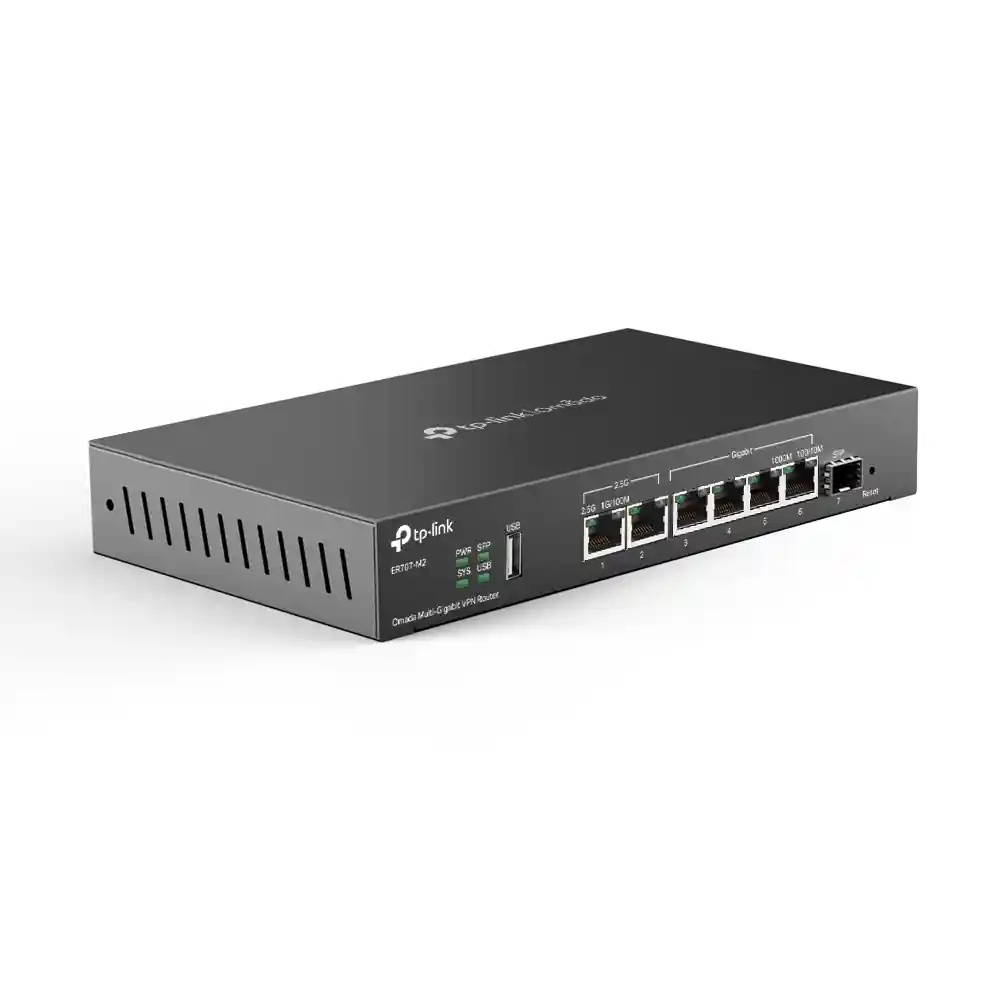

Omada Multi-Gigabit VPN Router ER707-M2
🚚 配送方式：
- • 香港本地訂單：購物滿HK$2,000, 免費送貨!
- • 澳門地區訂單：順豐到付 (運費由買家承擔)
🎧 如有技術或貨存查詢
WhatsApp 查詢Omada Multi-Gigabit VPN Router ER707-M2
High-Performance and Ultra-Secure 2.5G Business Router
Centralized Management Omada Multi-Gigabit VPN Router ER707-M2
應用場景
Dual 2.5 Gbps Ports, Engineered for Dense Environments
2.5 Gbps Delivering high-speed transmissions through dual 2.5 Gbps ports, ER707-M2 is designed for multi-person environments such as retail stores, hotels, and offices. Enjoy a blazing-fast network experience while working from home.
6× WAN Ports & 1 USB WAN for Mobile Broadband
Empowered with up to 6× WAN SFP and RJ45 ports, ER707-M2 supports various internet access.△Multi-WAN Load Balancing distributes data streams based on the bandwidth proportion of every WAN port to increase the utilization rate of multi-line broadband. Connect a 4G/3G modem to the USB 2.0 port for a LTE WAN backup. 1× USB 2.0 Port 1× 2.5G RJ45 WAN Port1× 2.5G RJ45 WAN/LAN Port 4× Gigabit RJ45WAN/LAN Ports 1× Gigabit SFPWAN/LAN Port
High-Security VPN
Pass-through traffic and a variety of VPN protocols, such as SSL, GRE§, IPSec, PPTP, and L2TP, are available on ER707-M2, giving consumers versatile options. One-click auto IPSec VPN simplifies VPN configuration and facilitates network management and deployment.*The router also features a built-in hardware engine to boost VPN performance.
Abundant Security Features
Advanced firewall policiesprotect your network and data. Forcefully prevent viruses and attacks from intruders. Create virtual network segments forenhanced security and simplifiednetwork management. Reserves static IP assignmentfor clients to defend against ARPattacks and spoofing. Automatically detects and blocksDenial of Service (DoS) attacks suchas TCP/UDP/ICMP Flooding, Ping ofDeath, and other related threats. One-Click ALG Activation forapplications such as FTP, H323, SIP,IPsec, and PPTP.
Internet Access Management Strategy
Standardize users’ online behavior and easily specify the internet access rights and strategies of employees via IP/MAC/URL Filtering and Access Control List (ACL). Captive Portal authentication facilitates network resource control by capturing, authenticating, and classifying user access. Appropriate network resources can also be allocated for particular users or guests.
Omada SDN—The Smarter Cloud Solution for Business Networking
As the router that seamlessly integrates into the Omada Software Defined Networking (SDN) platform, ER707-M2 allows for remote and centralized management, anywhere, anytime. Standalone management via the Web UI or app is also available to maximize convenience. Learn more about Omada SDN >> Wall-Plate AP Ceiling Mount AP Outdoor AP Omada Cloud-Based Controller Cloud Access JetStream PoE Switches Omada Multi-Gigabit VPN Router ER707-M2 Wi-Fi 6 AP for High-Density Environments Hassle-Free Centralized Cloud Management:100% centralized cloud management of the whole network from different sites—all controlled from a single interface anywhere, anytime.
Easy Management with the Omada App
Follow configuration instructions on the free Omada app to get set up in minutes. Omada lets you configure settings, monitor the network status and manage clients, all from the convenience of a smart phone or tablet.
ER707-M2 技術規格
| 存取控制 | 依來源/目的地 IP 進行存取管理 |
|---|---|
| 過濾 | • 網頁群組過濾• 網址過濾• 網頁安全性 |
| ARP檢測 | • 傳送 GARP 封包• ARP 掃描• IP-MAC 綁定 |
| 攻擊防禦 | • TCP/UDP/ICMP 洪水防禦• 封鎖 TCP 掃描 (Stealth FIN/Xmas/Null)• 封鎖來自 WAN 端的 Ping |
| 標準與協定 | • IEEE 802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3z, IEEE 802.3x, IEEE 802.1q• TCP/IP, DHCP, ICMP, NAT, PPPoE, NTP, HTTP, HTTPS, DNS, IPSec, PPTP, L2TP, OpenVPN, SNMP |
| 連接介面 | • 1× 2.5G RJ45 WAN 連接埠• 1× 2.5G RJ45 WAN/LAN 連接埠• 1× Gigabit SFP WAN/LAN 連接埠• 4× Gigabit RJ45 WAN/LAN 連接埠• 1× USB 2.0 連接埠 (支援 USB儲存, 以及 LTE備援) |
| 網路連接線 | • 10BASE-T: UTP category 3, 4, 5 cable (Max 100 m) EIA/TIA-568 100Ω STP (Max 100 m)• 100BASE-TX: UTP category 5, 5e cable (Max 100 m) EIA/TIA-568 100Ω STP (Max 100 m)• 1000BASE-T: UTP category 5, 5e, 6 cable (Max 100 m)• 2500BASE-T: UTP category 5, 5e, 6 cable (Max 100 m) |
| 風扇數量 | Fanless |
| 按鈕 | 重置鈕 |
| 電源供應 | 12V/1.5A 電源供應器 |
| PoE總輸出 | – |
| 快閃記憶體 | 128MB NAND |
| DRAM | 1 GB DDR4 |
| LED燈 | PWR, SYS, SFP, USB, WAN (Speed, Link/Act), LAN (Speed, Link/Act) |
| 尺寸(長 x 寬 x 高) | 8.9 × 5.2 × 1.4 in (226 × 131 × 35 mm) |
| 保護 | 4 kV 電湧防護 |
| 外殼 | 金屬 |
| 安裝 | 桌上/壁掛 |
| 最大功耗 | 14.2 W (連接USB2.0)7.1 W (未連接USB2.0) |
| IPS 吞吐量 | TCP：208 MbpsUDP：161 Mbps |
| DPI 吞吐量 | TCP：1823 MbpsUDP：1272 Mbps |
| WireGuard VPN 吞吐量 | • 343.8 Mbps |
| 同步連線數 | 500,000 |
| 每秒新增連線數 | 4,200 |
| NAT (靜態 IP) | 2364.45 Mbps / 2343.28 Mbps |
| NAT(DHCP) | 2364.24 Mbps / 2326.21 Mbps |
| NAT(PPPoE) | 2350.93 Mbps / 2125.83 Mbps |
| NAT (L2TP) | 1249.04 Mbps / 831.12 Mbps |
| NAT (PPTP) | 1169.23 Mbps / 1175.52 Mbps |
| IPsec VPN 吞吐量 | ESP-MD5-AES256: 537.12 MbpsESP-SHA1-AES256: 754.65 Mbps |
| L2TP VPN 吞吐量 | 不加密: 1442.65 Mbps加密: 346.43 Mbps |
| SSL VPN 吞吐量 | 142.99 Mbps |
| 66 Byte 封包轉發率 | 1832.69 Mbps / 1741.84 Mbps |
| 1,518 Byte 封包轉發率 | 2461.18 Mbps / 2457.32 Mbps |
| WAN連線類型 | • IPv4_固定 IP• IPv4_動態 IP• IPv4_PPPOE• IPv4_L2TP• IPv4_PPTP• IPv6_PPP• IPv6_DHCPv6• IPv6_固定 IP• IPv6_6in4• IPv6_Pass-Through• 行動寬頻: 4G/3G 網卡連接 USB 連接埠作備援用 |
| 複製MAC位址 | 修改 WAN/LAN MAC 位址 |
| DHCP | • DHCP 伺服器/用戶端• DHCP 位址保留• Multi-net DHCP• Multi-IP 介面 |
| IPv6 | WAN 連線 |
| VLAN | 802.1Q VLAN |
| IPTV | IGMP v2/v3 Proxy |
| 進階路由 | • 靜態路由• 策略路由 |
| 頻寬管理 | • 根據 IP/連接埠頻寬管理• 保證 & 限制頻寬 |
| 負載平衡 | • 智慧負載平衡• 應用優化路由• 連線備援 (Timing*5, Failover)• 連線偵測 |
| NAT | • One-to-One NAT• Multi-Net NAT• 虛擬伺服器• 通訊埠觸發• NAT-DMZ• FTP/H.323/SIP/IPSec/PPTP ALG• UPnP |
| 安全性 | • 攻擊防禦TCP/UDP/ICMP 洪水防禦封鎖 TCP 掃描 (Stealth FIN/Xmas/Null)封鎖來自 WAN 端的 Ping• 過濾網頁群組過濾網址過濾網頁安全性• ARP 檢測傳送 GARP 封包ARP 掃描IP-MAC 綁定• 存取控制依來源/目的地 IP 進行存取管理 |
| 連線數限制(Session Limit) | 連線數(session)限制(根據 IP) |
| SD-WAN | √ (Only in Controller Mode) |
| IPsec VPN | • 100 IPSec VPN 通道• LAN-to-LAN、Client-to-LAN• 主要、積極協商模式• DES, 3DES, SHA1, SHA2, AES128, AES192, AES256 加密演算法• IKE v1/v2• MD5、SHA1 驗證演算法• NAT Traversal (NAT-T)• Dead Peer Detection (DPD)• 完全前向保密 (PFS) |
| PPTP VPN | • PPTP VPN 伺服器• PPTP VPN 用戶端 (12)• 300 通道(與 L2TP 共用)• PPTP 含 MPPE 加密 |
| L2TP VPN | • L2TP VPN 伺服器• L2TP VPN 用戶端 (32)*6• 60通道 (與 PPTP 共用)• L2TP over IPSec |
| OpenVPN | • OpenVPN 伺服器• OpenVPN 用戶端 (6)• 66 OpenVPN 通道 |
| WireGuard VPN | • 20 Tunnels |
| 網頁驗證 | • 無認證• 簡易密碼*• Hotspot（Local User / Voucher* / SMS* / Radius*）• 外部 Radius 伺服器• 外部 Portal 伺服器*• Facebook 打卡* |
| Omada App | 支援 (需要搭配 OC300、OC200、Omada 雲端控制器或 Omada 軟體控制器) |
| 集中化管理 | • Omada 硬體控制器 (OC300)• Omada 硬體控制器 (OC200)• Omada 軟體控制器• Omada 雲端控制器 |
| 雲端存取 | 支援 (需要搭配 OC300、OC200、Omada 雲端控制器或 Omada 軟體控制器) |
| 服務 | Dynamic DNS (Dyndns, No-IP, Peanuthull, Comexe) |
| 維護 | • 網頁管理介面• 遠端管理• 匯出 & 匯入設定• SNMP v1/v2c/v3• 診斷 (Ping & Traceroute)• NTP 同步• 系統日誌支援 |
| 零接觸監管 | 支援，需要搭配 Omada 雲端控制器。 |
| 管理功能 | • 自動發現設備• 智慧網路偵測• 異常事件警告• 統一設定• 重啟排程• 強制門戶認證設定• Captive Portal設定• 零接觸佈署(ZTP) |
| 認證 | CE, FCC, RoHS |
| 包裝內容 | • ER707-M2• 電源供應器• 快速安裝手冊 |
| 系統需求 | Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7/8/8.1/10, MAC OS, NetWare, UNIX or Linux |
| 環境 | • 運作溫度: 0–40 ℃ (32–104 ℉);• 存放溫度: -40–70 ℃ (-40–158 ℉)• 運作濕度: 10–90% RH 無凝結• 存放濕度: 5–90% RH 無凝結 |
產品資源
| Brands | Omada |
|---|
