Omada Wireless Bridge 5 GHz 867 Mbps Indoor/Outdoor Access Point EAP211-BRIDGE-KIT
🚚 配送方式：
- • 香港本地訂單：購物滿HK$2,000, 免費送貨!
- • 澳門地區訂單：順豐到付 (運費由買家承擔)
🎧 如有技術或貨存查詢
WhatsApp 查詢Omada Wireless Bridge 5 GHz 867 Mbps Indoor/Outdoor Access Point EAP211-BRIDGE-KIT
Long-Distance PtMP & PtP Wi-Fi Transmission, Perfect for Multiple Scenarios
Omada Professional Outdoor Wireless Bridge Solution
Up to 0.62mi (1km) Distance
Ideal for setting up networks in remote locations. One central AP covers more distributed APs and cameras, eliminating the need for multiple central APs. *EAP211-Bridge: 70° x 70° beamwidth; EAP215-Bridge & EAP115-Bridge: 35° x 35° Connect more cameras and devices without an extra switch. Durable performance with IP65 rating and operating range of -40°F to 158°F (-40°C to 70°C). Flexible dual modes for batch deployment and remote management via the Omada app or Web UI.
Point-to-Point (PtP) Network Expansion or Remote Camera Monitoring
Outdoor PtP (Point-to-Point) Wi-Fi Connection
Extend your home network or Wi-Fi to your shop, barn, garage, farm, storehouse, guesthouse, or RV. Provide 550Mbps bandwidth within a 328ft (100m) range using the EAP215-Bridge KIT or EAP211-Bridge KIT.* Record real-time video to an NVR with virtually no hardwiring required *Tested in an open area without obstacles on a sunny day. Actual range and throughput depend on the transmission power and environmental factors such as wireless interference, obstacles, weather, etc.
Point-to-Multipoint (PtMP) Connections with Higher Beamwidth for Distributed Cameras
Outdoor PtMP (Point-to-Multipoint) Wi-Fi for Surveillance
Remotely connect cameras toreduce crime and accidents Remotely connect cameras to protectyour property Rapidly deploy wireless networks to remotely monitor construction progress in real time or manage logistics.
Easy Setup and Installation
*Auto pairing works for the original kit. Three or more bridges require manual setup. *Pole mounting accessories are included, while the bracket for wall mounting and pole mounting requires purchase separately.
Standalone Mode
Designed for Outdoors
Dedicated Hardware Design

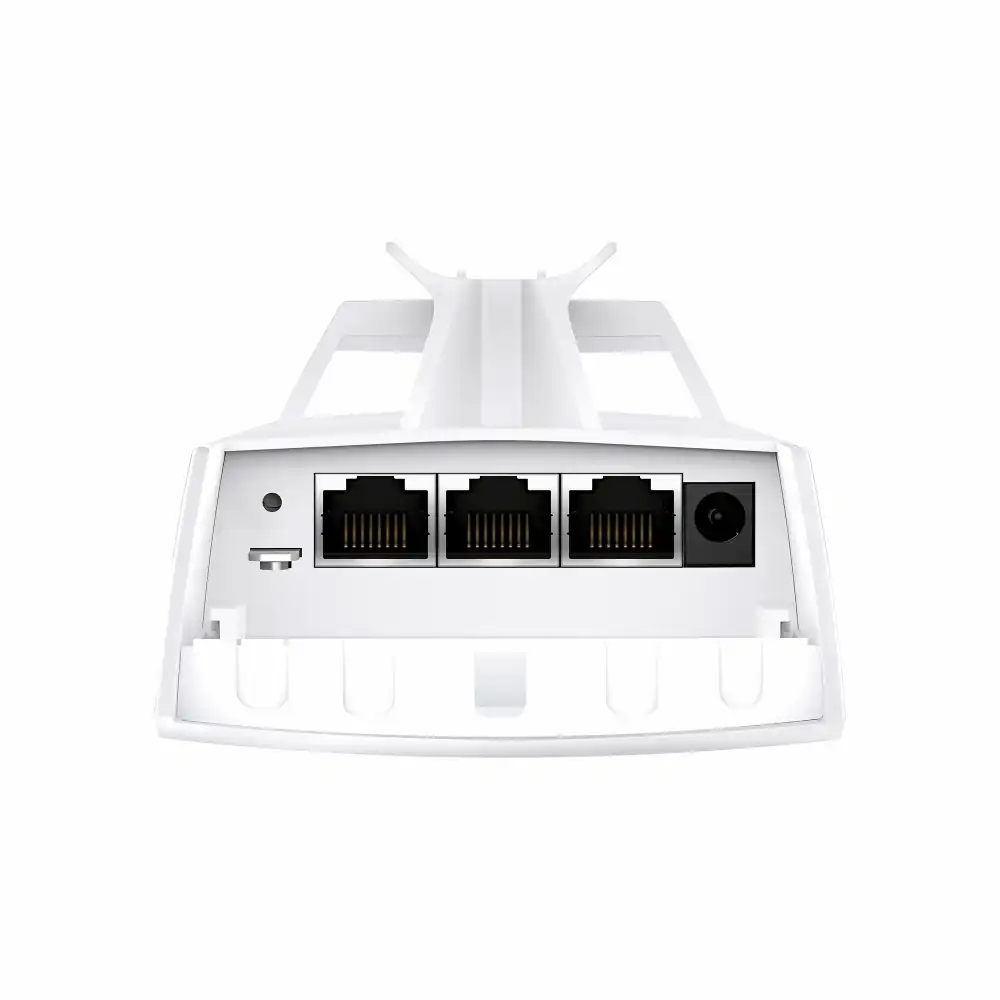

Outdoor Ready · IP65 Weatherproof · 6kV Lightning · Wind Resistant · -40~70°C (-40~158°F) Operating Temperature Stable HD Video Transmission on 5 GHz · EAP215-Bridge & EAP211-Bridge: 867 Mbps · EAP115-Bridge: 300 Mbps 224 mm 60 mm · Pole Mounting (Accessories included) · Wall Mounting (Optional) Signal Strength LEDs LAN LEDs System LED Waterproof Cover 79 mm Reset Button Grounding Terminal Passive PoE In (Power adapter included in the box) 12V DC 3× Shielded Ethernet LAN Ports EAP215-Bridge & EAP211-Bridge: Gigabit EAP115-Bridge: 10/100Mbps
EAP211-BRIDGE-KIT 技術規格
| Model | EAP215-Bridge KIT |
|---|---|
| Max Wireless Speed*1 | AC867 Mbps |
| Max Transmission Distance*2 | 3.1 mi / 5 km |
| Beamwidth (Vertical × Horizontal) | 35°×35° |
| Antenna Gain | 11.0 dBi |
| Ethernet Ports | 3× Gigabit |
| Power Supply Method | 12V DC / 24V Passive PoE (Passive PoE adapter included in the box) |
| Mount | Pole Mounting (Accessories included)Wall Mounting (Optional) |
| Weatherproof Enclosure | IP65 |
| Operating Temperature | -40℃~70℃ (-40℉~158℉) |
| Lightning Protection | • 空氣放電：±8kV• 接觸放電：±4kV• Common mode 10/700：±6kV |
| Wind Resistance | √ |
| Centralized Cloud Management | Omada App; Omada Cloud Web UI |
| Standalone Management | Omada App; Local Management Web UI |
| 連接介面 | 3x Gigabit 乙太網路連接埠 |
| 按鈕 | 重置 |
| DIP Switch | 角色切換開關 |
| 電源供應 | 12V DC / 802.3af PoE / 24V 被動式 PoE (包裝內含被動式 PoE 供電) |
| 功耗 | 11.5W |
| 尺寸(長 x 寬 x 高) | 79 × 60 × 224 毫米(mm) |
| 天線 | 內建 2×2 雙極化指向型 MIMO 天線5 GHz：10.0 dBi水平：60°，垂直：30° |
| 防風雨外殼 | IP65 |
| 安裝 | 桿式安裝和壁掛安裝（含桿式安裝配件） |
| 覆蓋範圍 | 1 公里* |
| 無線網路標準 | IEEE 802.11 a/n/ac |
| 無線網路頻率 | 5 GHz |
| 訊號速率 | 5 GHz: 高達 867 Mbps§ |
| 無線網路功能 | • MU-MIMO: 5G 2×2 MU-MIMO DL• Multiple SSIDs:8• 無線統計• 無線排程• 重啟排程• RADIUS Accounting• 固定 IP / 浮動 IP• 速率限制• 訪客網路• 啟用/停用 無線廣播• 啟用/停用 SSID 廣播 |
| 無線網路安全性 | • VLAN• 非法 AP 偵測• MAC 過濾最大值：4,000• 無線加密 |
| 傳輸功率 | • CE: <23dBm (5 GHz, band 1/2, EIRP);<30dBm (5 GHz, band3, EIRP)• FCC: <23dBm (5 GHz, band1)<25dBm (5 GHz, band4) |
| Omada App | 支援 |
| Restore & Backup | 支援 |
| 透過網頁更新韌體 | 支援 |
| NTP | 支援 |
| 集中化管理 | • Omada 雲端控制器• Omada 硬體控制器• Omada 軟體控制器 |
| 雲端存取 | 支援，需要搭配 Omada 控制器使用。 |
| E-mail警示 | 支援 |
| LED 開/關 控制 | 支援 |
| SNMP | 支援 |
| SSH | 支援 |
| Web管理介面 | 支援 |
| 零接觸監管 | 支援 |
| 認證 | CE, FCC, RoHS, NCC, BSMI |
| 包裝內容 | • EAP211-Bridge KIT• 安裝手冊• 壁掛配件• 被動 PoE 供電 |
| 環境 | • 運作溫度：-40 °C–70 °C (-40 °F–158 °F);• 存放溫度：-40 °C–70 °C (-40 °F–158 °F);• 運作濕度：10%–90% non-condensing;• 存放濕度：5%–90% non-condensing |
