Ubiquiti UniFi Access Point U6 Mesh Pro U6-Mesh-Pro

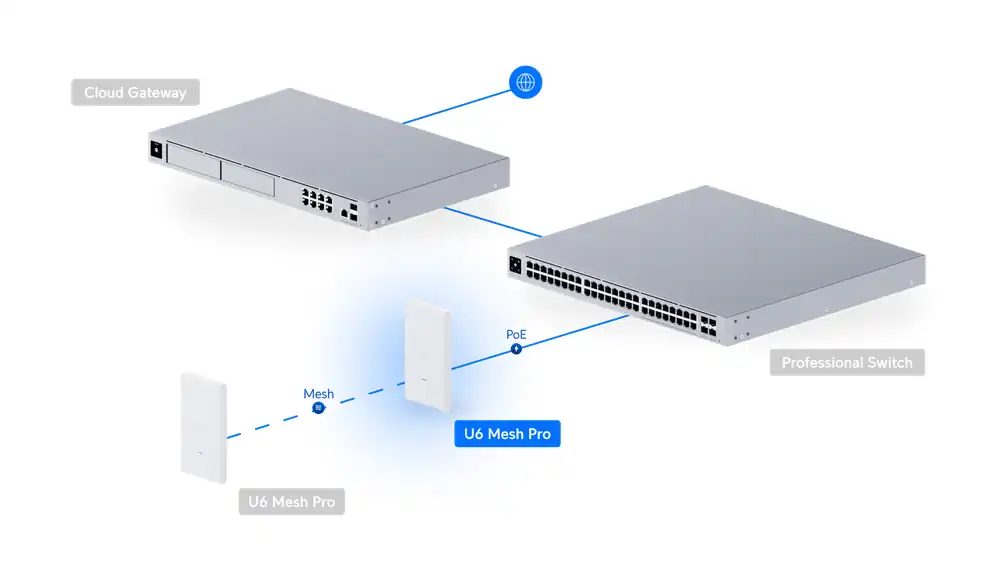

網絡拓撲
U6-Mesh-Pro 技術規格
Grid overview
| Max. Client Count |
250 |
| WiFi6 |
WiFi 6 |
| Radio/Antenna |
Omnidirectional |
| Uplink |
GbE |
總覽
| Dimensions |

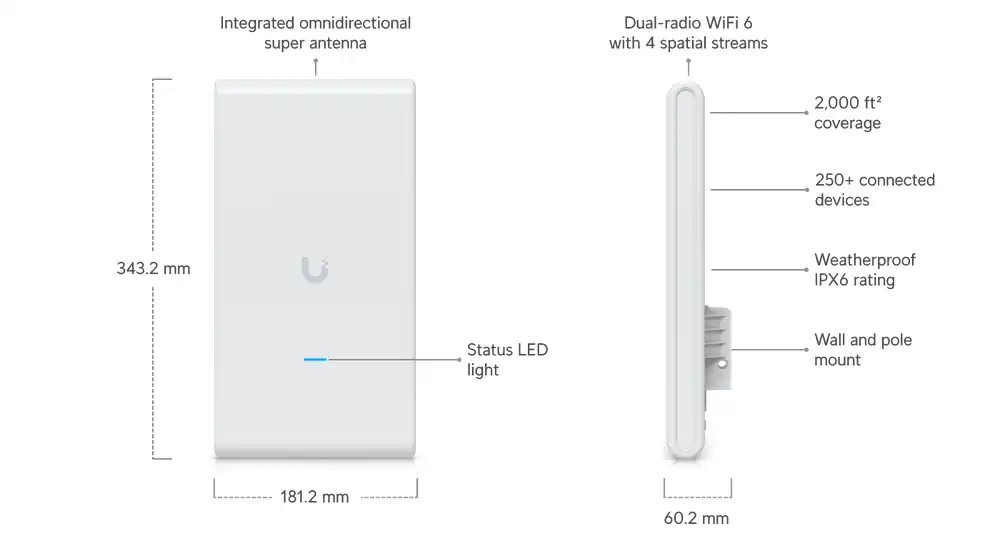

343.2 x 181.2 x 60.2 mm (13.5 x 7.1 x 2.4″) |
| WiFi Standard |
WiFi 6 |
| Spatial Streams |
4 |
| Coverage Area |
185 m² (2,000 ft²) |
| Max. Client Count |
250+ |
| Uplink |
GbE |

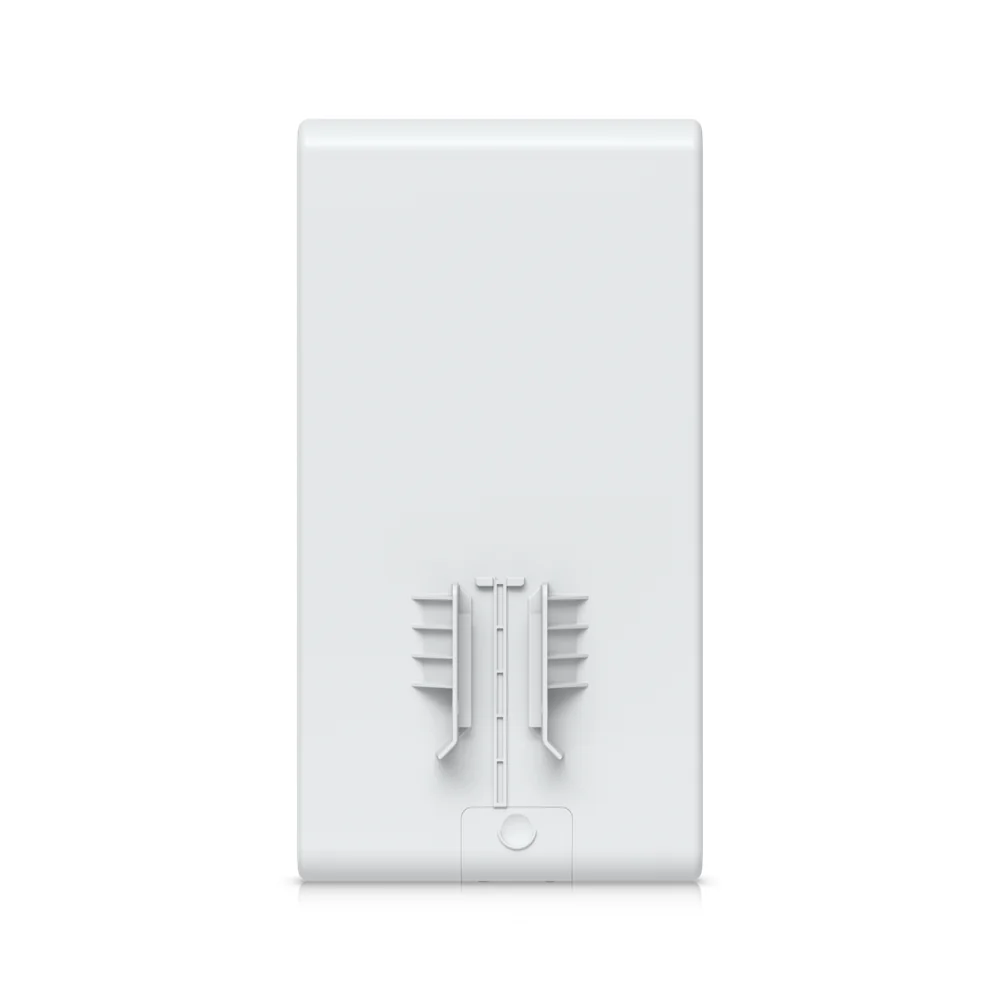

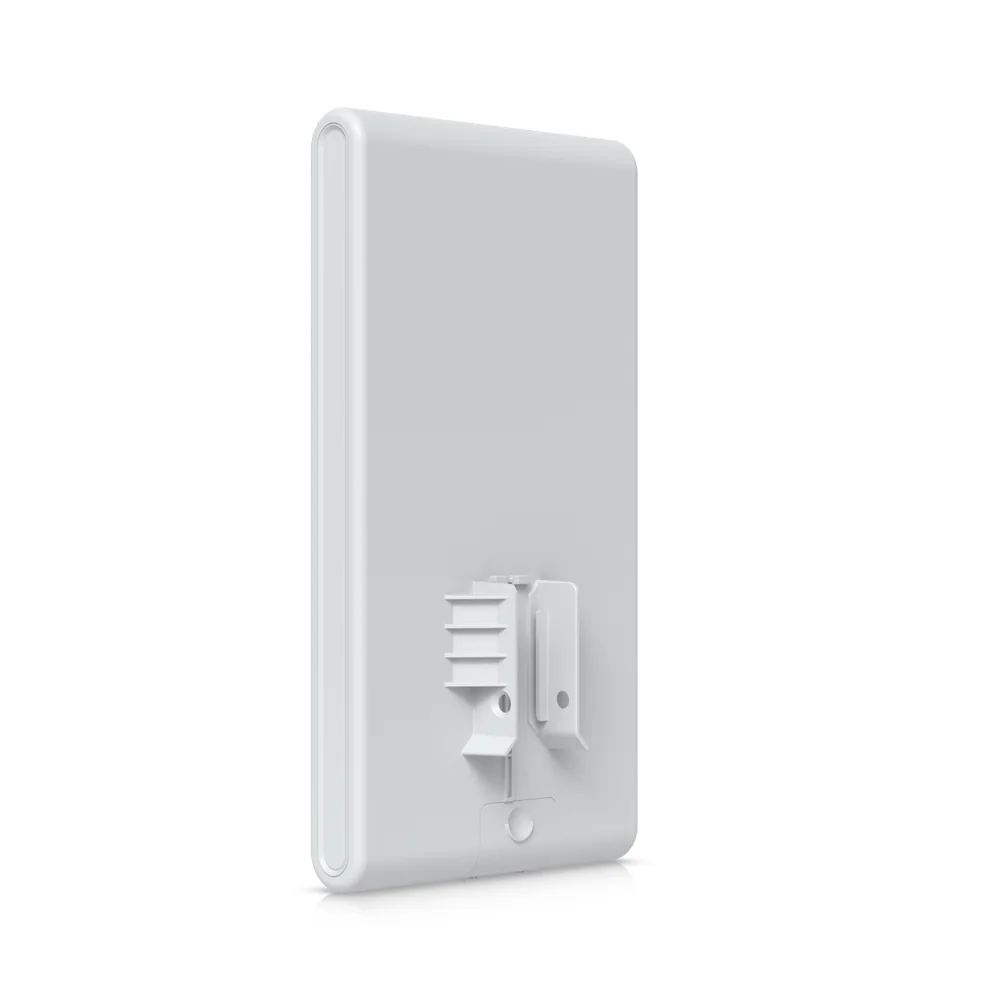

| Mounting |
Wall, Pole (Mounts Included) |
| Weatherproofing |
IPX6 |
| Power Method |
PoE |
效能
| 5 GHz |
2 x 2 (DL/UL MU MIMO) |
| 2.4 GHz |
2 x 2 (DL/UL MU-MIMO) |
| 5 GHz |
2.4 Gbps (BW160) |
| 2.4 GHz |
573.5 Mbps (BW40) |
| 5 GHz |
8 dBi |
| 2.4 GHz |
8 dBi |
| 5 GHz |
27 dBm |
| 2.4 GHz |
22 dBm |
| Max. BSSIDs |
8 per Radio |
| 802.11ax (WiFi 6) |
7.3 Mbps to 2.4 Gbps (MCS0 – MCS11 NSS1/2, HE 20/40/80/160) |
| 802.11ac (WiFi 5) |
6.5 Mbps to 1.7 Gbps (MCS0 – MCS9 NSS1/2, VHT 20/40/80/160) |
| 802.11n |
6.5 Mbps to 300 Mbps (MCS0 – MCS15 , HT 20/40) |
Features
| Wireless Meshing |
Yes |
| Band Steering |
Yes |
| 802.11v BSS Transition Management |
Yes |
| 802.11r Fast Roaming |
Yes |
| 802.11k Radio Resource Management (RRM) |
Yes |
| Advanced Radio Management |
Yes |
| Passpoint (Hotspot 2.0) |
Yes |
| Custom Branding Landing Page |
Yes |
| Voucher Authentication |
Yes |
| Payment-Based Authentication |
Yes |
| External Portal Server Support |
Yes |
| Password Authentication |
Yes |
| Guest Network Isolation |
Yes |
| Private Pre-Shared Key (PPSK) |
Yes |
| WiFi Speed Limiting |
Yes |
| Client Device Isolation |
Yes |
| WiFi Schedules |
Yes |
| RADIUS over TLS (RadSec) |
Yes |
| Dynamic RADIUS-assigned VLAN |
Yes |
硬件規格
| Max. Power Consumption |
9W |
| Includes PoE Adapter |
Yes |
| Supported Voltage Range |
42.5–57V DC |
| Networking Interface |

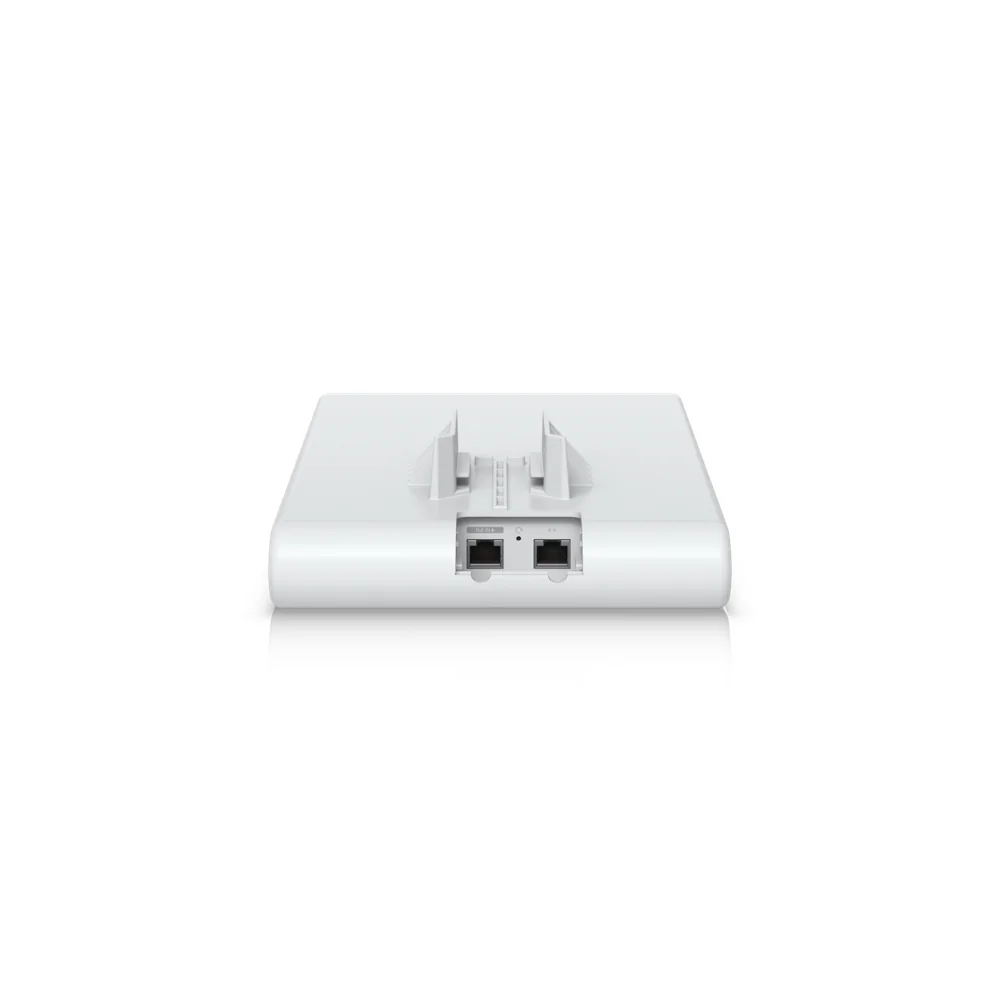

(2) GbE RJ45 ports |
| Weight |
819 g (1.8 lb) |
| Pole Mount Diameter |
1–2.5″ (25–63.5 mm) |
| Management |
Ethernet WiFi |
| Enclosure Material |
UV-stabilized polycarbonate |
| Mount Material |
Aluminum alloy, steel |
| System |
White/Blue |
| Channel Bandwidth |
HT 20/40, VHT 20/40/80/160, HE 20/40/80/160 (MHz) |
| NDAA Compliant |
Yes |
| Certifications |
CE, FCC, IC, Anatel: 06377-24-08356 |
| Operating Frequency |
US/CA: 2400 – 2472 MHz U-NII-1: 5150 – 5250 MHz U-NII-2A: 5250 – 5350 MHz U-NII-2C: 5470 – 5725 MHz U-NII-3: 5725 – 5850 MHz Worldwide: 2400 – 2483.5 MHz 5150 – 5850 MHz |
| Ambient Operating Temperature |
-30 to 60° C (-22 to 140° F) |
| Ambient Operating Humidity |
5 to 95% noncondensing |
軟件要求
| UniFi Network |
Version 8.1.127 and later |

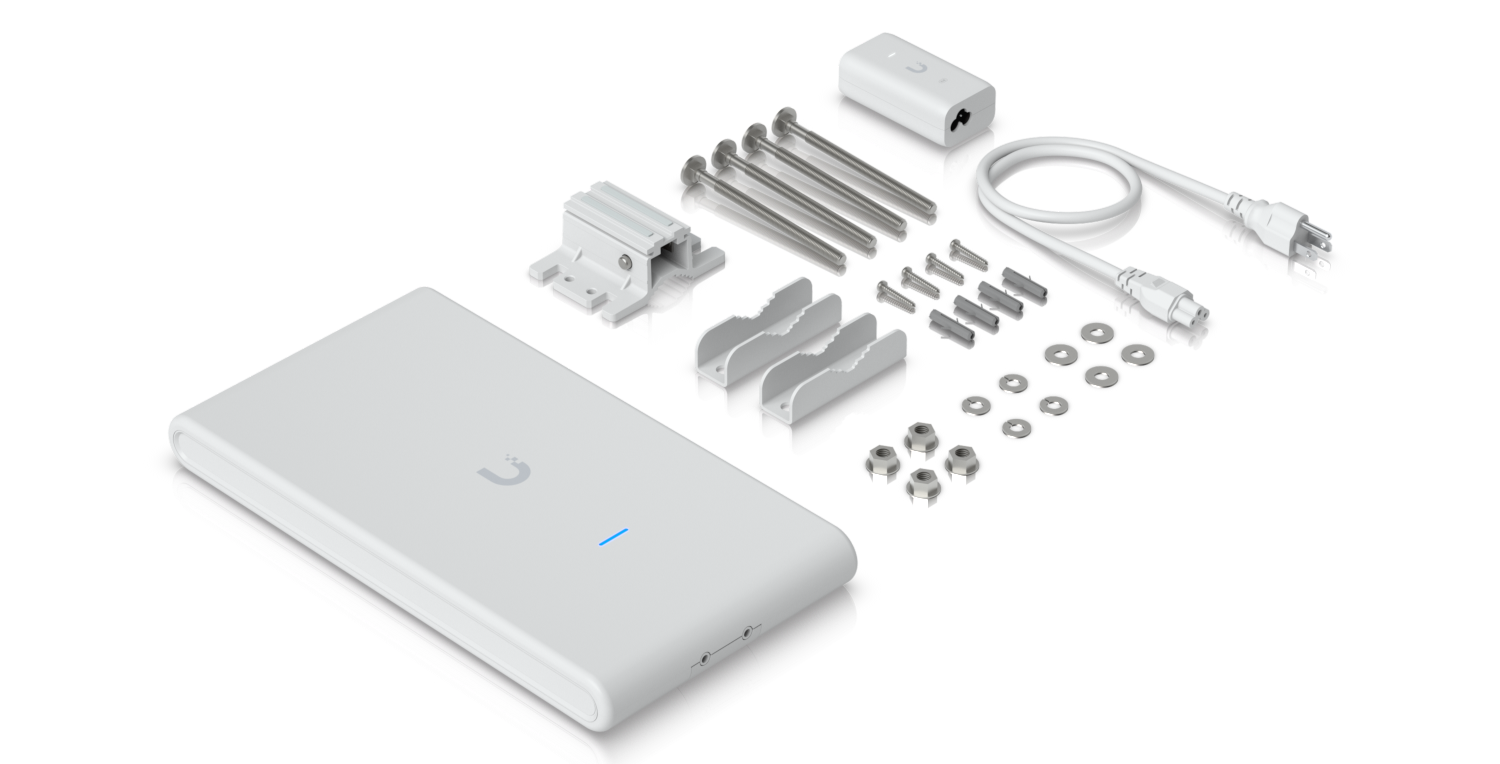

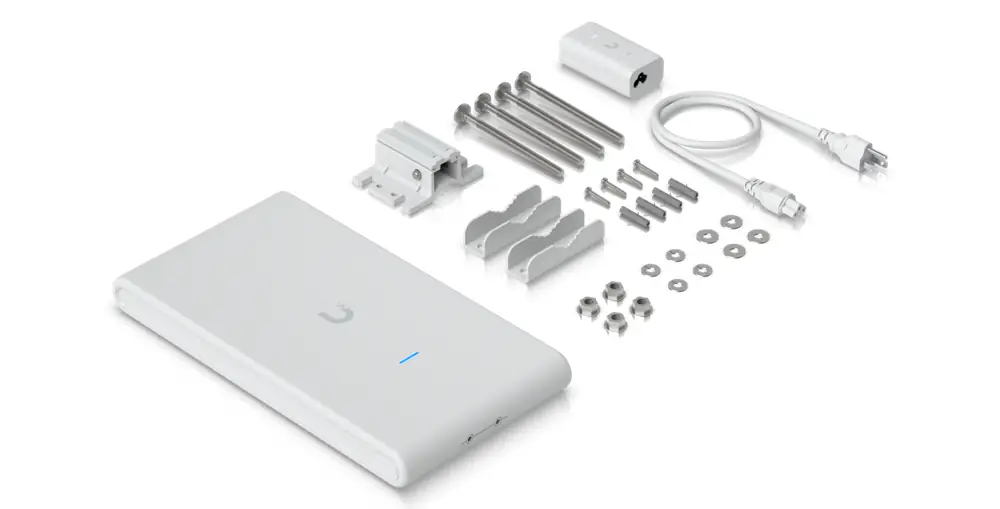

包裝內容
產品資源
Ubiquiti 官方產品頁面 | 快速安裝指南 (QIG)
