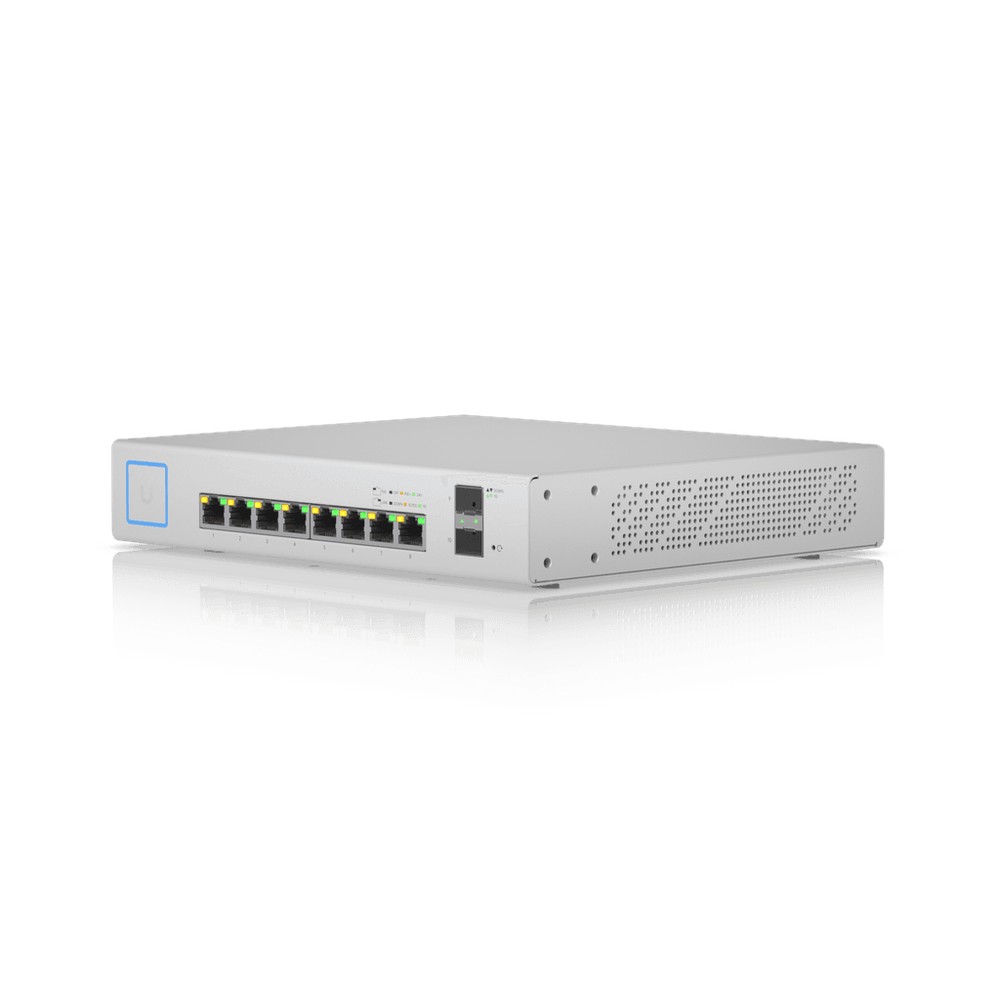

Ubiquiti UniFi 8 PoE, SFP (Gen1) US-8-150W
網絡拓撲
US-8-150W 技術規格
總覽
| Dimensions |
235 x 43 x 204 mm (9.3 x 1.7 x 8″) |
| 1 GbE RJ45 |
8 (All PoE+) (1G/100M/10M) |
| 1G SFP |
2 (1G) |
| Max. PoE Output |
Up to PoE+ |
| Total PoE Availability |
130W |
| Form Factor |
Compact desktop, wall |
效能
| Switching Capacity |
20 Gbps |
| Total Non-Blocking Throughput |
10 Gbps |
| Supported VLANs |
256 |
| MAC Address Table Size |
16,000 |
| Packet Buffer Size |
1.5 MB |
| IPv4 |
128 |
| MAC |
128 |
第二層功能
| LACP Port Aggregation |
Yes |
| STP & RSTP |
Yes |
| Advanced IGMP Configuration (Querier, Fast Leave, Router Port) |
Yes |
| IGMP Snooping |
Yes |
| 802.1X Control |
Yes |
| MAC-Based ACLs & Device Isolation |
Yes |
| DHCP Snooping & Guarding |
Yes |
| Egress Rate Limit |
Yes |
| Flow Control |
Yes |
| Storm Control |
Yes |
| Multicast & Broadcast Rate Limiting |
Yes |
| MAC Address Blocking |
Yes |
| IP-Based ACLs & Network Isolation |
Yes |
| MAC-Based Port Restriction |
Yes |
| Port Isolation |
Yes |
| Port Mirroring |
Yes |
| Jumbo Frames |
Yes |
| LLDP-MED |
Yes |
| Voice VLAN |
Yes |
| Loop Protection |
Yes |
| Virtual Network Override |
Yes |
硬件規格
| PoE+ |
8 |
| Power Method |
Universal input, 100–240V AC, 50/60 Hz |
| Power Input Method |
AC input |
| Supported Voltage Range |
100–240V AC |
| Management |
Ethernet |
| Mount Material |
SGCC steel |
| Ambient Operating Temperature |
-5 to 45° C (23 to 113° F) |
| Ambient Operating Humidity |
5 to 95% noncondensing |
| NDAA Compliant |
Yes |
軟件要求
| UniFi Network |
Version 6.3.51 and later |
產品資源
Ubiquiti 官方產品頁面 | 快速安裝指南 (QIG)
