Ubiquiti UniFi Access Door Hub UA-Hub-Door

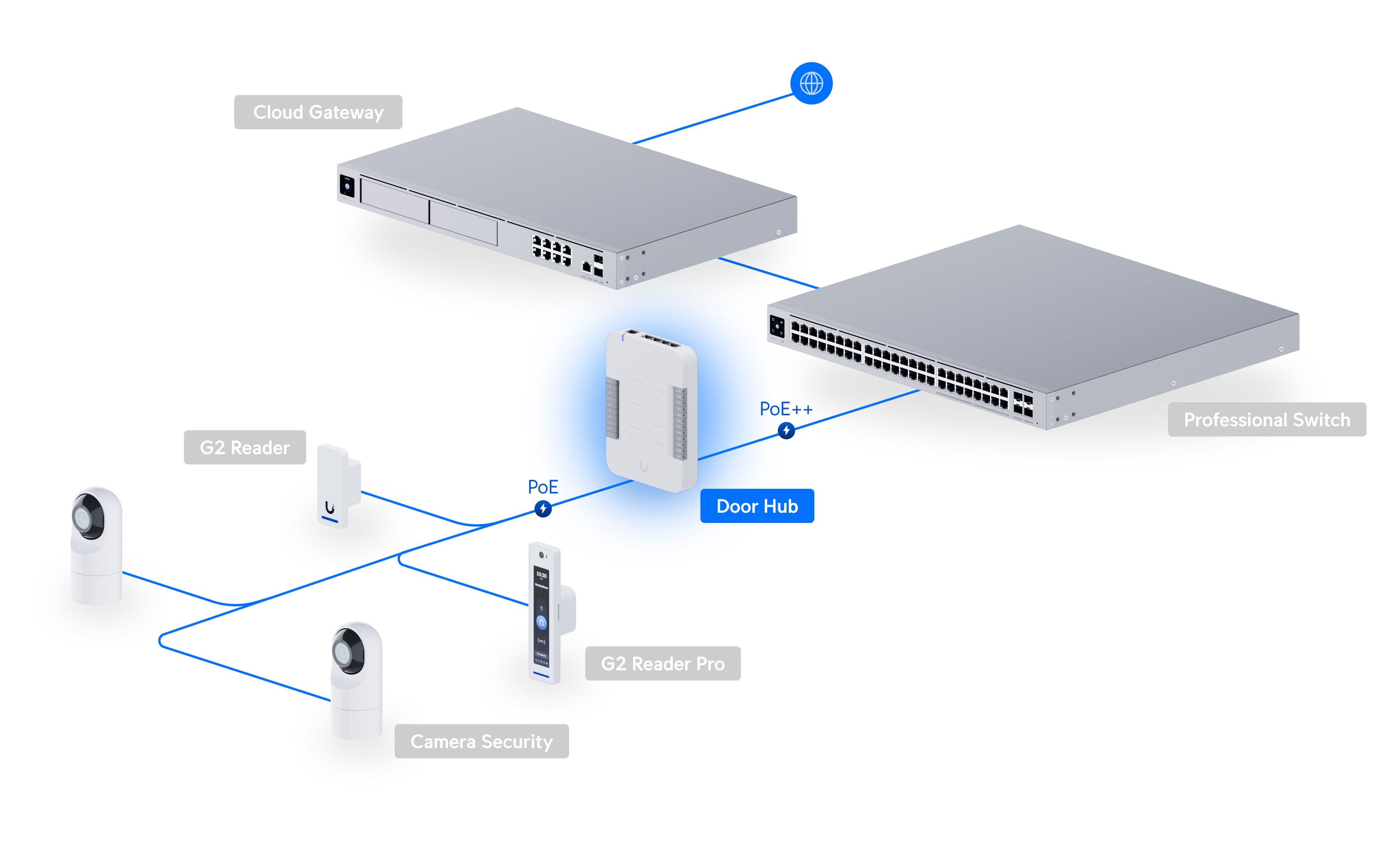

網絡拓撲
UA-Hub-Door 技術規格

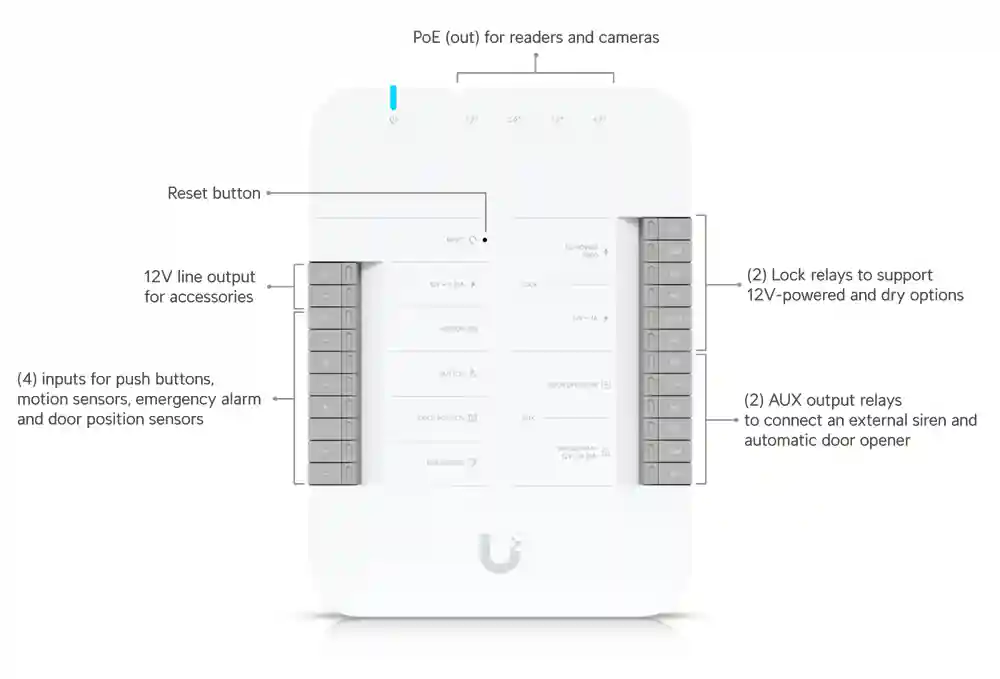

Grid overview
| Additional Inputs |
4 Additional Inputs |
| Lock Terminals |
2 Lock Terminals |
| AUX Terminals |
2 AUX Terminals |
| PoE |
4 PoE Ports |
總覽
| Dimensions |
174.9 x 126 x 32.9 mm (6.9 x 5 x 1.3″) |
| Supported Doors |
1 |
| Maximum User Count |
6,000 |
| Input Terminals |
(2) Door exit request (1) Door position (1) Emergency |
| Power Method |
PoE++ UL 294 Power-limited Class 2 PSU UL 60950-1/62368-1 LPS/PS2 PSU |
| NDAA Compliant |
Yes |
| UL 294 Level |
Destructive attack: Level I Line security: Level I Endurance: Level I Standby power: Level I |
Mechanical
| Weight |
363 g (12.8 oz) |
| Enclosure Material |
Polycarbonate |
| Mount Material |
Polycarbonate |
| Mounting |
DIN-rail (Included) |
硬件規格
| Digital Input |
Request to exit, request to enter, remote release, door position sensor |
| Dry Output Relay |
Lock: 30V DC, 1A Aux: 30V DC, 1A |
| Powered Output Relay |
Lock: 12V DC, 1A Aux: 12V DC, 0.33A 12V DC, 0.33A |
| Indoor and Outdoor Use |
Indoor only |
| Ambient Operating Temperature |
0 to 40° C (32 to 104° F) |
| Ambient Operating Humidity |
5 to 95% noncondensing |
| Networking Interface |
(5) 10/100/1000 Base-T |
| PoE Interface |
(1) PoE++ input, 50V DC, 1A (4) PoE+ outputs, 50V DC, 30W per port (Max 45W aggregated) |
| Max. Power Consumption |
30W (Without PoE output) 50W (With PoE output) |
| LEDs |
W/B Learn More |
| Buttons |
(1) Factory reset |
| UA-Lock-Magnetic-540kg (500mA) |
24 AWG length: 20 m (66 ft) 22 AWG length: 32 m (105 ft) 20 AWG length: 51 m (167 ft) 18 UACC-Cable-DoorLockRelay length: 80 m (262 ft) |
| UA-Lock-Magnetic-270kg (800mA) |
24 AWG length: 12 m (29 ft) 22 AWG length: 20 m (98 ft) 20 AWG length: 30 m (167 ft) 18 UACC-Cable-DoorLockRelay length: 46 m (151 ft) |
| PoE Cabling Requirements |
Cat 5e cabling is the minimum performance category recommended. The performance category utilized should match the transmission speed required at the installation site. The minimal conductor gauge permitted to connect between the PSE or power injector and the PD shall be 26 AWG (0.13 mm² ) for patch cords, 24 AWG (0.21 mm² ) for horizontal or riser cable. |
| UL 294 Statement |
Compliance with IEEE 802.3 (at or af) specifications was not verified as part of UL 294. The equipment is intended to comply with the section of the National Electrical Code, ANSI/NFPA 70, Article 725.121, Power Sources for Class 2 and Class 3 Circuits. |
| CAN/ULC-60839-11-1 Grade |
Grade assignment: 1 |
| Certifications |
CE, FCC, IC, UL 294, CAN/ULC-60839-11-1 |
| Document number, and issue date and/or revision level |
UA-Hub-Door002, V01 |
軟件要求
| Management Application |
Access |
| Software Information |
The software version can be checked at https://unifi.ui.com |

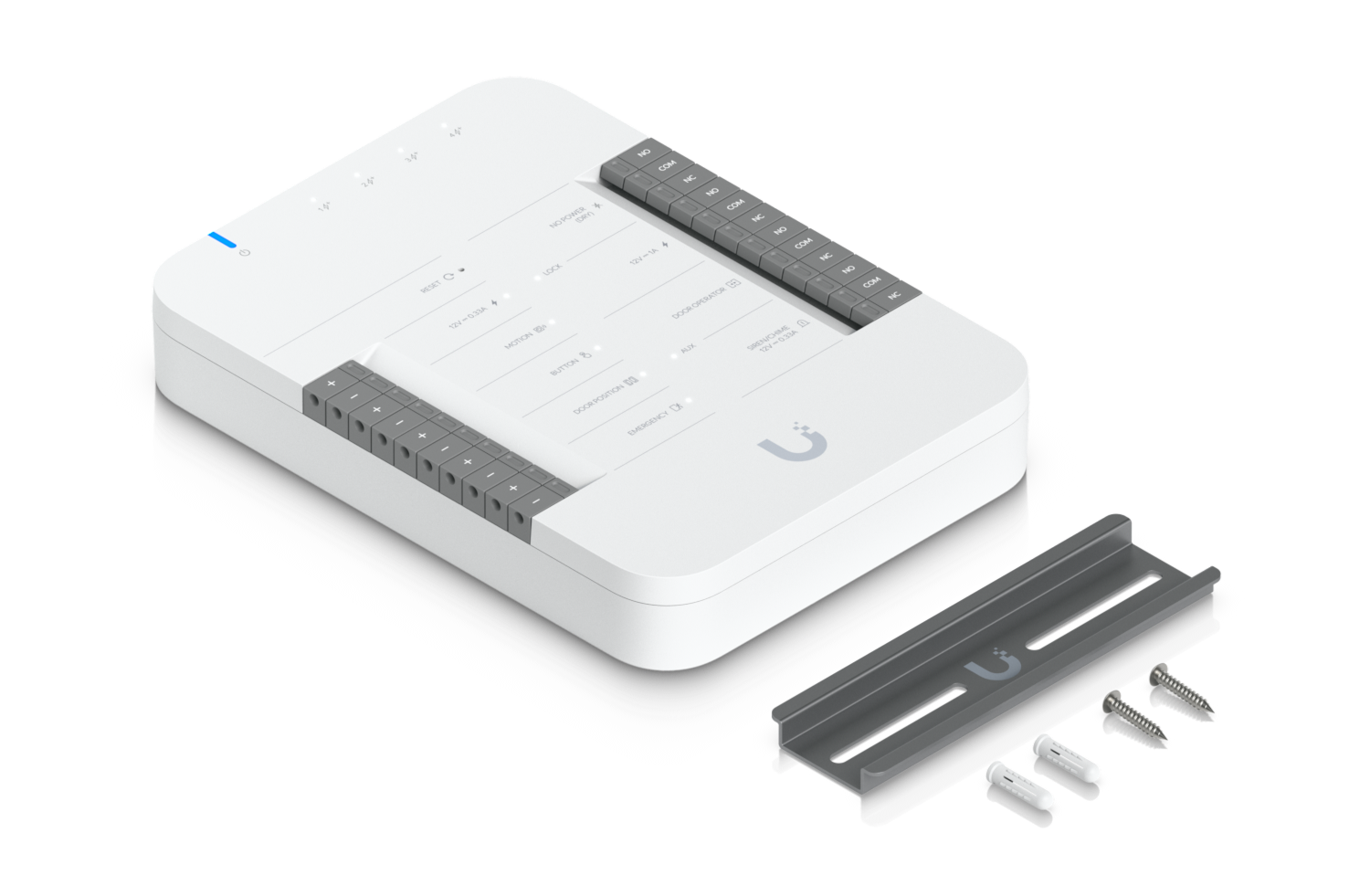

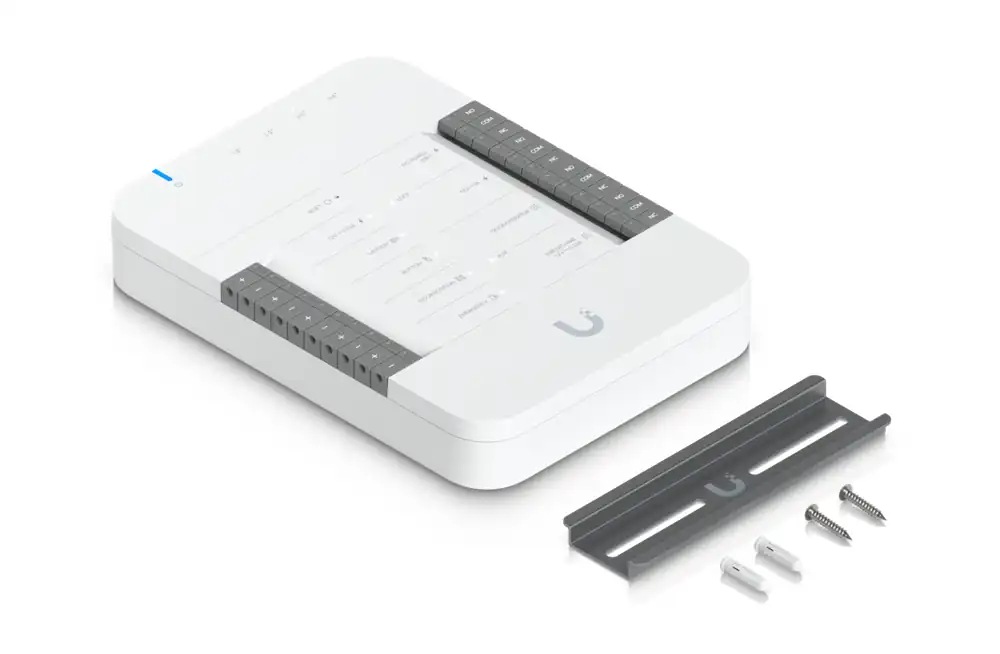

包裝內容
產品資源
Ubiquiti 官方產品頁面 | 快速安裝指南 (QIG)
