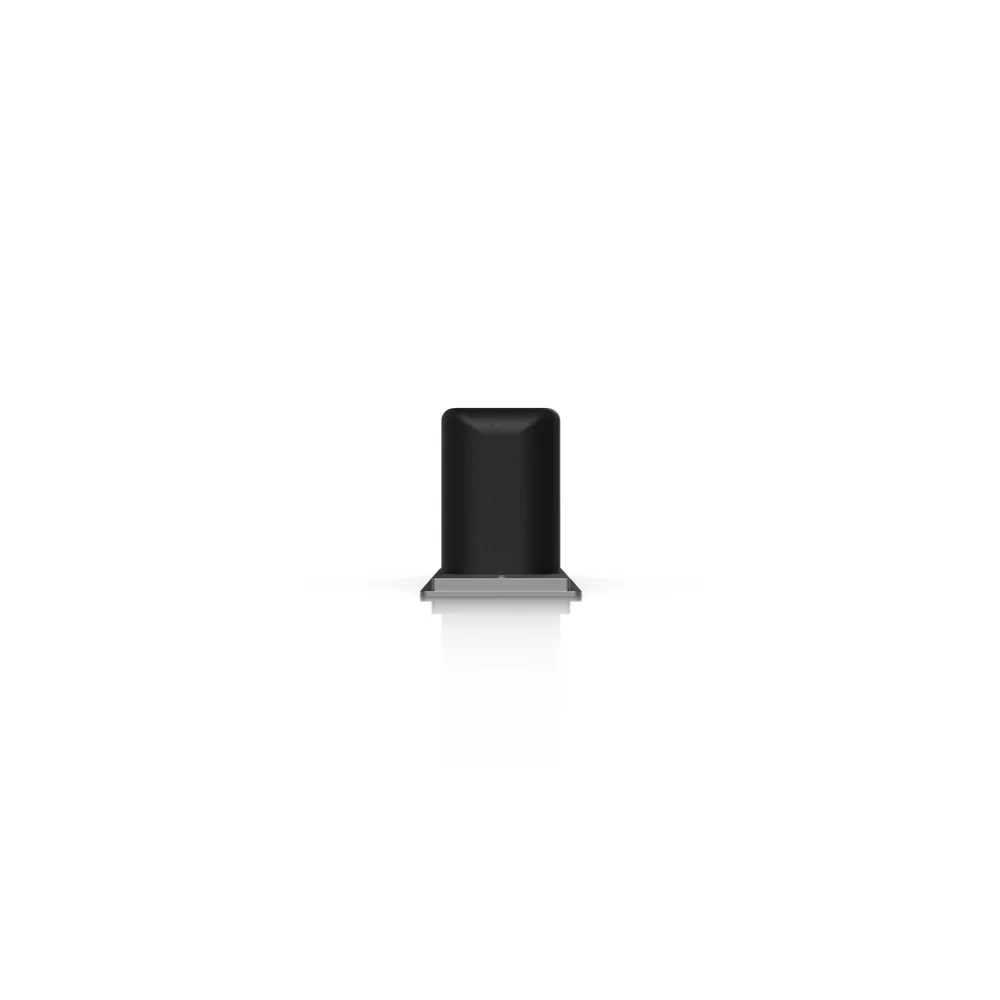

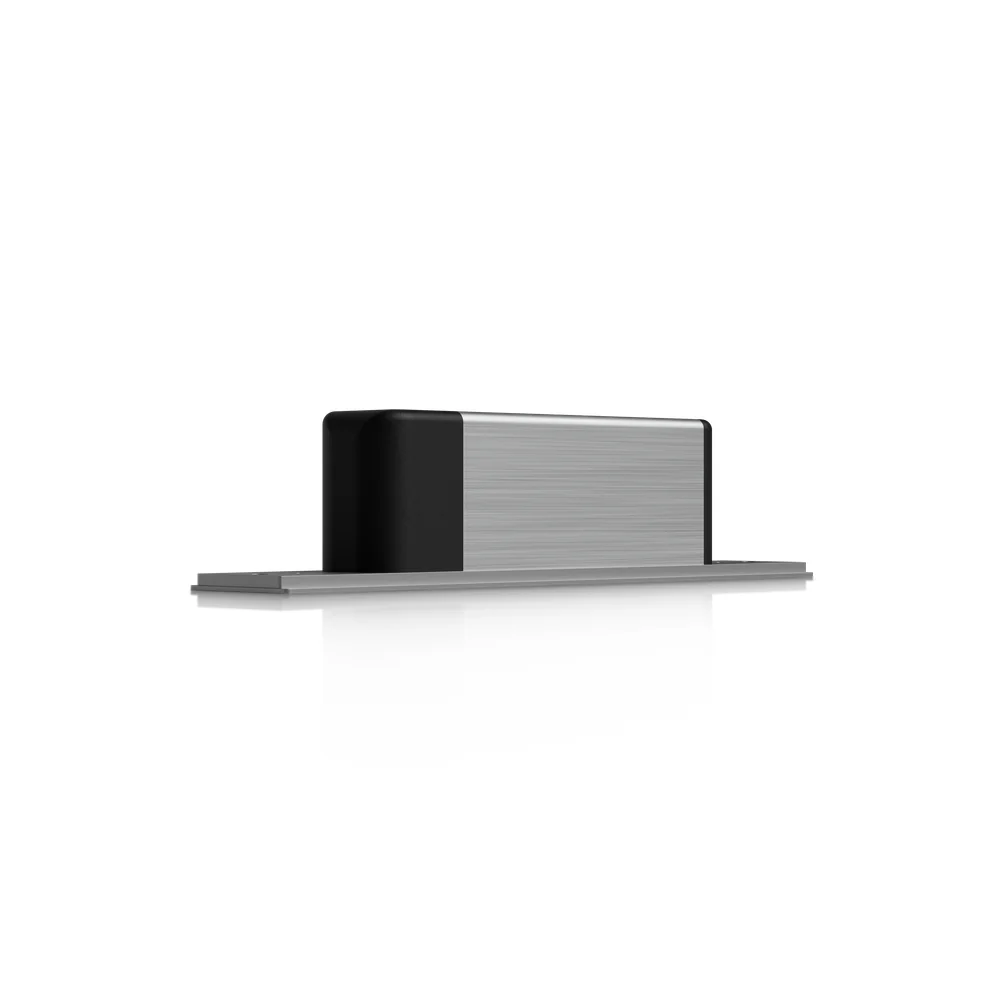

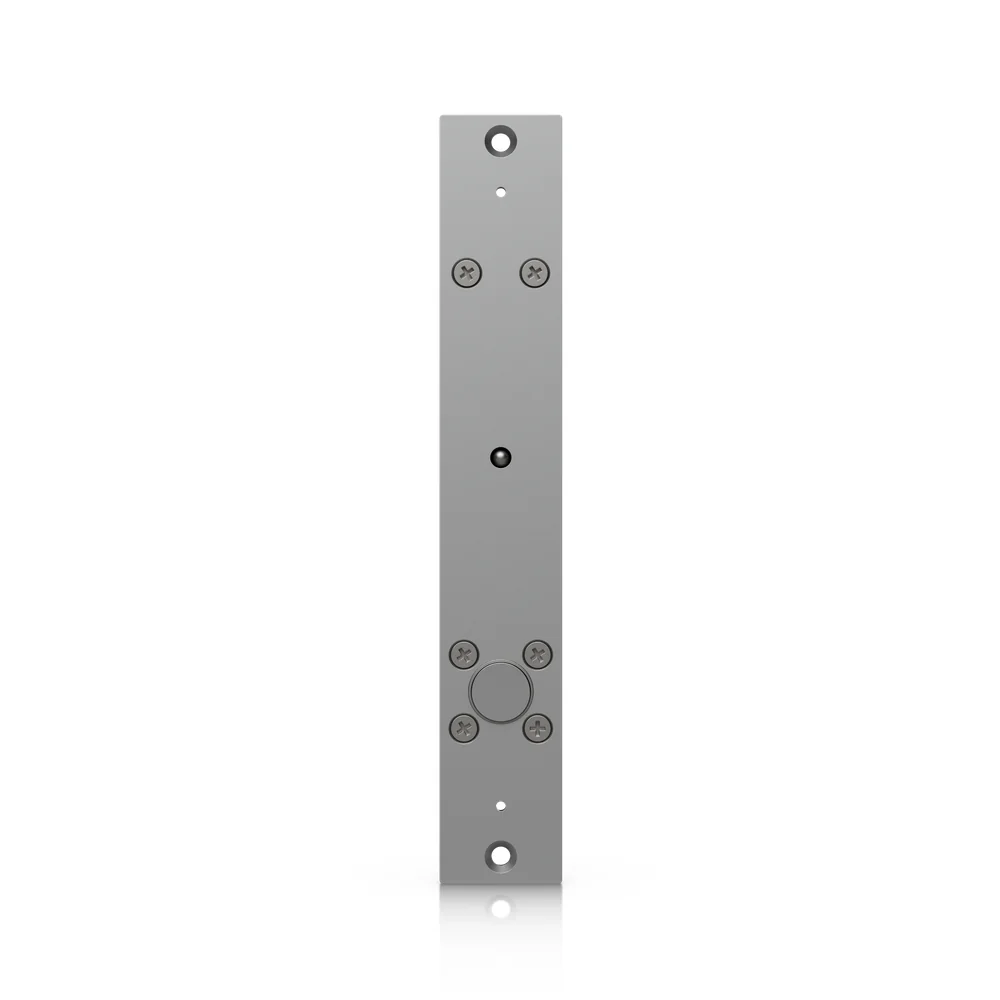

Ubiquiti UniFi Access Fail-Secure Strike Lock UACC-Lock-Bolt-Secure
Member優惠價：$0
🚚 配送方式：
- • 香港本地訂單：購物滿HK$2,000, 免費送貨!
- • 澳門地區訂單：順豐到付 (運費由買家承擔)
🎧 如有技術或貨存查詢
WhatsApp 查詢Ubiquiti UniFi Access Fail-Secure Strike Lock UACC-Lock-Bolt-Secure

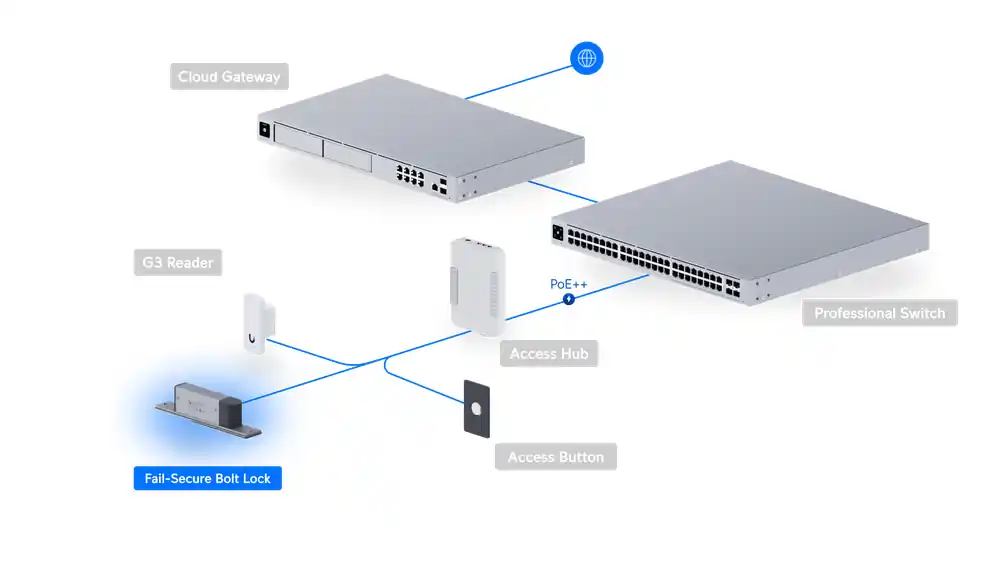

網絡拓撲
UACC-Lock-Bolt-Secure 技術規格
總覽

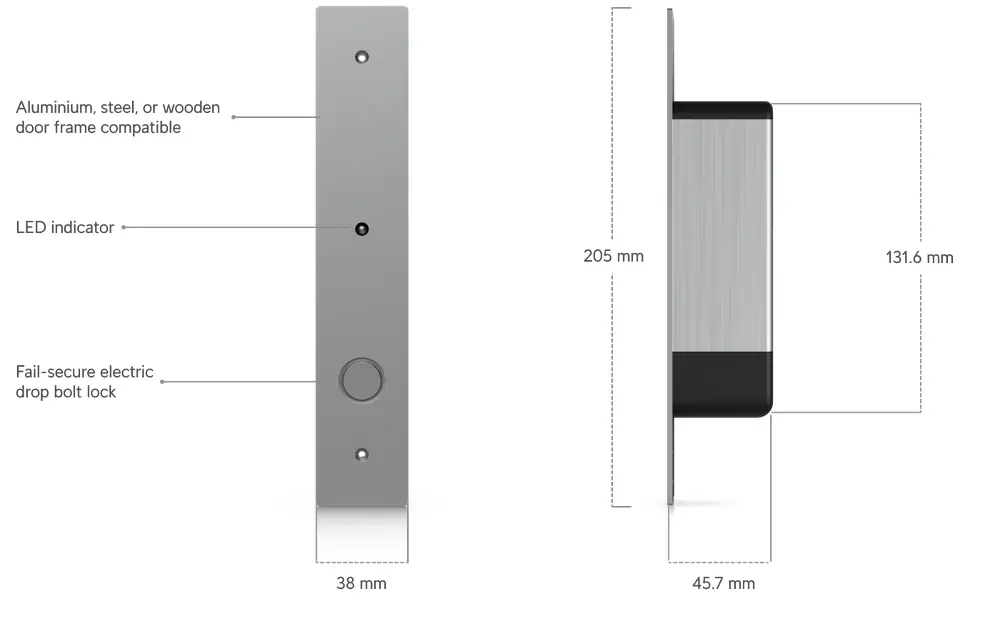

| Dimensions | Lock body: 132 x 30 x 42 mm (5.2 x 1.2 x 1.7″) Door frame plate: 82 x 32 x 3 mm (3.2 x 1.3 x 0.1″) Door plate: plate: 204 x 33 x 3 mm (8 x 1.3 x 0.1″) |
|---|---|
| Weight | Lock body: 350 g (12.3 oz) Door frame plate: 22 g (0.7 oz) Door plate: 46 g (1.6 oz) |
| Enclosure Material | Lock body: aluminum alloy Door frame plate/Door plate: aluminum alloy |
| Lock Type | Fail secure |
| Support Door Type | Single door (Wooden/metal) |
| DPS | Embedded |
| Current Power | Standby: 12mA ±10% Dynamic: 600mA ±10% |
| Support Voltage Range | 12V DC ±10% |
| Wiring | (1) Lock 12V/NO (red) (1) Lock 12V/COM (black) (1) Lock 12V/NC (blue) (1) DPS/- (white) (1) DPS/+ (orange) |
| Mounting | Door frame recess mount |
| LED Indicator | Red: locked Green: unlocked & power indicator |
| Type | Dry contact |
| Logic | Door Open: DPS/+ & DPS/- = Open Door Close: DPS/+ & DPS/- = Short |
| Rating | Max. 30V DC, 0.5A |
| Ambient Storage Temperature | -20 to 70° C (-4 to 158° F) |
| Ambient Operating Temperature | -10 to 60° C (14 to 140° F) |
| Ambient Operating Humidity | 5 to 90% noncondensing |
| NDAA Compliant | Yes |
| Certifications | FCC, IC, CE |

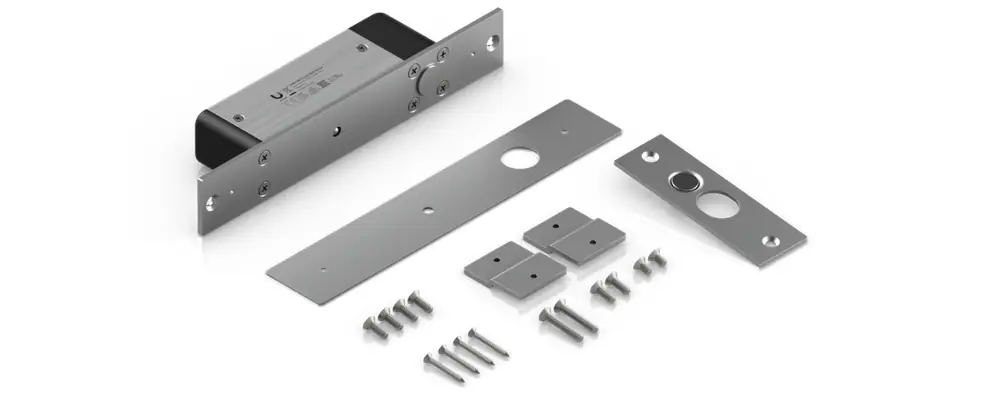

包裝內容
產品資源
| Brands | Ubiquiti |
|---|
