Ubiquiti UniFi Access Fail-Secure Strike Lock UACC-Lock-Strike-Safe-8mm
Member優惠價：$0
🚚 配送方式：
- • 香港本地訂單：購物滿HK$2,000, 免費送貨!
- • 澳門地區訂單：順豐到付 (運費由買家承擔)
🎧 如有技術或貨存查詢
WhatsApp 查詢Ubiquiti UniFi Access Fail-Secure Strike Lock UACC-Lock-Strike-Safe-8mm

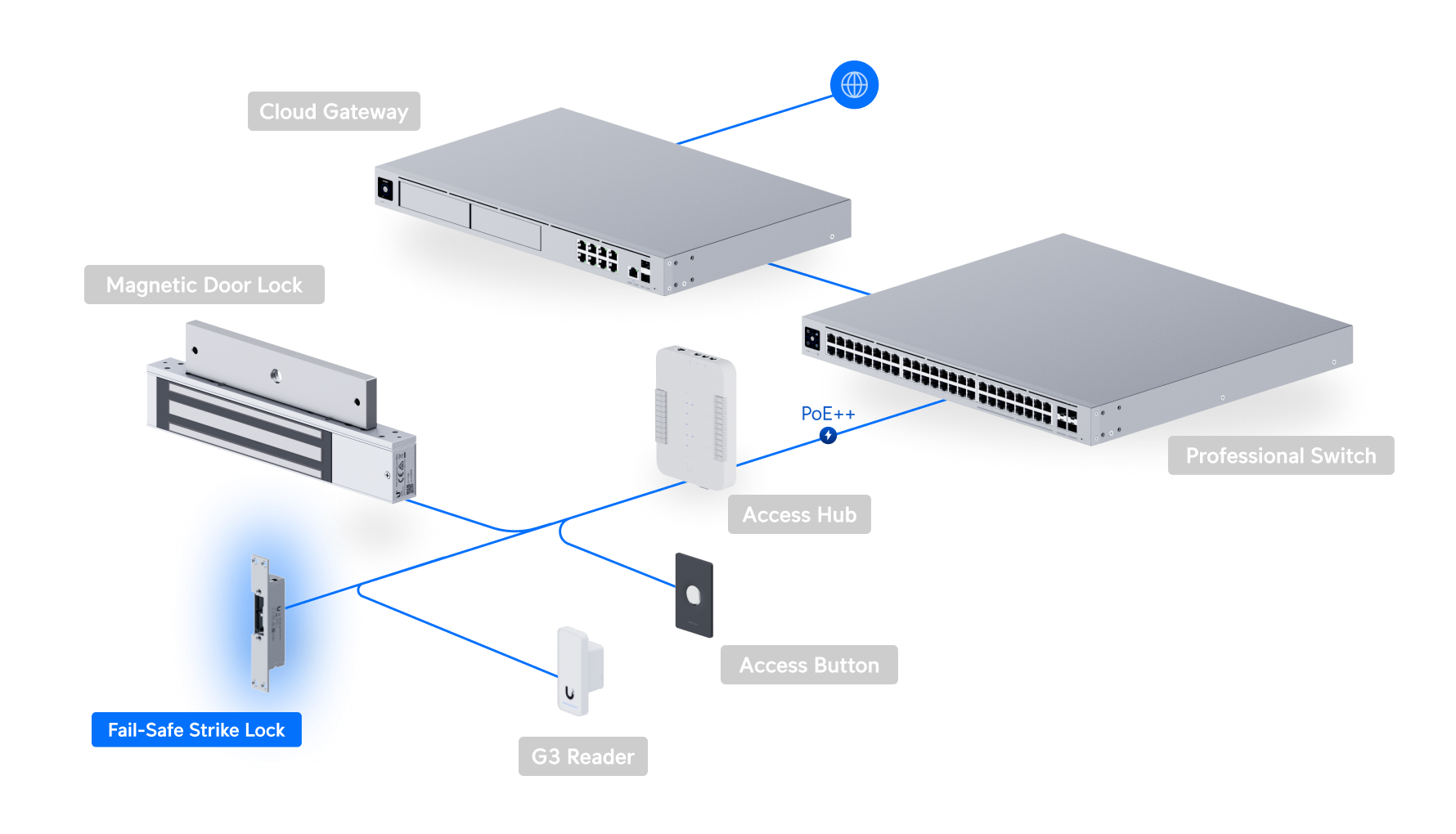

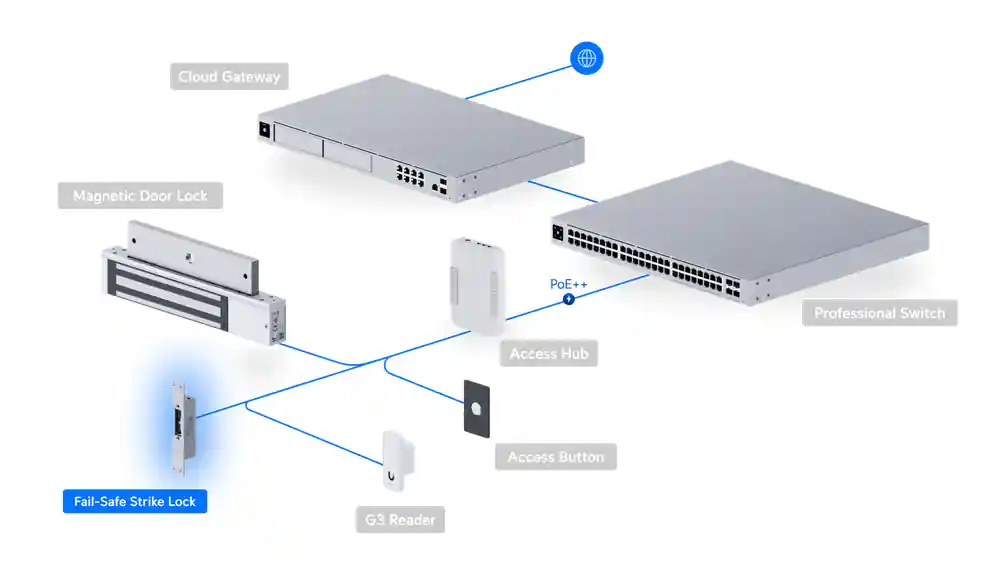

網絡拓撲
UACC-Lock-Strike-Safe-8mm 技術規格
總覽

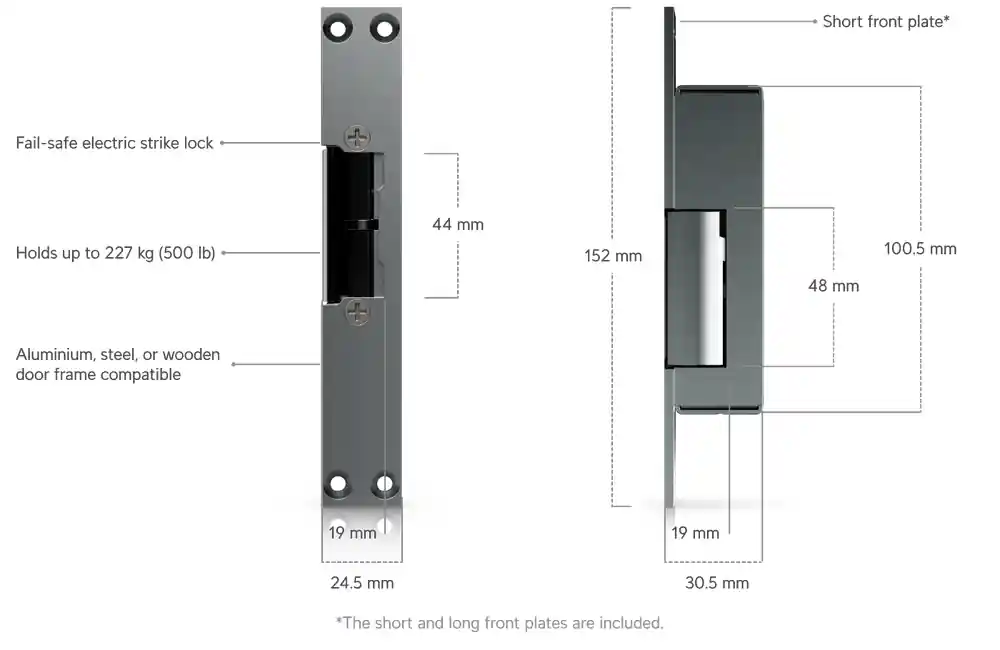

| Dimensions | Lock body:112 x 21 x 28 mm (4.4 x 0.8 x 1.1″) Short front plate:153 x 25 x 3 mm (6 x 0.9 x 0.1″) Long front plate:250 x 25 x 3 mm (9.8 x 0.9 x 0.1″) |
|---|---|
| Weight | Lock body: 200 g (7.0 oz) Short front plate: 62 g (2.2 oz) Long front plate: 97 g (3.4 oz) |
| Enclosure Material | Lock body: zinc alloy Front plate/latches: stainless steel |
| Lock Type | Fail safe |
| Support Door Type | Single door (Wooden/metal) |
| Holding Force | 227 kg (500 lb) |
| Current Power | 200mA ± 10% |
| Support Voltage Range | 12V DC ±10% |
| Wiring | (1) Lock 12V/NC (red) (1) Lock 12V/COM (black) (1) DPS/- (white) (1) DPS/+ (orange) |
| Mounting | Door frame recess mount |
| Type | Dry contact |
| Logic | Door Open: DPS/+ & DPS/- = Open Door Close: DPS/+ & DPS/- = Short |
| Rating | Max. 30V DC, 0.1A |
| Ambient Storage Temperature | -20 to 70° C (-4 to 158° F) |
| Ambient Operating Temperature | -10 to 60° C (14 to 140° F) |
| Ambient Operating Humidity | 5 to 90% noncondensing |
| NDAA Compliant | Yes |
| Certifications | FCC, IC, CE |

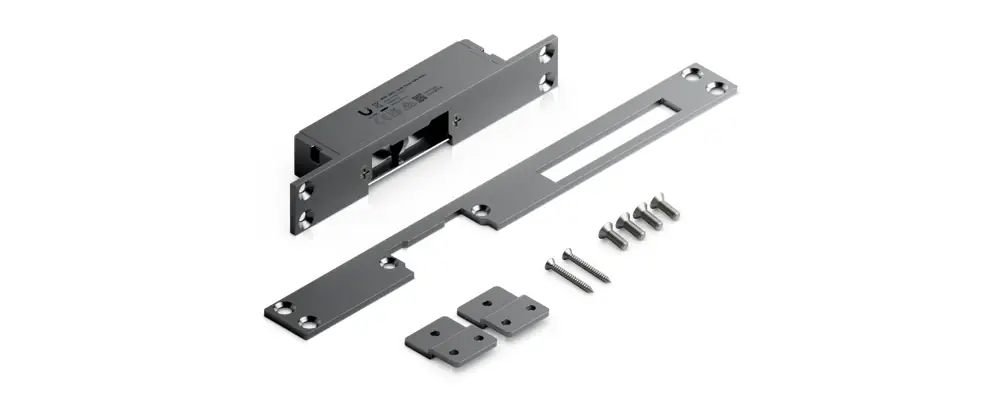

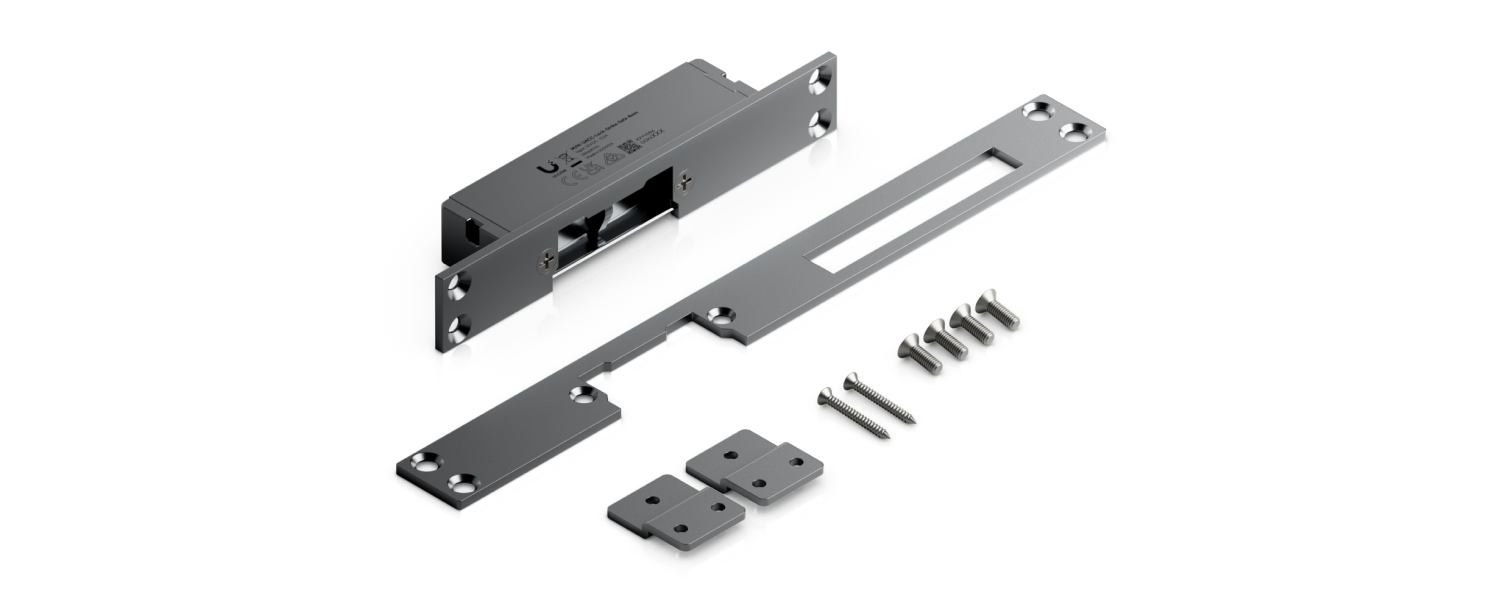

包裝內容
產品資源
| Brands | Ubiquiti |
|---|
