Ubiquiti UniFi Access G3 Reader UA-G2

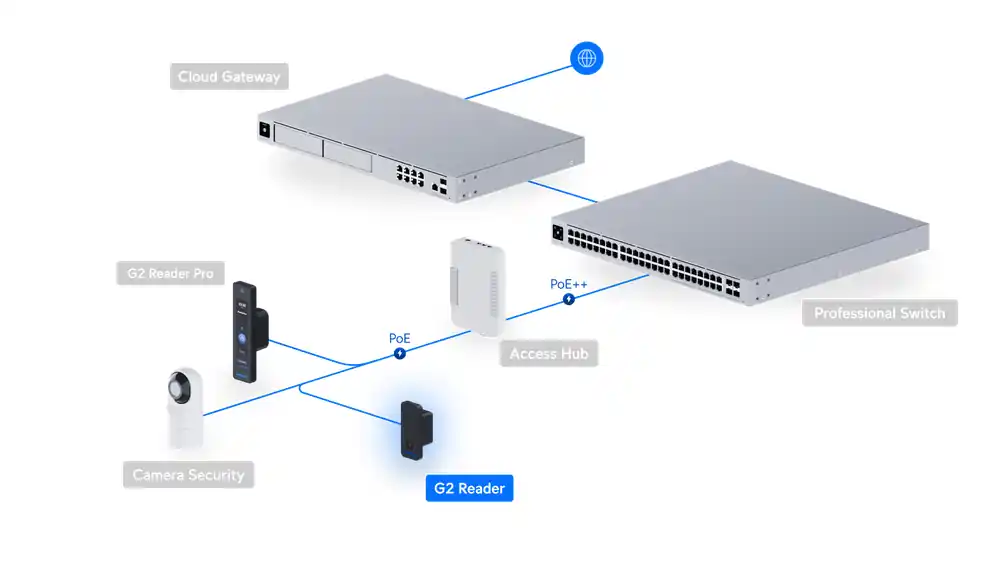

網絡拓撲
UA-G2 技術規格
Grid overview
| NFC |
NFC |
| Physical Unlock |
Handwave Unlock |
| Weatherproof |
Outdoor Exposed |
總覽

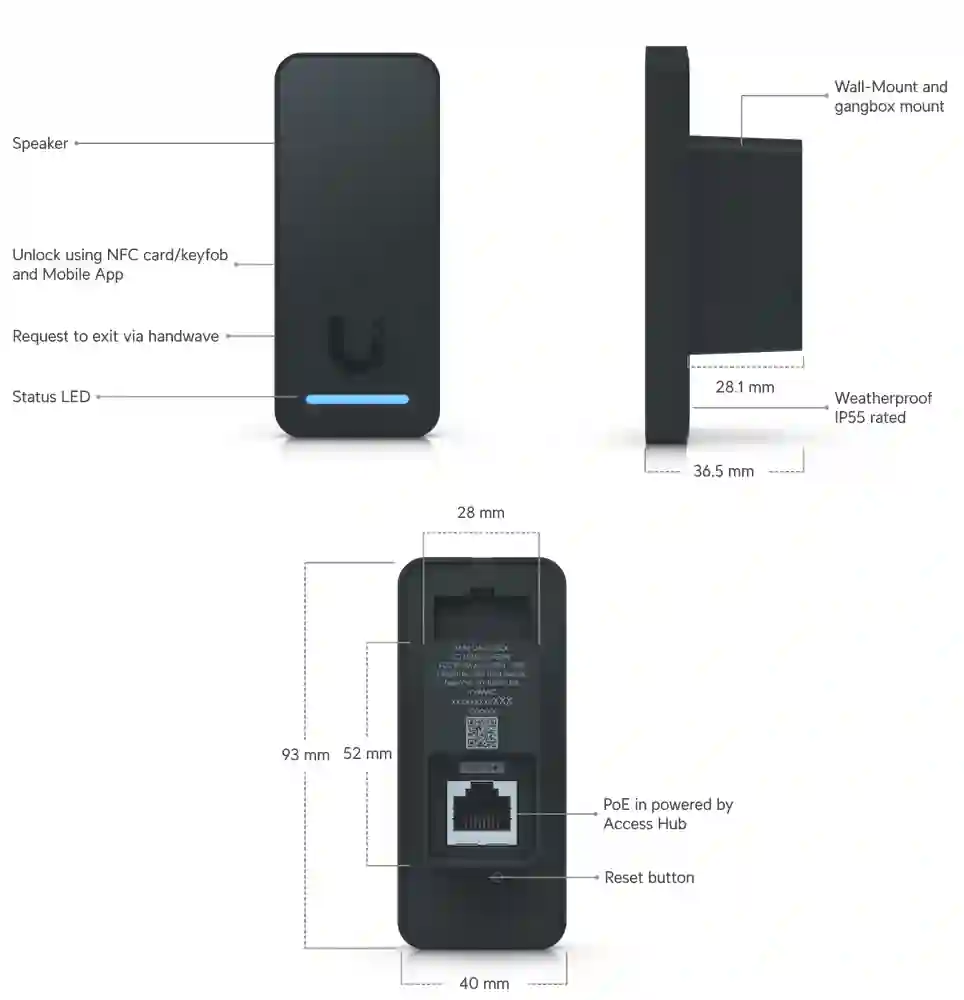

| Dimensions |
93 x 40 x 36.5 mm (3.7 x 1.6 x 1.4″) |
| NFC Card & Keyfob Access |
Yes |
| Mobile Unlock |
Yes |
| Handwave Request to Exit |
Yes |
| NDAA Compliant |
Yes |
| UL 294 Level |
Destructive attack: Level I Line security: Level I Endurance: Level I Standby power: Level I |
| Weatherproofing |
IP55 |
Mechanical
| Weight |
82 g (2.9 oz) |
| Enclosure Material |
Polycarbonate, glass |
| Mount Material |
Aluminum alloy |

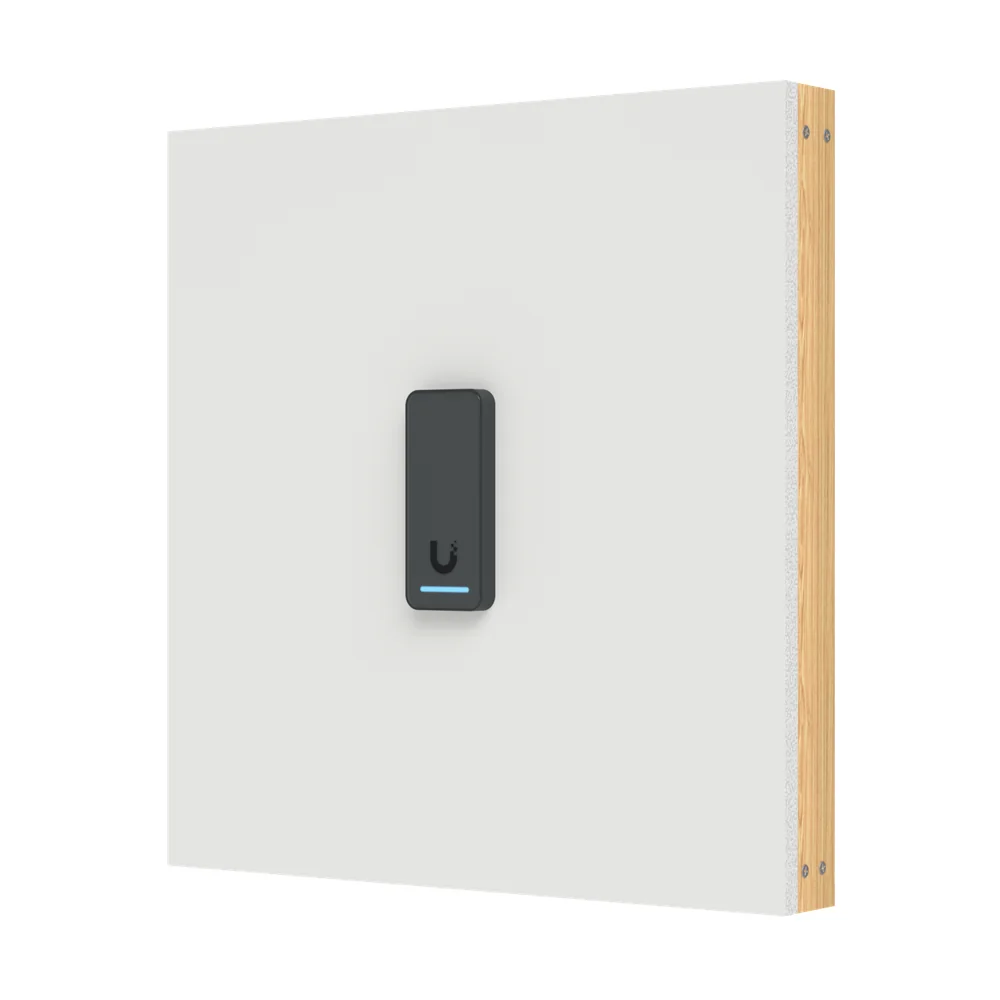

| Mounting |
In-wall, gang box (Included) Junction box (Optional) |
硬件規格
| Indoor and Outdoor Use |
Yes |

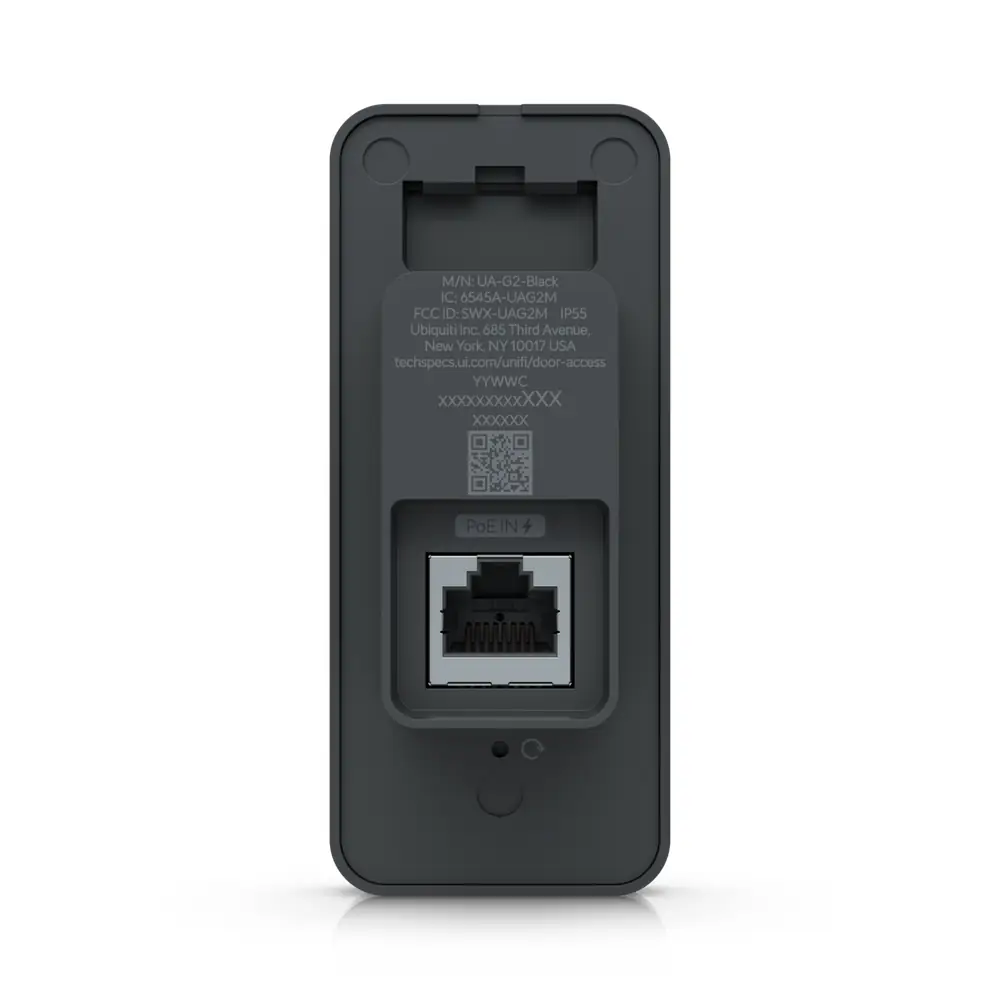

| Networking Interface |
(1) 10/100 MbE RJ45 port |
| Connectivity |
BLE 4.1 NFC |
| Power Method |
PoE UL 294 Power-limited Class 2 PSU UL 60950-1/62368-1 LPS/PS2 PSU |
| Max. Power Consumption |
5W |
| Supported Voltage Range |
48V DC |
| ESD/EMP Protection |
Air: ± 15kV, contact: ± 8kV |
| Sensors |
Proximity sensor |
| Speaker |
Yes |
| LEDs |
R/G/B/W Learn More |
| Button |
(1) Factory reset |
| NFC Frequency |
13.56 MHz |
| NFC Read Range |
< 30 mm (1.18'') |
| NFC Technology |
ISO/IEC 14443A / 14443B / 15693 / 18092 (Ecma 340) MIFARE Classic / MIFARE DESFIRE Sony FeliCa™ (ID only) NFC Forum tags T1T, T2T, T3T, T4T and T5T |
| PoE Cabling Requirements |
Cat 5e cabling is the minimum performance category recommended. The performance category utilized should match the transmission speed required at the installation site. The minimal conductor gauge permitted to connect between the PSE or power injector and the PD shall be 26 AWG (0.13 mm² ) for patch cords, 24 AWG (0.21 mm² ) for horizontal or riser cable. |
| UL 294 Statement |
Compliance with IEEE 802.3 specifications was not verified as part of UL 294. The equipment is intended to comply with the section of the National Electrical Code, ANSI/NFPA 70, Article 725.121, Power Sources for Class 2 and Class 3 Circuits. |
| CAN/ULC-60839-11-1 Grade |
Grade assignment: I |
| Certifications |
CE, FCC, IC, SRRC, UL 294, CAN/ULC-60839-11-1 |
| Document number, and issue date and/or revision level |
UA-G2/UA-G2-Black, V02 |
| Ambient Operating Temperature |
-30 to 45° C (-22 to 113° F) |
| Ambient Operating Humidity |
5 to 90% noncondensing |
軟件要求
| Management Application |
Access |
| Software Information |
The software version can be checked at https://unifi.ui.com |

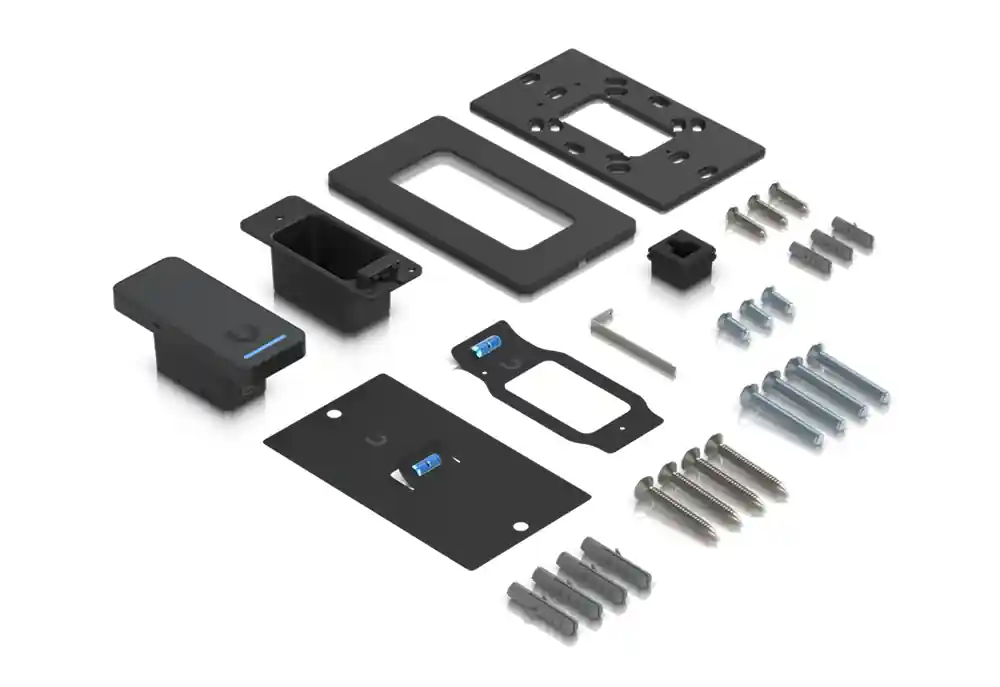

包裝內容
產品資源
Ubiquiti 官方產品頁面 | 快速安裝指南 (QIG)
