Ubiquiti UniFi Access Magnetic Lock UA-Lock-Magnetic
Member優惠價：$0
🚚 配送方式：
- • 香港本地訂單：購物滿HK$2,000, 免費送貨!
- • 澳門地區訂單：順豐到付 (運費由買家承擔)
🎧 如有技術或貨存查詢
WhatsApp 查詢Ubiquiti UniFi Access Magnetic Lock UA-Lock-Magnetic
UA-Lock-Magnetic 技術規格
總覽

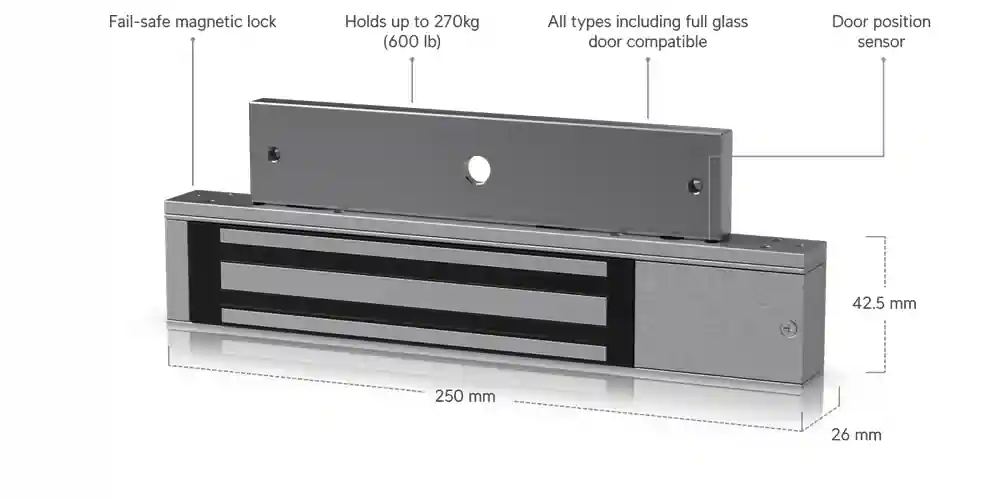

| Dimensions | UA-Lock-Magnetic-270kg Lock body: 250 x 42.5 x 26 mm(9.8 x 1.7 x 1″ ) Install plate: 250 x 25x 5 mm (9.8 x 1 x 0.2″ ) Armature: 185.5 x 38.5 x 11 mm (7.3 x 1.5 x 0.4″) UA-Lock-Magnetic-540kg Lock body: 266 x 67.5 x 40 mm (10.5 x 2.7 x 1.6″) Install plate: 266 x 40 x 6 mm (10.5 x 1.6 x 0.2″) Armature: 185 x 61 x 16 mm (7.3 x 2.4 x 0.6″) |
|---|---|
| Weight | UA-Lock-Magnetic-270kg Lock body: 1 kg (2.2 lb) Install plate: 70 g (0.15 lb) Armature: 600 g (1.3 lb) UA-Lock-Magnetic-540kg Lock body: 2.9 kg (6.4 lb) Install plate: 145 g (0.3 lb) Armature: 1.4 kg (3.1 lb) |
| Enclosure Material | Device/brackets: aluminum Armature: steel |
| Lock Type | Fail safe |
| Support Door Type | UA-Lock-Magnetic-270kg: Single door (Wooden/metal/glass) UA-Lock-Magnetic-540kg: Single door (Wooden/metal) |
| DPS | Embedded |
| Holding Force | UA-Lock-Magnetic-270kg: 270 kg (600 lb) UA-Lock-Magnetic-540kg: 540 kg (1,200 lb) |
| Current Power | 500mA ±10% |
| Support Voltage Range | 12V DC ±10% |
| Wiring | (1) Lock 12V/NC (red) (1) Lock 12V/COM (black) (1) DPS/+ (white) (1) DPS/- (yellow) |

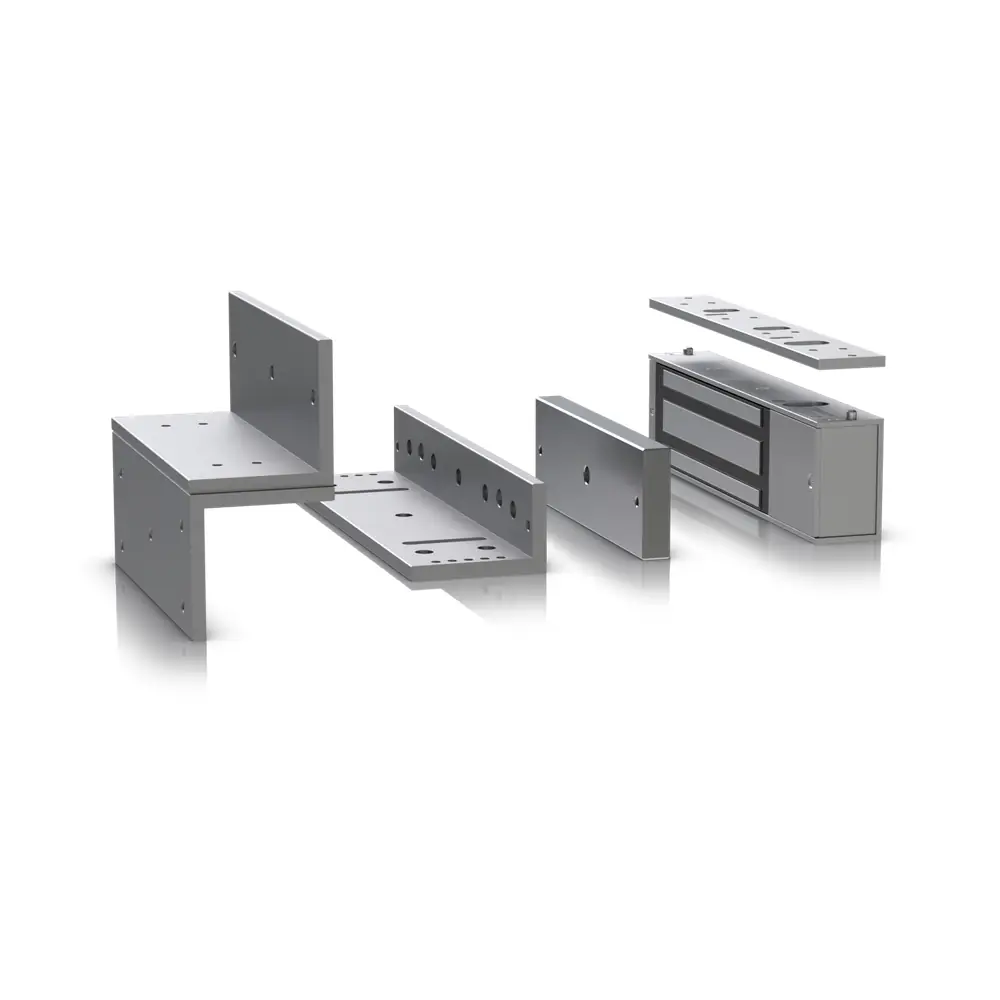

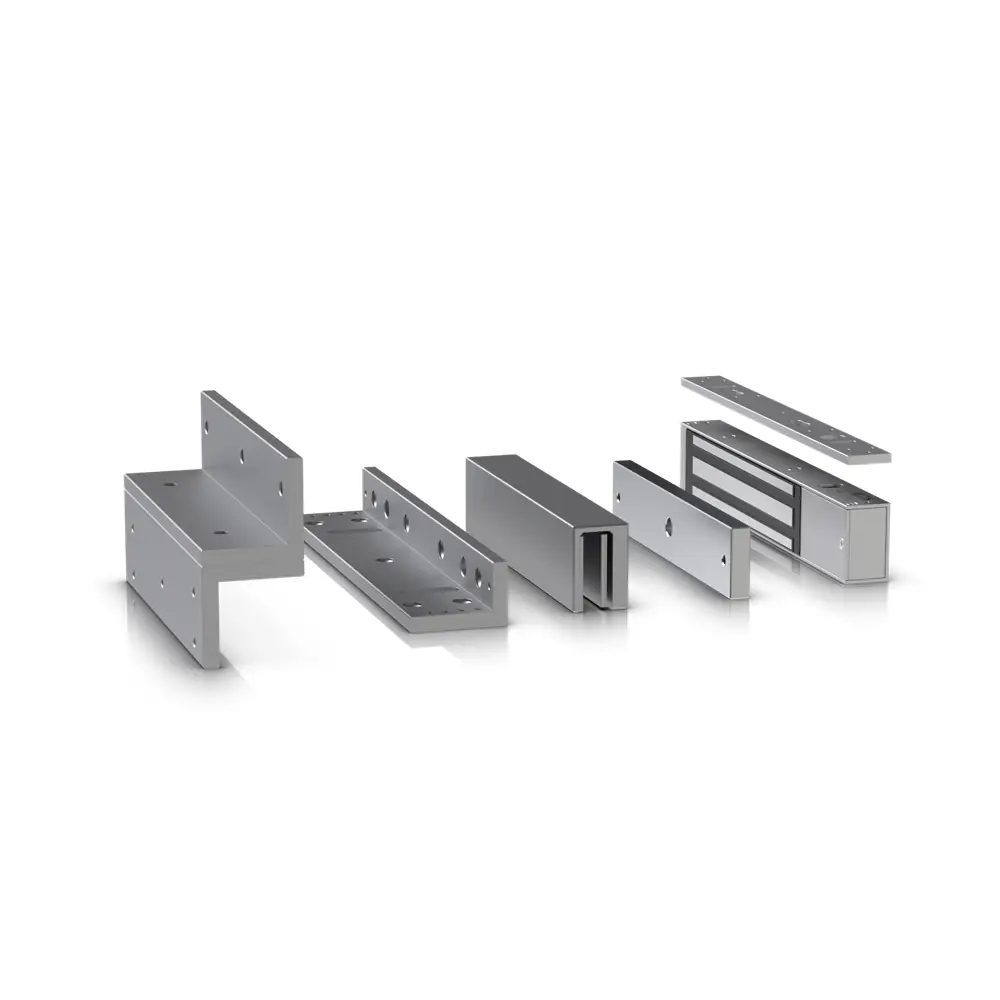

| Mounting | UA-Lock-Magnetic-270kg L bracket: for outward opening door thickness < 42 mm (< 1.7") Z bracket: for inward opening door, used with L bracket U bracket: for glass door thickness ≤ 17 mm (≤ 0.7") and door gap ≤ 5 mm (≤ 0.2") UA-Lock-Magnetic-540kg L bracket: for outward opening door thickness < 42 mm (< 1.7") Z bracket: for inward opening door, used with L bracket |
| LED Indicator | Green: unlocked Red: locked |
| Ambient Storage Temperature | -20 to 70° C (-4 to 158° F) |
| Ambient Operating Temperature | -10 to 60° C (14 to 140° F) |
| Ambient Operating Humidity | 5 to 90% noncondensing |
| NDAA Compliant | Yes |
| Certifications | FCC, IC, CE |
安裝教學
產品資源
| Brands | Ubiquiti |
|---|
