Ubiquiti UniFi WiFi BaseStation XG UWB-XG

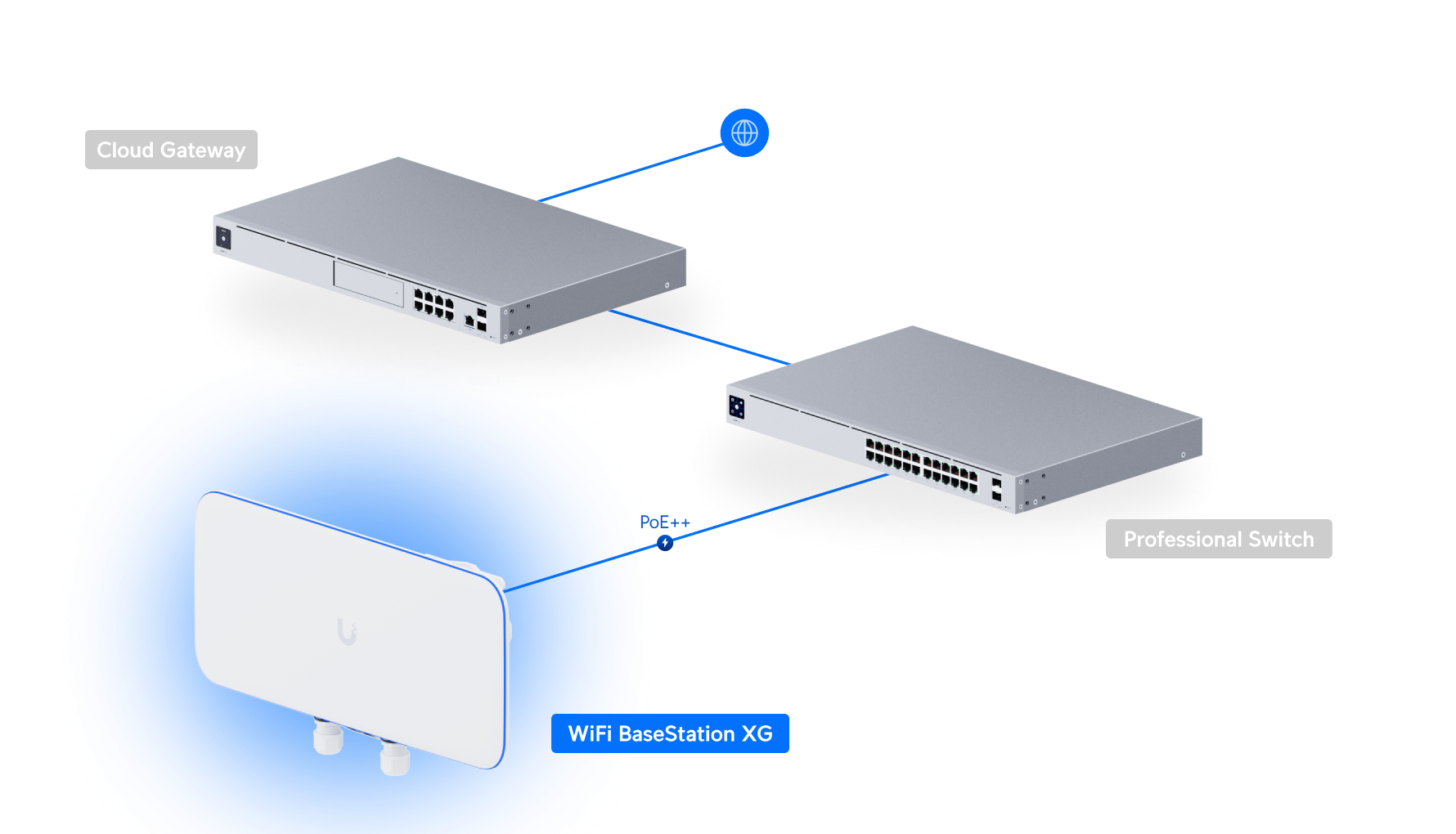

網絡拓撲
UWB-XG 技術規格
Grid overview
| Max. Client Count |
1,500 |
| WiFi5 |
WiFi 5 |
| Uplink |
10 GbE |
總覽
| Dimensions |
471.1 x 257.5 x 94.3 mm (18.6 x 10.1 x 3.7″) |
| WiFi Standard |
WiFi 5 |
| Spatial Streams |
12 |
| Coverage Area |
465 m² (5,000 ft²) |
| Max. Client Count |
1500+ |
| Uplink |
10 GbE |

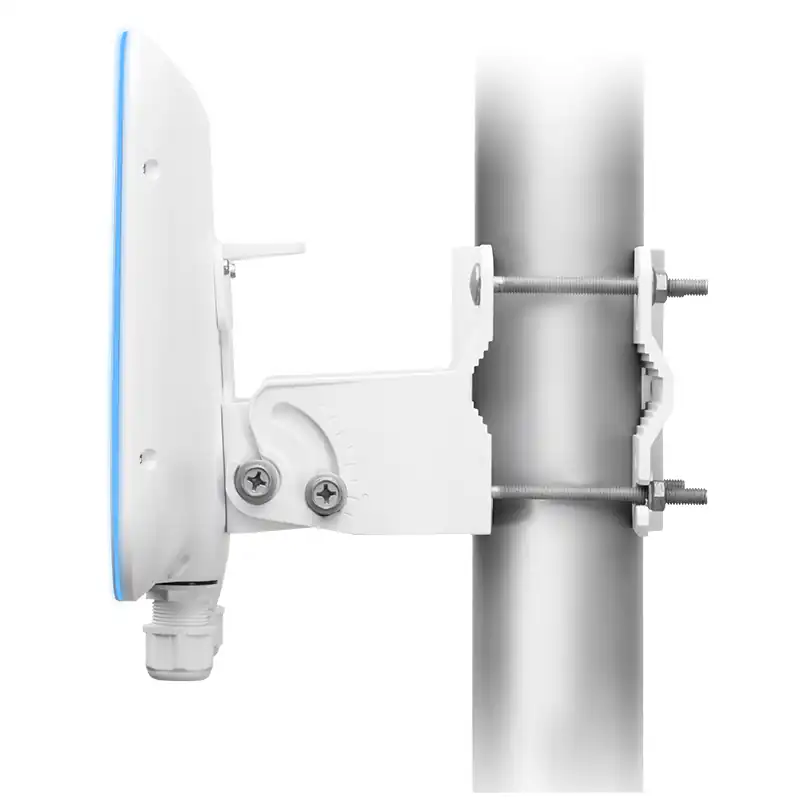

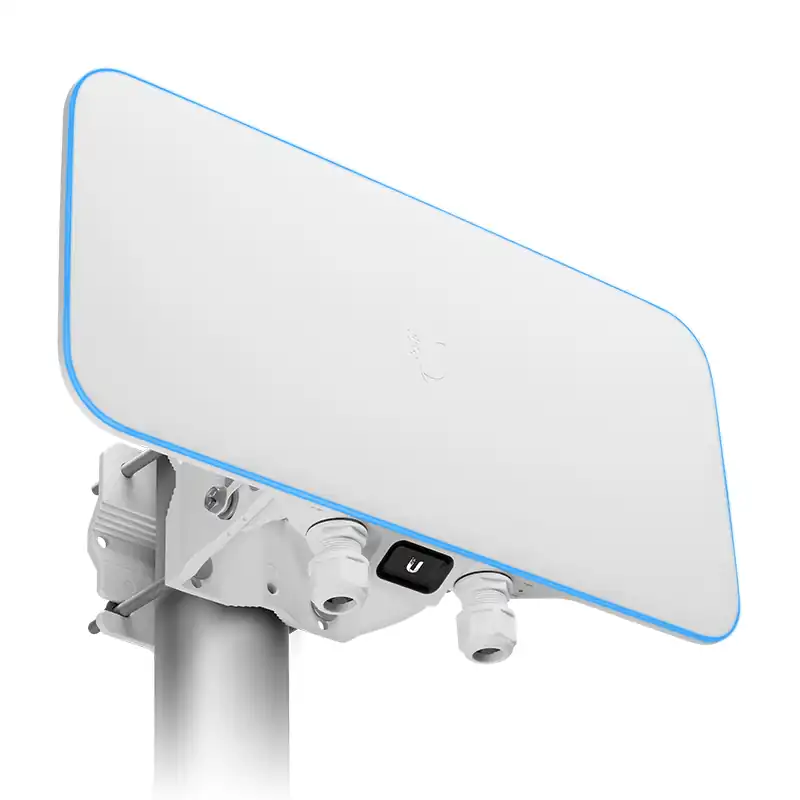

| Mounting |
Wall, Pole (Mounts Included), VESA (Optional) |
| Weatherproofing |
IP67 |
| Power Method |
PoE++ |
效能
| 5 GHz |
Low Band: 4 x 4 (DL MU-MIMO) Vertical Band: 4 x 4 (DL MU-MIMO) High Band: 4 x 4 (DL MU-MIMO) |
| 5 GHz |
Low Band: 1.7 Gbps (BW80) Vertical Band: 1.7 Gbps (BW80) High Band: 1.7 Gbps (BW80) |
| 5 GHz |
Directional internal: 15 dBi, 50° x 50° Directional internal: 10 dBi, 90° x 90° |
| 5 GHz |
25 dBm |
| Max. BSSIDs |
8 per Radio |
| 802.11ac (WiFi 5) |
6.5 Mbps to 1.7 Gbps (MCS0 – MCS9 NSS1/2/3/4, VHT 20/40/80) |
| 802.11n |
6.5 Mbps to 600 Mbps (MCS0 – MCS23, HT 20/40) |
Features
| Wireless Meshing |
Yes |
| Band Steering |
Yes |
| 802.11v BSS Transition Management |
Yes |
| 802.11r Fast Roaming |
Yes |
| 802.11k Radio Resource Management (RRM) |
Yes |
| Advanced Radio Management |
Yes |
| Passpoint (Hotspot 2.0) |
Yes |
| Custom Branding Landing Page |
Yes |
| Voucher Authentication |
Yes |
| Payment-Based Authentication |
Yes |
| External Portal Server Support |
Yes |
| Password Authentication |
Yes |
| Guest Network Isolation |
Yes |
| Client Device Isolation |
Yes |
| WiFi Schedules |
Yes |
| RADIUS over TLS (RadSec) |
Yes |
| Dynamic RADIUS-assigned VLAN |
Yes |
硬件規格
| Max. Power Consumption |
31W |
| Includes PoE Adapter |
Yes |
| Supported Voltage Range |
44–57V DC |
| Networking Interface |
(1) GbE RJ45 port (1) 1/10 GbE ICM Ethernet port |
| Weight |
3.2 kg (7.1 lb) |
| Pole Mount Diameter |
1~3″ (25~76 mm) |
| Antennas |
(1) Integrated dual-mode antenna array |
| Management |
Ethernet Bluetooth |
| Enclosure Material |
Polycarbonate, aluminum alloy |
| System |
R/G/B |
| Channel Bandwidth |
HT 20/40, VHT 20/40/80, HE 20/40/80 (MHz) |
| NDAA Compliant |
Yes |
| Certifications |
CE, FCC, IC, Anatel: 08960-24-08356 |
| Operating Frequency |
US/CA: U-NII-1: 5150 – 5250 MHz U-NII-2A: 5250 – 5350 MHz U-NII-2C: 5470 – 5670 MHz U-NII-3: 5725 – 5850 MHz Worldwide: 5150 – 5250 MHz 5250 – 5350 MHz 5470 – 5670 MHz |
| Ambient Operating Temperature |
-40 to 70° C (-40 to 158° F) |
| Ambient Operating Humidity |
5 to 95% noncondensing |
軟件要求
| UniFi Network |
Version 6.0.45 and later |
