Ubiquiti UniFi Access Point E7 Campus E7-Campus

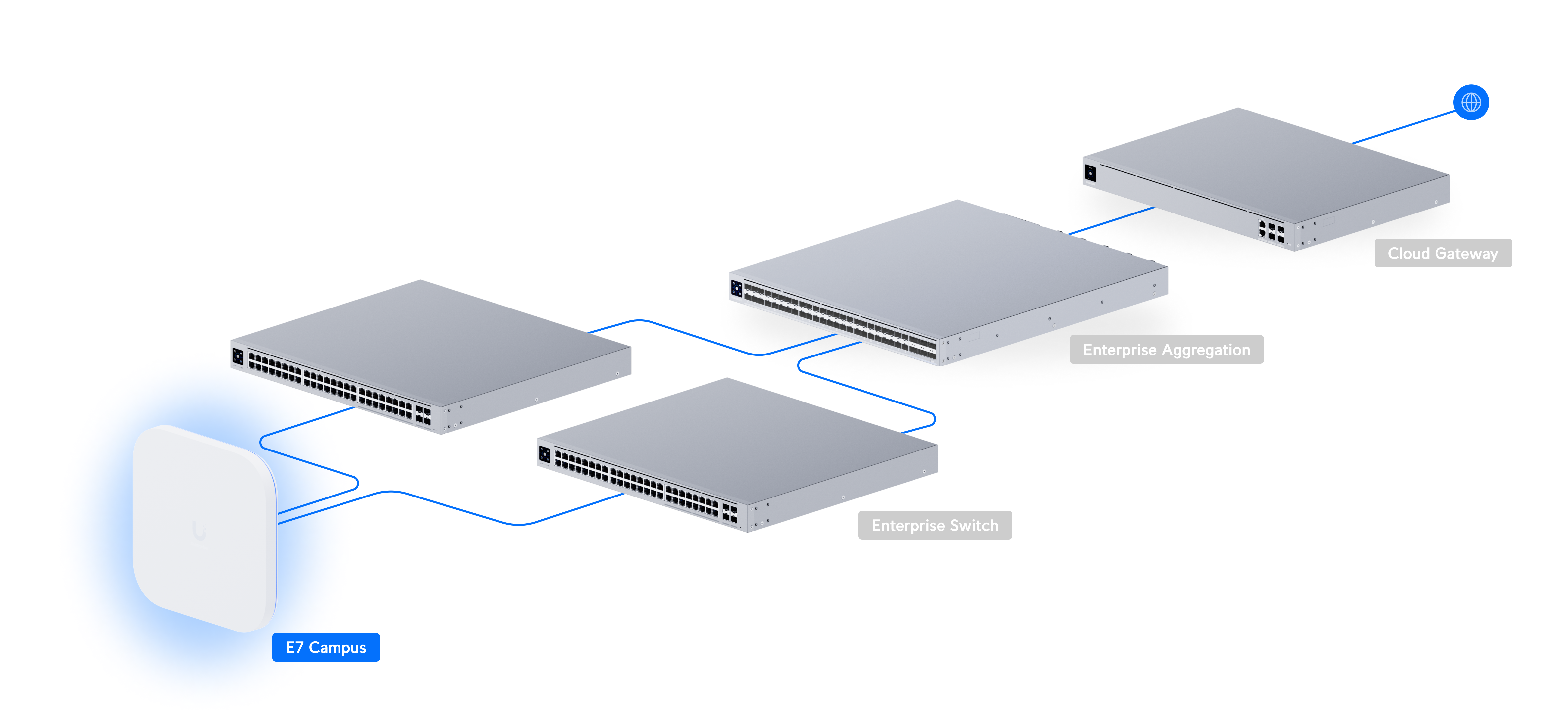

網絡拓撲
E7-Campus 技術規格
Grid overview
| Max. Client Count |
1,000 |
| WiFi7 |
WiFi 7 |
| Radio/Antenna |
6 GHz Radio |
| Uplink |
10 GbE |
總覽

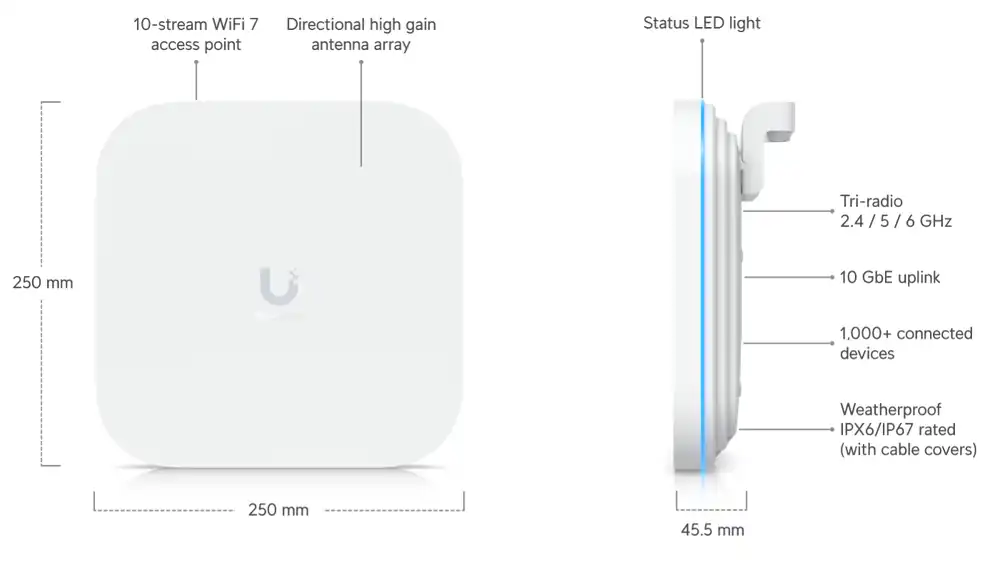

| Dimensions |
Device: 250 x 250 x 45.5 mm (9.8 x 9.8 x 1.8″) Articulating mount: ⌀104 x 149.4 (⌀4.1 x 5.9″) |
| WiFi Standard |
WiFi 7 |
| Spatial Streams |
10 |
| Coverage Area |
465 m² (5,000 ft²) |
| Max. Client Count |
1000+ |
| Uplink |
10 GbE 1 GbE |

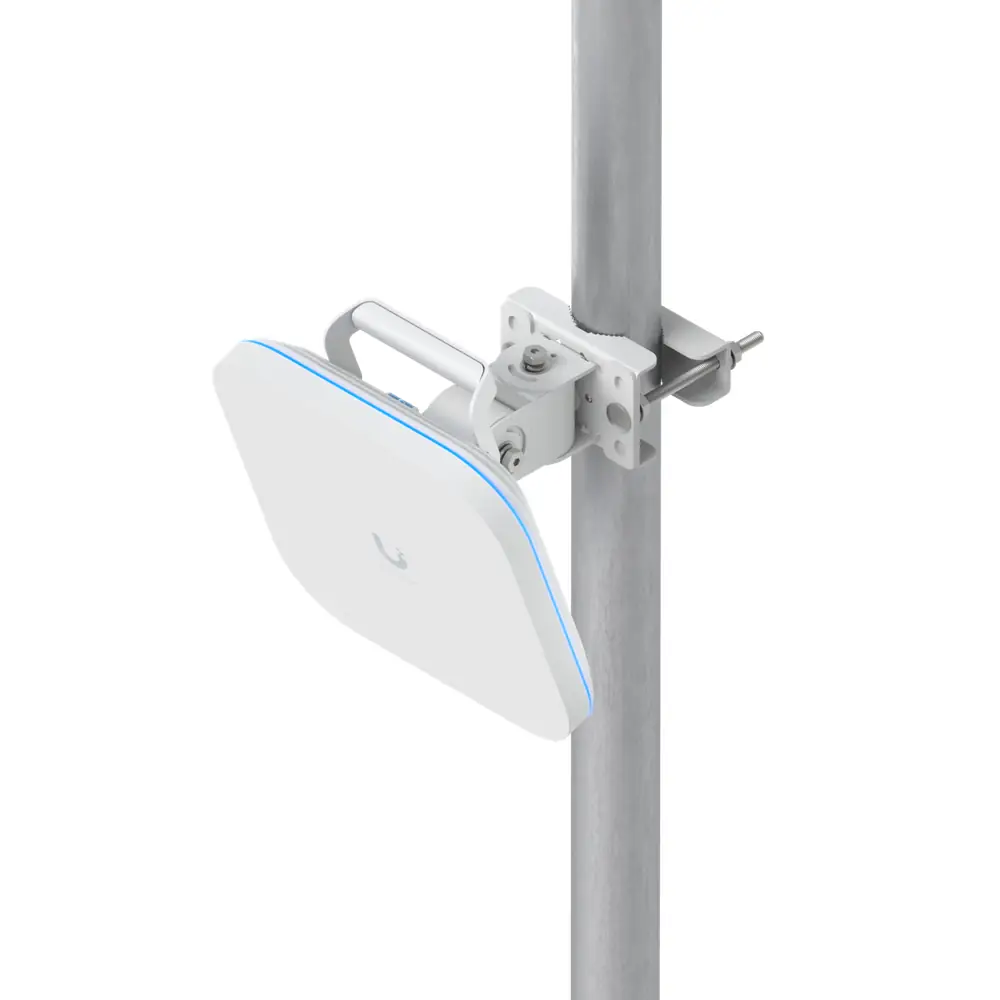

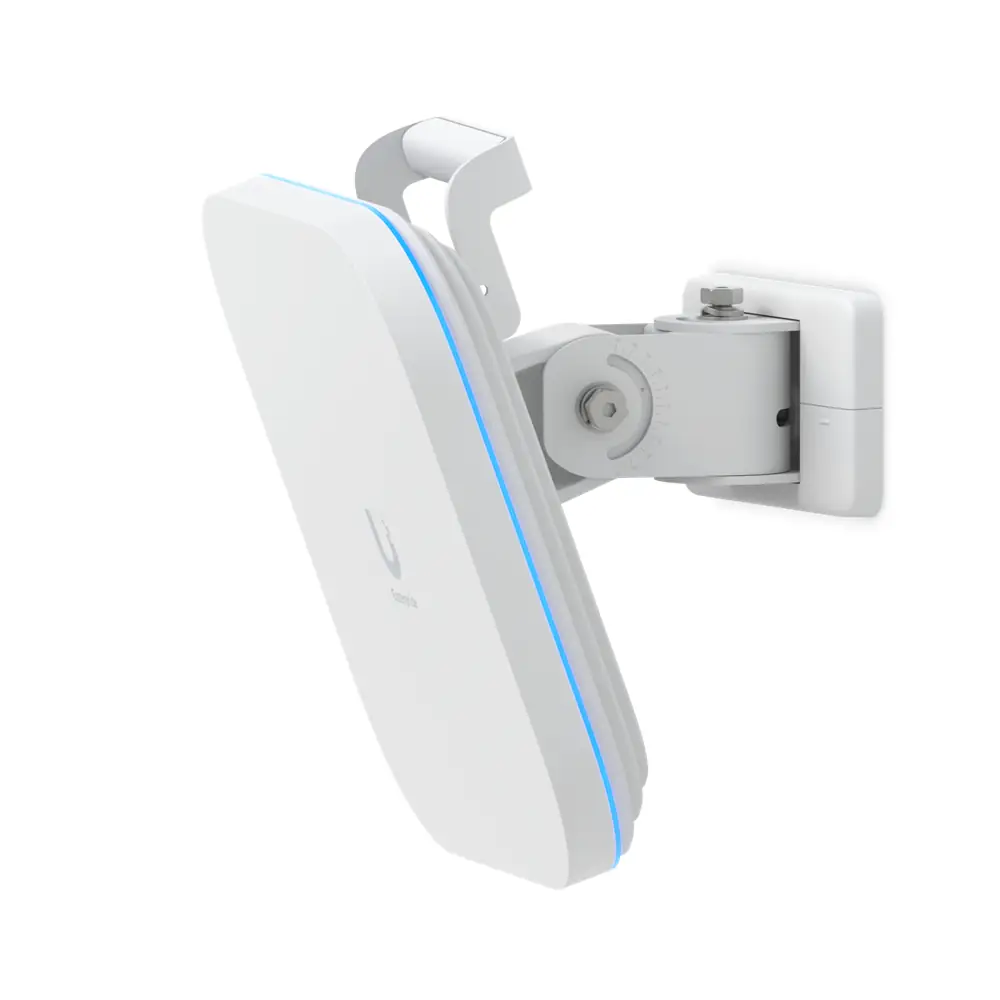

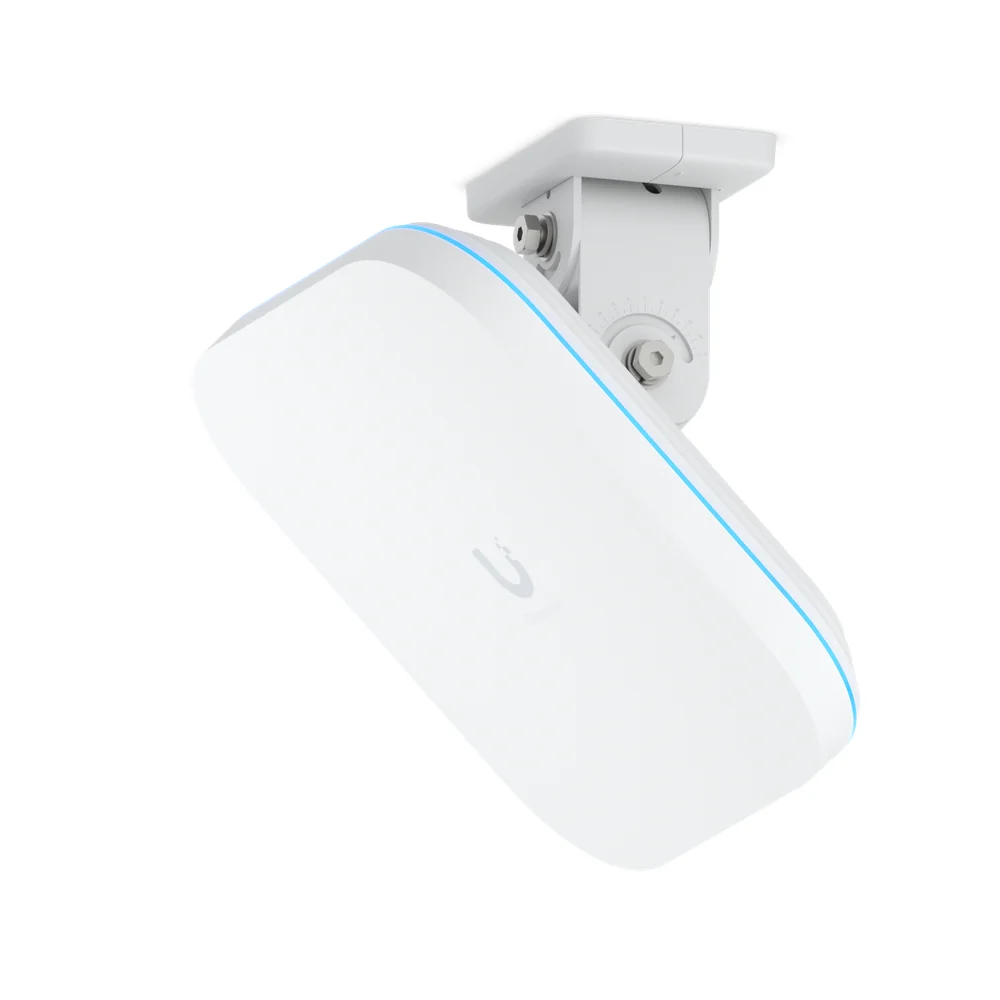

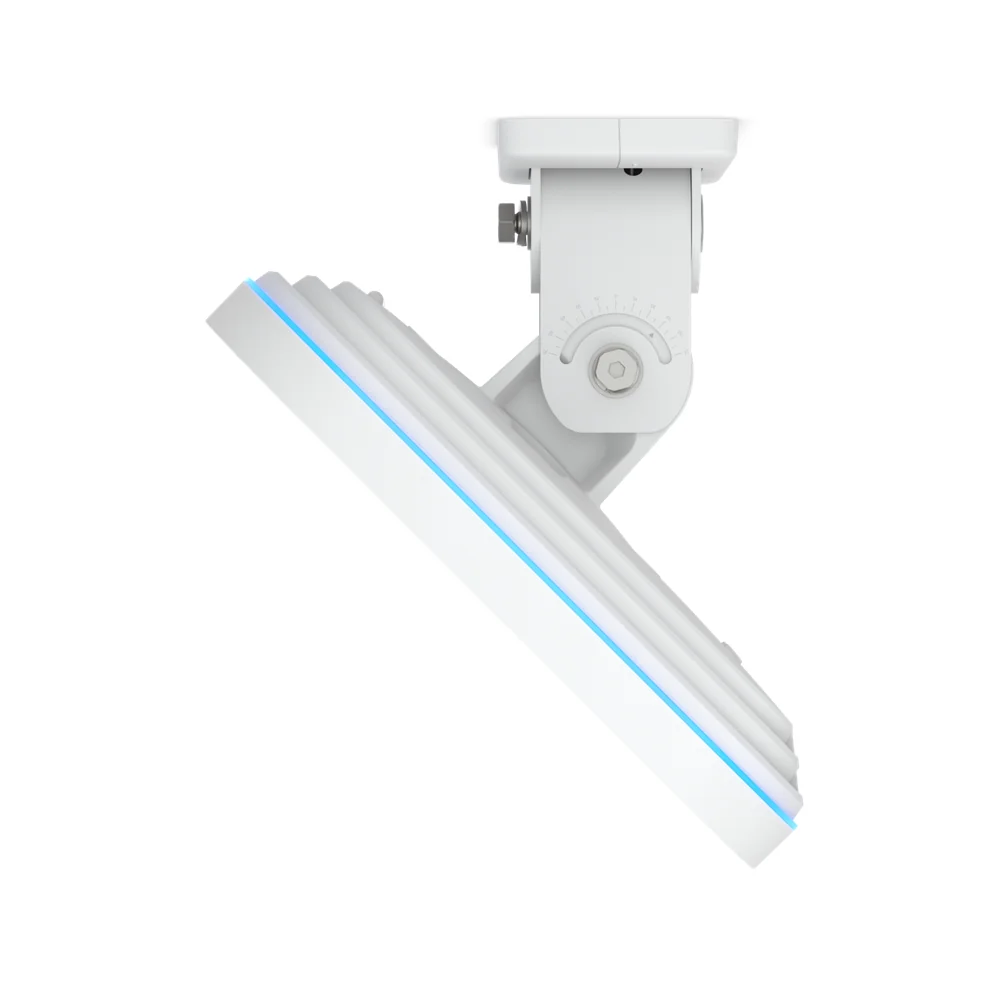

| Mounting |
Wall, Pole (Mounts Included) VESA (Optional) |
| Weatherproofing |
IPX6 IP67 with Waterproof Door Kit (Included) |
| Power Method |
PoE++ |
效能
| 6 GHz |
4 x 4 (DL/UL MU-MIMO) |
| 5 GHz |
4 x 4 (DL/UL MU-MIMO) |
| 2.4 GHz |
2 x 2 (DL/UL MU-MIMO) |
| 6 GHz |
11.5 Gbps (BW320) |
| 5 GHz |
8.6 Gbps (BW240) |
| 2.4 GHz |
688 Mbps (BW40) |
| 6 GHz |
Directional internal: 12 dBi, 90° x 50° |
| 5 GHz |
Directional internal: 12 dBi, 100° x 55° |
| 2.4 GHz |
Directional internal: 9 dBi, 90° x 80° |
| 6 GHz |
30 dBm (36 dBm EIRP) |
| 5 GHz |
30 dBm |
| 2.4 GHz |
23 dBm |
| Max. BSSIDs |
8 per Radio |
| 802.11be (WiFi 7) |
7.3 Mbps to 11.4 Gbps (MCS0 – MCS13 NSS1/2/3/4, EHT 20/40/80/160/240/320) |
| 802.11ax (WiFi 6) |
7.3 Mbps to 4.8 Gbps (MCS0 – MCS11 NSS1/2/3/4, HE 20/40/80/160) |
| 802.11ac (WiFi 5) |
6.5 Mbps to 3.4 Gbps (MCS0 – MCS9 NSS1/2/3/4, VHT 20/40/80/160) |
| 802.11n |
6.5 Mbps to 600 Mbps (MCS0 – MCS31, HT 20/40) |
Features
| Wireless Meshing |
Yes |
| Band Steering |
Yes |
| 802.11v BSS Transition Management |
Yes |
| 802.11r Fast Roaming |
Yes |
| 802.11k Radio Resource Management (RRM) |
Yes |
| Zero-Wait DFS |
Yes |
| Advanced Radio Management |
Yes |
| Real-Time Spectral Analysis |
Yes |
| Passpoint (Hotspot 2.0) |
Yes |
| Custom Branding Landing Page |
Yes |
| Voucher Authentication |
Yes |
| Payment-Based Authentication |
Yes |
| External Portal Server Support |
Yes |
| Password Authentication |
Yes |
| Guest Network Isolation |
Yes |
| Private Pre-Shared Key (PPSK) |
Yes |
| WiFi Speed Limiting |
Yes |
| Client Device Isolation |
Yes |
| WiFi Schedules |
Yes |
| RADIUS over TLS (RadSec) |
Yes |
| Dynamic RADIUS-assigned VLAN |
Yes |
硬件規格
| Max. Power Consumption |
44W |
| Supported Voltage Range |
42.5–57V DC |
| Networking Interface |
(1) 10 GbE RJ45 port (1) GbE RJ45 port |
| PRISM™ RF Filtering |
Yes |
| Weight |
Device: 2.2 kg (4.9 lb) With articulating mount: 3.1 kg (6.8 lb) |
| Wind Loading |
164.75 N at 200 km/h (37 lbf at 125 mph) |

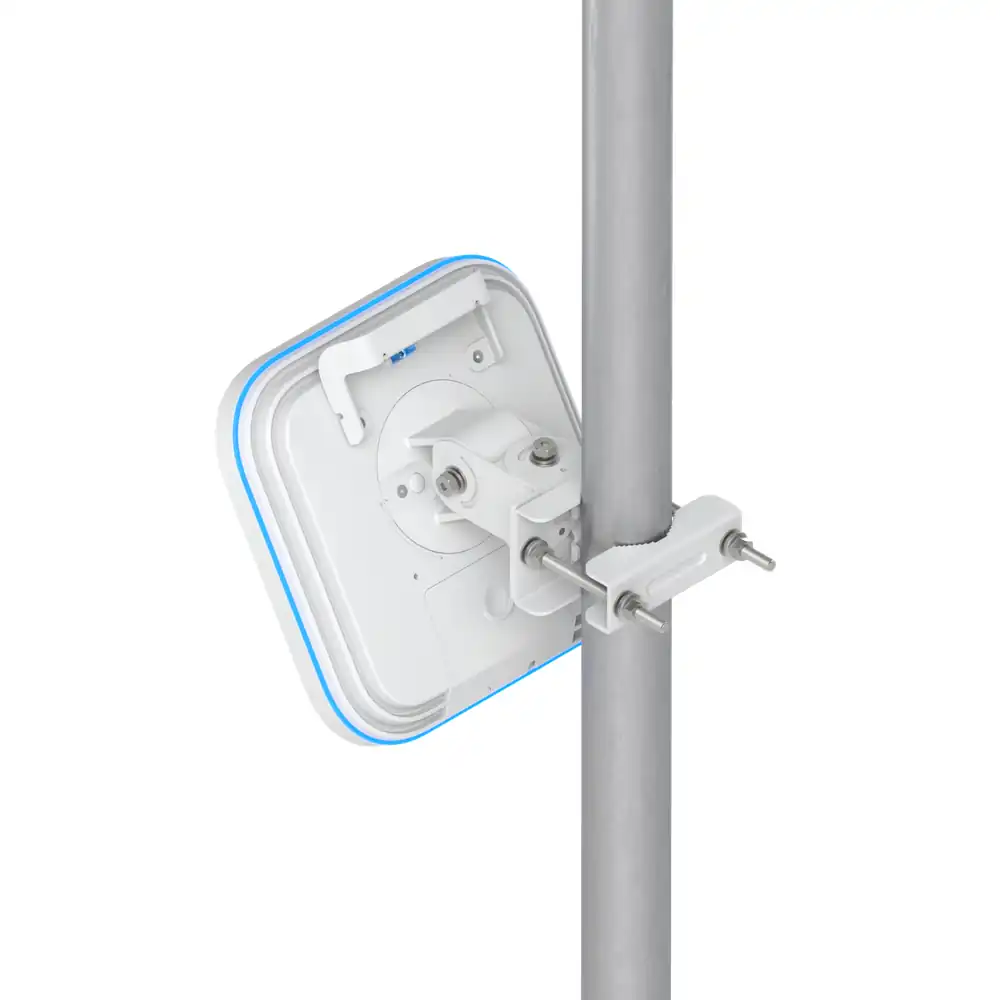

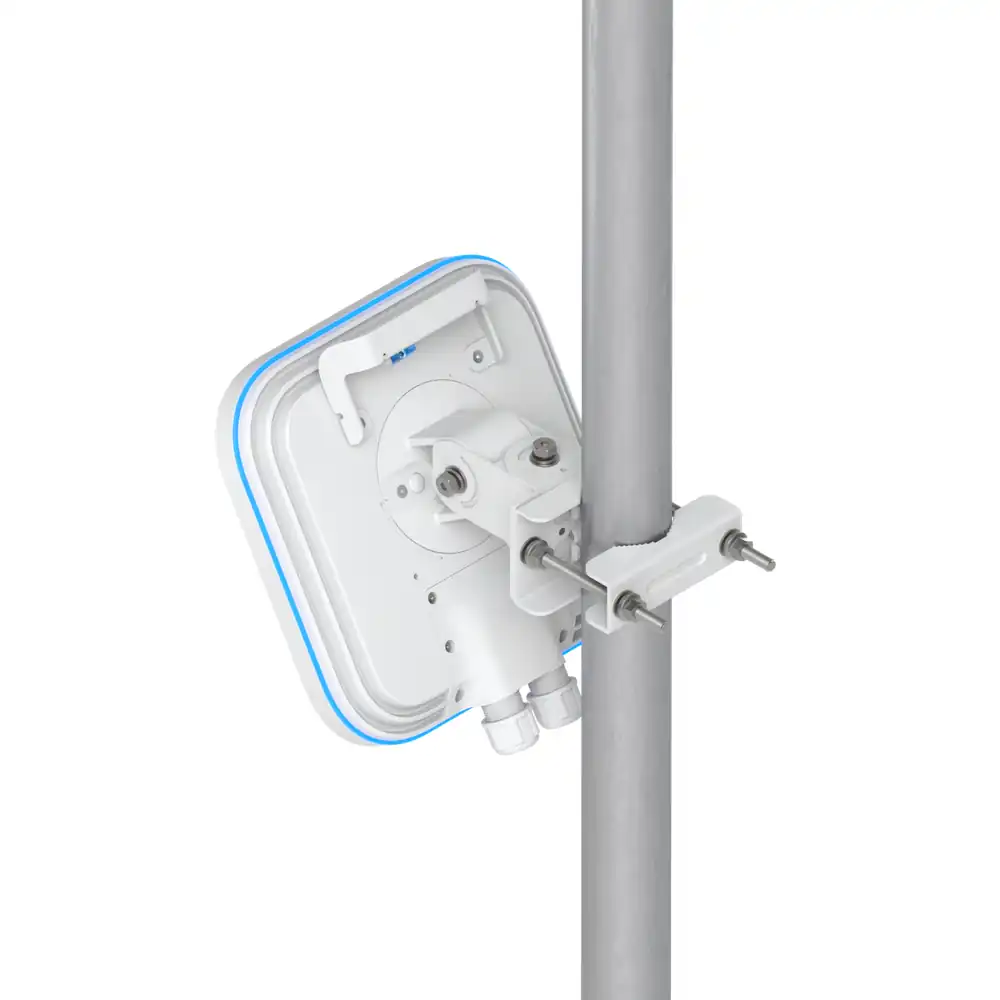

| Pole Mount Diameter |
1–2.5″ (25–63.5 mm) |
| Antennas |
(1) Internal with directional patterns |
| 6 GHz |
90° x 50° |
| 5 GHz |
100° x 55° |
| 2.4 GHz |
90° x 80° |
| Management |
Ethernet |
| Enclosure Material |
UV-stabilized polycarbonate, aluminum alloy |
| Mount Material |
Stainless steel, aluminum alloy |
| System |
R/G/B |
| NDAA Compliant |
Yes |
| Certifications |
FCC, IC |
| Operating Frequency |
US/CA: 2400 – 2472 MHz U-NII-1: 5150 – 5250 MHz U-NII-2A: 5250 – 5350 MHz U-NII-2C: 5470 – 5725 MHz U-NII-3: 5725 – 5850 MHz U-NII-5 and U-NII-7: 5925 – 6425 MHz, 6525 – 6875 MHz Worldwide: 2400 – 2483.5 MHz 5150 – 5850 MHz 5925 – 7125 MHz |
| Ambient Operating Temperature |
-30 to 60° C (-22 to 140° F) |
| Ambient Operating Humidity |
5 to 95% noncondensing |
軟件要求
| UniFi Network |
Version 9.0.114 and later |
| Mobile App |
iOS™ version 10.20.0 and later Android™ version 10.21.3 and later |
安裝教學

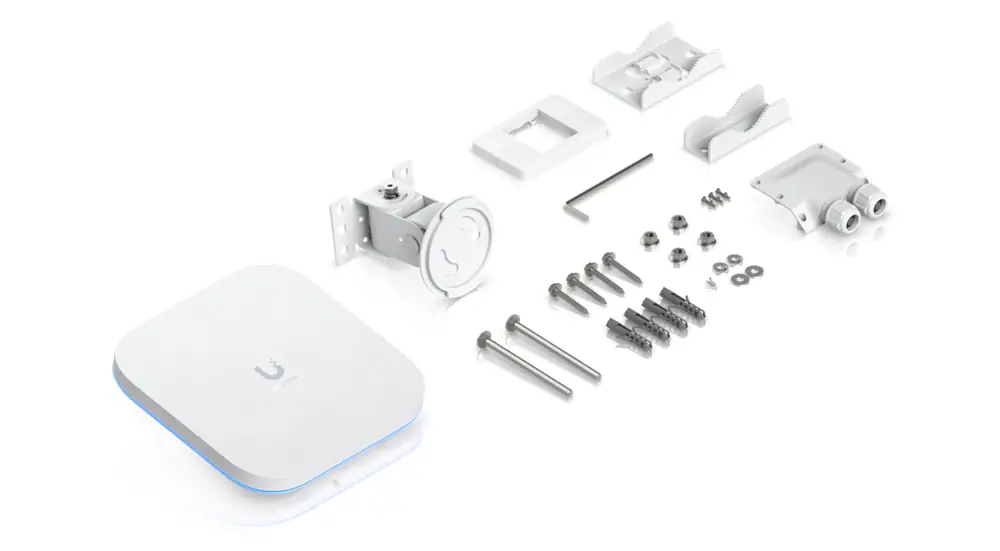

包裝內容
