Ubiquiti UniFi Access Point U6 Extender U6-Extender

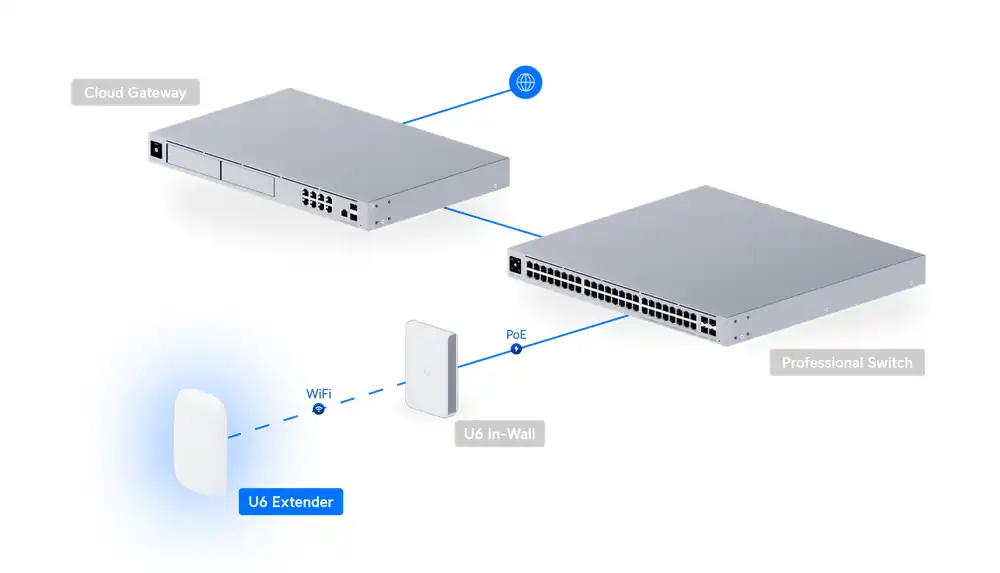

網絡拓撲

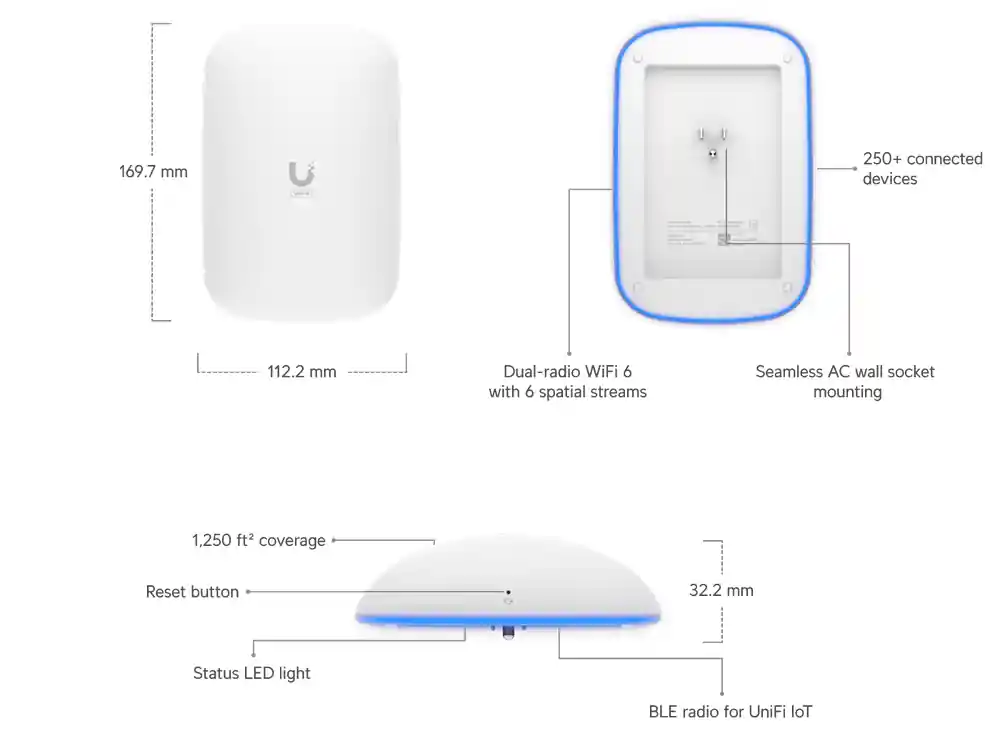

U6-Extender 技術規格
Grid overview
| Max. Client Count |
250 |
| WiFi6 |
WiFi 6 |
總覽
| Dimensions |
US: 169.7 x 112.2 x 32.2 mm (6.7 x 4.4 x 1.3″) EU: 169.7 x 112.2 x 77.6 mm (6.7 x 4.4 x 3.1″) |
| WiFi Standard |
WiFi 6 |
| Spatial Streams |
6 |
| Coverage Area |
115 m² (1,250 ft²) |
| Max. Client Count |
250+ |

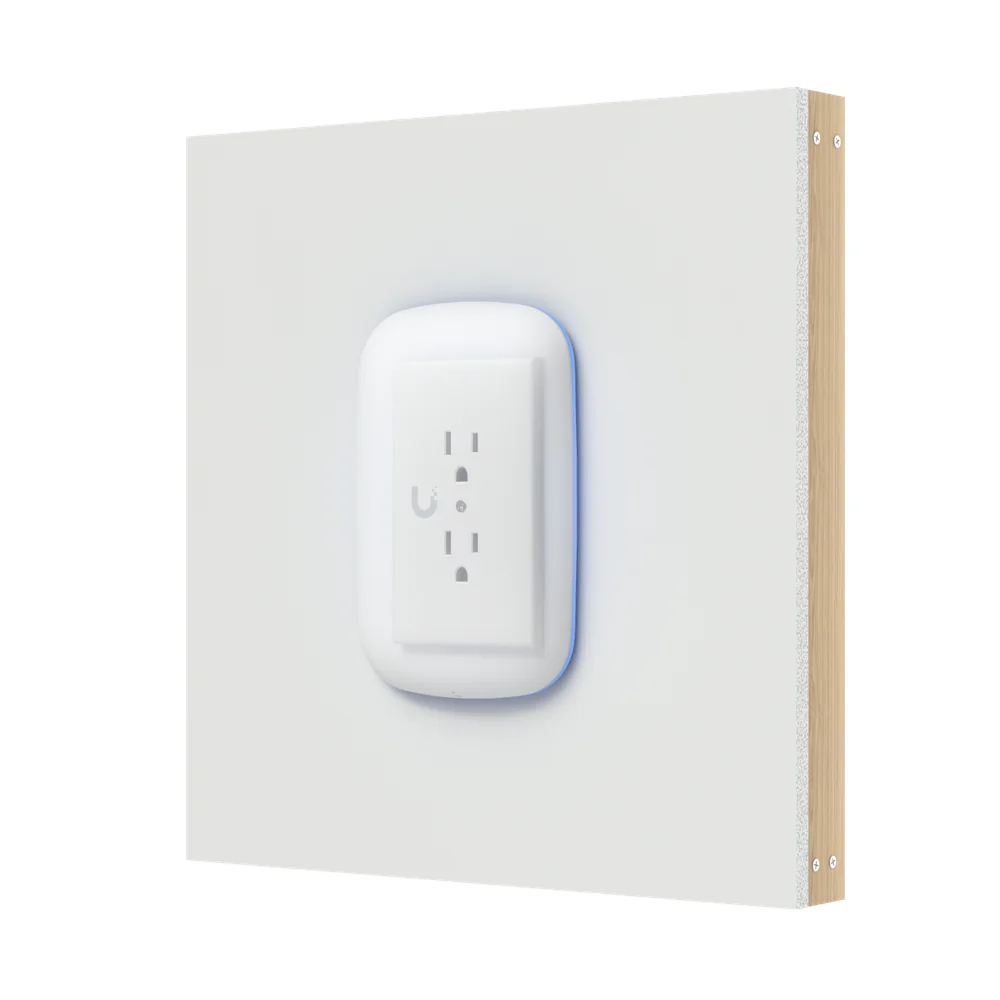

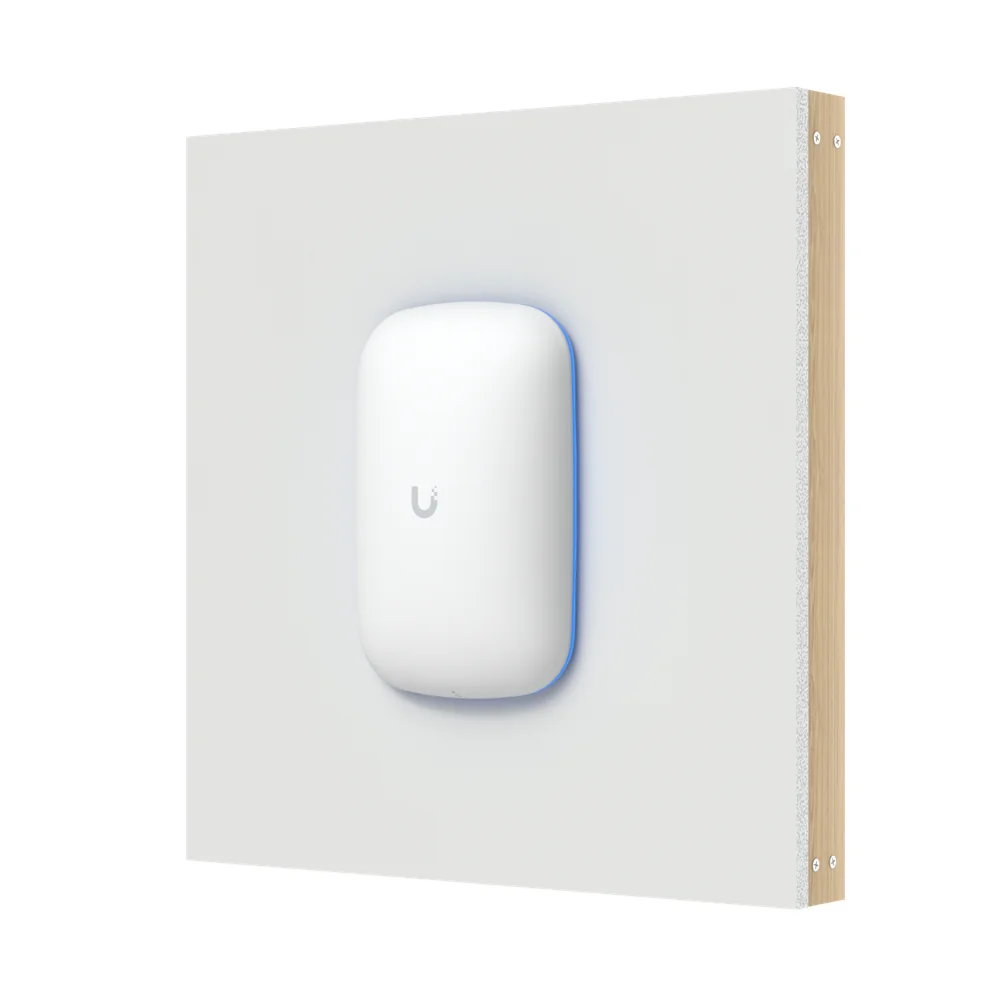

| Mounting |
Wall (Wall Power Socket Included) |
| Power Method |
Universal AC input, 100–240V AC, 0.3A Max., 50/60 Hz |
效能
| 5 GHz |
4 x 4 (DL/UL MU-MIMO) |
| 2.4 GHz |
2 x 2 (DL/UL MU-MIMO) |
| 5 GHz |
4.8 Gbps (BW160) |
| 2.4 GHz |
573.5 Mbps (BW40) |
| 5 GHz |
6 dBi |
| 2.4 GHz |
5 dBi |
| 5 GHz |
26 dBm |
| 2.4 GHz |
22 dBm |
| Max. BSSIDs |
8 per Radio |
| 802.11ax (WiFi 6) |
7.3 Mbps to 4.8 Gbps (MCS0 – MCS11 NSS1/2/3/4, HE 20/40/80/160) |
| 802.11ac (WiFi 5) |
6.5 Mbps to 3.4 Gbps (MCS0 – MCS9 NSS1/2/3/4, VHT 20/40/80/160) |
| 802.11n |
6.5 Mbps to 600 Mbps (MCS0 – MCS31 , HT 20/40) |
Features
| Wireless Meshing |
Yes |
| Band Steering |
Yes |
| 802.11v BSS Transition Management |
Yes |
| 802.11r Fast Roaming |
Yes |
| 802.11k Radio Resource Management (RRM) |
Yes |
| Advanced Radio Management |
Yes |
| Passpoint (Hotspot 2.0) |
Yes |
| Custom Branding Landing Page |
Yes |
| Voucher Authentication |
Yes |
| Payment-Based Authentication |
Yes |
| External Portal Server Support |
Yes |
| Password Authentication |
Yes |
| Guest Network Isolation |
Yes |
| Private Pre-Shared Key (PPSK) |
Yes |
| WiFi Speed Limiting |
Yes |
| Client Device Isolation |
Yes |
| WiFi Schedules |
Yes |
| RADIUS over TLS (RadSec) |
Yes |
| Dynamic RADIUS-assigned VLAN |
Yes |
硬件規格
| Max. Power Consumption |
11W |
| Supported Voltage Range |
110—240V AC |
| Weight |
US: 290 g (10.2 oz) EU: 340 g (12 oz) |
| Management |
Bluetooth |
| Enclosure Material |
Polycarbonate |
| System |
White/Blue |
| Channel Bandwidth |
HT 20/40, VHT 20/40/80/160, HE 20/40/80/160 (MHz) |
| NDAA Compliant |
Yes |
| Certifications |
CE, FCC, IC |
| Operating Frequency |
US/CA: 2400 – 2472 MHz U-NII-1: 5150 – 5250 MHz U-NII-2A: 5250 – 5350 MHz U-NII-2C: 5470 – 5725 MHz U-NII-3: 5725 – 5850 MHz Worldwide: 2400 – 2483.5 MHz 5150 – 5850 MHz |
| Ambient Operating Temperature |
-10 to 50° C (14 to 122° F) |
| Ambient Operating Humidity |
5 to 95% noncondensing |
軟件要求
| UniFi Network |
Version 6.0.45 and later |

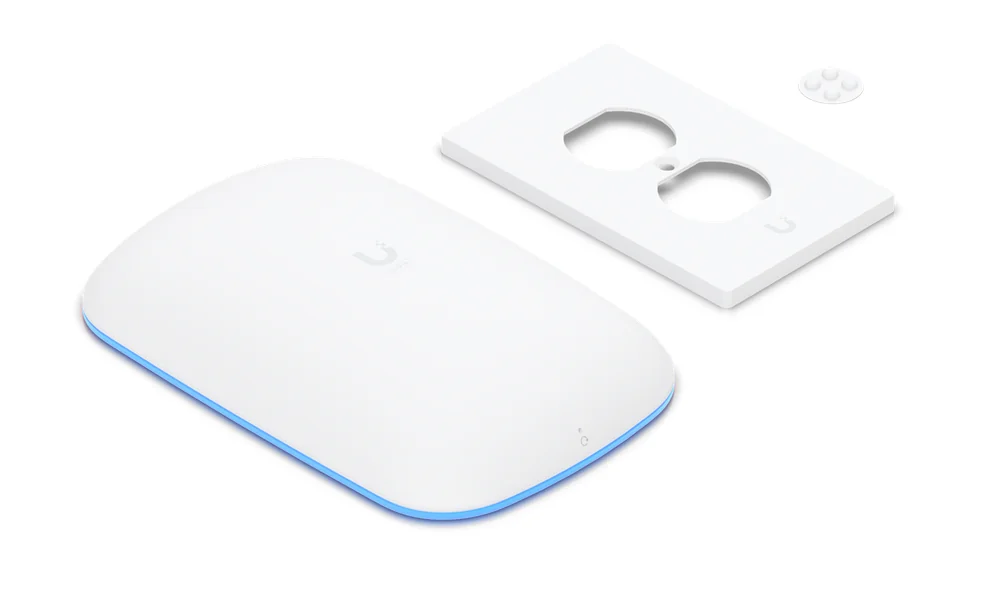

包裝內容
