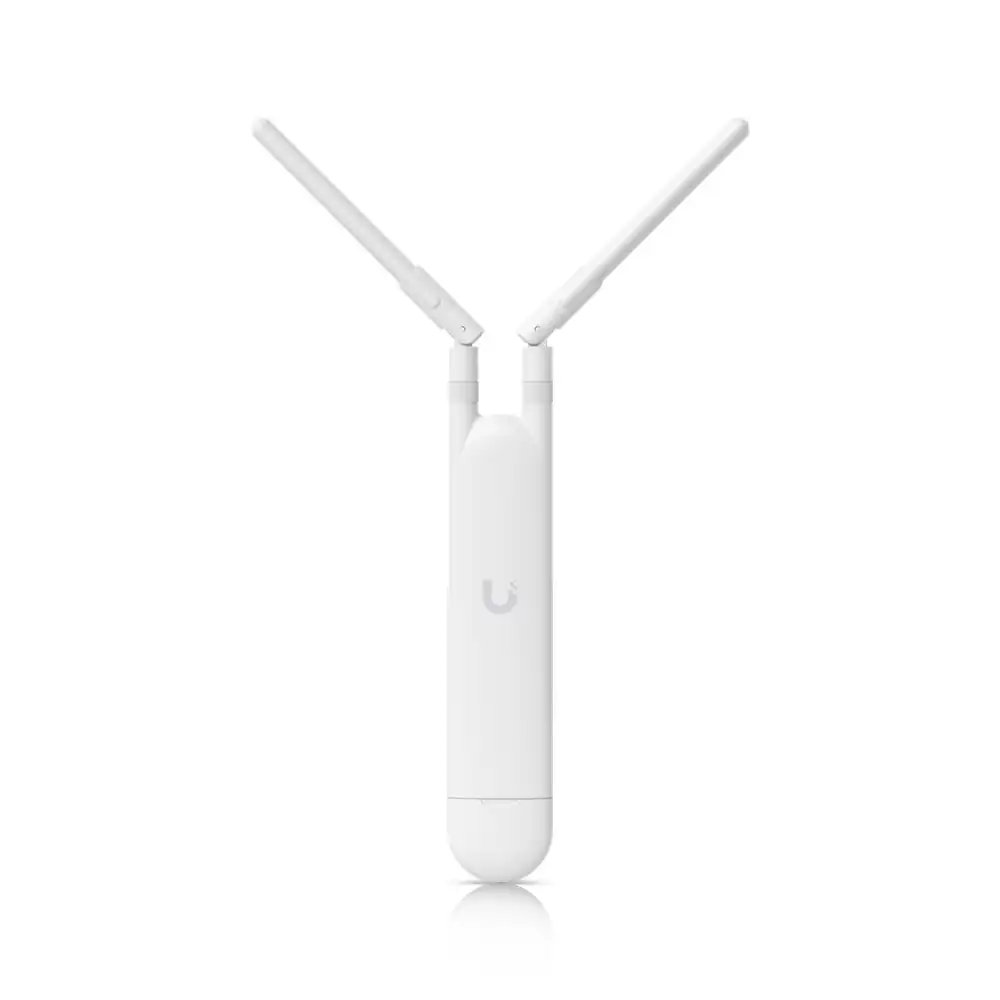

Ubiquiti UniFi Access Point AC Mesh UAP-AC-M

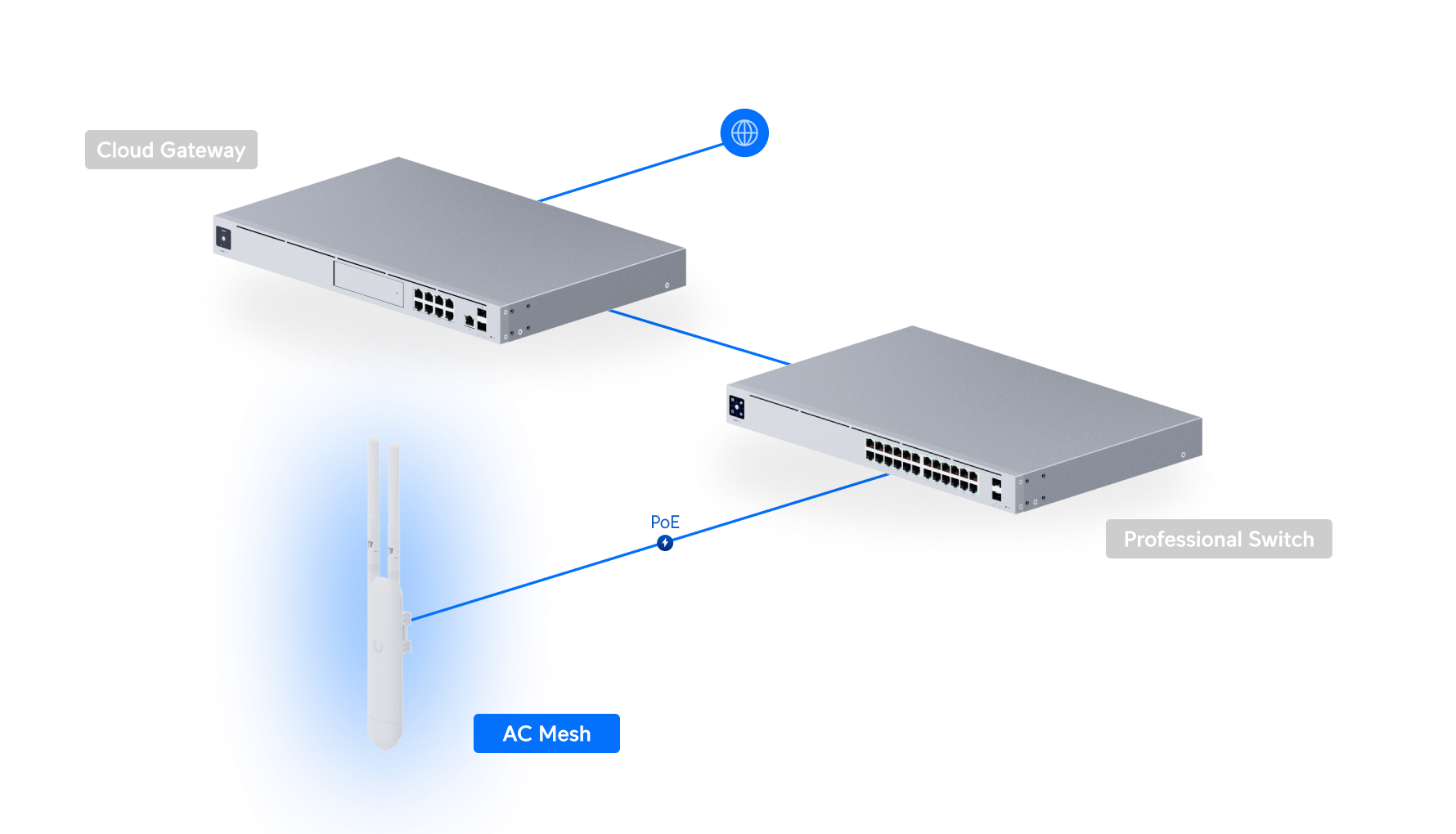

網絡拓撲
UAP-AC-M 技術規格
Grid overview
| Max. Client Count |
250 |
| WiFi5 |
WiFi 5 |
| Radio/Antenna |
Omnidirectional |
| Uplink |
GbE |
總覽
| Dimensions |
353 x 46 x 34.4 mm (13.9 x 1.8 x 1.4″) |
| WiFi Standard |
WiFi 5 |
| Spatial Streams |
4 |
| Coverage Area |
140 m² (1,500 ft²) |
| Max. Client Count |
200+ |
| Uplink |
GbE |
| Mounting |
Wall, Pole (Mounts Included) |
| Weatherproofing |
IPX4 |
| Power Method |
PoE |
效能
| 5 GHz |
2 x 2 (DL MU-MIMO) |
| 2.4 GHz |
2 x 2 (DL MU-MIMO) |
| 5 GHz |
867 Mbps (BW80) |
| 2.4 GHz |
300 Mbps (BW40) |
| 5 GHz |
4 dBi |
| 2.4 GHz |
3 dBi |
| 5 GHz |
20 dBm |
| 2.4 GHz |
20 dBm |
| Max. BSSIDs |
8 per Radio |
| 802.11ac (WiFi 5) |
6.5 Mbps to 867 Mbps (MCS0 – MCS9 NSS1/2, VHT 20/40/80) |
| 802.11n |
6.5 Mbps to 300 Mbps (MCS0 – MCS15, HT 20/40) |
Features
| Wireless Meshing |
Yes |
| Band Steering |
Yes |
| 802.11v BSS Transition Management |
Yes |
| 802.11r Fast Roaming |
Yes |
| 802.11k Radio Resource Management (RRM) |
Yes |
| Advanced Radio Management |
Yes |
| Passpoint (Hotspot 2.0) |
Yes |
| Custom Branding Landing Page |
Yes |
| Voucher Authentication |
Yes |
| Payment-Based Authentication |
Yes |
| External Portal Server Support |
Yes |
| Password Authentication |
Yes |
| Guest Network Isolation |
Yes |
| Private Pre-Shared Key (PPSK) |
Yes |
| WiFi Speed Limiting |
Yes |
| Client Device Isolation |
Yes |
| WiFi Schedules |
Yes |
| RADIUS over TLS (RadSec) |
Yes |
| Dynamic RADIUS-assigned VLAN |
Yes |
硬件規格
| Max. Power Consumption |
8.5W |
| Includes PoE Adapter |
Yes |
| Supported Voltage Range |
44–57V DC |
| Networking Interface |
(1) GbE RJ45 port |
| Weight |
152 g (5.4 oz) |
| Pole Mount Diameter |
1–3″ (25–76 mm) |
| Management |
Ethernet Bluetooth |
| Enclosure Material |
Polycarbonate |
| Channel Bandwidth |
HT 20/40, VHT 20/40/80 (MHz) |
| NDAA Compliant |
Yes |
| Certifications |
CE, FCC, IC, UKCA, Anatel: 01769-18-08356 |
| Operating Frequency |
US/CA: 2400 – 2472 MHz U-NII-1: 5150 – 5250 MHz U-NII-2A: 5250 – 5350 MHz U-NII-2C: 5470 – 5725 MHz U-NII-3: 5725 – 5850 MHz Worldwide: 2400 – 2483.5 MHz 5150 – 5850 MHz |
| Ambient Operating Temperature |
-30 to 70° C (-22 to 158° F) |
| Ambient Operating Humidity |
5 to 95% noncondensing |
軟件要求
| UniFi Network |
Version 6.0.45 and later |
