Ubiquiti UniFi Access Retrofit Hub UA-Retrofit-Hub-2

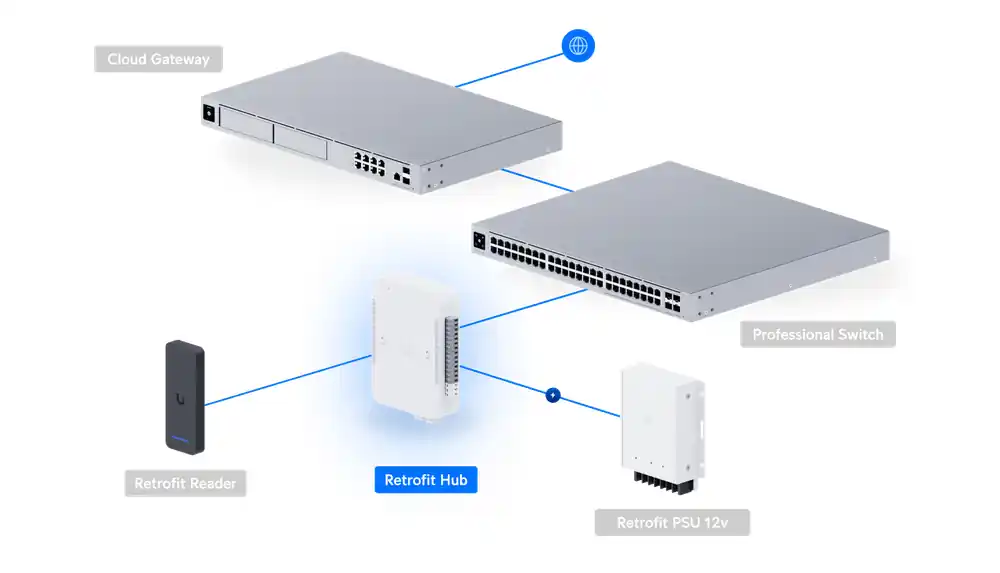

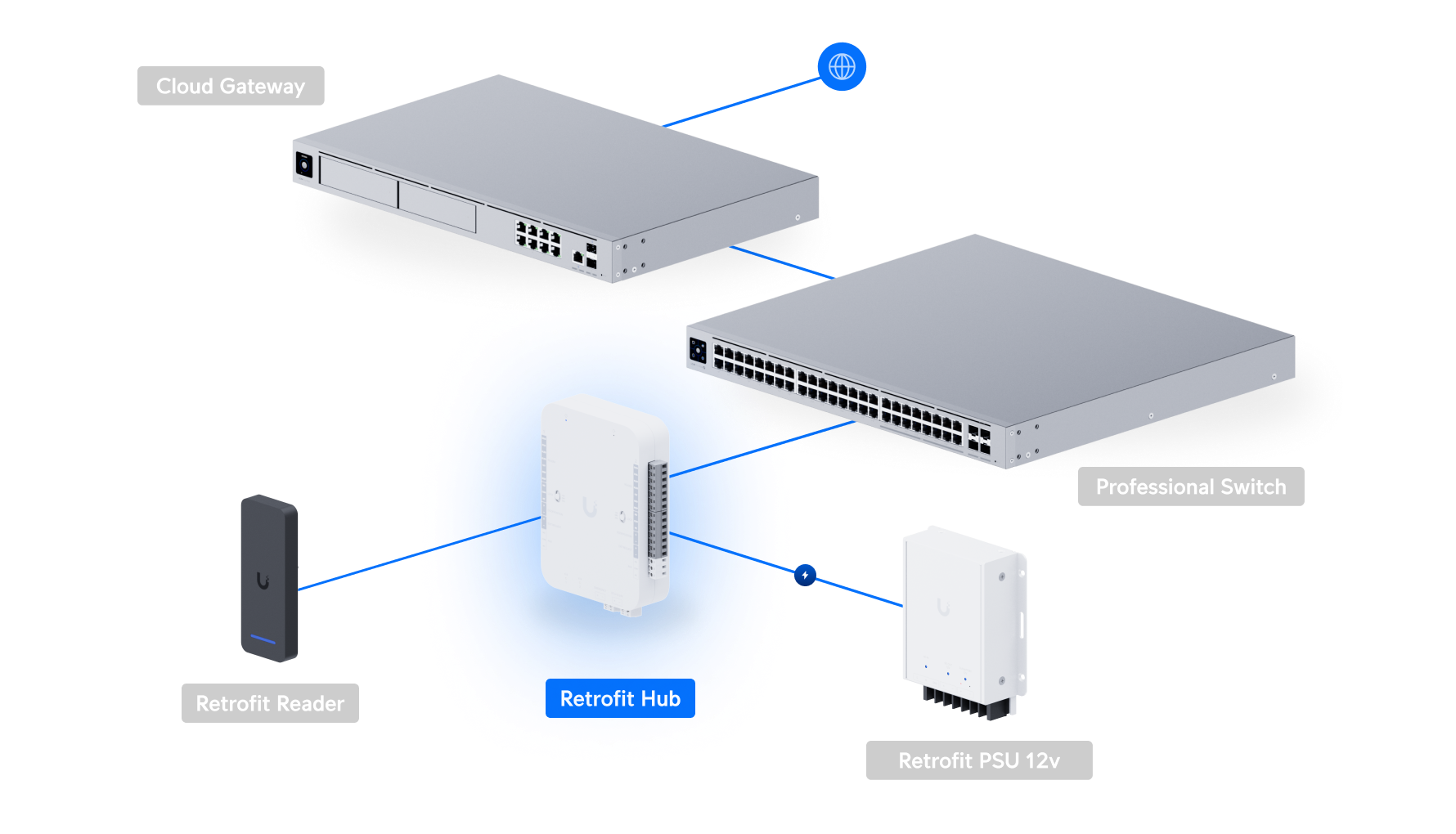

網絡拓撲

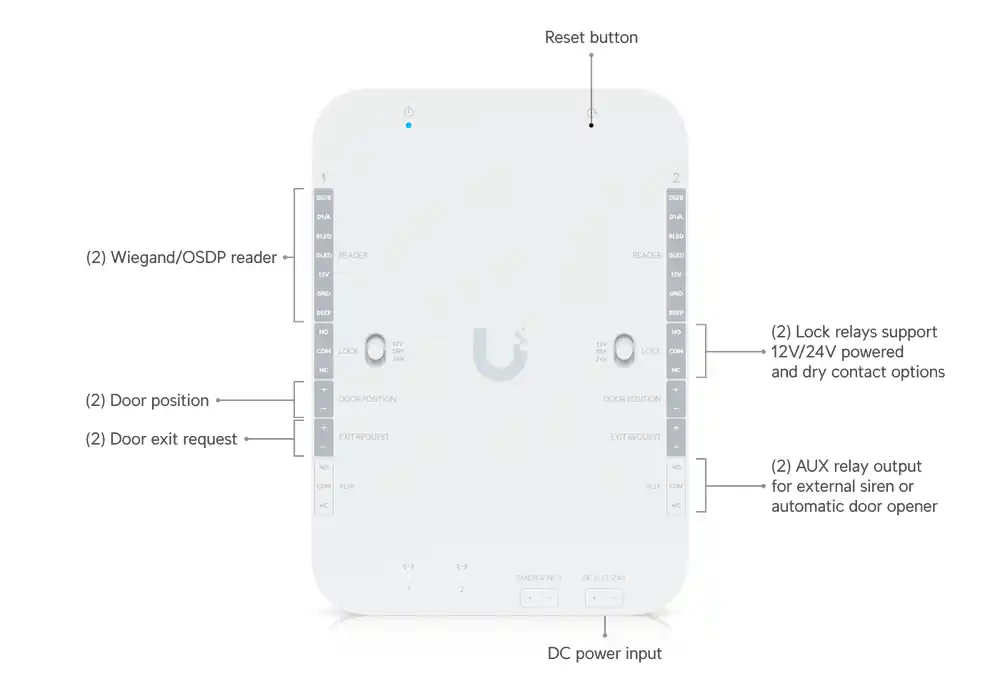

UA-Retrofit-Hub-2 技術規格
Grid overview
| Additional Inputs |
2 Additional Inputs |
| Lock Terminals |
2 Lock Terminals |
| AUX Terminals |
2 AUX Terminals |
總覽
| Dimensions |
140 x 120 x 45 mm (5.5 x 4.7 x 1.8″) |
| Supported Doors |
2 |
| Maximum User Count |
10,000 |
| Input Terminals |
(2) Third-party Wiegand Reader / UniFi Retrofit Reader (2) Door exit request (2) Door position (1) Emergency |
| Power Method |
12/24V DC |
| NDAA Compliant |
Yes |
Mechanical
| Weight |
420 g (14.8 oz) |
| Enclosure Material |
Polycarbonate |
| Mount Material |
SGCC steel |
| Mounting |
Din-rail (Included) |
硬件規格
| Digital Input |
(2) Third-party Wiegand Reader / UniFi Retrofit Reader (2) Door exit request (2) Door position (1) Emergency |
| Dry Output Relay |
Lock: rated 30V DC, up to 1A Aux: rated 30V DC, up to 1A |
| Powered Output Relay |
12V Lock: 12V DC, up to 1A 24V Lock: 24V DC, up to 0.5A |
| Indoor and Outdoor Use |
Indoor only |
| Ambient Operating Temperature |
-10 to 40° C (14 to 104° F) |
| Ambient Operating Humidity |
5 to 90% noncondensing |
| Networking Interface |
(2) 10/100 MbE RJ45 ports |
| Power Supply |
DC 12/24V |
| Max. Power Consumption |
50W |
| LEDs |
W/B Learn More |
| Buttons |
(1) Factory reset (2) 12V/Dry/24V switch |
| UA-Retrofit-Reader (250mA) |
18 UACC-Cable-DoorLockRelay length: 152.4 m (500 ft) |
| UA-Lock-Magnetic-540kg (500mA) |
24 AWG length: 20 m (66 ft) 22 AWG length: 32 m (105 ft) 20 AWG length: 51 m (167 ft) 18 UACC-Cable-DoorLockRelay length: 80 m (262 ft) |
| UA-Lock-Magnetic-270kg (800mA) |
24 AWG length: 12 m (29 ft) 22 AWG length: 20 m (98 ft) 20 AWG length: 30 m (167 ft) 18 UACC-Cable-DoorLockRelay length: 46 m (151 ft) |
| Certifications |
CE, FCC, IC |
軟件要求
| Management Application |
Access |
| Software Information |
The software version can be checked at https://unifi.ui.com |

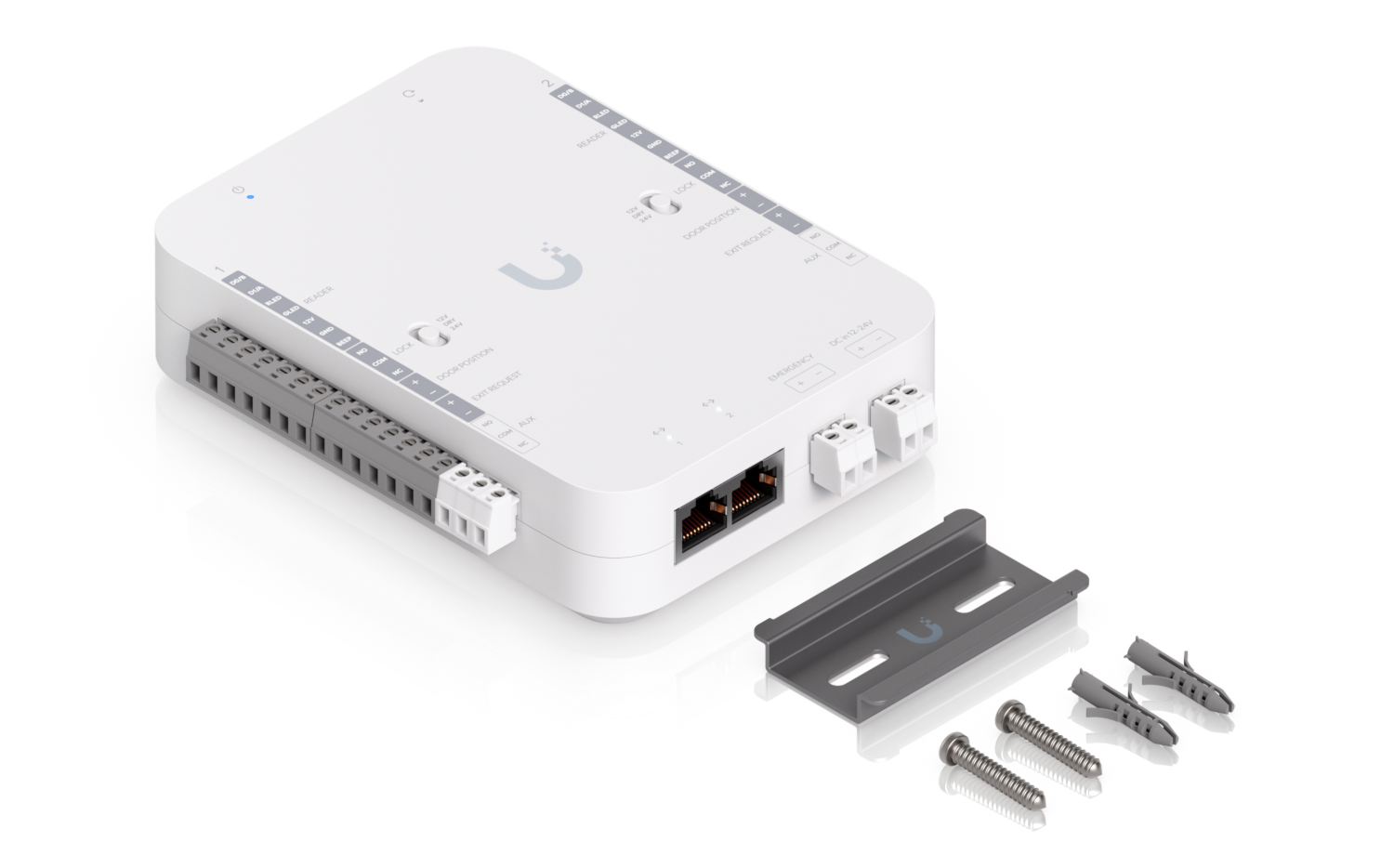

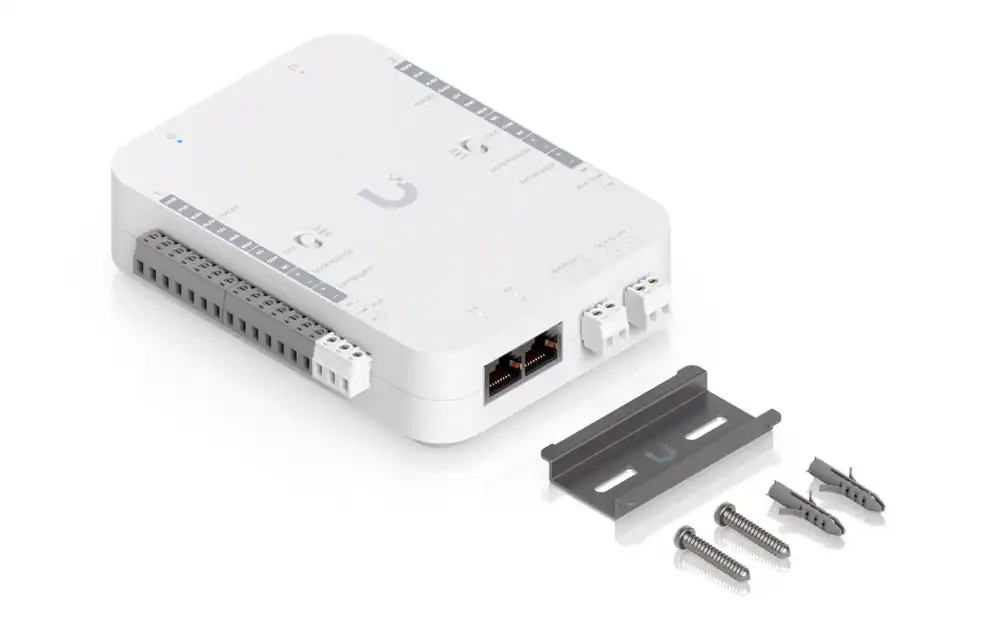

包裝內容
產品資源
Ubiquiti 官方產品頁面 | 快速安裝指南 (QIG)
