Ubiquiti UniFi Access Retrofit Reader UA-Retrofit-Reader

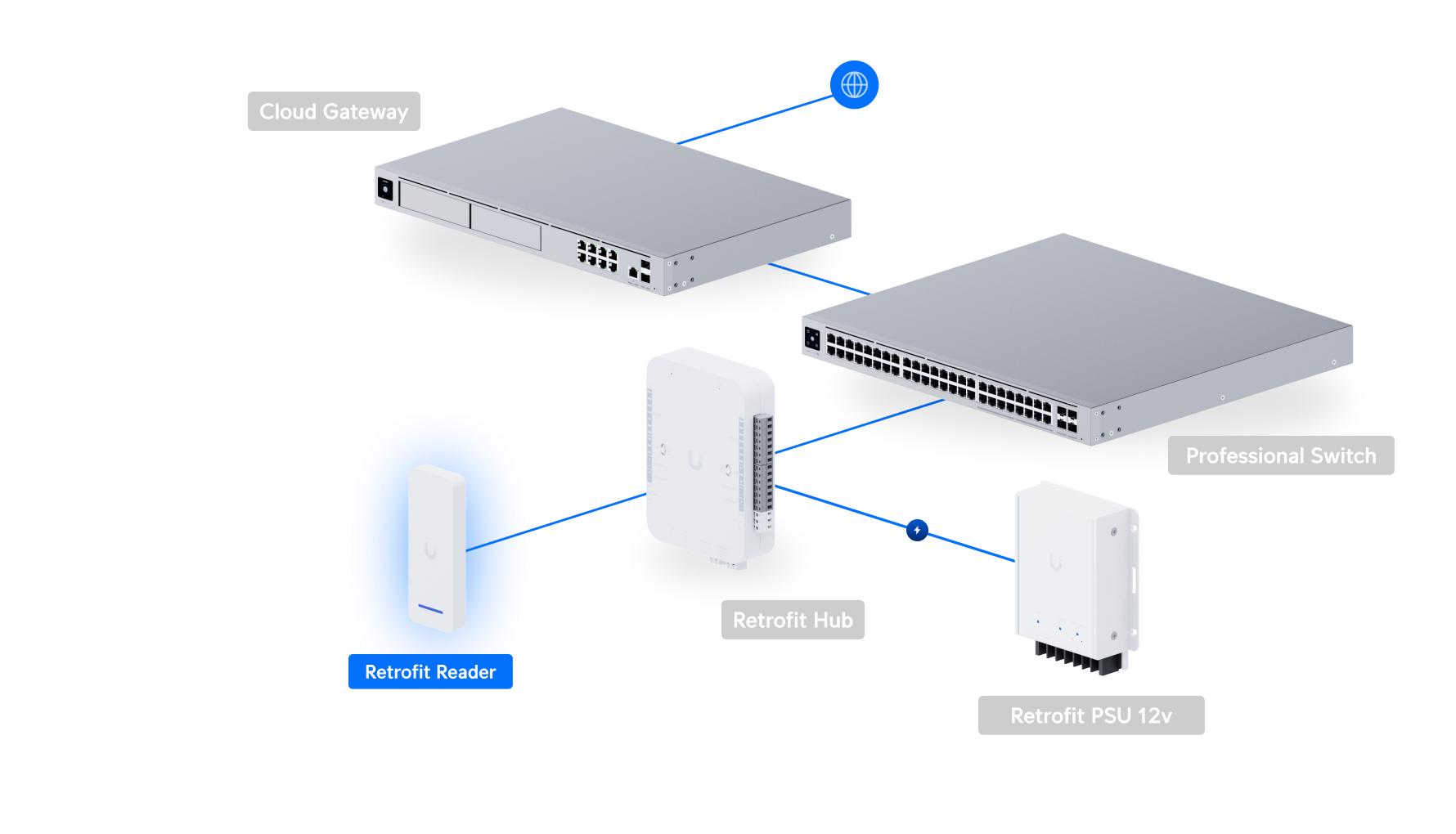

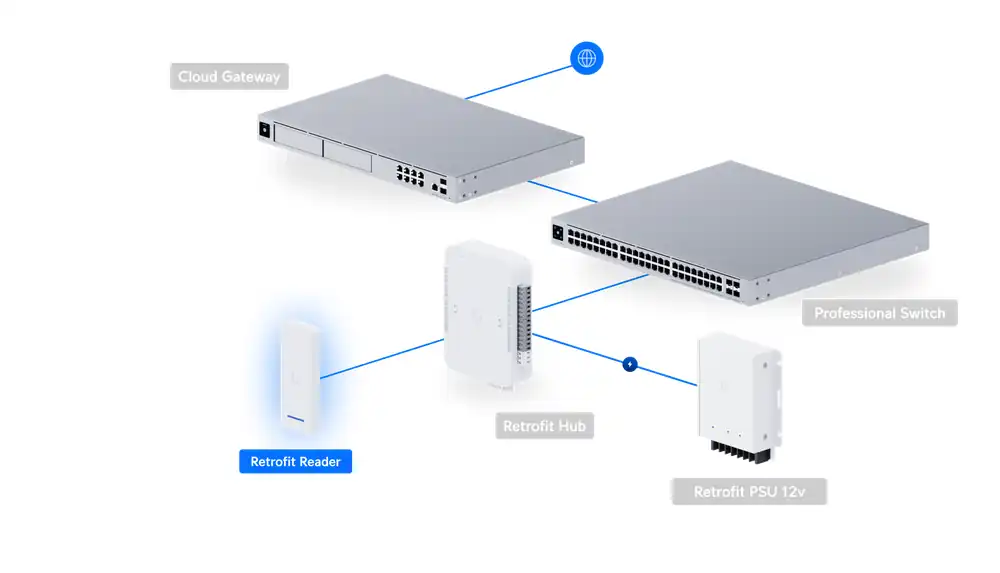

網絡拓撲

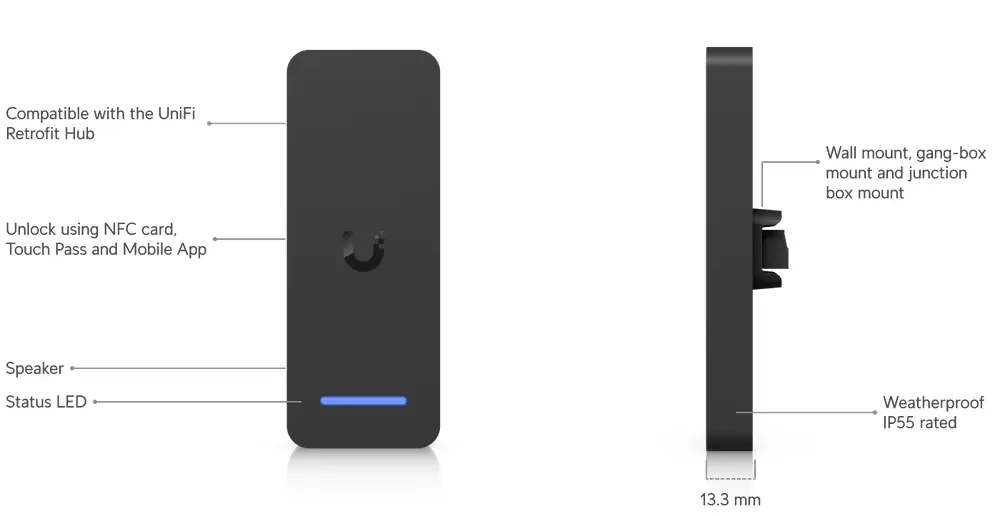

UA-Retrofit-Reader 技術規格
Grid overview
| Apple |
Touch Pass |
| NFC |
NFC |
| Weatherproof |
Outdoor Exposed |
總覽
| Dimensions |
117 x 45 x 13.3 mm (4.6 x 1.8 x 0.5″) |
| NFC Card & Keyfob Access |
Yes |
| Apple/Google Wallet |
Yes |
| Mobile Unlock |
Yes |
| NDAA Compliant |
Yes |
| Weatherproofing |
IP55 |
Mechanical
| Weight |
82 g (2.9 oz) |
| Enclosure Material |
Polycarbonate, aluminum alloy |
| Mount Material |
Stainless steel |
| Mounting |
Wall, gang-box mount (Included) Junction box (Optional) |
硬件規格
| Indoor and Outdoor Use |
Yes |
| Connectivity |
RS-485 BLE 4.1 NFC |
| Security |
OSDP v2 |
| Power Method |
DC 12V |
| Max. Power Consumption |
2.5W |
| Supported Voltage Range |
12V DC |
| ESD/EMP Protection |
Air: ± 15kV, contact: ± 8kV |
| Speaker |
Yes |
| LEDs |
R/G/B/W Learn More |
| Button |
(1) Factory reset |
| NFC Frequency |
13.56 MHz |
| NFC Read Range |
< 30 mm (1.18'') |
| NFC Technology |
ISO 14443A, 14443B, 15693 NFC Tag 1,2,3,4,5 MIFARE Classic MIFARE Plus MIFARE Ultralight MIFARE DESFire |
| Certifications |
CE, FCC, IC |
| Ambient Operating Temperature |
-30 to 50° C (-22 to 122° F) |
| Ambient Operating Humidity |
5 to 90% noncondensing |
軟件要求
| Management Application |
Access |
| Software Information |
The software version can be checked at https://unifi.ui.com |

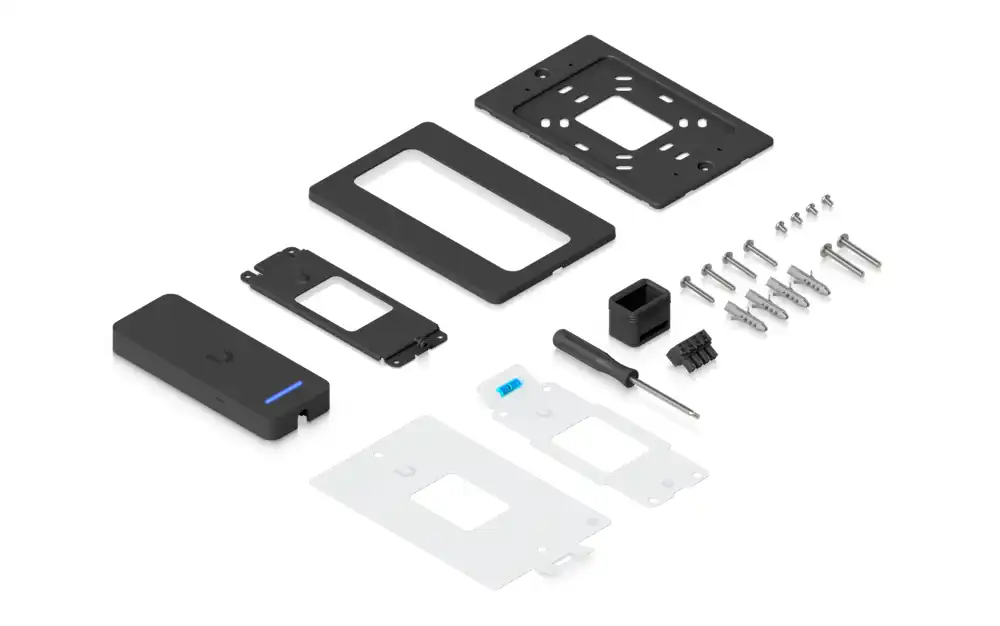

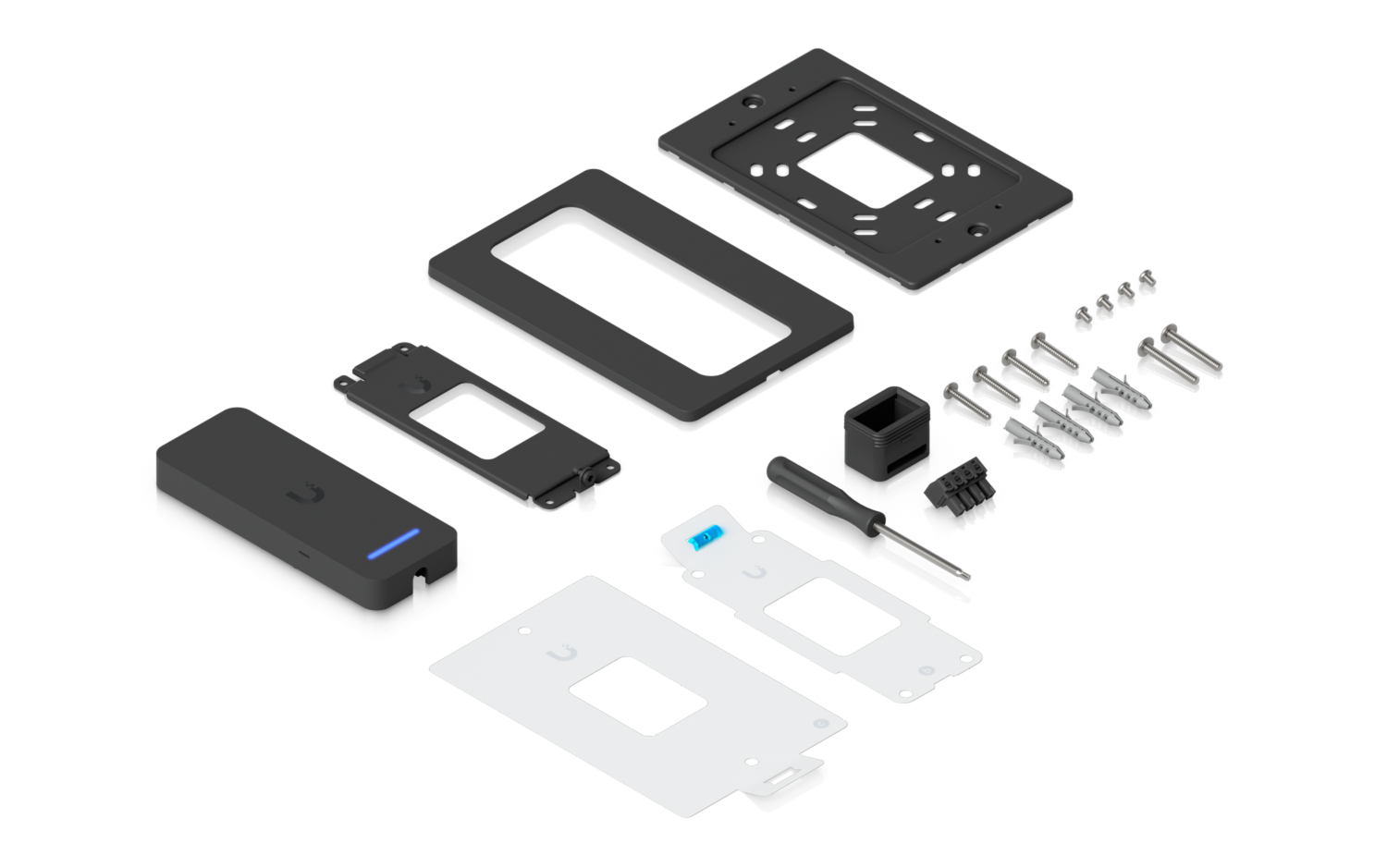

包裝內容
