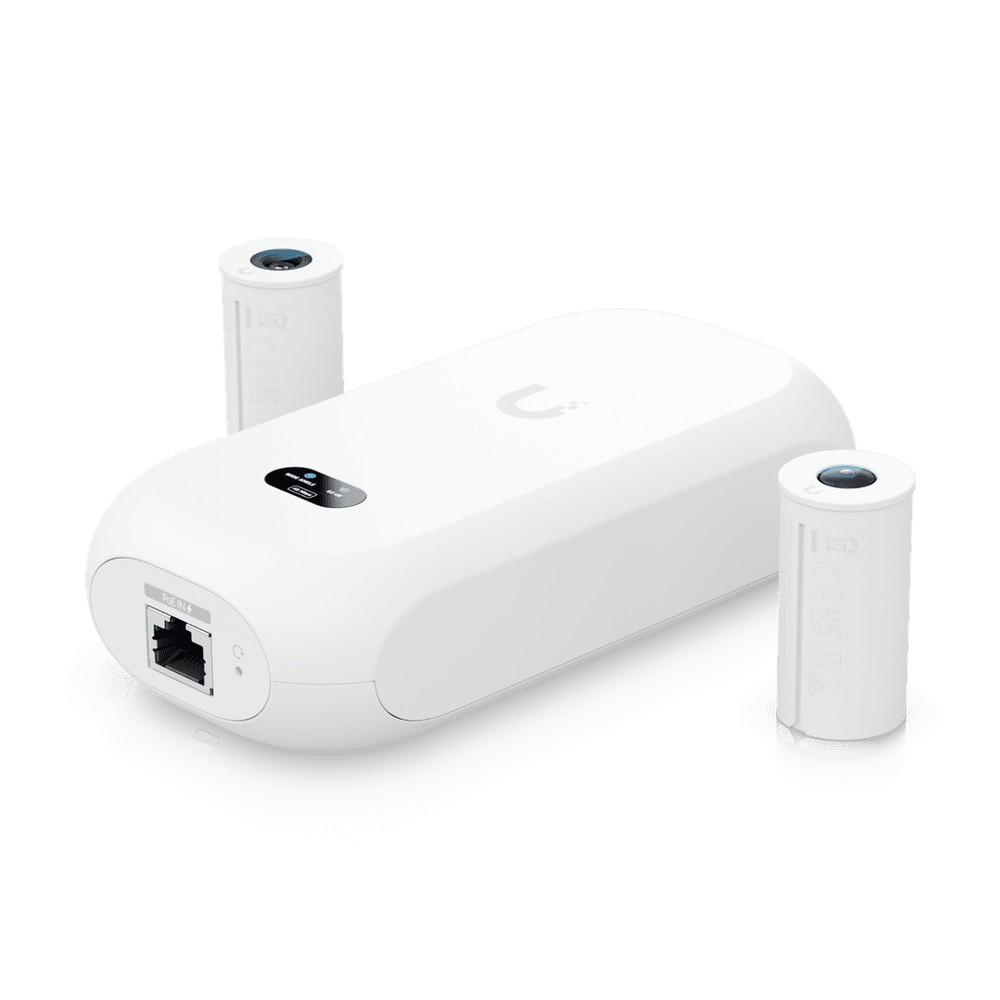

Ubiquiti UniFi Camera AI Theta Pro UVC-AI-Theta

Ubiquiti UniFi Camera AI Theta Pro UVC-AI-Theta

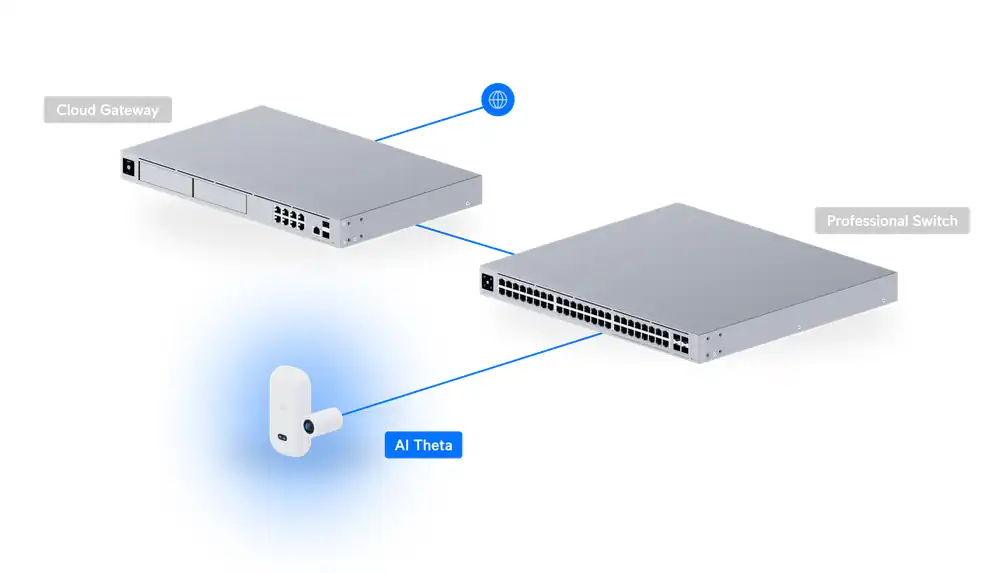

網絡拓撲

UVC-AI-Theta 技術規格

Grid overview

AI	Enhanced AI
Footprint	Compact
Kit	Hub + 2 Lens
Lens	4K
View Angle	180°/97.5° Horizontal

總覽

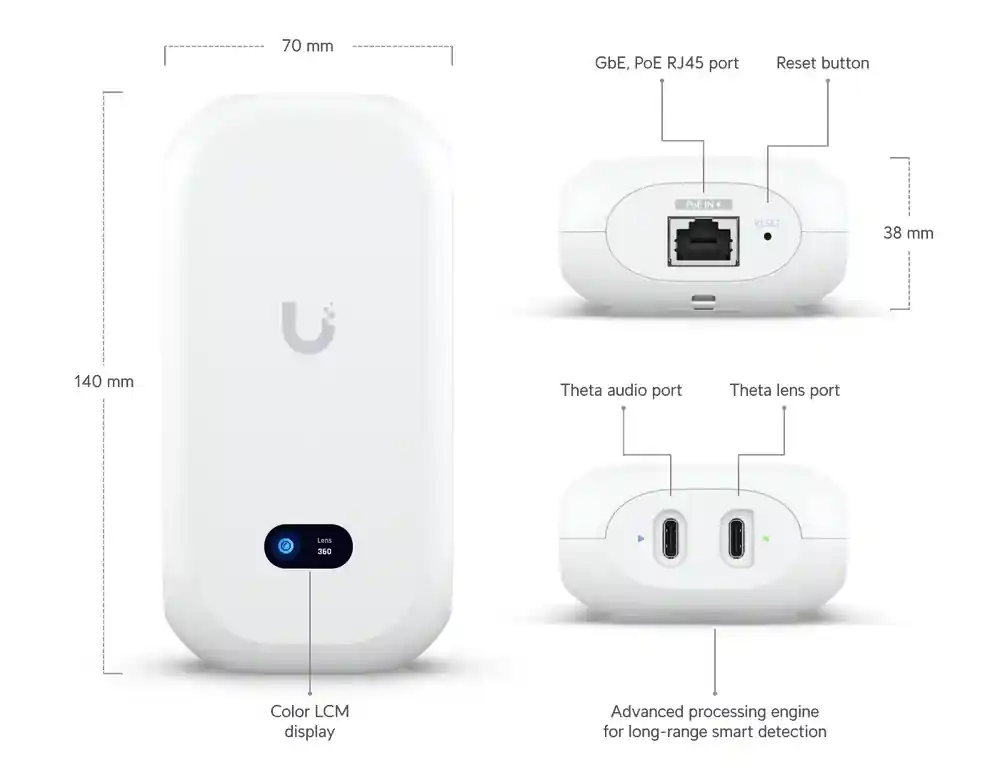

Dimensions	UVC-AI-Theta-Hub: 140 x 70 x 38 mm (5.5 x 2.8 x 1.5”) UVC-AI-Theta-Lens/360: ⌀22.8. x 43.5 mm (⌀0.9 x 1.7”)
Face Recognition	Yes
License Plate Recognition	Yes
Smart Detections (People, Vehicles, Animals)	Yes
Resolution	4k
Field of View	H: 97.5°, V: 79.4°, D: 118.2°
Audio	Two-way audio with optional AI Theta Audio
Mounting	Wall, ceiling, flush mount (Included) Angle mount (Optional)

效能

Networking Interface	GbE RJ45 port
Image Settings	Color, brightness, sharpness, contrast, white balance, exposure control, 2DNR, 3DNR, NR by motion, masking, text overlay
Max. Frame Rate	UVC-AI-Theta-Lens: 24 FPS UVC-AI-Theta-Lens-360: 20 FPS
Resolution	UVC-AI-Theta-Lens: 8MP 3264 x 2448 (4:3) UVC-AI-Theta-Lens-360: 6MP 2560 x 2560 (1:1)
Sensor	UVC-AI-Theta-Lens: 8MP CMOS UVC-AI-Theta-Lens-360: 12MP CMOS
Lens	Fixed focal length

硬件規格

Max. Power Consumption	12.5W
Supported Voltage Range	37—57V DC
Power Method	PoE
Processor	Quad-core Arm® Cortex®-A53 based chip
Weight	UVC-AI-Theta-Hub: 330 g (11.6 oz) UVC-AI-Theta-Hub mount: 35 g (1.2 oz) UVC-AI-Theta-Lens/360: 15 g (0.5 oz) UVC-AI-Theta-Lens/360 Flush mount: 12 g (0.4 oz)
Enclosure Material	UVC-AI-Theta-Hub: aluminum alloy UVC-AI-Theta-Lens/360: aluminum alloy, polycarbonate UVC-AI-Theta-Lens/360 Flush mount: polycarbonate
Mount Material	UVC-AI-Theta-Hub: aluminum alloy UVC-AI-Theta-Lens/360: aluminum alloy, polycarbonate UVC-AI-Theta-Lens/360 Flush mount: polycarbonate
Button	(1) Factory reset
Ambient Operating Temperature	-20 to 40° C (-4 to 104° F)
Ambient Operating Humidity	10 to 90% noncondensing
NDAA Compliant	Yes
Certifications	CE, FCC, IC

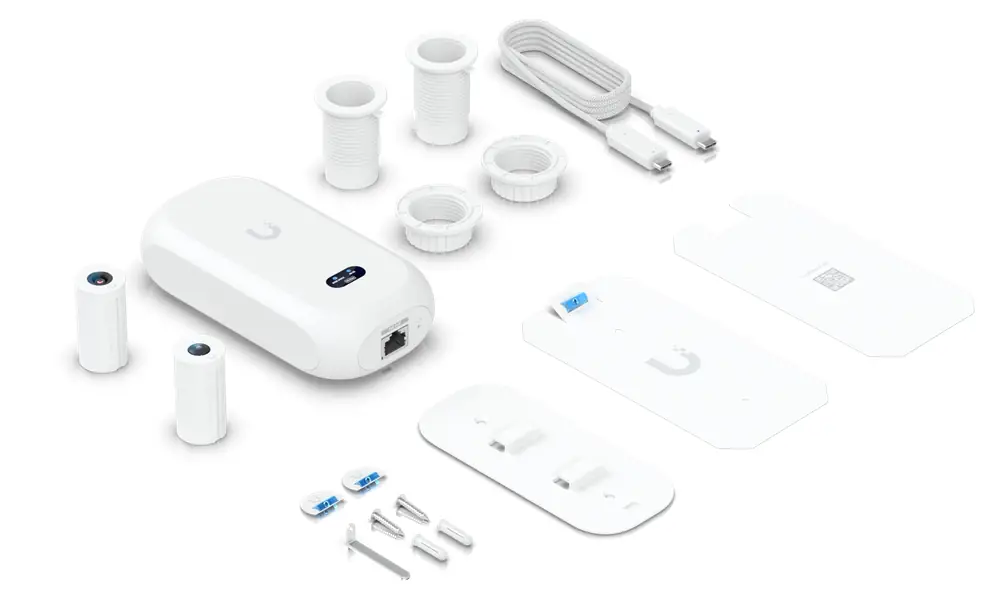

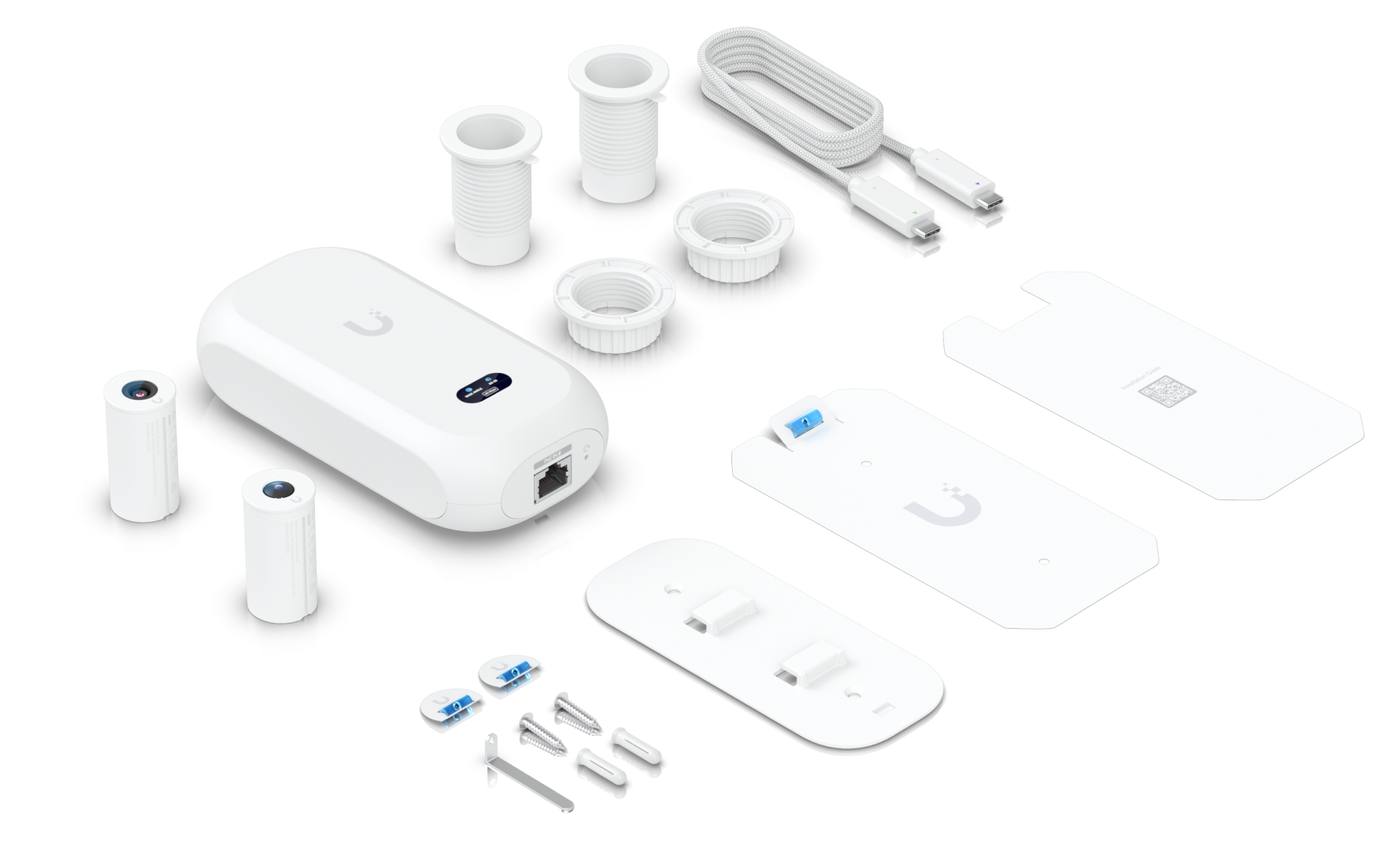

包裝內容

產品資源

Ubiquiti 官方產品頁面　|　快速安裝指南 (QIG)
