Ubiquiti UniFi AirWire U-AirWire

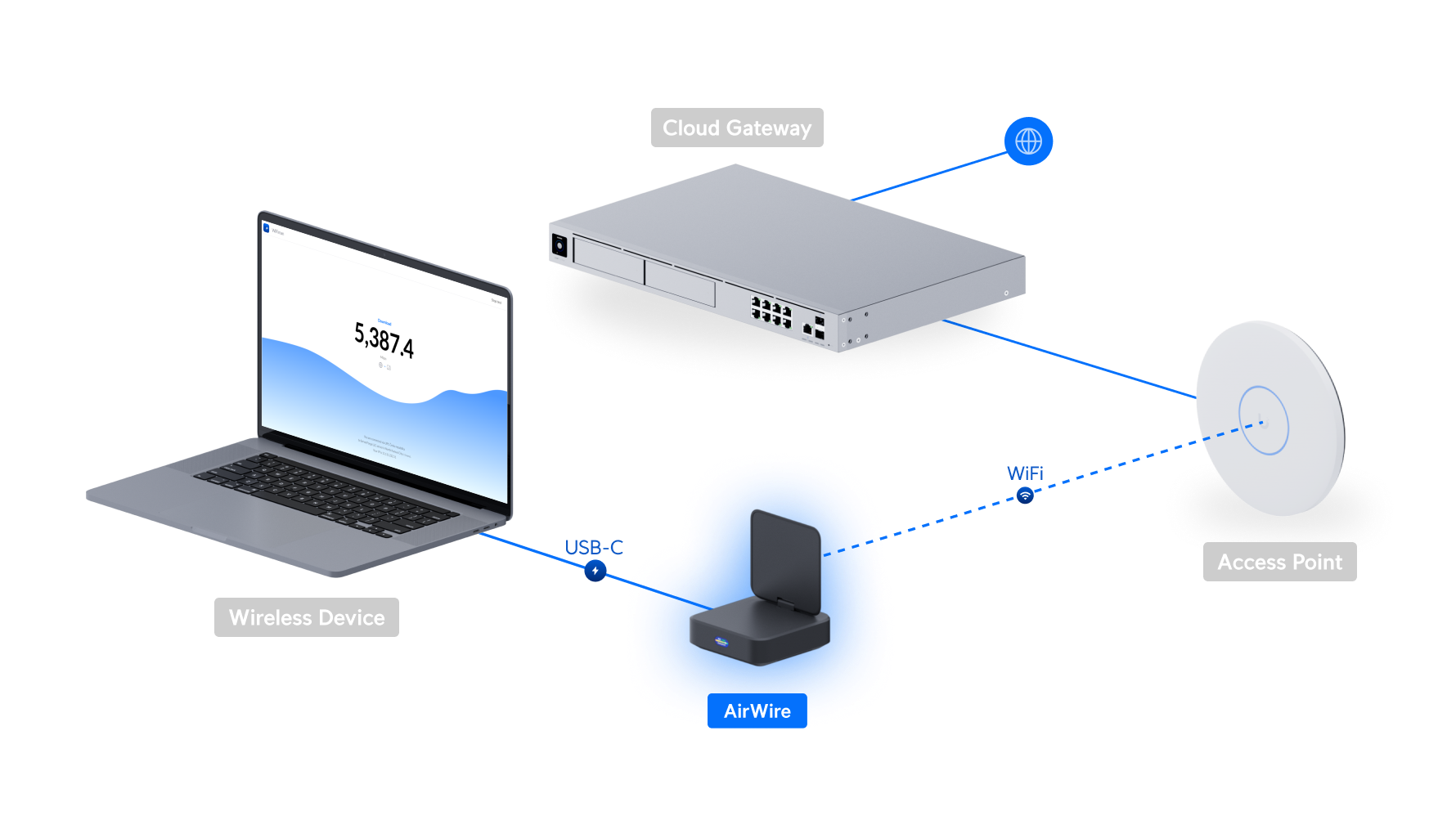

網絡拓撲
U-AirWire 技術規格
Grid overview
總覽
| Dimensions |
117 x 117 x 42.5 mm (4.6 x 4.6 x 1.7″) |
| WiFi Standard |
WiFi 7 |
| Spatial Streams |
4 |
| Uplink |
WiFi |
效能
| 6 GHz |
2 x 2 (DL/UL MU-MIMO) |
| 5 GHz |
2 x 2 (DL/UL MU-MIMO) |
| 6 GHz |
5.8 Gbps (BW320) |
| 5 GHz |
4.3 Gbps (BW240) |
| 6 GHz |
11 dBi |
| 5 GHz |
11 dBi |
| 6 GHz |
20 dBm |
| 5 GHz |
25 dBm |
| 802.11be (WiFi 7) |
7.3 Mbps to 5.8 Gbps (MCS0 – MCS13 NSS1/2, EHT 20/40/80/160/320) |
| 802.11ax (WiFi 6) |
7.3 Mbps to 2.4 Gbps (MCS0 – MCS11 NSS1/2, HE 20/40/80/160) |
| 802.11ac (WiFi 5) |
6.5 Mbps to 1.7Gbps (MCS0 – MCS9 NSS1/2, VHT 20/40/80/160) |
| 802.11n |
6.5 Mbps to 300 Mbps (MCS0 – MCS15, HT 20/40) |
Features
| Wireless Meshing |
Yes |
| Real-Time Spectral Analysis |
Yes |
硬件規格
| Max. Power Consumption |
18W |
| Power Supply |
USB PD 5/9/12V, 15W (Normal mode) USB PD 5/9/12V, 20W (Performance mode) |
| Networking Interface |
(1) 5 GbE port (USB3.2 Gen2) |
| Weight |
537 g (1.2 lb) |
| Management |
USB-C |
| Enclosure Material |
Polycarbonate |
| Display |
0.96″ status display |
| Channel Bandwidth |
HT 20/40, VHT 20/40/80/160, HE 20/40/80/160, EHT 20/40/80/160/240/320 (MHz) |
| NDAA Compliant |
Yes |
| Certifications |
CE, FCC, IC |
| Ambient Operating Temperature |
-10 to 40° C (14 to 104° F) |
| Ambient Operating Humidity |
5 to 95% noncondensing |

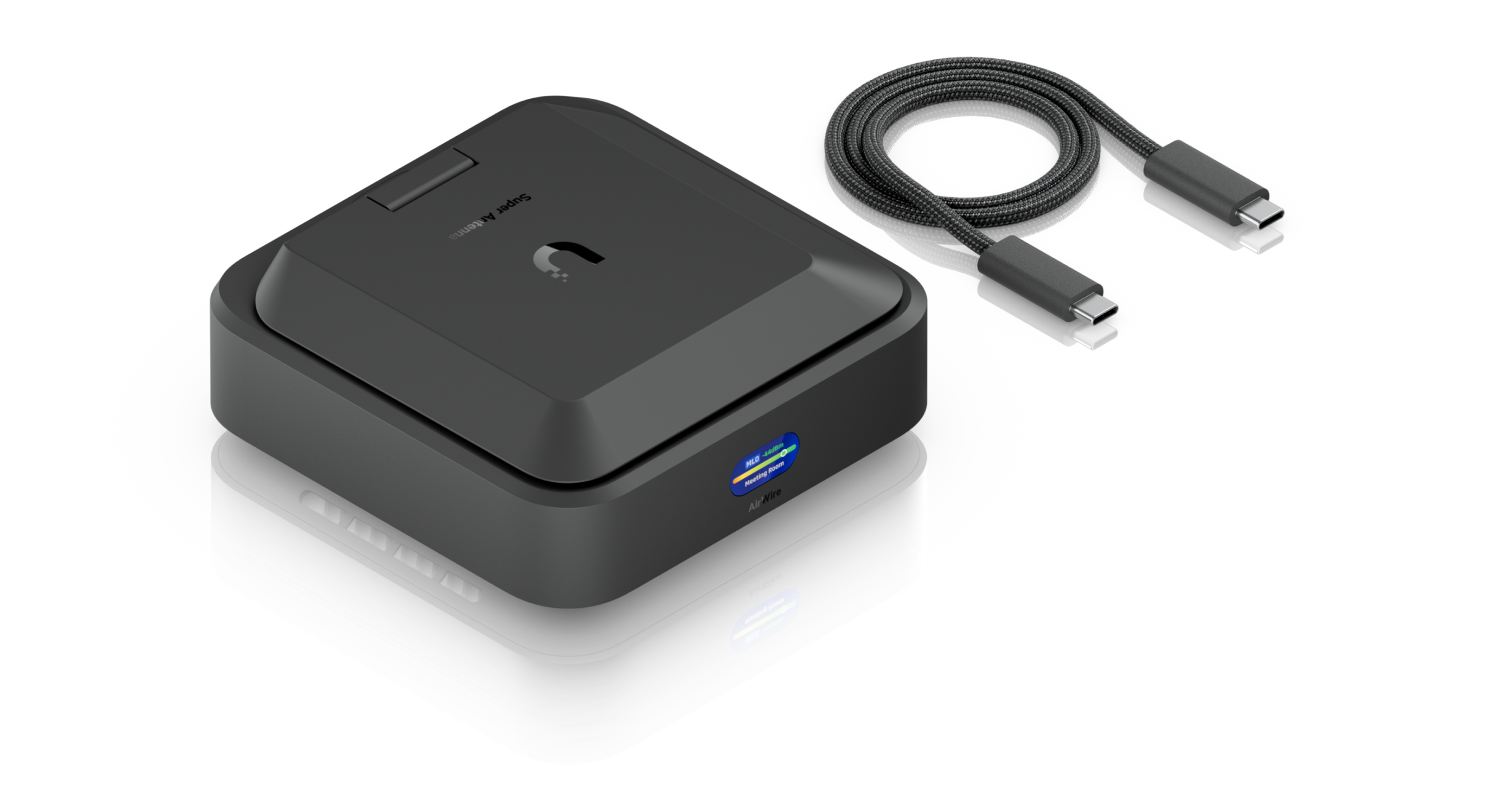

包裝內容
產品資源
Ubiquiti 官方產品頁面 | 快速安裝指南 (QIG)
