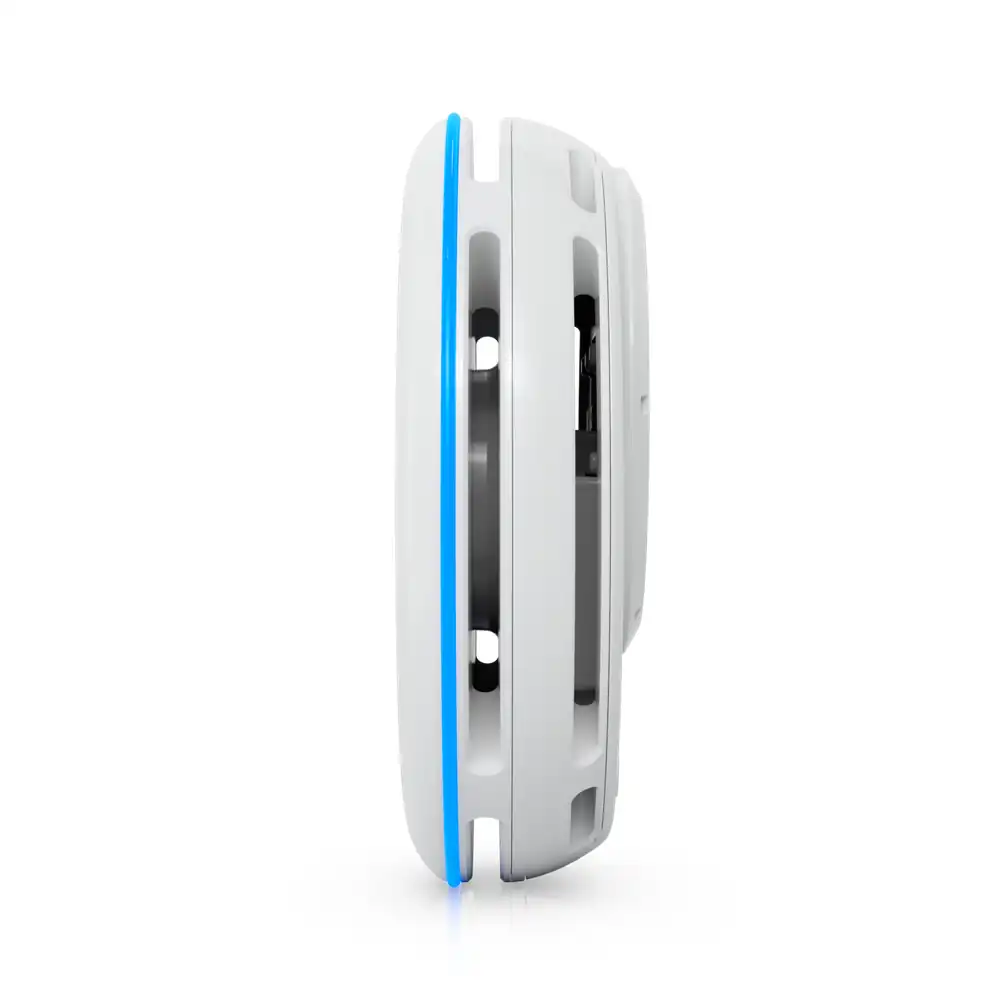

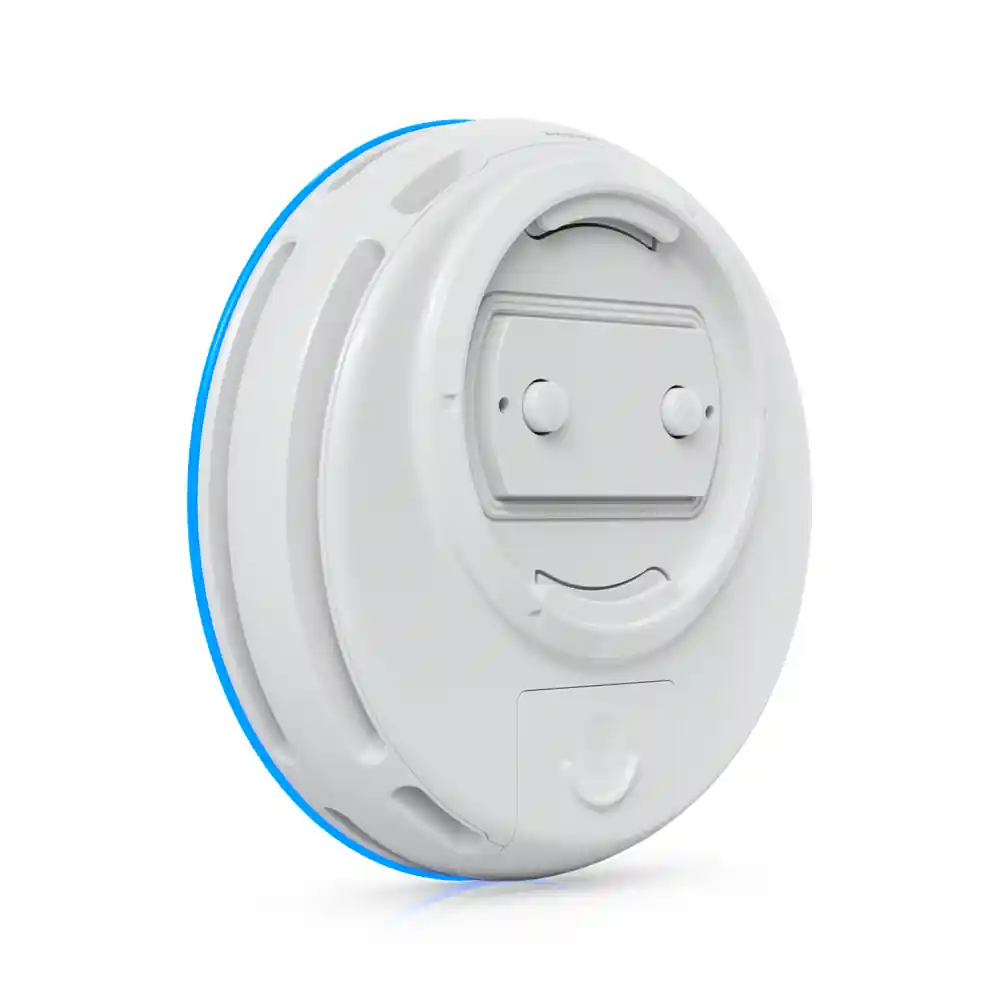

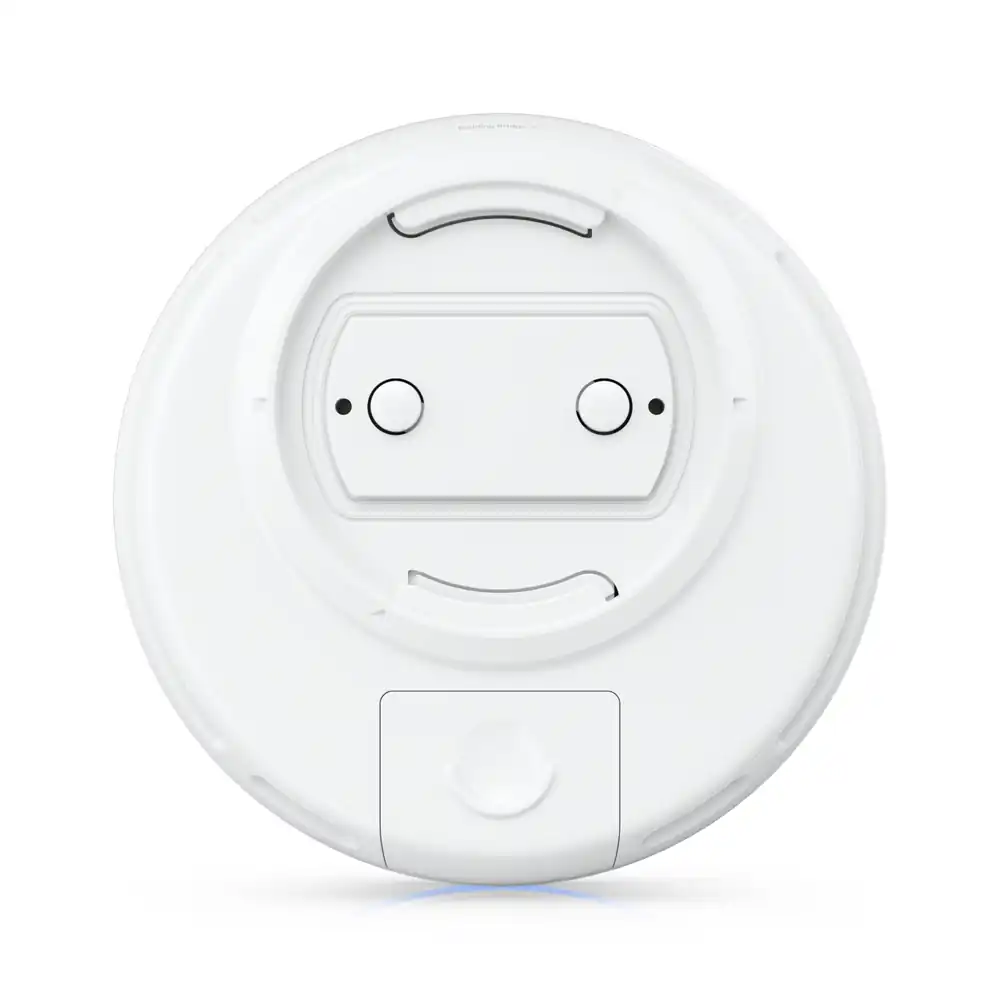

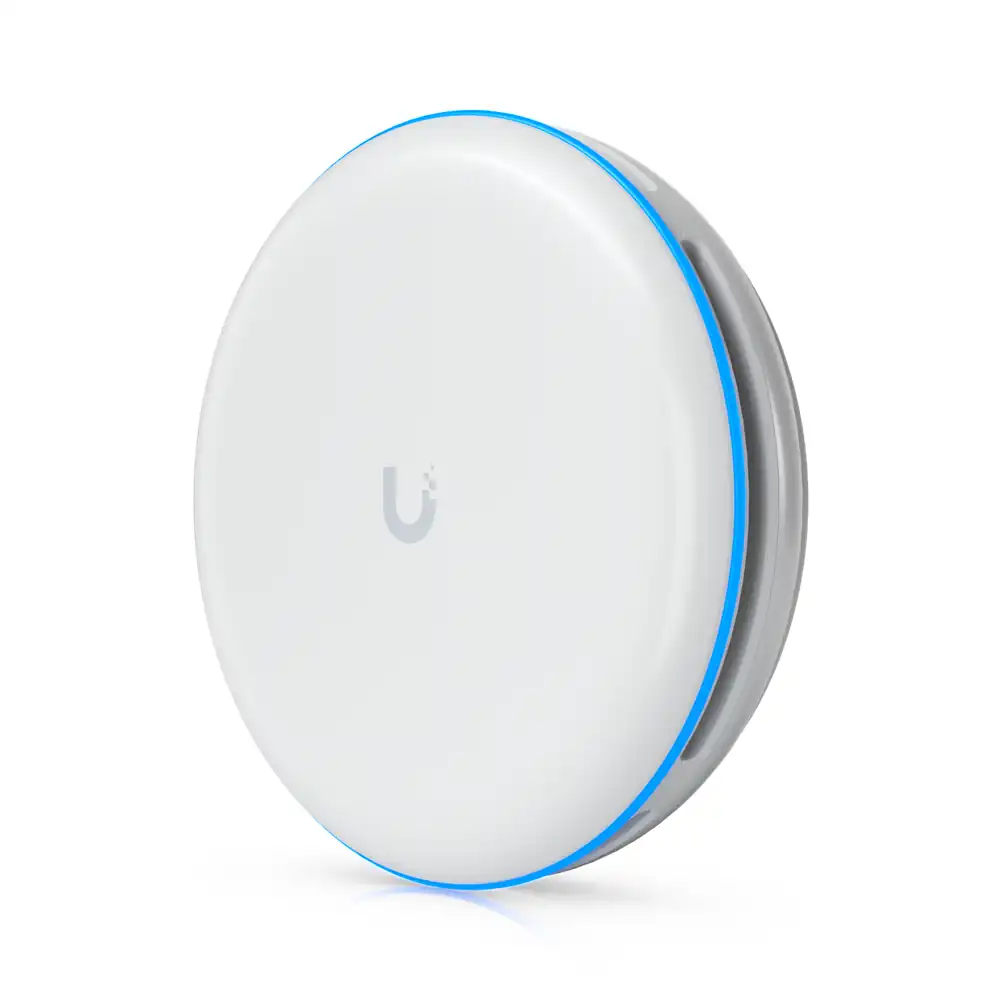

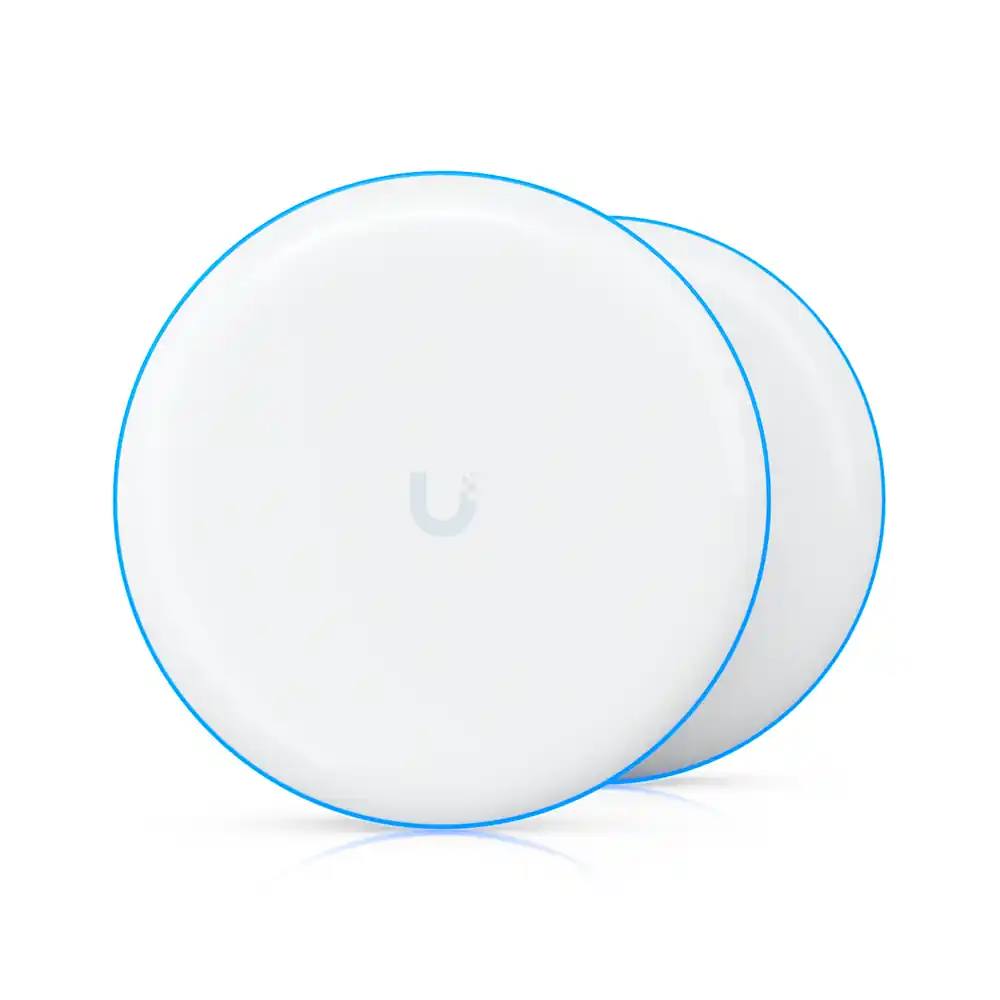

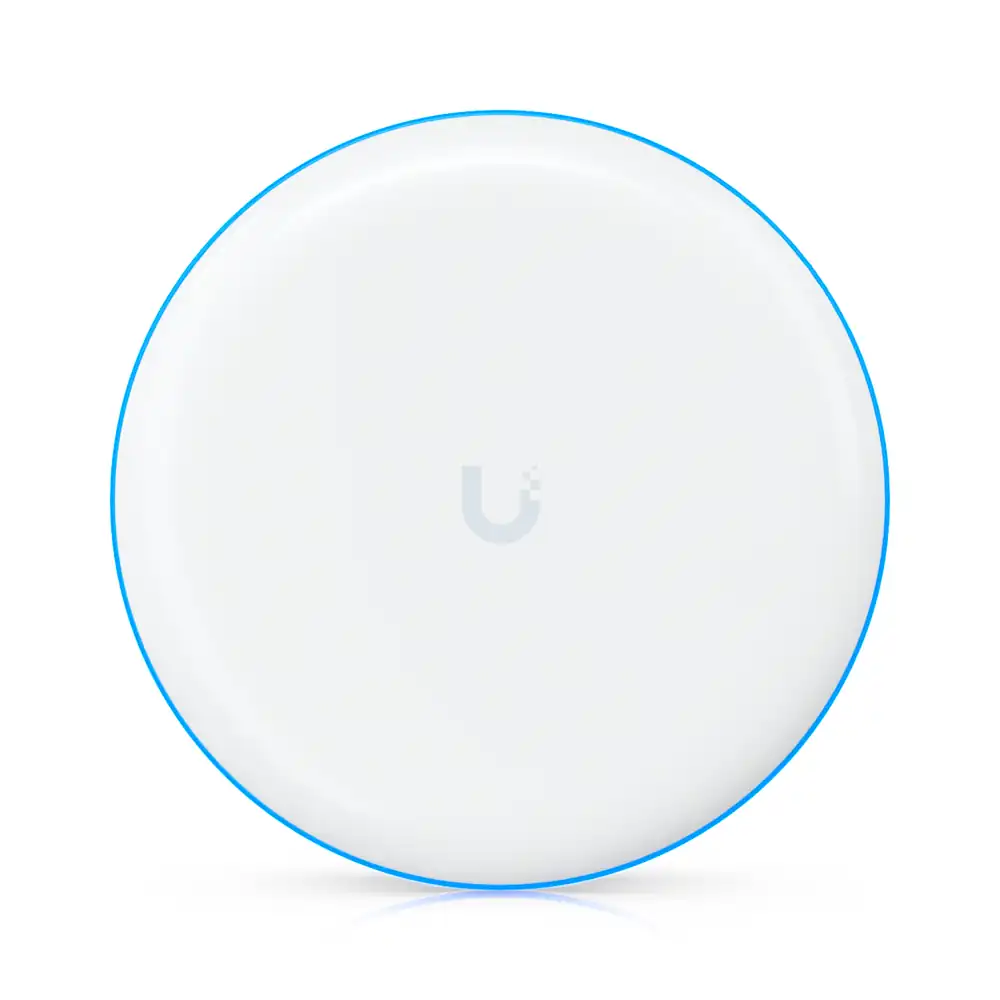

Ubiquiti UniFi Building-to-Building Bridge XG UBB

描述

Ubiquiti UniFi Building-to-Building Bridge XG UBB

網絡拓撲

UBB 技術規格

總覽

Dimensions	⌀191.8 x 59 mm (⌀7.6 x 2.3″)
WiFi Standard	WiFi 5
Spatial Streams	2
Coverage Area	500 m (1,640 ft)
Mounting Locations	Wall, pole
Weatherproofing	IPX6
Power Method	PoE++ Passive PoE

效能

5 GHz	2 x 2 (DL MU-MIMO)
60 GHz	6 Gbps
5 GHz	866.6 Mbps (BW80)
60 GHz	21 dBi
5 GHz	14 dBi
2.4 GHz	2 dBi (BLE)
60 GHz	16 dBm
5 GHz	23 dBm
802.11ac (WiFi 5)	6.5 Mbps to 867 Mbps (MCS0 – MCS9 NSS1/2, VHT 20/40/80)
802.11n	6.5 Mbps to 300 Mbps (MCS0 – MCS15, HT 20/40)
802.11g	6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11b	1, 2, 5.5, 11 Mbps
802.11a	6, 9, 12, 18, 24, 36, 48, 54 Mbps
Wireless Security	WPA2 AES

硬件規格

Max. Power Consumption	29W
Includes PoE Adapter	Yes
Supported Voltage Range	48V DC ± 10%
Networking Interface	(1) GbE RJ45 port (1) 1/10G SFP+ port
Weight	Device: 1.7 kg (3.8 lb) With mount: 2.9 kg (6.3 lb)
Operating Modes	PtP
Wind Loading	56 N at 200 km/h (12.6 lbf at 125 mph)
Pole Mount Diameter	1–2.5″ (25–63.5 mm)
Management	Ethernet Bluetooth
Channel Bandwidth	Main radio (60 GHz): 1,080/2,160 MHz Backup radio (5 GHz): HT 20/40 MHz, VHT 20/40/80 MHz
Enclosure Material	Aluminum alloy, UV-resistant polycarbonate
Mount Material	Stainless steel
Button	(1) Factory reset
System	R/G/B
Operating Frequency	Main radio (60 GHz): 57 – 66 GHz Backup radio (5 GHz): US/CA U-NII-1: 5150 – 5250 MHz U-NII-2A: 5250 – 5350 MHz U-NII-2C: 5470 – 5725 MHz U-NII-3: 5725 – 5850 MHz Worldwide 5150 – 5850 MHz
Bluetooth (MHz)	Worldwide: 2400 – 2483.5 MHz
Ambient Operating Temperature	-40 to 55° C (-40 to 131° F)
Ambient Operating Humidity	5 to 95% noncondensing
NDAA Compliant	Yes
Certifications	CE, FCC, IC, Terragraph

包裝內容

產品資源

Ubiquiti 官方產品頁面　|　快速安裝指南 (QIG)
