Ubiquiti UniFi Device Bridge Pro Sector UDB-Pro-Sector
Member優惠價：$0
🚚 配送方式：
- • 香港本地訂單：購物滿HK$2,000, 免費送貨!
- • 澳門地區訂單：順豐到付 (運費由買家承擔)
🎧 如有技術或貨存查詢
WhatsApp 查詢Ubiquiti UniFi Device Bridge Pro Sector UDB-Pro-Sector

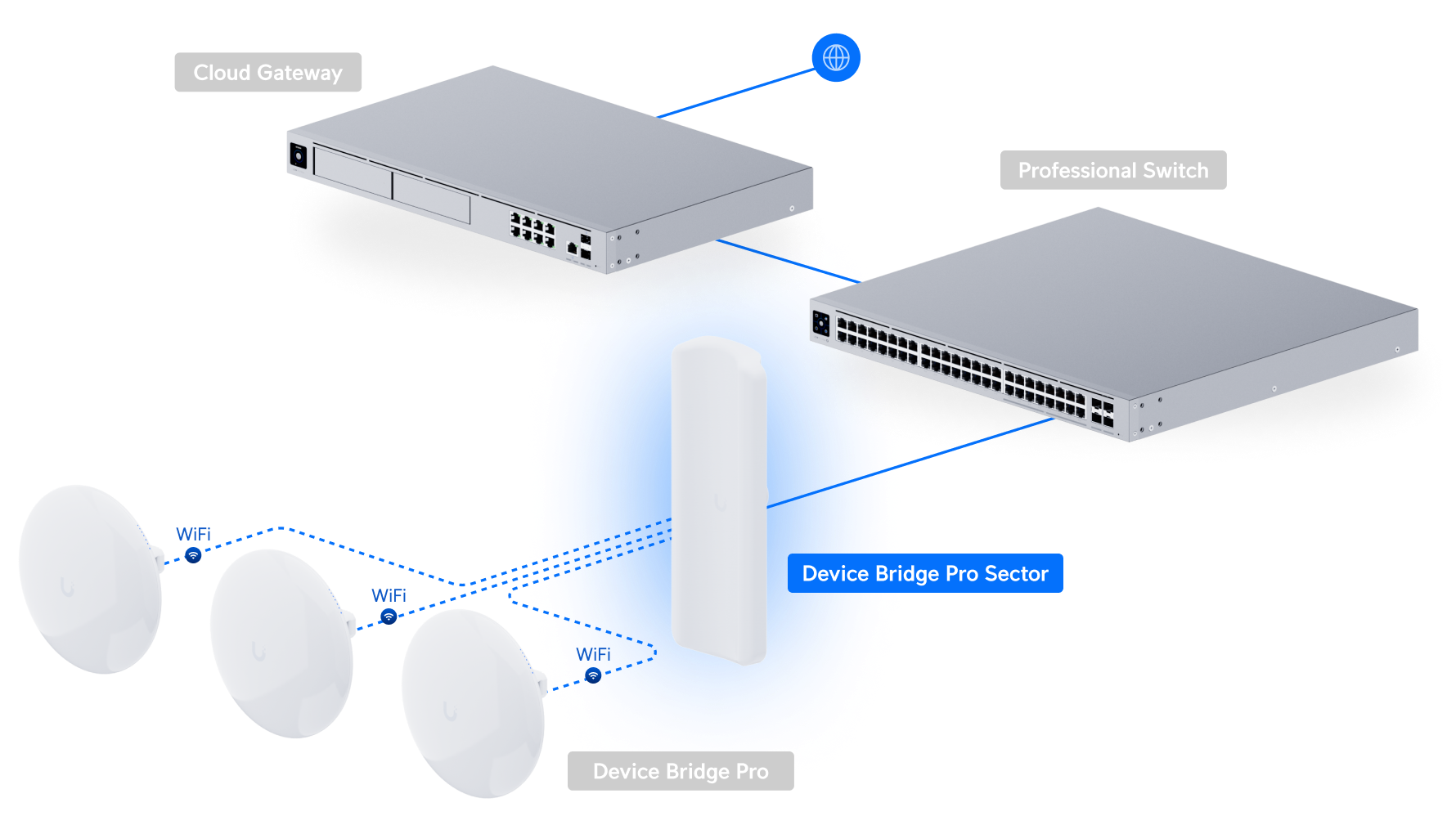

網絡拓撲
UDB-Pro-Sector 技術規格
總覽
| Dimensions | 360.9 x 129.6 x 71.4 mm (14.2 x 5.1 x 2.8”) |
|---|---|
| WiFi Standard | WiFi 5 |
| Spatial Streams | 2 |
| Coverage Area | 5 km (3.1 mi) |
| Mounting Locations | Pole |
| Weatherproofing | IPX6 |
| Power Method | PoE |
效能
| 5 GHz | 2 x 2 |
|---|---|
| 5 GHz | 400 Mbps (BW40) |
| 5 GHz | 17 dBi |
| 5 GHz | 25 dBm |
| Max. Conducted TX Power | 25 dBm (Combined) |
| 802.11ac (WiFi 5) | 6.5 Mbps to 400 Mbps (MCS0 – MCS9 NSS1/2, VHT 20/40) |
| 802.11n | 6.5 Mbps to 300 Mbps (MCS0 – MCS15, HT 20/40) |
| 802.11a | 6, 9, 12, 18, 24, 36, 48, 54 Mbps |
| Wireless Security | WPA2 AES |
硬件規格
| Max. Power Consumption | 6W |
|---|---|
| Supported Voltage Range | 42.5–57V DC |
| Networking Interface | (1) GbE RJ45 port |
| Antennas | Internal |
| Management | Ethernet WiFi |
| Channel Bandwidth | 20/40 MHz |
| Wind Loading | 128.2N at 200 km/h |
| Weight | Device: 782 g (1.7 lb) With mount: 835 g (1.8 lb) |
| Enclosure Material | UV-stabilized polycarbonate |
| Mount Material | UV-stabilized polycarbonate, stainless steel |
| Pole Mount Diameter | 0.9—2.4″ (24—60 mm) |
| Button | (1) Factory reset |
| System | Power, Ethernet |
| NDAA Compliant | Yes |
| Certifications | CE, FCC, IC, Anatel: 05978-25-08356 |
| Operating Frequency | US/CA: U-NII-1 5150 – 5250 MHz U-NII-2A 5250 – 5350 MHz U-NII-2C 5470 – 5725 MHz U-NII-3 5725 – 5850 MHz Worldwide: 5150 – 5875 MHz |
| Ambient Operating Temperature | -40 to 60° C (-40 to 140° F) |
| Ambient Operating Humidity | 5 to 95% noncondensing |

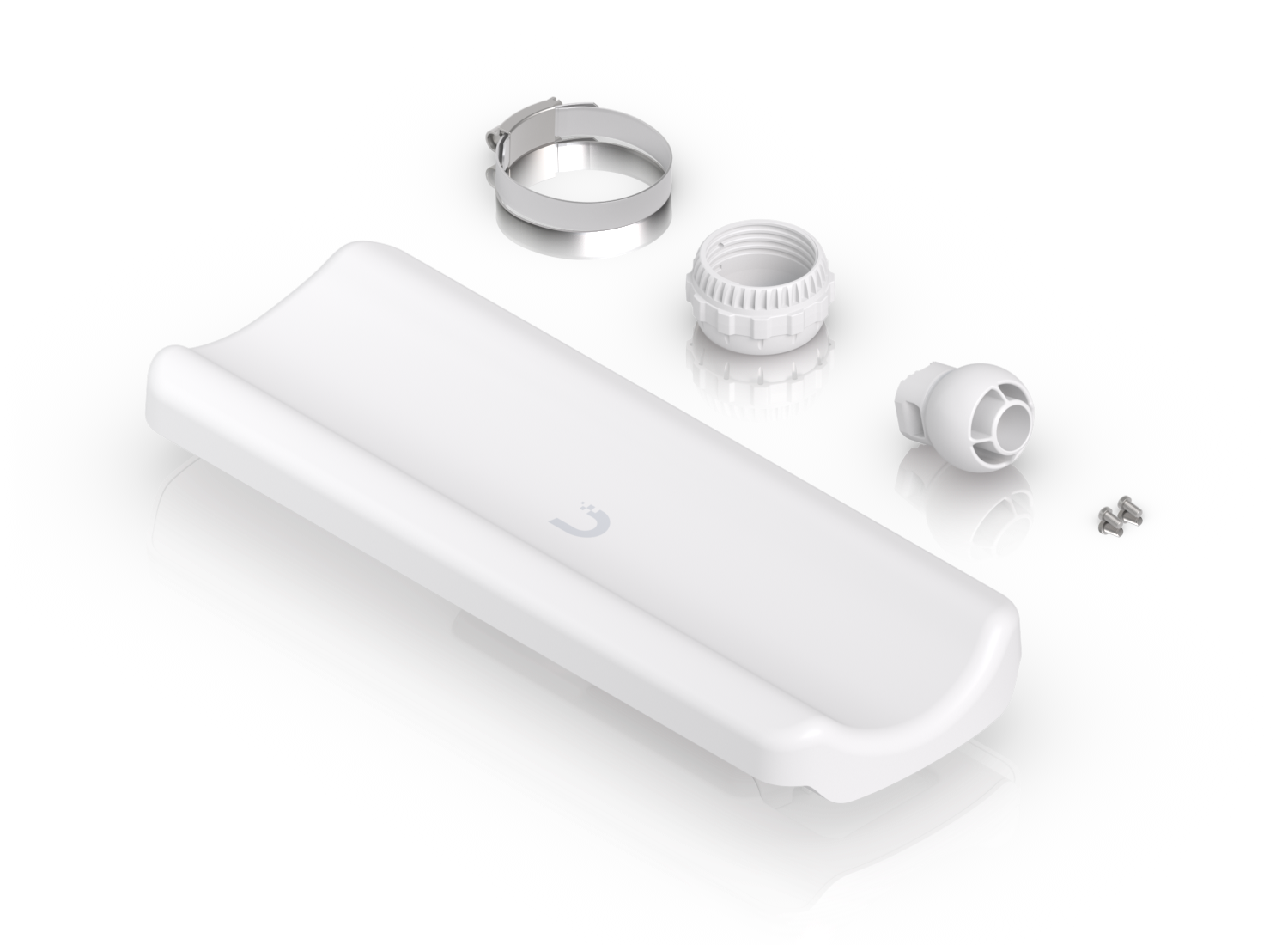

包裝內容
產品資源
| Brands | Ubiquiti |
|---|
