描述

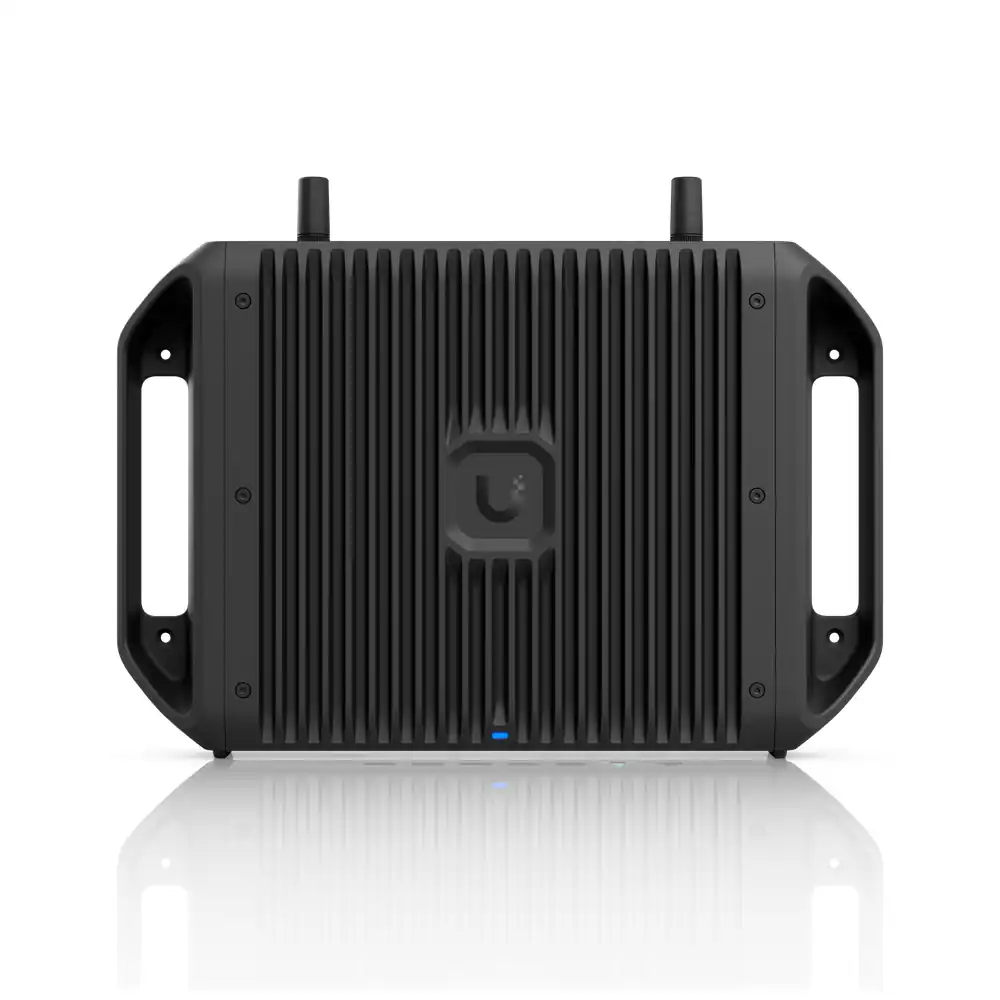

Ubiquiti UniFi Cloud Gateway Industrial UCG-Industrial (270W)

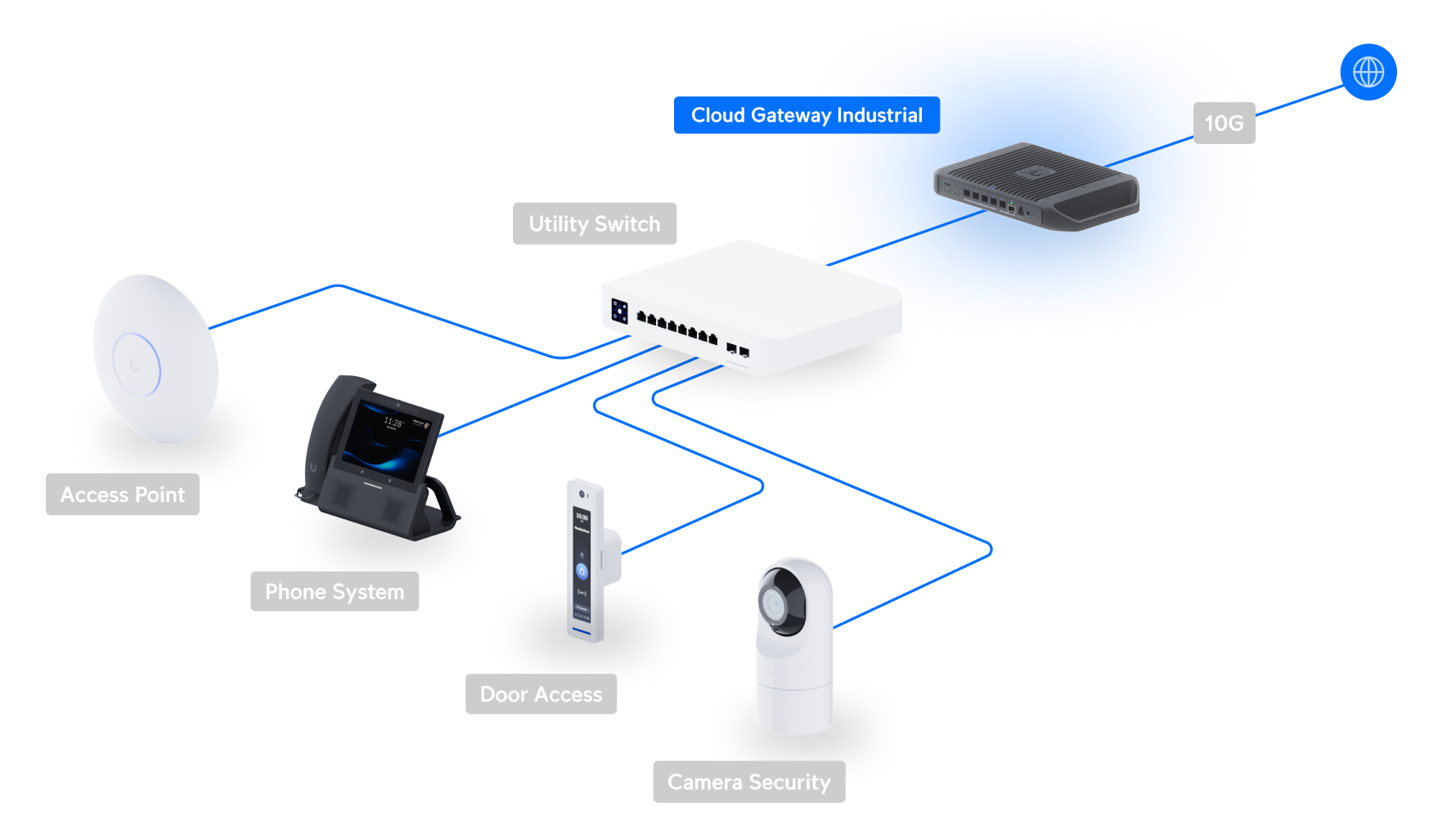

網絡拓撲
UCG-Industrial (270W) 技術規格
Grid overview
| IDS/IPS |
5 Gbps |
| Max. Client Count |
300 |
| RADIUS over TLS (RadSec) |
Yes |
總覽
| Dimensions |
Device: 307.9 x 203.5 x 43.7 mm (12.1 x 8 x 1.7″) Table stand: 203.5 x 100.2 x 21.9 mm (8 x 3.9 x 0.9″) |
| Network |
Yes |
| Protect |
Yes |
| Access |
Yes |
| Talk |
Yes |
| Connect |
Yes |
| Managed UniFi Devices |
50+ |
| Managed Cameras |
(15) HD (8) 2K (5) 4K |
| Managed Access Hubs |
50 |
| Simultaneous Users Connected |
500+ |
| Max. WAN Port Count |
5 |
| Default WAN Ports |
(1) 10G SFP+ (1) 10 GbE RJ45 (1) 2.5 GbE RJ45 |
| 2.5 GbE RJ45 |
4 (2 PoE+++, 2 PoE+) (2.5G/1G/100M) |
| 10 GbE RJ45 |
1 (PoE+++) (10G/5G/2.5G/1G/100M) |
| 10G SFP+ |
1 (10G/1G) |
| IDS/IPS Throughput |
5 Gbps |
| Form Factor |
Wall-mounted Compact desktop (Table stand included) Rack mount (Accessory sold separately) |
| Coverage Area |
115 m² (1,250 ft²) |
安全功能
| Stateful Firewall |
Yes |
| Application-Aware Layer 7 Firewall |
Yes |
| DPI & Traffic Identification |
Yes |
| Zone-Based Firewall Advanced Filtering (Regions, Domains, Apps) |
Yes |
| Content Filtering |
Yes |
| Intrusion Prevention (IPS/IDS) |
Yes |
| Ad Blocking |
Yes |
| IDS/IPS Signatures |
55,000+ with CyberSecure |
| VLAN/Subnet-based Traffic Segmentation |
Yes |
VPN & SD-WAN
| License-Free SD-WAN |
Yes |
| Site Magic |
Yes |
| IPsec |
Yes |
| OpenVPN |
Yes |
| Identity Endpoint One-Click VPN |
Yes |
| Teleport Zero-Configuration VPN |
Yes |
| WireGuard |
Yes |
| OpenVPN |
Yes |
| L2TP |
Yes |
| OpenVPN |
Yes |
| WireGuard |
Yes |
Networking
| Multi-WAN Load Balancing |
Yes |
| OSPF |
Yes |
| Advanced QoS |
Yes |
| Multicast DNS (mDNS) |
Yes |
| Advanced NAT (SNAT / DNAT / Masquerade / NAT Pooling / 1-to-1 NAT) |
Yes |
| Integrated RADIUS Server |
Yes |
| RADIUS over TLS (RadSec) |
Yes |
| Additional Internet Failover with UniFi LTE Backup |
Yes |
| Internet Quality and Outage Reporting |
Yes |
| MAC Address Table Size |
4,000 |
| Virtual Network Override |
Yes |
| All Traffic Flows |
No |
Integrated WiFi
| WiFi Standard |
802.11a/b/g/n/ac/ax/be (WiFi 6, WiFi 7) |
| 5 GHz |
4.3 Gbps |
| 2.4 GHz |
688 Mbps |
| 5 GHz |
2 x 2 (DL/UL MU-MIMO) |
| 2.4 GHz |
2 x 2 (DL/UL MU-MIMO) |
| 5 GHz |
Stub antenna: 5 dBi Terminal (Omni) antenna: 6 dBi |
| 2.4 GHz |
Stub antenna: 3 dBi Terminal (Omni) antenna: 6 dBi |
| 5 GHz |
26 dBm |
| 2.4 GHz |
23 dBm |
| 802.11be (WiFi 7) |
7.3 Mbps to 4.3 Gbps (MCS0 – MCS13 NSS1/2, EHT 20/40/80/160/240) |
| 802.11ax (WiFi 6) |
7.3 Mbps to 2.4 Gbps (MCS0 – MCS11 NSS1/2, HE 20/40/80/160) |
| 802.11ac (WiFi 5) |
6.5 Mbps to 1.7 Gbps (MCS0 – MCS9 NSS1/2, VHT 20/40/80/160) |
| 802.11n |
6.5 Mbps to 300 Mbps (MCS0 – MCS15, HT 20/40) |
| 802.11g |
6, 9, 12, 18, 24, 36, 48, 54 Mbps |
| 802.11b |
1, 2, 5.5, 11 Mbps |
| 802.11a |
6, 9, 12, 18, 24, 36, 48, 54 Mbps |
硬件規格
| NVR Storage |
Pre-installed 128 GB microSD for NVR |
| Expansion Slot |
MicroSD Card |
| PoE Budget |
DC input: 270W ATX power: 75W |
| PoE+ |
30W |
| PoE+++ |
90W |
| Voltage Range PoE Mode |
50-57V |
| Max. Power Consumption |
28W (Excluding PoE output) |
| Power Method |
(1) DC Input (350W PSU) (1) ATX power (48V) |
| Power Supply |
54V DC, 350W (Adapter included) ATX power (48V) |
| Supported Voltage Range |
100–240V AC |
| Heat Dissipation |
85 BTU/hr (Excluding PoE output) |
| Processor |
Quad-core ARM® Cortex®-A73 at 2.2 GHz |
| System Memory |
3 GB |
| Weight |
Device: 2.4 kg (5.3 lb) Table stand: 321 g (11.3 oz) |
| Enclosure Material |
Device: Polycarbonate, aluminium alloy Table stand: Polycarbonate, galvanized steel, silicone rubber |
| Management |
Ethernet Bluetooth |
| Ethernet |
Yes |
| SFP+ |
Yes |
| System |
Yes |
| MicroSD |
Yes |
| SIM |
Yes |
| Button |
(1) Factory reset (2) Handle release buttons |
| ESD/EMP Protection |
Air: ± 8kV, contact: ± 4kV |
| Ambient Operating Temperature |
-30 to 50° C (-22 to 122° F) |
| Ambient Operating Humidity |
5 to 95% noncondensing |
| NDAA Compliant |
Yes |
| Certifications |
CE, FCC, IC |
軟件要求
| Web Application |
UniFi iOS™: Version 10.32.0 and later Android™: Version 10.35.0 and later |

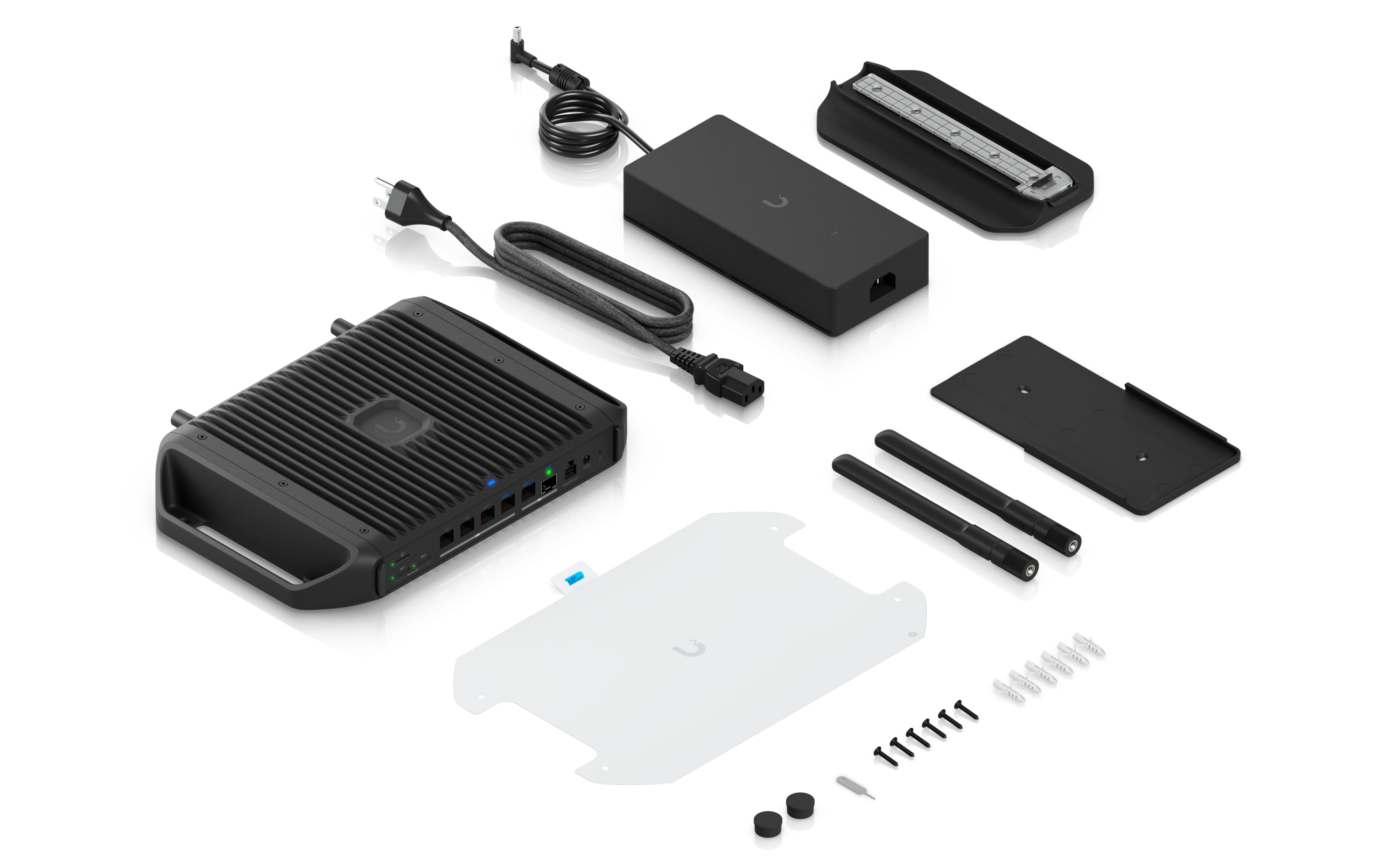

包裝內容
產品資源
Ubiquiti 官方產品頁面 | 快速安裝指南 (QIG)
