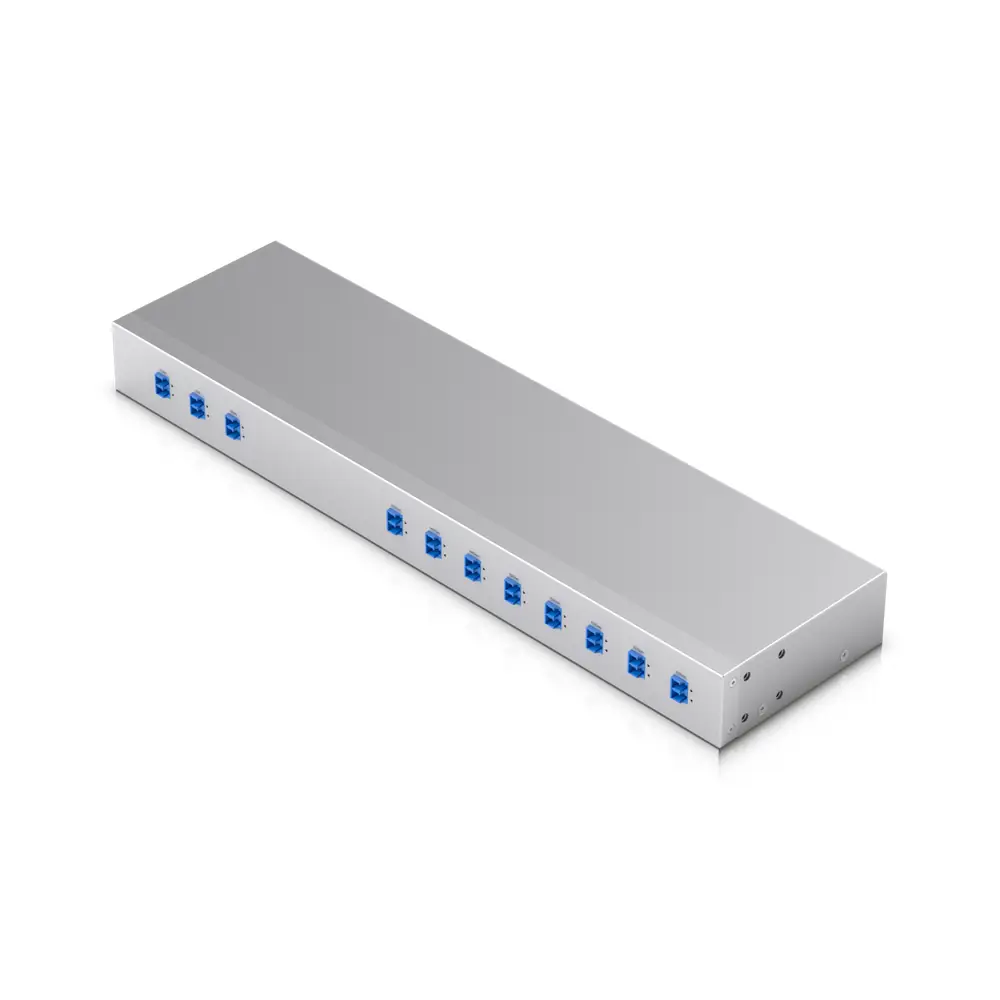

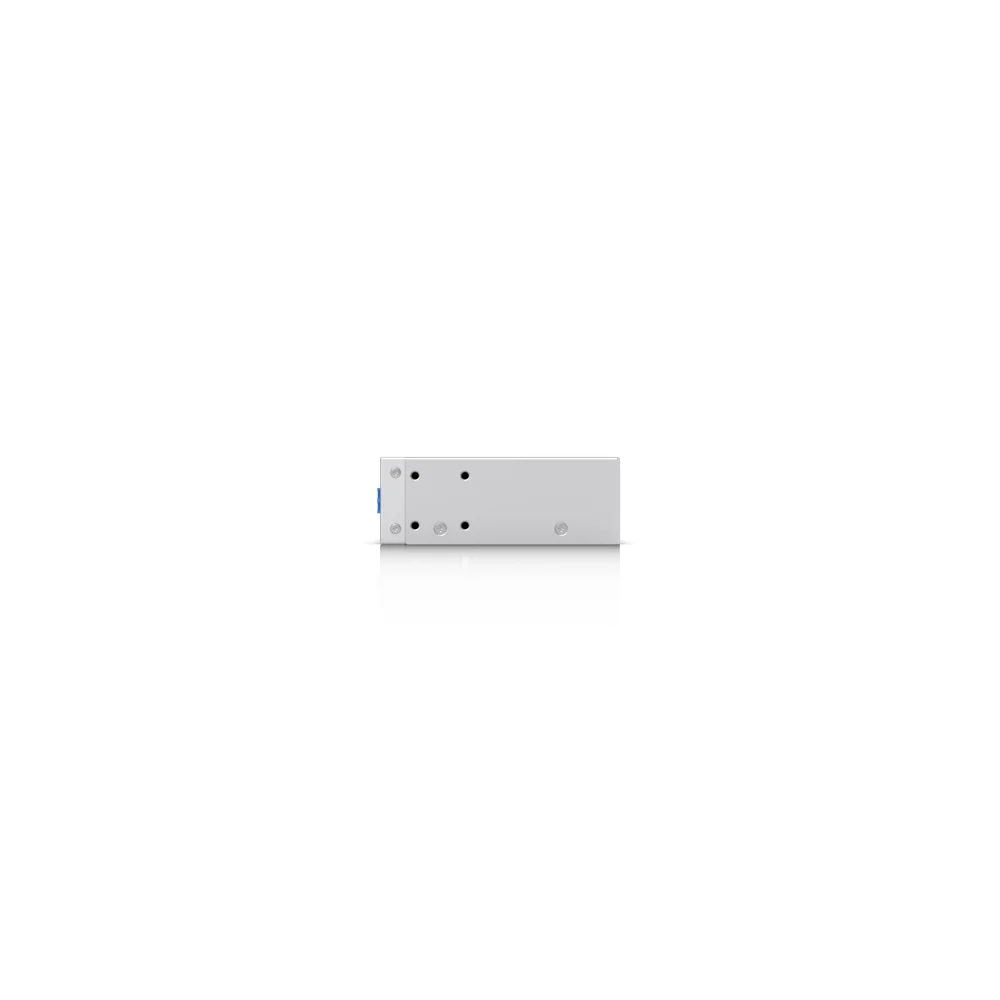

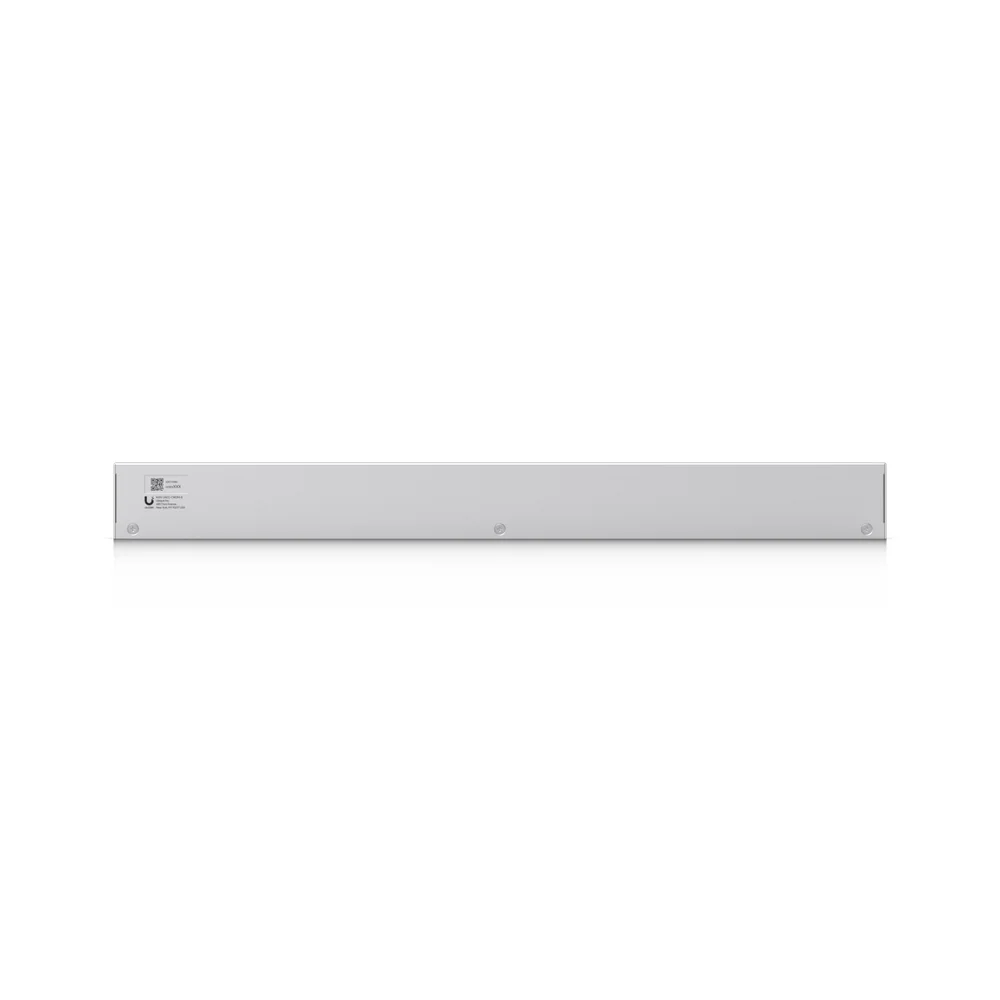

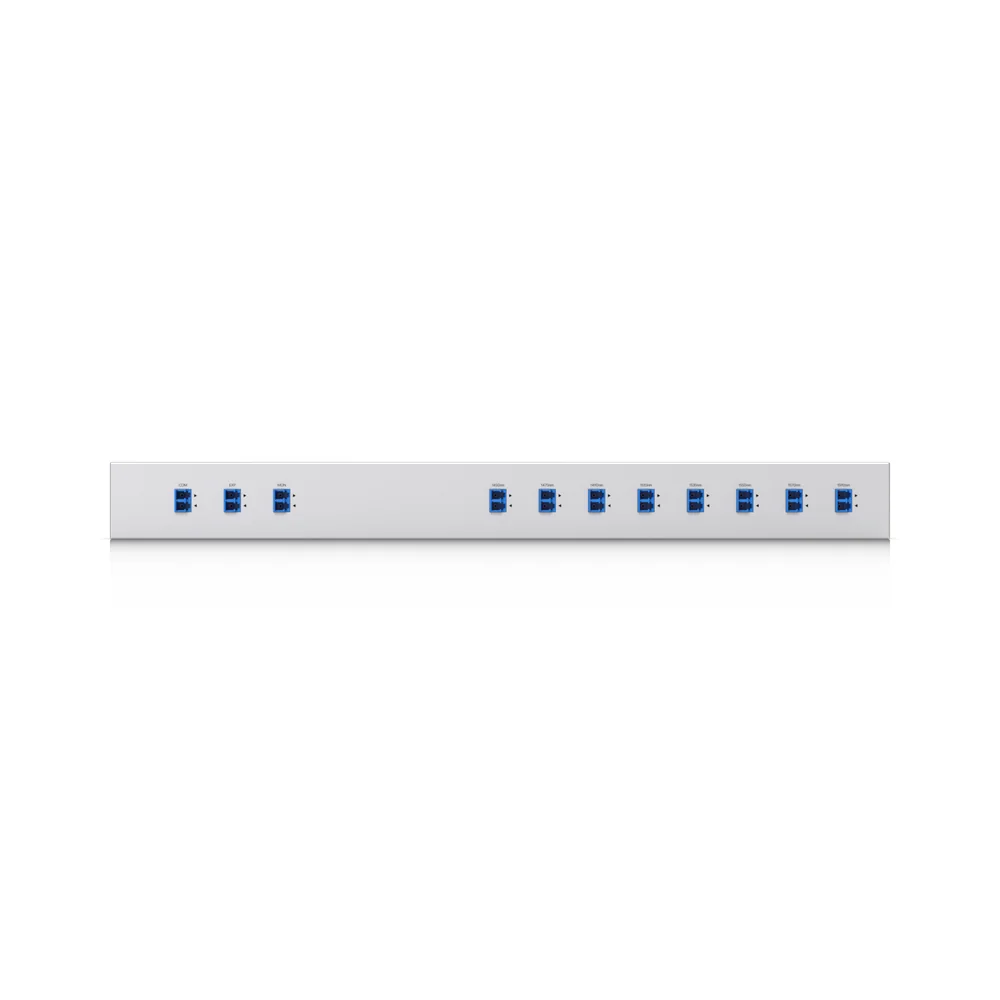

Ubiquiti UniFi CWDM Mux Demux 4 UACC-CWDM-8
Member優惠價：$0
🚚 配送方式：
- • 香港本地訂單：購物滿HK$2,000, 免費送貨!
- • 澳門地區訂單：順豐到付 (運費由買家承擔)
🎧 如有技術或貨存查詢
WhatsApp 查詢Ubiquiti UniFi CWDM Mux Demux 4 UACC-CWDM-8
UACC-CWDM-8 技術規格
總覽
| Dimensions | 442 x 120 x 43.7 mm (17.4 x 4.7 x 1.7″) |
|---|---|
| Enclosure Material | SGCC steel |
| Weight | 1.4 kg (3.2 lb) |
| Pigtail and Connector Type | COM: 0.9 mm black LC/UPC Other ports: 0.9 mm white LC/UPC |
| Connector | (1) COM (LC/UPC) (1) MON (LC/UPC) (1) EXP (LC/UPC) (1) 1450 to 1590 nm (LC/UPC) |
| Type | SMF-28e |
| Length | ≥0.5 to 1 m |
| Isolation | Adjacent Channel: Max. 30 dB Non-Adjacent Channel: Min. 40 dB |
| Channel Count | 8 CH Mux/Demux |
| Channel Center Wavelength | 1450/1470/1490/1510/1530/1550/1570/1590 nm |
| Min. Channel Passband | ±6.5 nm |
| Insertion Loss | <2.5 dB (Max.) |
| Return Loss | 50 dB (Min.) |
| Max. Power Handling | 500 mW |
| Max. Passband Ripple | 0.3 dB |
| Max. Polarization Dependent Loss | 0.1 dB |
| Max. Polarization Mode Dispersion | 0.1 ps |
| Min. Directivity | 55 dB |
| Ambient Storage Temperature | -40 to 90° C (-40 to 194° F) |
| Ambient Operating Temperature | -30 to 75° C (-22 to 167° F) |
產品資源
| Brands | Ubiquiti |
|---|
