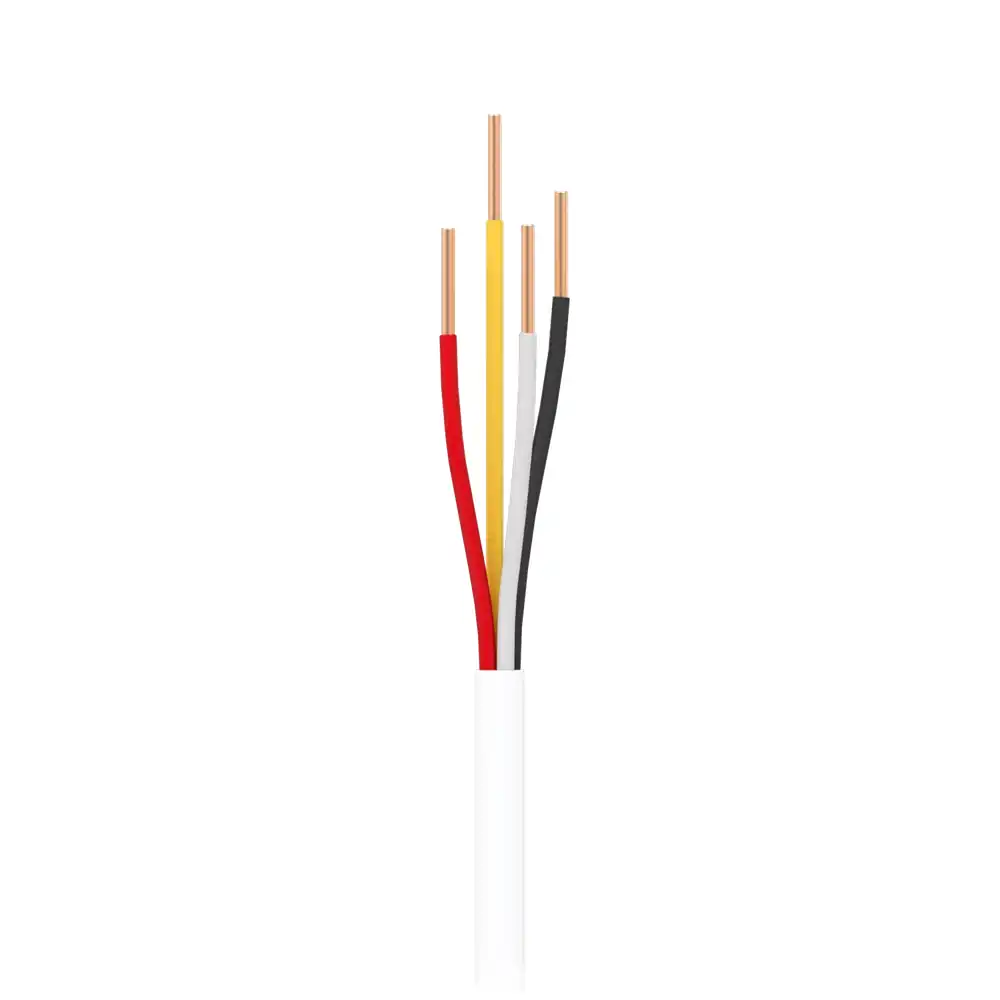

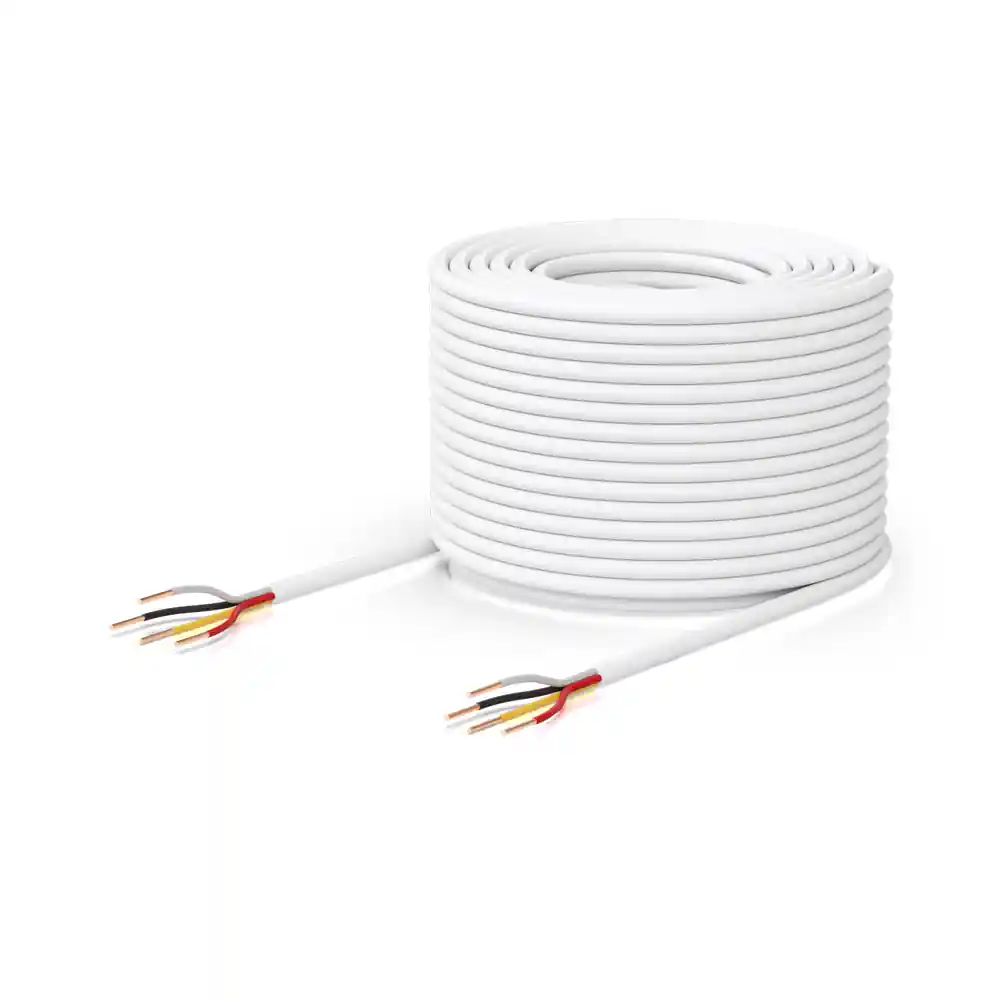

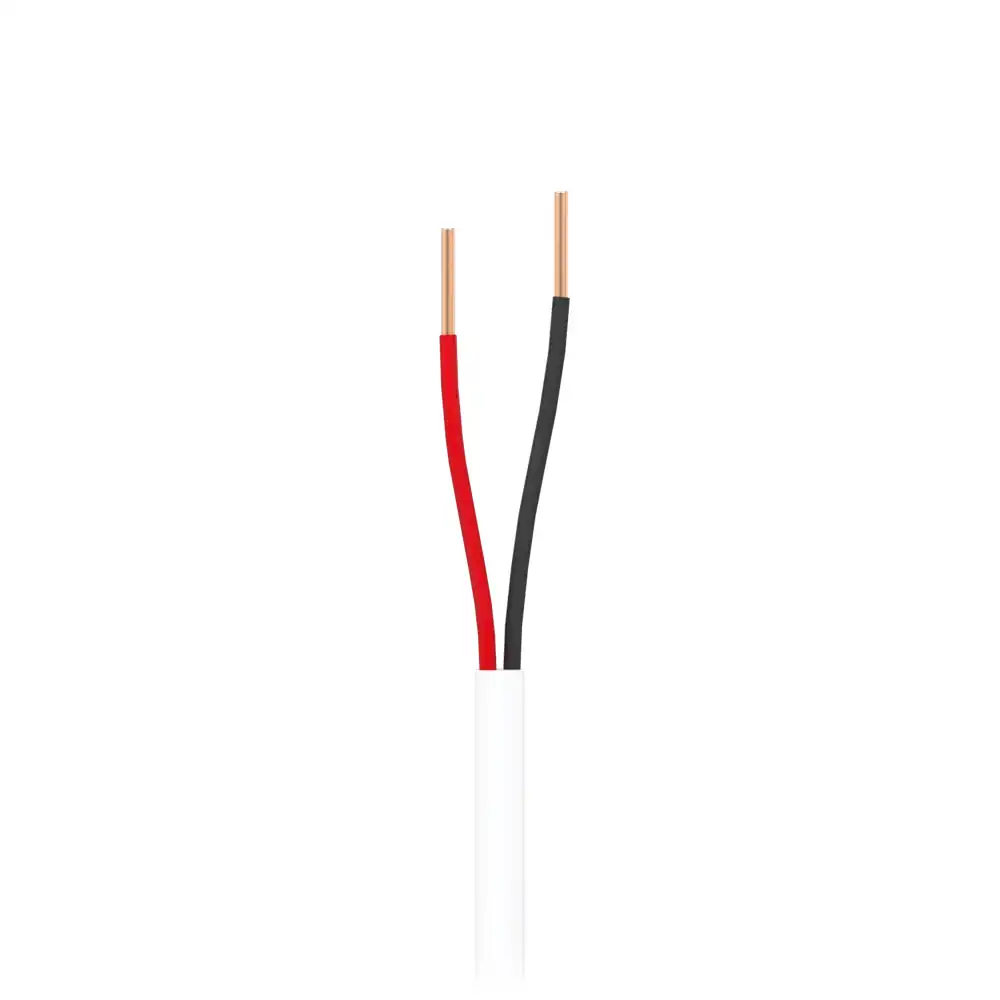

Ubiquiti UniFi Door Lock Relay Cable UACC-Cable-DoorLockRelay
Member優惠價：$0
🚚 配送方式：
- • 香港本地訂單：購物滿HK$2,000, 免費送貨!
- • 澳門地區訂單：順豐到付 (運費由買家承擔)
🎧 如有技術或貨存查詢
WhatsApp 查詢Ubiquiti UniFi Door Lock Relay Cable UACC-Cable-DoorLockRelay
UACC-Cable-DoorLockRelay 技術規格
總覽
| Length | 152.4 m (500 ft) |
|---|---|
| Material | Conductor: Solid bare copper Jacket: Thermoplastic elastomer (TPE) Insulation: Semi-rigid polyvinyl chloride (SR-PVC) |
| Insulation | UACC-Cable-DoorLockRelay-2P: black/red (18AWG), amber/white (22AWG) UACC-Cable-DoorLockRelay-1P: black/red (18AWG) |
| Current Rating | 18AWG: 2A for 500 ft length 22AWG: 1A for 500 ft length |
| Flame Rating | VW-1 |
| Conductor Wire Gauge | UACC-Cable-DoorLockRelay-2P: 18/22 AWG UACC-Cable-DoorLockRelay-1P: 18 AWG |
| Weight | UACC-Cable-DoorLockRelay-2P: 5.6 kg kg (12.3 lb) UACC-Cable-DoorLockRelay-1P: 4.58 kg (10.1 lb) |
| Jacket Outer Diameter | UACC-Cable-DoorLockRelay-2P: 4.5 mm (0.18″) UACC-Cable-DoorLockRelay-1P: 4.2 mm (0.17″) |
| Jacket Color | White |
| Bend Radius | UACC-Cable-DoorLockRelay-2P: 56 mm (2.2″) UACC-Cable-DoorLockRelay-1P: 33 mm (1.3″) |
| Pulling Tension | UACC-Cable-DoorLockRelay-2P: 24.2 kgf UACC-Cable-DoorLockRelay-1P: 16.4 kgf |
| Conductor DCR | UACC-Cable-DoorLockRelay-2P: 23.2 ohm/km (18AWG), 59.4 ohm/km (22AWG) UACC-Cable-DoorLockRelay-1P: 23.2 ohm/km (18AWG) |
| Supported Voltage Range | 36V DC |
| Number of Conductors | UACC-Cable-DoorLockRelay-2P: 4 UACC-Cable-DoorLockRelay-1P: 2 |
| Ambient Storage Temperature | -45 to 65° C (-40 to 149° F) |
| Ambient Operating Temperature | -45 to 65° C (-40 to 149° F) |
產品資源
| Brands | Ubiquiti |
|---|
